OEM 220V 360V 384V 100Ah 200Ah Lithium Iron Phosphate Batteries 22Kwh LifePO4 Battery For UPS/Solar


Product Description






Product profile
This product is composed of high quality lithium iron phosphate core (series-parallel connection) and advanced BMS management system. It can be used as independent DC power supply or as "basic unit" to form a variety of energy storage lithium battery power supply systems. It has high reliability and long life. Products developed for applications such as power grid energy storage, industrial and commercial energy storage, home high voltage energy storage, high voltage UPS, and data room.

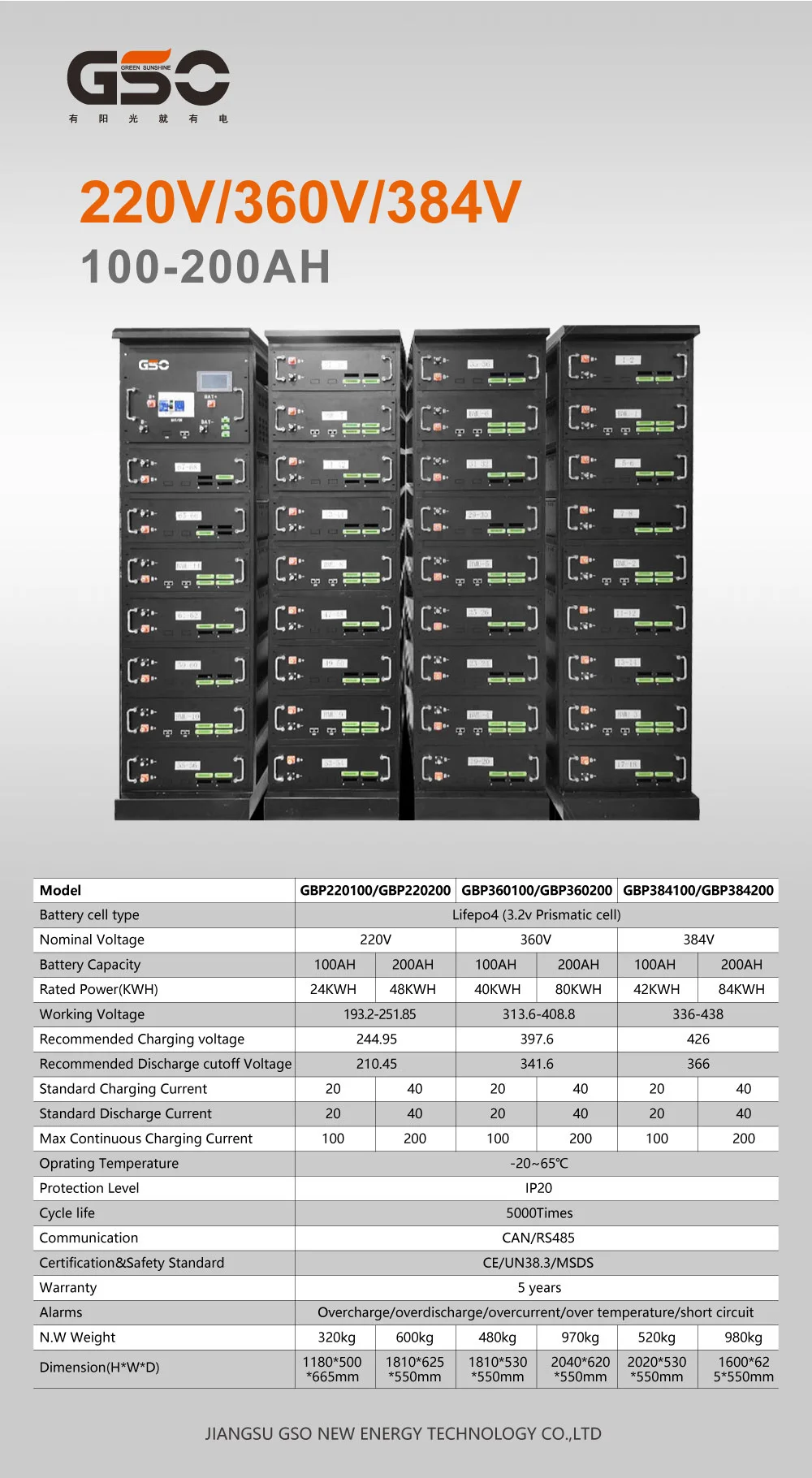

Product Presentation




Model
GBP 220100
GBP 220200
GBP 360100
GBP 360200
GBP 384100
GBP 384200
Type of core
Lithium iron phosphate
Rated energy(KWH)
22
44
36
72
40
80
Nominal capacity (AH)
100
200
100
200
100
200
Nominal voltage(VDC)
220.8
358.4
384
Operating voltage range(VDC)
179~259
391~420
312~450
Recommended Charge Voltage(VDC)
242
392
420
Recommended discharge cutoff voltage(VDC)
210
342
366
Standard charging current (A)
50
80
50
80
50
80
Maximum continuous charge current(A)
100
200
100
200
100
200
Standard discharge current (A)
50
80
50
80
50
80
Maximum continuous discharge current(A)
100
200
100
200
100
200
Working temperature
-20~65℃
Protection level
IP20
Communication interface
RS485/CAN two choose one
Reference Weight (Kg)
300
600
470
940
500
1000
Reference size(D*W*Hmm)
530*650*1180
625*550*1810
530*550*1810
(625*550*2040)*2
530*550*2020
(625*550*1600)*2


Detailed Images

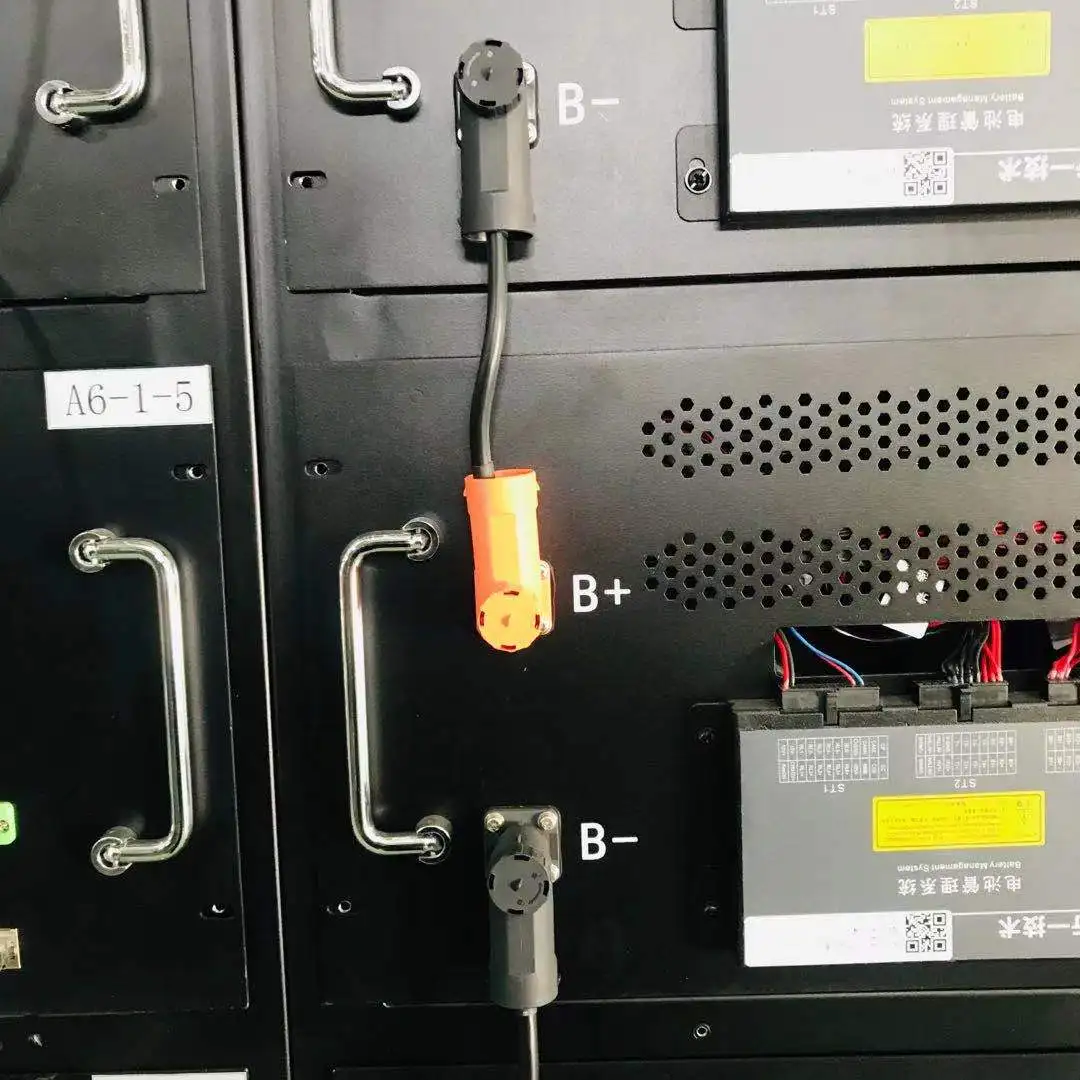

Please follow the following steps to implement battery connection:




Remove orange and black connectors from battery module
Insert the connector into the connectors
Tighten the bolt with an inner hexagonal wrench stuck M 6 the connector base


Use multimeter to measure the B+ and B- on the high-volt battery box to see if the total pressure is normal
Test the temperature on the connector with a temperature measuring gun after electrification for a period of time to prevent the bolt from not tightening and cause the temperature to rise at the connection joint, resulting in the hidden danger of safety


Product Advantage


convenient installation and maintenance, easy operation
The product adopts modular design, higher integration, saving installation space; adopts high performance lithium iron phosphate cathode material, good core consistency, design service life of more than 10 years; one-key switch machine, front operation, front wiring


Over voltage protection
various functions, with single over-voltage / under-voltage, total voltage under-voltage / over-voltage, charge / discharge over-current, high temperature, low temperature, insulation and short circuit protection and recovery functions


Strong Compatibility
seamless docking with UPS, photovoltaic power generation and other main equipment; communication interface forms, CAN / RS 485 and so on can be customized according to customer needs, convenient system remote monitoring and flexible use.


High energy lithium electric equipment
Achieve higher energy supply, lower energy consumption, and reduce
environmental pollution; adopt all-round, multi-level battery protection strategy and fault isolation measures to ensure the safe operation of the system.


Related Products




Certificate




Company Introduction




Packing&Shipping




FAQ


1. Who are we?
We are based in Jiangsu, China, sell to Domestic Market(10.00%), Mid East(10.00%), Africa(15.00%), North America(5.00%), South America(10.00%), Eastern Asia(10.00%), Eastern Europe(15.00%), Southeast Asia(25.00%) . There are total about 100-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.

3. What can you buy from us?
UPS, Solar System, Lithium Battery Energy Storage System, Solar Inverter, MPPT Solar Controller, etc.

4. Why should you buy from us not from other suppliers?
Lithium iron battery, solar system, Solar inverter, PWM or MPPT controller, solar battery and PV combiner box.
Experienced in complete solar system design and configuration from 300W to 250KW.
OEM service is accepted.

5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
