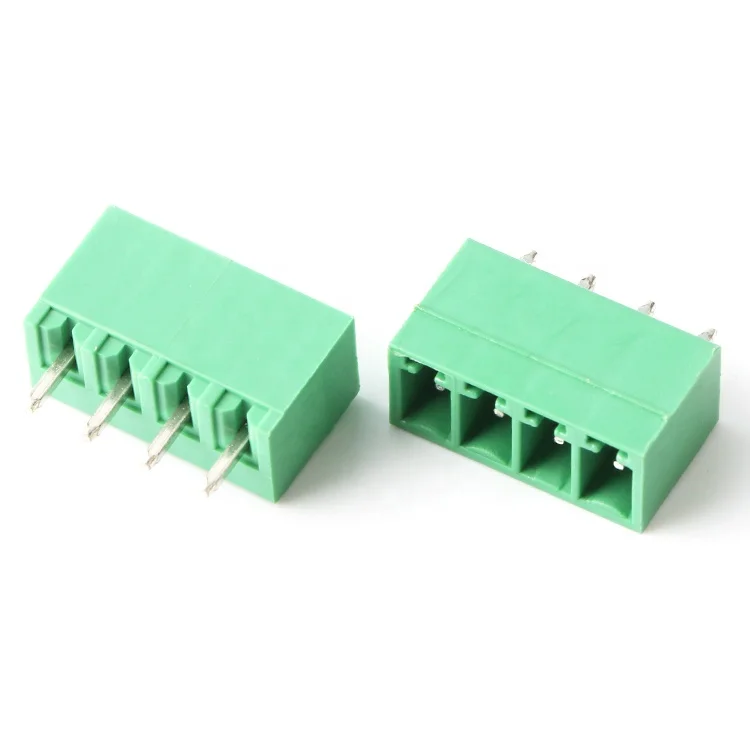

8A 300V 4 pins Pcb Spring Terminal Block 180 degree 3.81 terminal connector
- Категория: Terminal Blocks >>>
- Поставщик: Shenzhen,Tuozhi,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.62 $* | 0.16 $* |
| Aug-19-2025 | 0.54 $* | 0.79 $* |
| Jul-19-2025 | 0.74 $* | 0.82 $* |
| Jun-19-2025 | 0.23 $* | 0.69 $* |
| May-19-2025 | 0.64 $* | 0.55 $* |
| Apr-19-2025 | 0.61 $* | 0.93 $* |
| Mar-19-2025 | 0.38 $* | 0.18 $* |
| Feb-19-2025 | 0.58 $* | 0.28 $* |
| Jan-19-2025 | 0.91 $* | 0.36 $* |
Характеристики
Specifications | Specifications | |||||
Product Name | Terminal Blocks & Strips | |||||
Electrical Characteristics | Electrical Feature | Current Rating | 8A / 10A/ 15A/ 30A | |||
Voltage Rating | 300V AC Max | |||||
Contact Resistance | 30mΩ Max | |||||
Dielectric Withstanding Voltage | 250V AC RMS For 1 Min | |||||
Insulation Resistance | 3000MΩ Min at 500V DC | |||||
Material | Housing:PA66; Wire Guard:Phosphor Bronze,Ni Plated Pin Header:Brass,Tin Plated; Screw:M2,Steel(Q235),Zinc Plated | |||||
Wire Range | 28-16AWG / 22-12AWG /24-12AWG | |||||
Operating Temperature | -40℃~+105℃ | -20℃+65℃ | ||||
OEM/ODM | Support | |||||
Application | Secure or Terminate Wires | |||||
Product Description
Why Choose Us
●Different Optional Product
●Oem/Odm Custom Service
●Strict Product Quality Test
●Fast Delivery Service
Welcome to send your quotation.
to get latest price and wonderful service.
We are sincerely looking forward to cooperatering with you!
If you need more specific product information or other product in our store,please tell us your requirement.
