Запчасти для автогрейдеров чемпионов X C M G GR190 автогрейдер 140k новинка

Запчасти для автогрейдеров чемпионов X C M G GR190 автогрейдер 140k новинка

Категория: Motor Graders >>>
Поставщик: Shandong,Ocean,Import,&,Export,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.4 $*	0.30 $*
Aug-17-2025	0.20 $*	0.67 $*
Jul-17-2025	0.17 $*	0.84 $*
Jun-17-2025	0.22 $*	0.10 $*
May-17-2025	0.31 $*	0.81 $*
Apr-17-2025	0.93 $*	0.46 $*
Mar-17-2025	0.41 $*	0.85 $*
Feb-17-2025	0.47 $*	0.38 $*
Jan-17-2025	0.83 $*	0.66 $*

Характеристики

X C M G GR190 champion motor grader parts 140k motor grader 180 new

Product Description

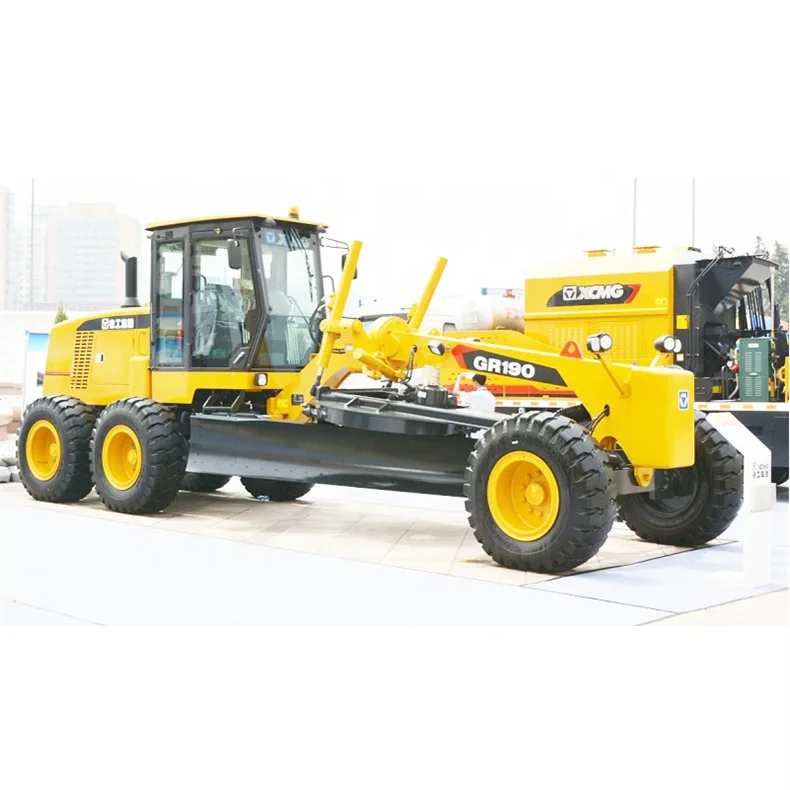

motor grader (1).jpg

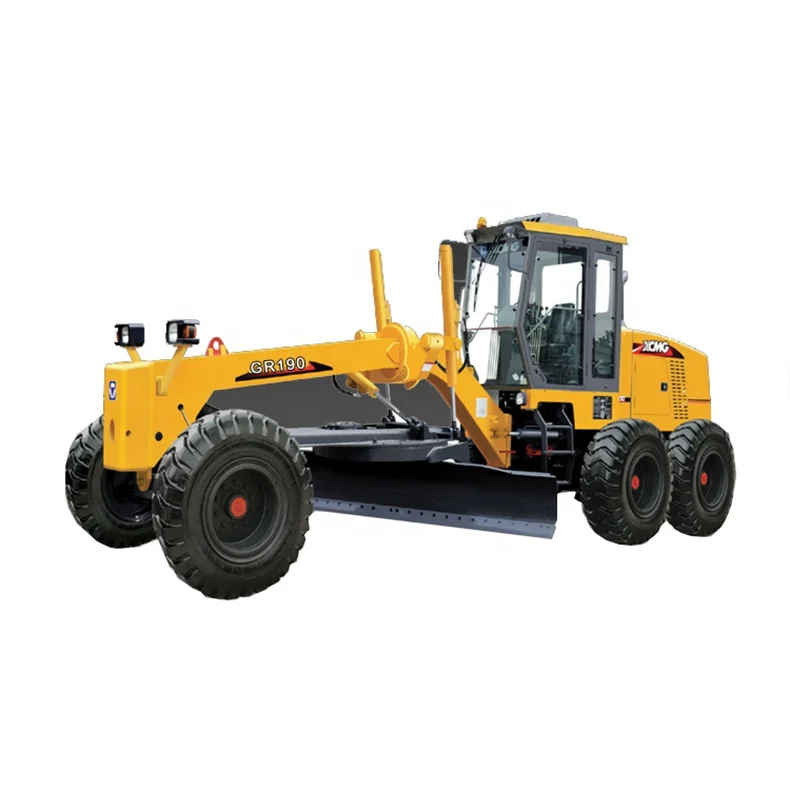

motor grader (2).jpg

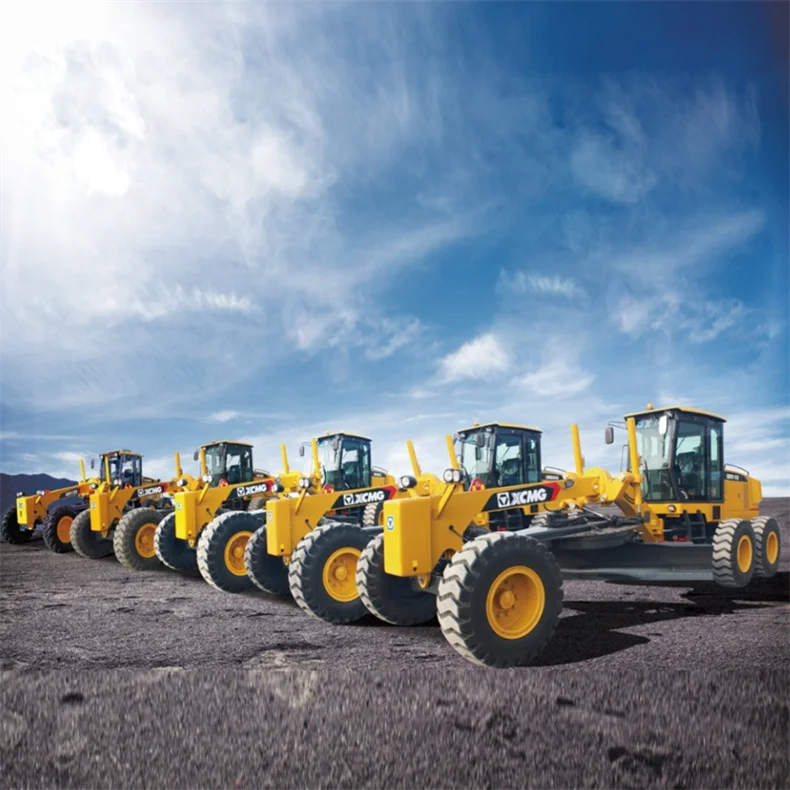

grader machine (4).jpg

Basic specification
Engine model	6CTAA8.3 D6114
Rated power/speed	138kW/2200 140kW/2300rpm
Dimension(LxWxH)	8900×2625×3470mm
Operating weight(Standard)	15400kg
Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.75)	79KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Biade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	3965×610mm
