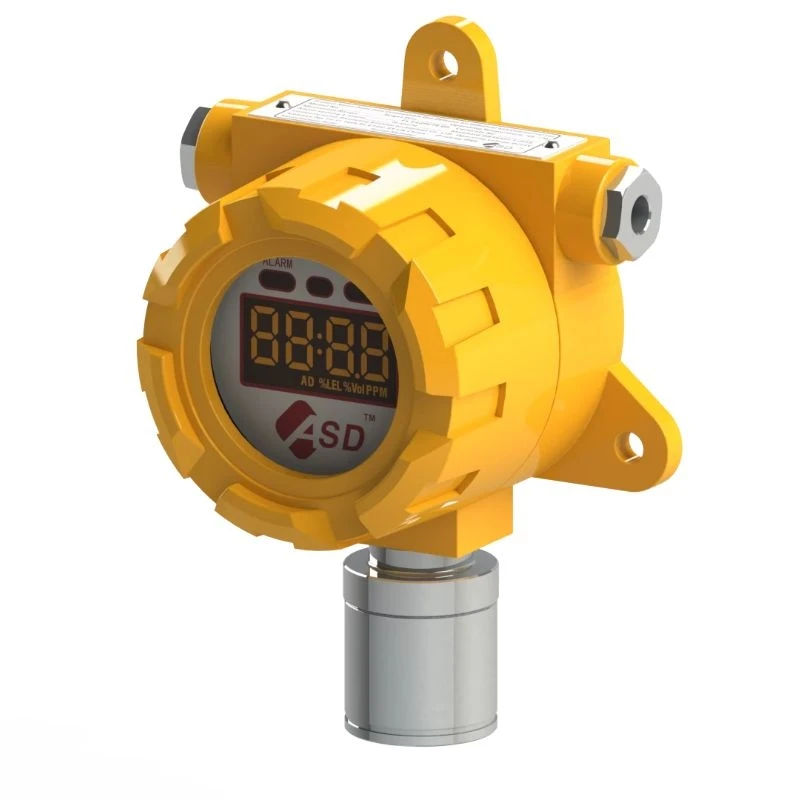

Лидер продаж анализатор выхлопных газов технология контроля качества воздуха детектор газа h2s из
- Категория: Test Instruments >>>
- Поставщик: Shenyang,Anshide,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 214.64 $* | 225.35 $* |
| Aug-18-2025 | 212.47 $* | 223.17 $* |
| Jul-18-2025 | 178.64 $* | 187.31 $* |
| Jun-18-2025 | 209.30 $* | 219.45 $* |
| May-18-2025 | 182.82 $* | 191.41 $* |
| Apr-18-2025 | 205.39 $* | 215.51 $* |
| Mar-18-2025 | 203.43 $* | 213.56 $* |
| Feb-18-2025 | 202.85 $* | 212.57 $* |
| Jan-18-2025 | 200.54 $* | 210.20 $* |
Характеристики
☑Explosion-proof enclosure& Thickened glass panel which basically guaranteed the long-term working reliability and stability in the Hazardous industrial area.
☑BUS&Power port both use Nonpolar design.BUS use ESD Protection Circuit. Detector has its own Switch-output to ensure the high dependability and strong Anti-jamming capability.
☑Embedded import high precision&poison resistance sensor with overrange protection circuit
☑Display：
2.1 inch Bright LED with 4 Bit Nixietube. 8-Segment Numeric +Graphical display:
☑Loud sounds&light alarm
Detecting type | Electrochemical | Detecting Gas | Toxic and Hazardous gases | ||
Measuring Range | 0~25%VOL | Voltage Range | DC24V±10V | ||
Sampling ： | Diffusion | Power Consumption | ≤1.5W (DC24V) | ||
Use | 4BUS、Single Switch-output | ||||
Output： | 1 Passive switch output, associated with First/Second alarm.Normally on . Alarming will get it closed. | ||||
Communication | 4ABUS/ 3Wire 4~20mA | Communication range | ≤1500 m(1.5mm2) | ||

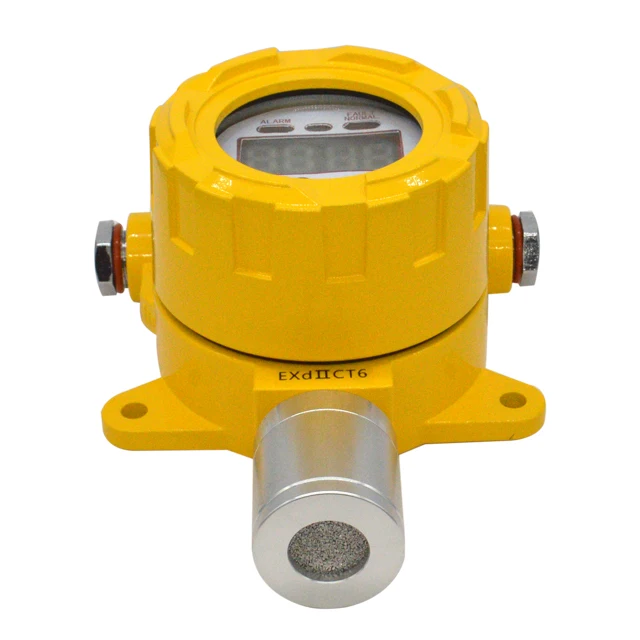

Ex CERTIFICATION | ExdⅡCT6 | IP Rating | IP66 | ||
Enclosure material ： | Aluminum alloy. 304 Stainless steel .Tempered glass | Cable entries | G1/2 Internal screw thread | ||
Temperature-Humidity Range | -40℃~+70℃，≤93%RH | Operating Pressure Range | 86kPa~106kPa | ||
Display type | 2.1 inch LED.4 Bit Nixietube. 8-Segment Numeric +Graphical display | ||||
Operating | IR remote control ＞8m | Expected Operating Life | 3 years(typical) | ||
Alarm accuracy | ±3%VOL | Display accuracy | ±5%VOL | ||
Low alarm | 19.5%VOL (Factory setting) | High alarm | 23.5%VOL(Factory setting) | ||
Response time | <30s(T90) | Output range | ≤30V，2A (maximum limiting current) | ||
Dimension | H196mm×L140mm×D92mm | ||||
Weight | 1.5kg | Circuit protection | Overrange protection circuit | ||
