GEMHO Muti Parameters Handheld Digital Recorder Portable LCD Handheld Data Collector



Description:

This GEMHO soil recorder is designed with the latest digital integrated circuit technology and international detection technology. The recorder uses a large-size full-color LCD display that can display data in real time. At the same time, it uses a high-quality detection circuit, which can achieve very high sensitivity and excellent repeatability. The recorder integrates storage, recording, and analysis, and can be flexibly connected to our company's soil nitrogen, phosphorus and potassium sensors, soil conductivity, soil temperature and humidity and other equipment to achieve the measurement of various soil parameters.

This GEMHO recorder is widely used in the detection of soil pH, water irrigation in dry farming, precision agriculture, forestry, geological prospecting, plant cultivation, water conservancy, environmental protection and other fields, as well as the measurement of various particulate matter pH.







Performance	Parameter
Power supply	Battery powered (5000mAh lithium battery)
Display	LCD screen
data storage	100W data
Charging time	≤8h
working environment	Operating Voltage: DC 4.2V; -10℃-50℃; Humidity<95%RH (no condensation);
Connectable equipment	1-4 ModBus device combination
Communication protocol	Modbus-RTU protocol
Standby time	More than 8h continuous
Custom	Available from us
Dimension	215*100*36 mm
Weight	About 700g



Features:

1) The measurement results can be displayed directly, which is simple and convenient, with low measurement cost and fast measurement speed.

2) Multiple recording methods are optional.

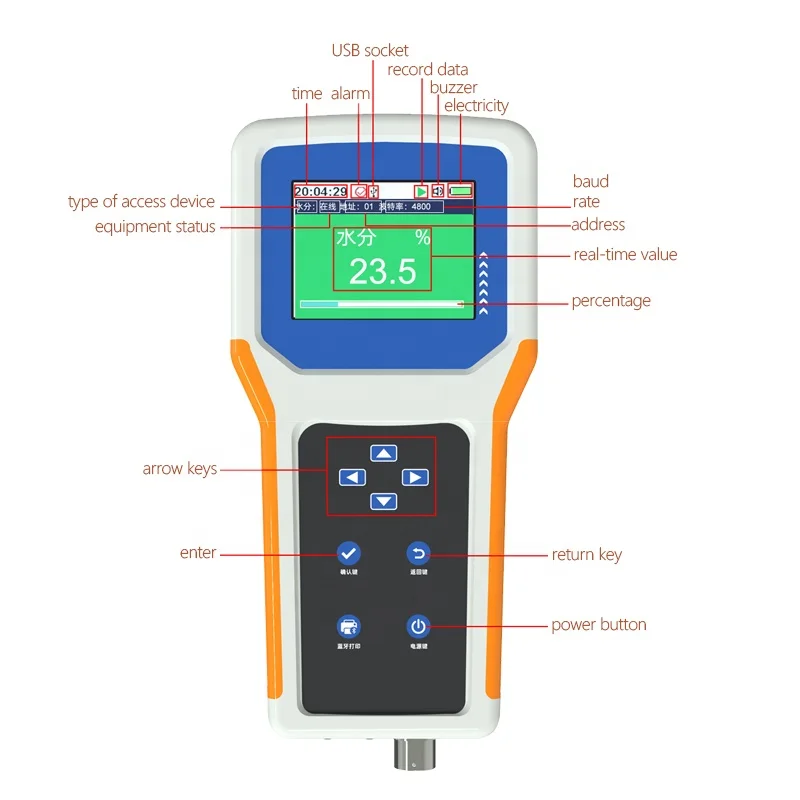

3) Large-size color display screen, large-capacity storage.

4) One-click data export, convenient and quick.5) The probe plug-in design ensures accurate measurement and reliable performance.
