Product Description

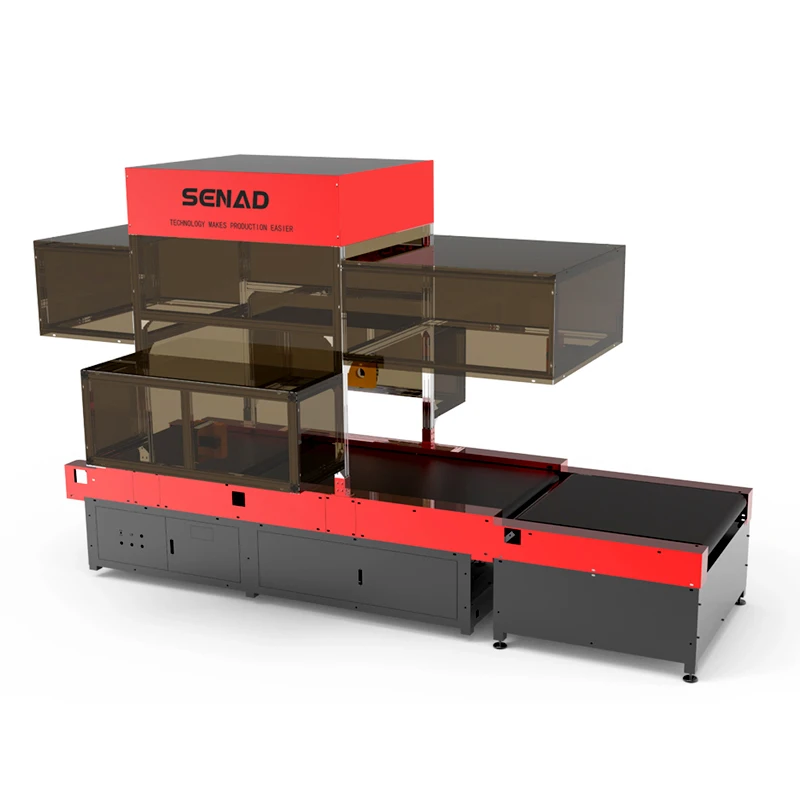

Cargo Six-side Scan Parcel in-line DWS Detect Weight Volume Measuring Barcode Conveyor Solution for Courier Express Logistics
This is an in-line dimensioning weighing scanning (D.W.S.) machine, with an additional part for exceptional detecting and warning.

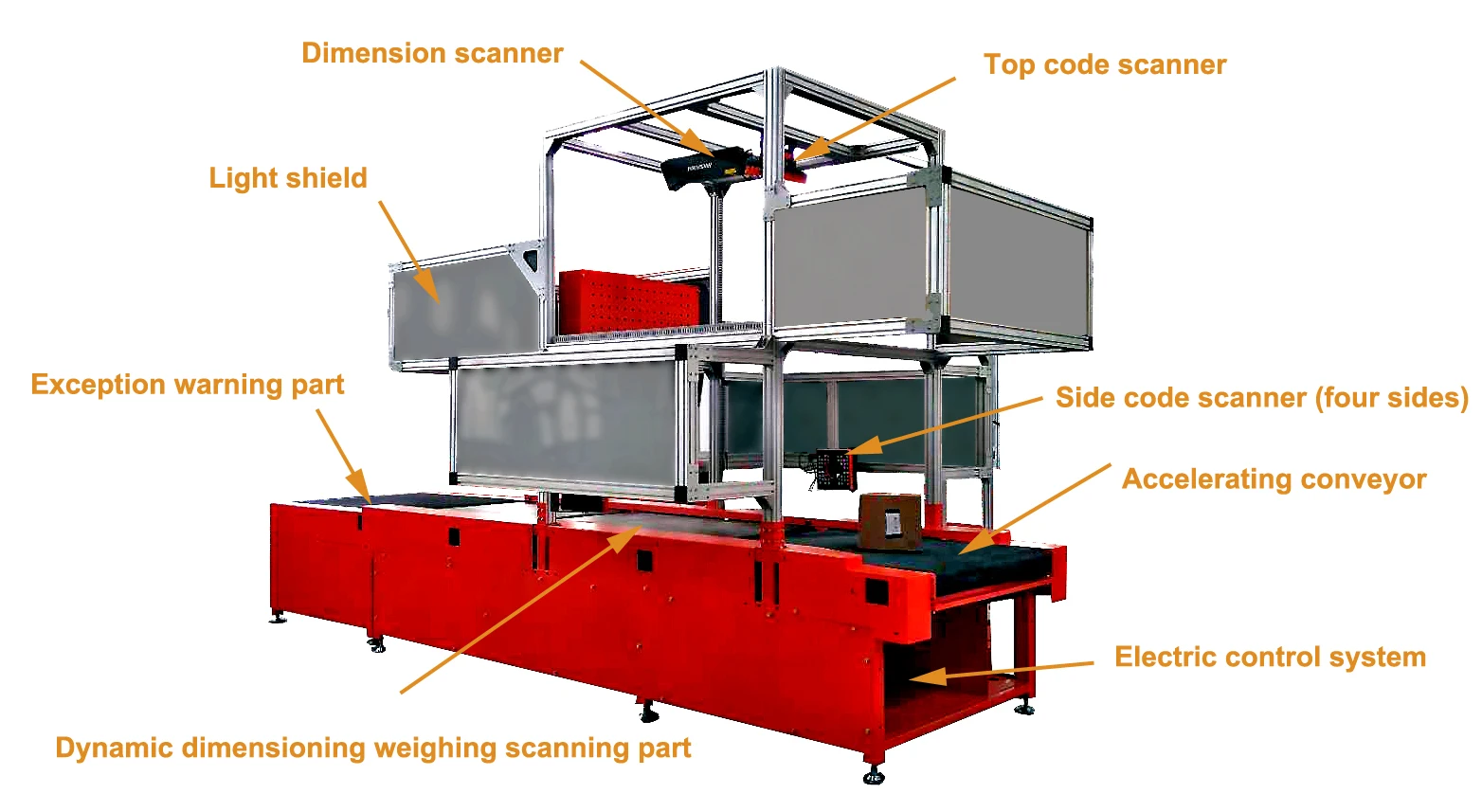

It includes three parts, the speed-up belt conveyor, the weighing belt conveyor and the detecting belt conveyor.
It is also usually attached to the conveying and sorting machines and formed a warehouse automation line. Suitable for logistics warehouses of large amount of throughput.
The recorded data and images can be stored and sent to users' management system
It includes three parts, the speed-up belt conveyor, the weighing belt conveyor and the detecting belt conveyor.
There are barcode cameras in six sides. They are to read the barcodes in every side of a package. Ususally this machine is after a parcel singulator.
It is also usually attached to the conveying and sorting machines and formed a warehouse automation line. Suitable for logistics warehouses of large amount of throughput.
The recorded data and images can be stored and sent to users' management system

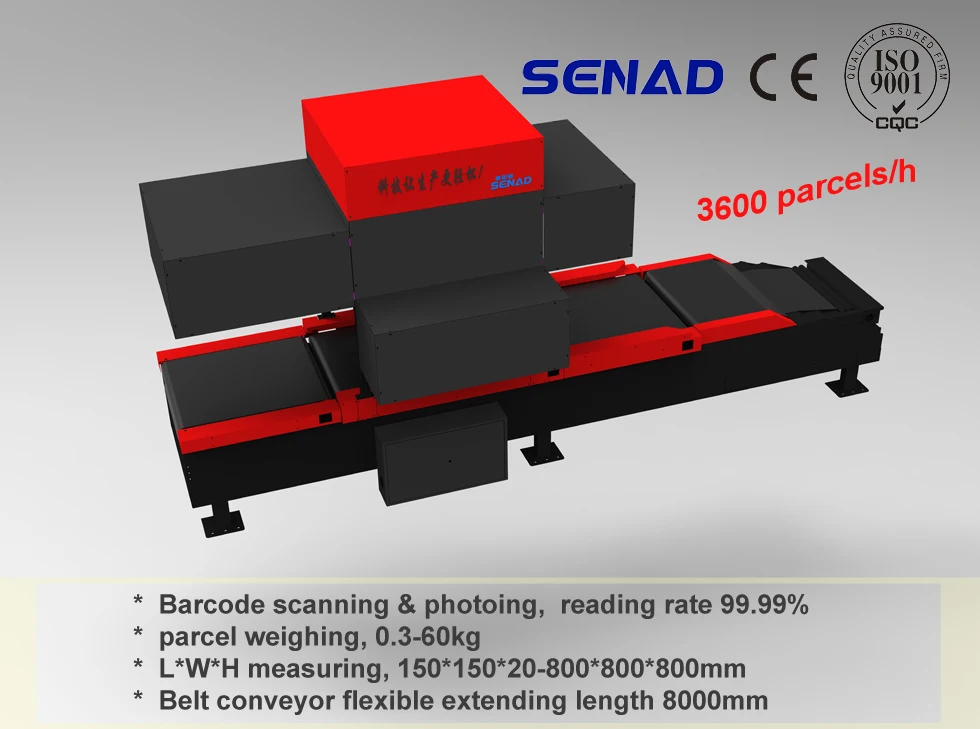

Main features:
1. Vision recognition: Dimensioning, Scanning, Parcel photos capturing
1. Vision recognition: Dimensioning, Scanning, Parcel photos capturing
2. Weighing, dynamic weight sensoring within 1.5s
3. Equiped with an exceptional conveyor, to get rid of abnormal packages
4. High scanning rate up to 99.9%
5, Weight load capacity: 60kg
6. Weighing accuracy +/-20g
7. Read barcodes from 6 sides
Product Parameters
Name | Specification |
Industrial computer | Intel I5 |
Display | 19.5inches |
Camera | 20 million pixels smart camera |
Dedicated light source | For smart camera |
Keyboard mouse | Wireless Logitech |
Bracket | SENAD customized |
Load cell | 100kg |
Lens | 20mm Lens |
Volume Line Structure Light | 3D Camera |
Accelerating section | L1.2*W1*H0.8（customizable） |
Weighing section | L1.8*W1*H0.8（customizable） |
Exception section | L1.2*W1*H0.8（customizable） |
Servo motor | 750W |
Weighing error range | ±20g-±40g |
Weighing range | 300g-60kg |
Capacity | 2500-3600 pieces / hour |
Recognition rate | 100% (Normal packages) |
Error range | Normal: average ±5mm Exception: average ±15mm |
Measuring range | 150*150*50~1200*1000*800（mm） |
Software interface | http、TCP、485 |
Application Software | SENAD DWS System |
Weighing mode | Dynamic weighing |
Temperature | -20℃-40℃ |
Power supply | 220V/50Hz |
Diagnostic method | Remote inspection / on-site inspection |
Speed of conveying belt | 90m/min（adjustable） |
Gathering images | yes |
Barcode readable: | EAN 8,EAN 13,Code 128,Code 39,Code 93,interleaved 2 of 5,CodaBar,QR code,Data Matrik,PDF 417,UPU(customized) |
Functions | Barcode reading(6 sides scan), weighing, dimension measuring(optional), package photo taking, conveying control, exception warning, data & photos uploading to users' WMS, ERP system or database |

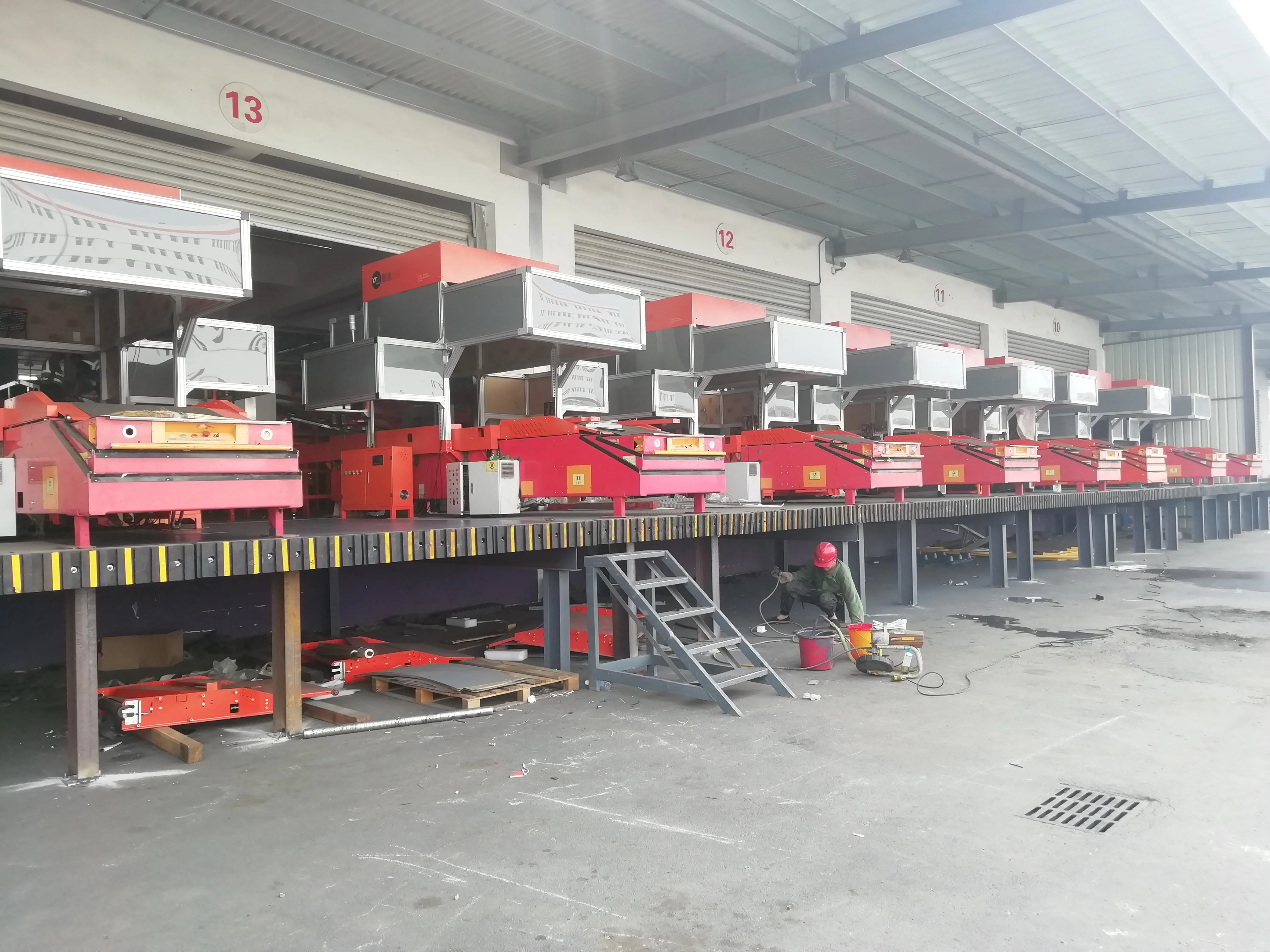

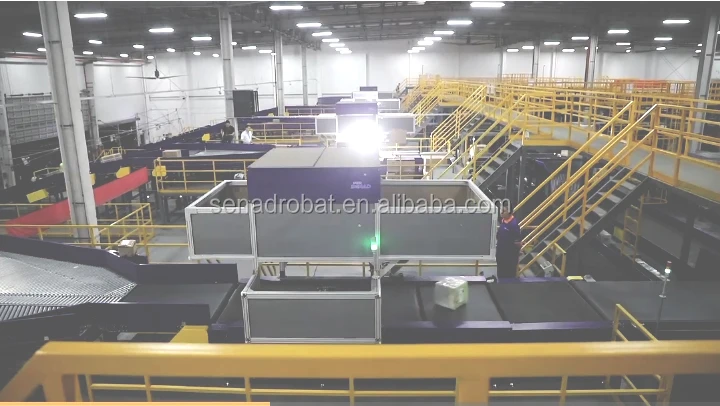

Successful Cases
Recommend Products
Company Profile
Senad is a high-tech enterprise concentrated on research & development and production of high-end warehouse automation equipments.
There are not only standard equipments but also customizable ones to realize different functions,such as high speed bulk packages barcode scanning, static and dynamic weighing,volume dimensions measuring,conveying and sorting,as well as the DWS integrated line system and also face recognition system,feeding systems,automatic conveying equipment,and follow-up robot,transportation robot,etc.The information collected can be stored, downloaded and shared to the users' management system.
The equipments take machine vision deep learning algorithms and robotic motion control as the core,and image processing algorithms,artificial intelligence,pattern recognition,video analysis algorithms, ARM|FPGA|DSP embedded software and hardware development,industrial machine vision positioning,visual tracking,visual inspection,multi-sensor information fusion and other technical means,to achieve the goal of "replacing manual labor with robot".
These equipments are designed to sent companies free from the problems of "Labor shortage,Labor expensiveness and Labor difficulty" and disputes and losts because of manual typo-error, and can achieve a highly rised working efficiency.
Technology makes production easier.
We pursuit a win-win situation. Our mission is to bring our partners easier work and higher efficiency.We will constantly contribute in upgrading and developing new technologies for practical application and provide high quality equipments and professional consultant services to our partners.
There are not only standard equipments but also customizable ones to realize different functions,such as high speed bulk packages barcode scanning, static and dynamic weighing,volume dimensions measuring,conveying and sorting,as well as the DWS integrated line system and also face recognition system,feeding systems,automatic conveying equipment,and follow-up robot,transportation robot,etc.The information collected can be stored, downloaded and shared to the users' management system.
The equipments take machine vision deep learning algorithms and robotic motion control as the core,and image processing algorithms,artificial intelligence,pattern recognition,video analysis algorithms, ARM|FPGA|DSP embedded software and hardware development,industrial machine vision positioning,visual tracking,visual inspection,multi-sensor information fusion and other technical means,to achieve the goal of "replacing manual labor with robot".
These equipments are designed to sent companies free from the problems of "Labor shortage,Labor expensiveness and Labor difficulty" and disputes and losts because of manual typo-error, and can achieve a highly rised working efficiency.
Technology makes production easier.
We pursuit a win-win situation. Our mission is to bring our partners easier work and higher efficiency.We will constantly contribute in upgrading and developing new technologies for practical application and provide high quality equipments and professional consultant services to our partners.

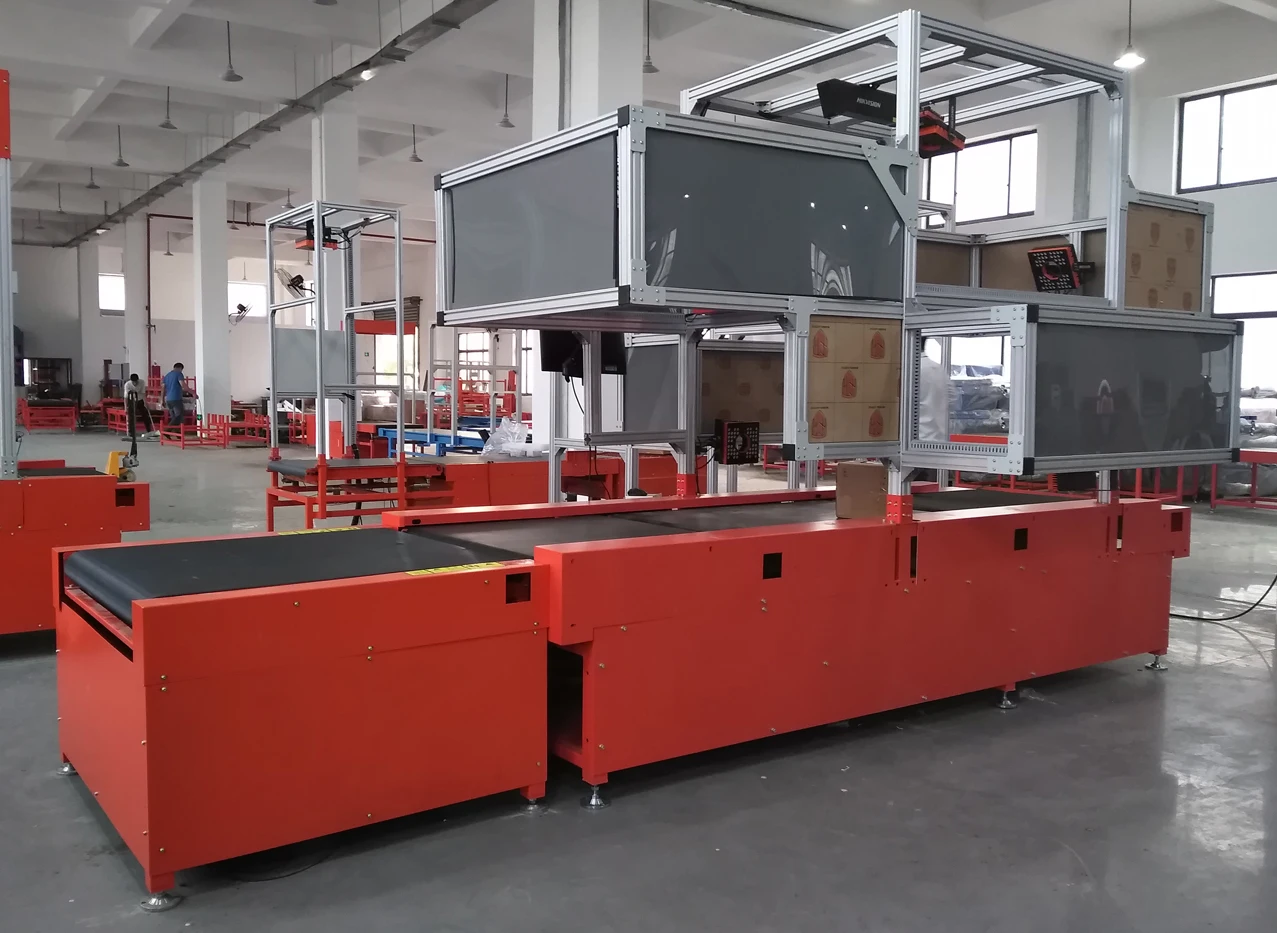

Our Factory
PATENTS
HONOURS
COOPERATION CASES
PARTNER
FAQ
Q: Are you a manufacturer or trading company?
A: We are manufacturer specialized in truck loading & unloading, dimensioning.weighing scanning system and machines, parcel singulating, parcel sorting machines and overall solutions for logistics warehousing automation. With import and export license.
Q: Is the operation in English version?
A: Yes
Q: How long does the production take?
A: Normally 35-45 days with commissioning.
Q: How can we assemble it on site ?
A: The machine is made in modular design, and simple structure. We will ship it in least further assembly and ship together with clear connection instruction. Only simple actions are needed to do.
Q: How do you assure the quality?
A: We only purchase parts and accessories from the leading manufacturers with qualified quality service.
All assembly is made within our factory. Quality can be well under monitor and control. Before shipment, all sections must be tested.
There's one year quality guarantee. During this period, all issues can be provided and served for free provided the reasons come from machine itself.
Q: I want to buy this equipment. How can I contact you?
A: You can directly place order in your browsing page and Alibaba will supervise the whole trade processes and assure the smoothness and safety.
You can also call or email or contact us with below direct contact.
A: We are manufacturer specialized in truck loading & unloading, dimensioning.weighing scanning system and machines, parcel singulating, parcel sorting machines and overall solutions for logistics warehousing automation. With import and export license.
Q: Is the operation in English version?
A: Yes
Q: How long does the production take?
A: Normally 35-45 days with commissioning.
Q: How can we assemble it on site ?
A: The machine is made in modular design, and simple structure. We will ship it in least further assembly and ship together with clear connection instruction. Only simple actions are needed to do.
Q: How do you assure the quality?
A: We only purchase parts and accessories from the leading manufacturers with qualified quality service.
All assembly is made within our factory. Quality can be well under monitor and control. Before shipment, all sections must be tested.
There's one year quality guarantee. During this period, all issues can be provided and served for free provided the reasons come from machine itself.
Q: I want to buy this equipment. How can I contact you?
A: You can directly place order in your browsing page and Alibaba will supervise the whole trade processes and assure the smoothness and safety.
You can also call or email or contact us with below direct contact.
