E3340 Two-channel Function Arbitrary waveform Generator DDS
- Категория: Signal Generators >>>
- Поставщик: Yiwu,Yuezi,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.21 $* | 0.27 $* |
| Aug-16-2025 | 0.43 $* | 0.33 $* |
| Jul-16-2025 | 0.61 $* | 0.75 $* |
| Jun-16-2025 | 0.76 $* | 0.72 $* |
| May-16-2025 | 0.91 $* | 0.91 $* |
| Apr-16-2025 | 0.51 $* | 0.90 $* |
| Mar-16-2025 | 0.57 $* | 0.79 $* |
| Feb-16-2025 | 0.23 $* | 0.0 $* |
| Jan-16-2025 | 0.65 $* | 0.79 $* |
Характеристики
HOT SELL Test instruments and equipment
ET33X Two-channel Function/ Arbitrary Waveform Generator | ||
ET3315 | 15MHz | |
ET3325 (HOT SELL) | 25MHz | |
ET3340 | 40MHz | |
ET3360 (HOT SELL) | 60MHz | |
Size：265 * 105 * 305 mm (width x height x deep) Weight：2.6 kg | ||
ET35 series Digital Bridges (LCR) | ||
ET3501 | 10Hz - 100KHz | |
ET3502 | 10Hz - 200KHz | |
ET3503 | 10Hz - 300KHz | |
ET3505 | 10Hz - 500KHz | |
ET3510 | 10Hz - 1MHz | |
Size：330 * 285 * 136 mm (width x height x deep) Weight：3.6 kg | ||
ET43 Series Handheld Bridge Introduction | ||
ET430 (HOT SELL) | 100Hz, 120Hz, 1KHz, 10KHz, 40kHz, 100KHz | |
ET431 | 100Hz, 120Hz, 1KHz, 10KHz | |
ET432 (HOT SELL) | 100Hz, 120Hz, 1KHz, 10KHz, 40kHz, 100KHz | |
ET433 (HOT SELL) | 100Hz-100KHz Continuously adjustable, a step of 1 Hz | |
Size：190 * 90 * 55 mm (width x height x deep) Weight：0.5 kg | ||
ET44 Series desktop bridge LCR | ||
ET4401 (HOT SELL) | 10 Points（100、120、200、400、800、1K、2K、4K、8K、10K） | |
ET4402 | 12 Points（100、120、200、400、800、1K、2K、4K、8K、10K、15K、20K） | |
ET4410 (HOT SELL) | 16 Points（100、120、200、400、800、1K、2K、4K、8K、10K、15K、20K、40K、50K、80K、100K） | |
Size：310 * 280 * 100 mm (width x height x deep) Weight：2.1 kg | ||
ET45 Series desktop Bridge LCR | ||
ET4501 | 10Hz ~ 10kHz continuously adjustable, 1Hz step | |
ET4502 | 10Hz ~ 20kHz continuously adjustable, 1Hz step | |
ET4510 (HOT SELL) | 10Hz ~ 100kHz continuously adjustable, 1Hz step | |
Sizes: 265mm*105mm*305mm (L*W*H) Weight: 2.1 kg | ||
ET53 Series DC Programmable Electronic Load | ||
ET5300A (HOT SELL) | 200W ; Input 150V \\ 30A | |
ET5300 | 400W ; Input 150V \\ 40A | |
ET5301 (HOT SELL) | 400W ; Input 150V \\ 60A | |
ET5302 | 400W ; Input 500V \\ 15A | |
ET5303 (HOT SELL) | 400W ; Input 500V \\ 30A | |
ET5304 (HOT SELL) | 400W(200W*2) ; Input 150V \\ 60A (30A*2) | |
Size 370 * 270 * 120 mm (width x height x deep) Weight：4 kg | ||
ET54 Series DC Programmable Electronic Load | ||
ET5410 (HOT SELL) | Single Channel Power : 400W Input : 150V / 40A | |
ET5411 | Single Channel Power : 400W Input : 500V / 15A | |
ET5420 (HOT SELL) | Dual Channel Power : 400W (200W*2) Input : 150V / 40A (20A*2) | |
Size: 90mm×190mm×300mm (width × height × depth) Weight: 3.6kg | ||
ET3240 （ 4½）Benchtop Digital Multimeter Profile | ||
ET3240 (HOT SELL) | Display digits : 22000(4½) | |
Dimensions: 265 mm * 105 mm * 305 mm.(width * height * depth). Weight: 2.3kg. | ||
ET3255 5 5-bit Semi-Digital Multimeter Basic | ||
ET3255 (HOT SELL) | Number of display digits: 5 (1/2) | |
Dimensions: 265 mm * 105 mm * 305 mm.(width * height * depth). Weight: 2.3kg. | ||
ET3260/ET3260A 6 1/2 BIT PRECISION DIGITAL MULTIMETER | ||
ET3260 | Signal terminal : front-end/back-end | |
ET3260A | Signal terminal : front-end | |
Size and weight: 265mm * 102mm * 335mm (width * height * depth), Weight: 2.7kg | ||
Product Paramenters

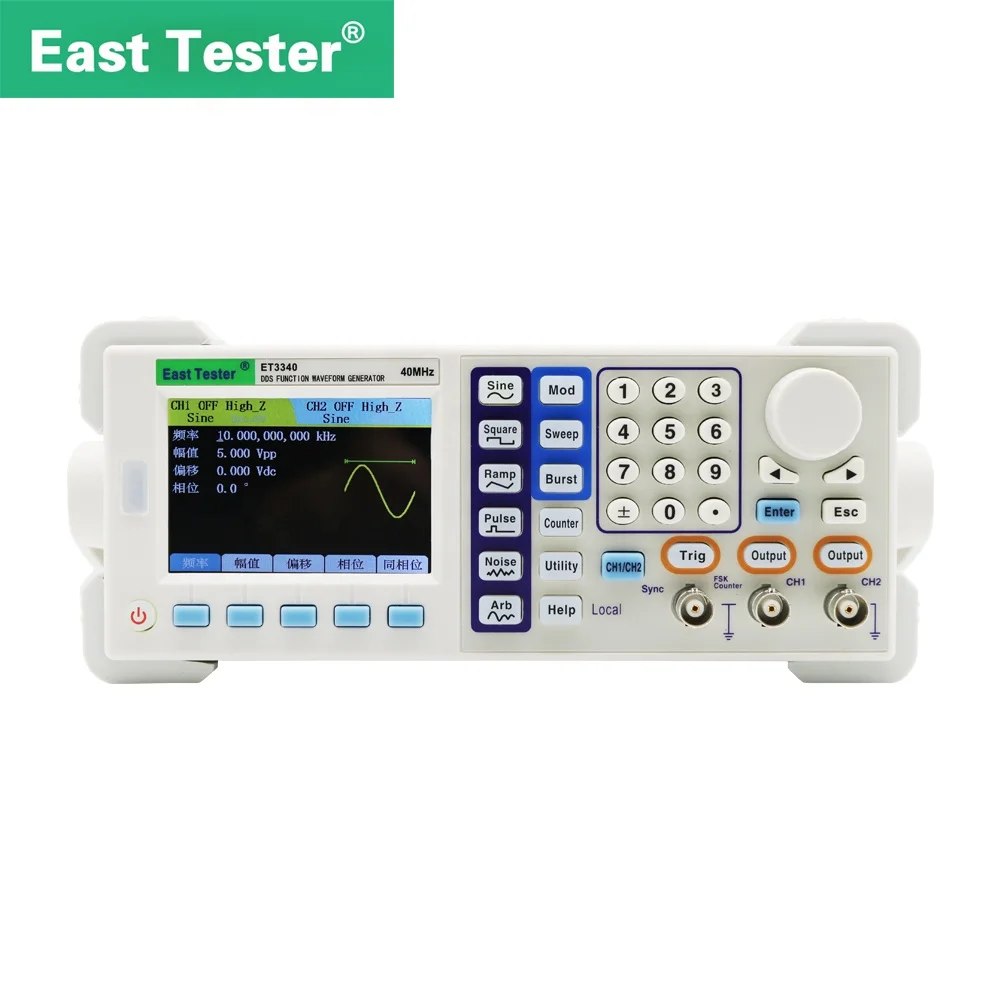

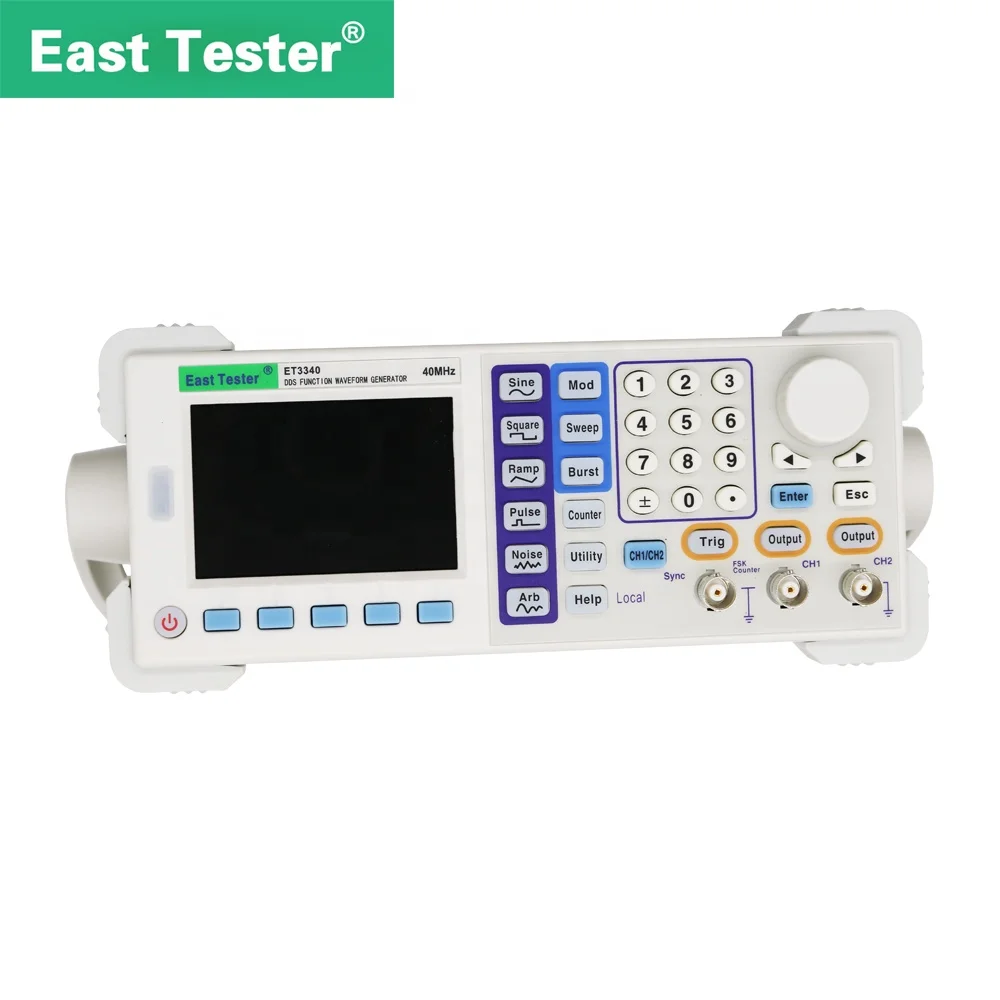

ET33X Two-channel Function/ Arbitrary Waveform Generator
ET33X series two-channel function/arbitrary waveform generator is equipped with direct digital synthesis (DDS) technology which enables output signal to be stable and accurate.
Key Features
* 5-inch 480×320TFT LCD with clear graphic interface
* Chinese / English menu available
* Press key for help and information
* File management supporting USB flash disk and local storage
* Two-channel output with the highest output frequency is ET3315 Model is 15MHz，ET3325 Model is 25MHz, ET3340 Model is 40MHz, ET3360 Model is 60MHz.
* Sampling rate: 200MSa/S, vertical resolution: 13 bit and storage depth: 8k
* 5 basic waveforms and 32 arbitrary waveforms in-built
* Pulse wave output set in edge time
* Internal/external AM, FM, PM, ASK, FSK and PSK modulation function
* Output of linear/logarithmic frequency sweep and burst waveform
* Frequency meter of high precision of 100MHz and 32-bit counter
* With RS232 interface, USB Device, USB Host interface supporting USB flash disk storage (USB Host Optional)
* Multi-functional arbitrary waveform editing software equipped
* Chinese / English menu available
* Press key for help and information
* File management supporting USB flash disk and local storage
* Two-channel output with the highest output frequency is ET3315 Model is 15MHz，ET3325 Model is 25MHz, ET3340 Model is 40MHz, ET3360 Model is 60MHz.
* Sampling rate: 200MSa/S, vertical resolution: 13 bit and storage depth: 8k
* 5 basic waveforms and 32 arbitrary waveforms in-built
* Pulse wave output set in edge time
* Internal/external AM, FM, PM, ASK, FSK and PSK modulation function
* Output of linear/logarithmic frequency sweep and burst waveform
* Frequency meter of high precision of 100MHz and 32-bit counter
* With RS232 interface, USB Device, USB Host interface supporting USB flash disk storage (USB Host Optional)
* Multi-functional arbitrary waveform editing software equipped
General Technical Specifications：
* Supply voltage:220V±10%，45~65Hz，Or 110V±10%，45~65Hz
* Power consumption:< 15W
* Types:3.5-inch TFT LCD screen，Resolution480×320，16M color
* Environment:Operation 10 ℃ ~ +40 ℃、Non-operation -10℃~+60℃
* Humidity range:Within the range of 0 ~ 40 ℃，≤90％ relative humidity

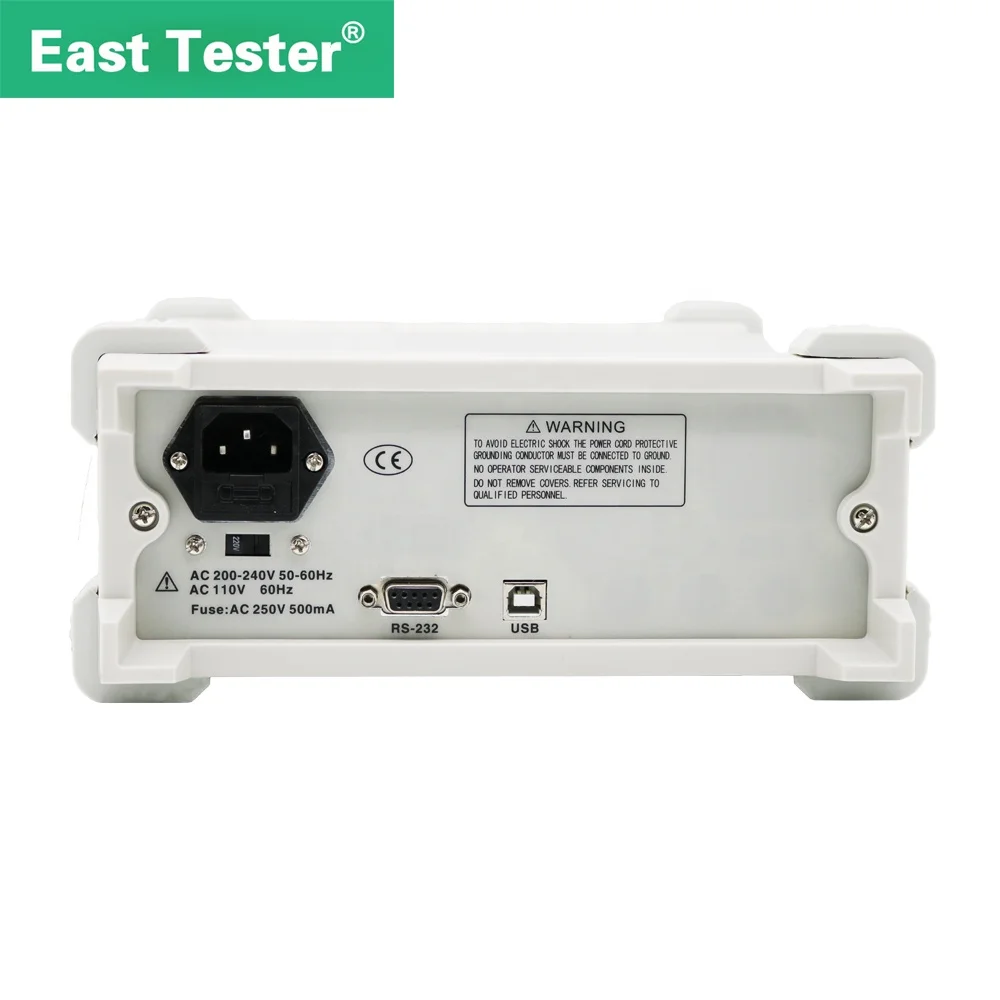

* Interface:RS232,USB Device;USB Host(optional)
* Display：5 inch TFT LCD screen, 480 x 320 resolution
* Size：265 * 105 * 305 mm (width x height x deep)
* Weight：2.6 kg
* Supply voltage:220V±10%，45~65Hz，Or 110V±10%，45~65Hz
* Power consumption:< 15W
* Types:3.5-inch TFT LCD screen，Resolution480×320，16M color
* Environment:Operation 10 ℃ ~ +40 ℃、Non-operation -10℃~+60℃
* Humidity range:Within the range of 0 ~ 40 ℃，≤90％ relative humidity
* Interface:RS232,USB Device;USB Host(optional)
* Display：5 inch TFT LCD screen, 480 x 320 resolution
* Size：265 * 105 * 305 mm (width x height x deep)
* Weight：2.6 kg

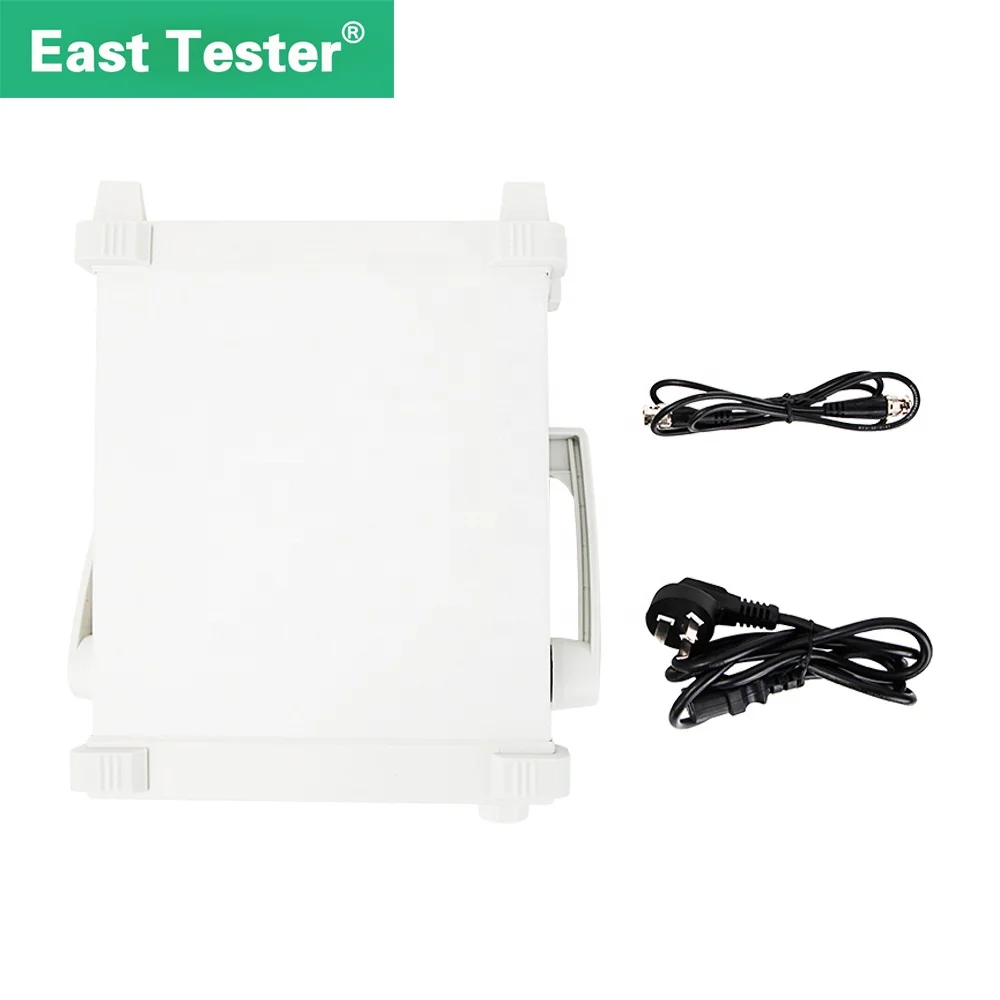

Accessories
Standard accessories:
* 1 piece of 30A51 three-wire power line;
* 1 piece of 33A52 BNC coaxial cable;
* 1 CD-ROM
* 1User guide.
Standard accessories:
* 1 piece of 30A51 three-wire power line;
* 1 piece of 33A52 BNC coaxial cable;
* 1 CD-ROM
* 1User guide.
Product packaging
About Logistics
ABOUT FREIGHT
1、SHIPPING TO CHINA ( EXW )
a\\ ORDER AMOUNT < $150
ZHE JIANG, JIANG SU,GUANGDONG
PROVINCE and SHANG HAI CITY
FREE SHIPPING.
OTHER PROVINCE NEED FREIGHT.
b\\ ORDER AMOUNT > 150$
FREE SHIPPING.
c\\ If you need customs declaration
information, please contact us.
2、Freight is not included in our quotation.3、The volume, weight, magnetic, battery, air, sea, express and transportation time determine how much freight you need to pay for the goods.
4、WEIGHT :
Product weight + Packaging weight.
5、VOLUME :
Packaging volume (L*W*H)
6、EXPRESS(3-10 workdays Normal delivery
time) :
DHL, FedEx IP, FedEx IE, TNT, SF, UPS,
EMS, Singapore, Malaysia, Thailand
Special Line Express
7、Contact us for other delivery methods.
Company Profile
Name: | Yiwu Yuezi Import and Export Co., Ltd. & Hangzhou Zhongchuang Electronics CO.,LTD | ||||||
ADDRESS: | The house 113, units 1-2,on the Futian street of the Lianping village,Yiwu city, Zhejiang province | ||||||
General manager: | Poul Zhu (cn:ZHU YIQI) chinarosen@aliyun.com | ||||||
PHONE: | +86 0579 85180528 | ||||||
MOBILE/Whatsapp: | +86 13867930880 | ||||||
WeChat / Whatsapp : | 13867930880 | ||||||
