Easy Installation 15hp walk in cooler condensing unit and evaporator

Описание и отзывы

Трекер стоимости

Характеристики

Easy Installation 15hp walk in cooler condensing unit and evaporator condensate cooler

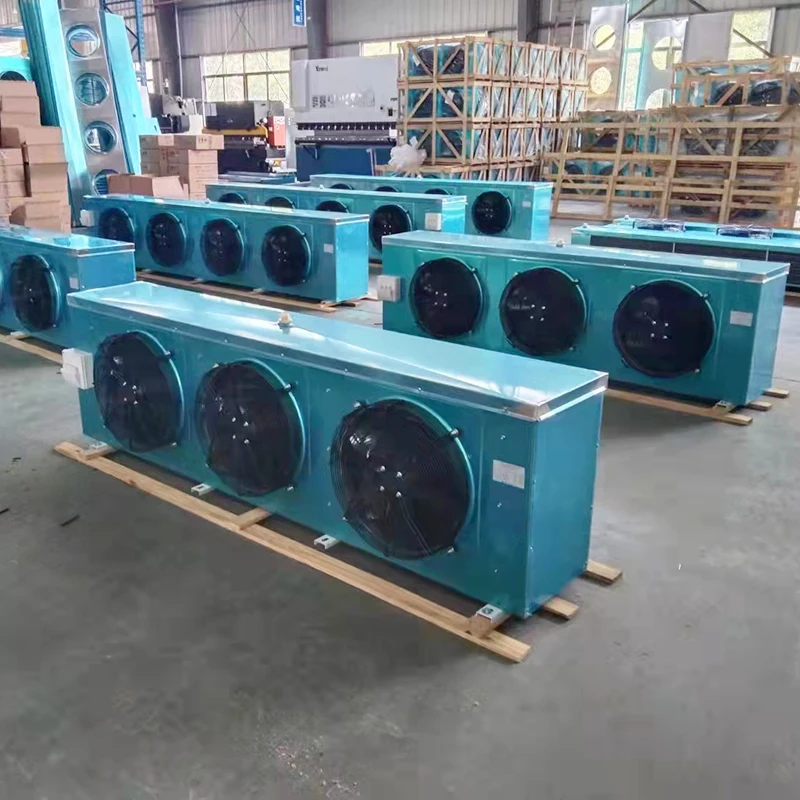

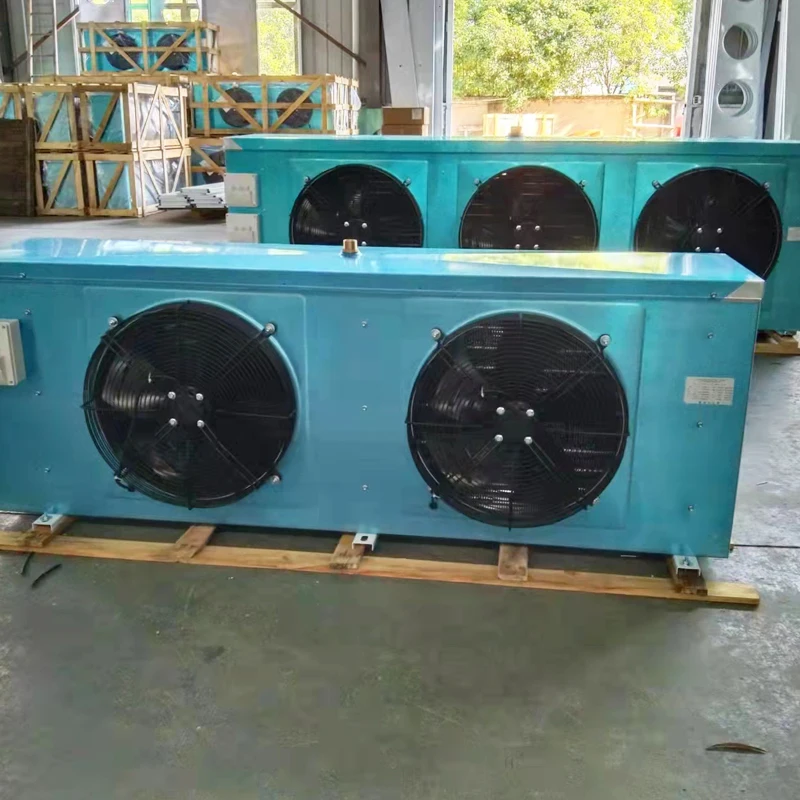

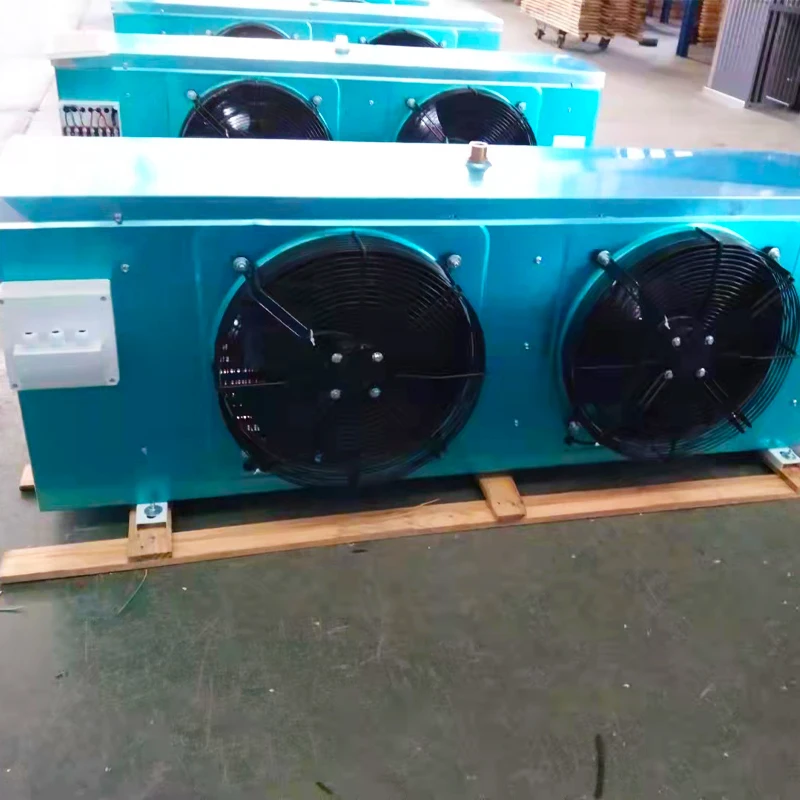

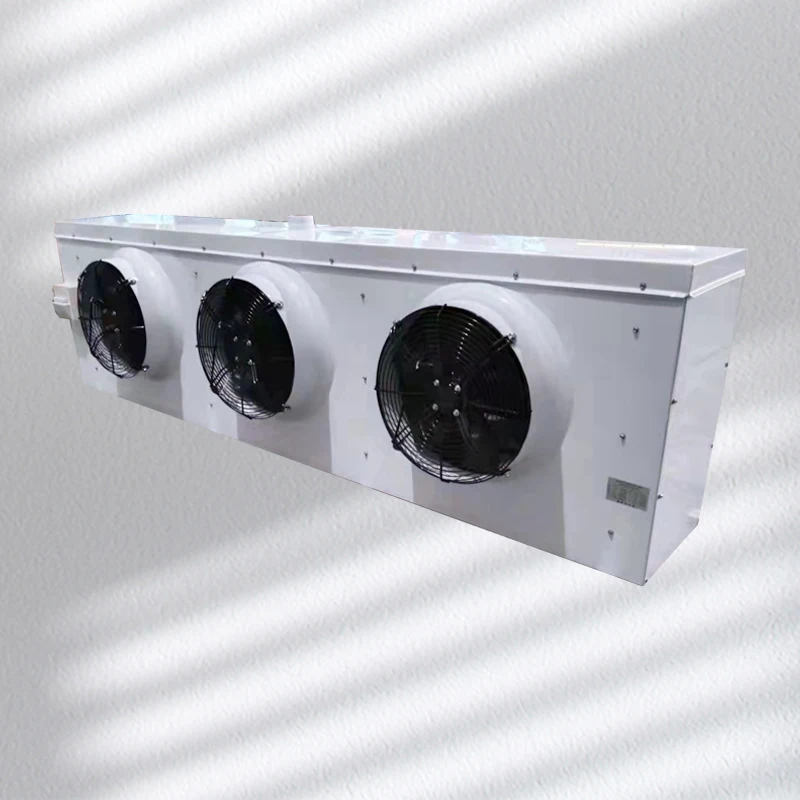

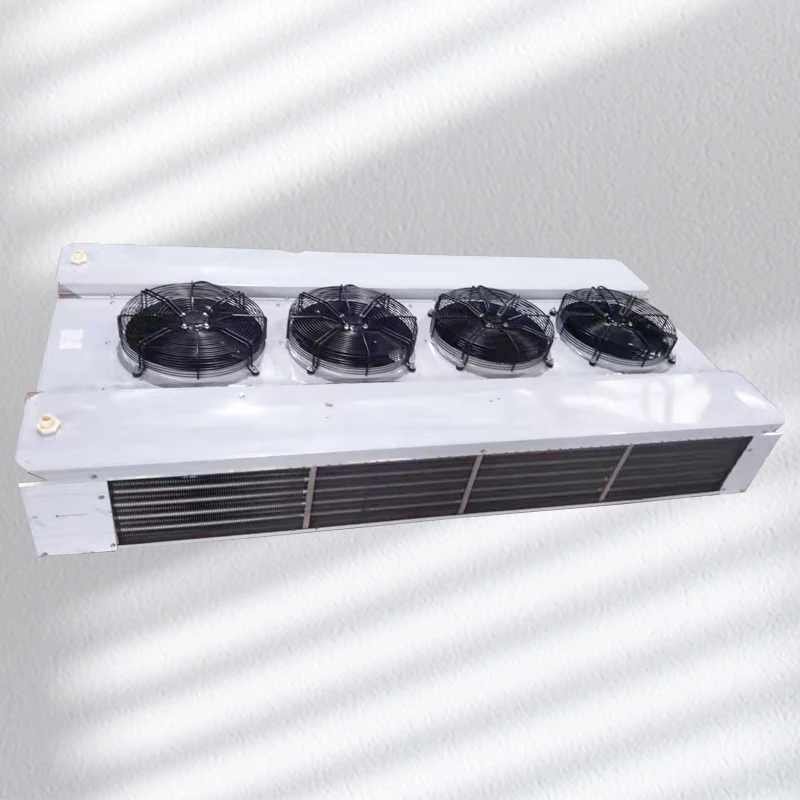

Product name	Refrigeration air cooled evaporator
Voltage	220V/380V
Product Type	Celling
Application	Cold Storage Room Freezer Room





Water defrosting air cooler is a kind of cooling equipment used in those cold storage rooms where electrical defrosting is not applicable or quick defrosting is required.According to applicable temperatre, there are 3 types including DL DD DJ which are applicable to about 0 degree -18 degree and -25degree cold storage rooms respectively.



air cooled are suitable for high,middle,low temprature(+10°C- -35°C)

1.light in weight,convenient intallation,compact structure,Rapid temperature falling,long preservation time.

2.efficient fins, more evaporation area.

3.mechanical tube expanding,tight connection between fins and copper pipe to increase heat exchange efficiency.

4.bright type copper tube thickness:0.35mm,silverbrazing for elbow.

5.motor:efficient,low power-consuming,strong windy,Wide-range, low noise,long service time.

6.over 2.6MPa pneumatic test permition,reasonable design, Power conservation by 25%.

7.cold-rolled steel plate for shell,phosphating static spraying technique,pleasing shape,rustproof.

8.Defrost heat performance: 8 hours defrost cycle.

 Designed for keep goods fresh,cold,freezer
                                  Technical Parameters of High-temperature Air-Cooler
