Мобильный хирургический светодиодный светильник для операционной комнаты Heal Force
- Категория: >>>
- Поставщик: Nison,Instrument,(Shanghai),Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.12 $* | 0.39 $* |
| Aug-17-2025 | 0.58 $* | 0.1 $* |
| Jul-17-2025 | 0.10 $* | 0.19 $* |
| Jun-17-2025 | 0.17 $* | 0.96 $* |
| May-17-2025 | 0.5 $* | 0.22 $* |
| Apr-17-2025 | 0.10 $* | 0.99 $* |
| Mar-17-2025 | 0.92 $* | 0.5 $* |
| Feb-17-2025 | 0.86 $* | 0.78 $* |
| Jan-17-2025 | 0.59 $* | 0.67 $* |
Характеристики

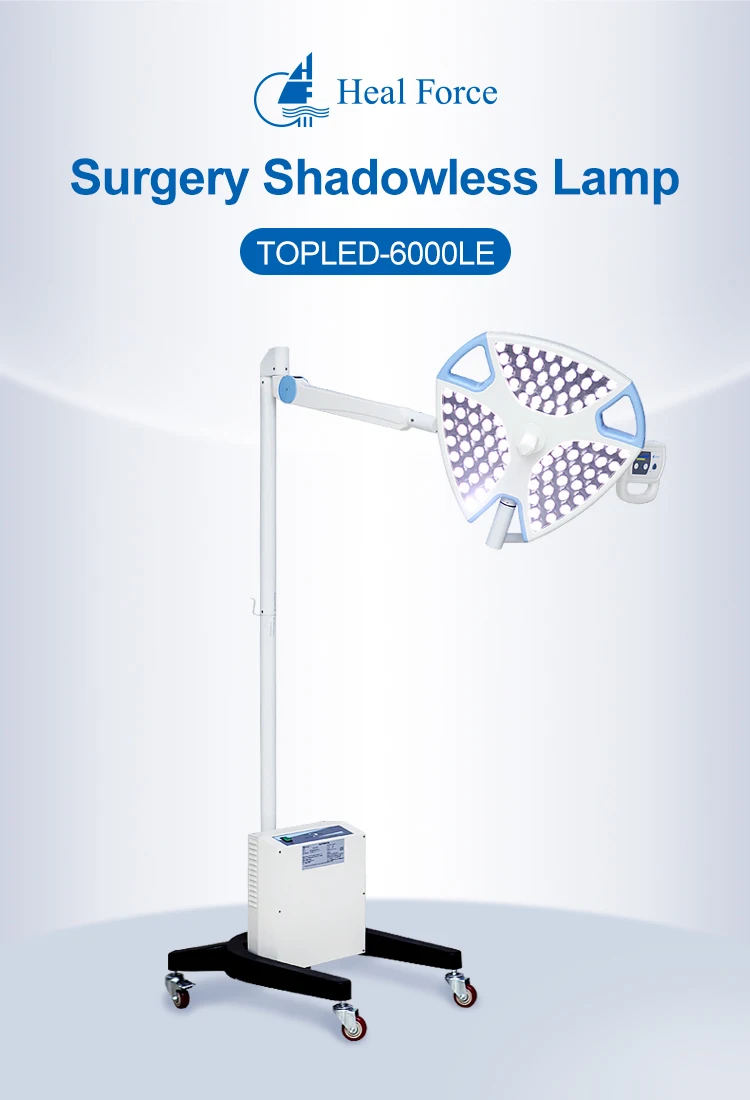

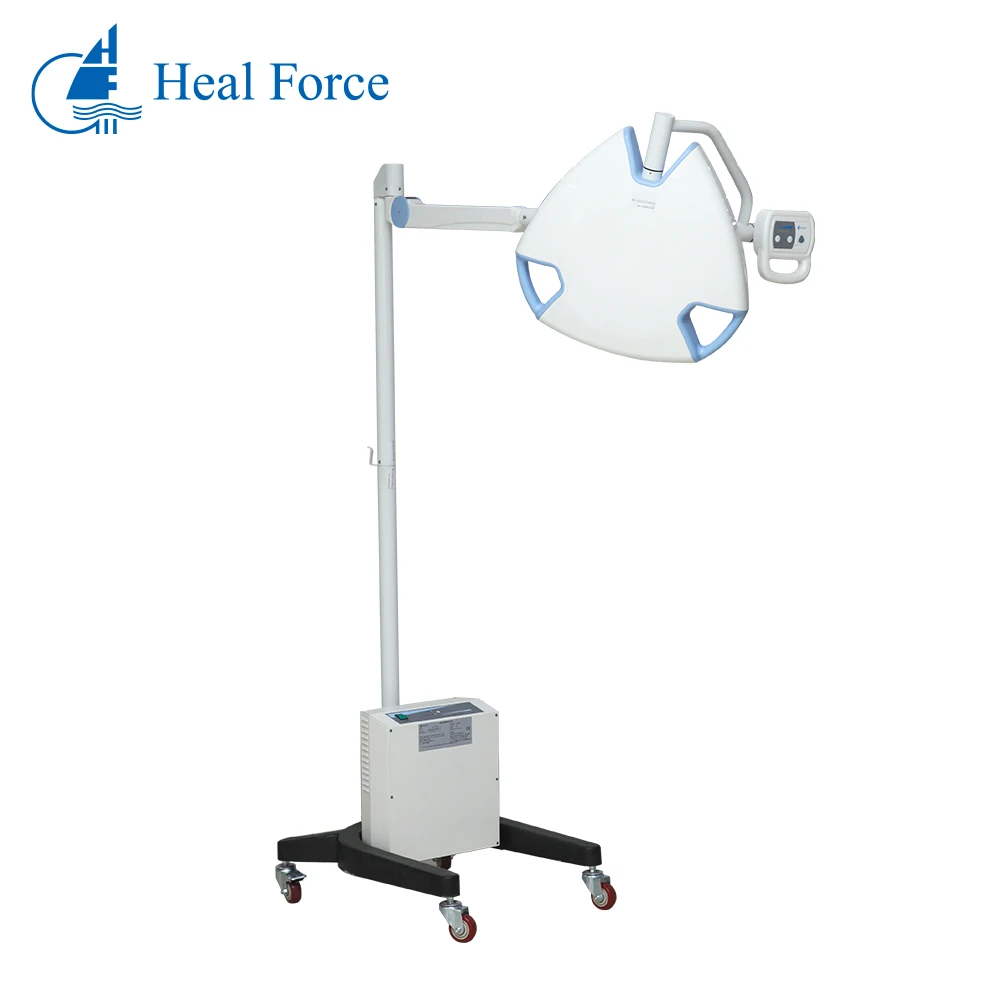

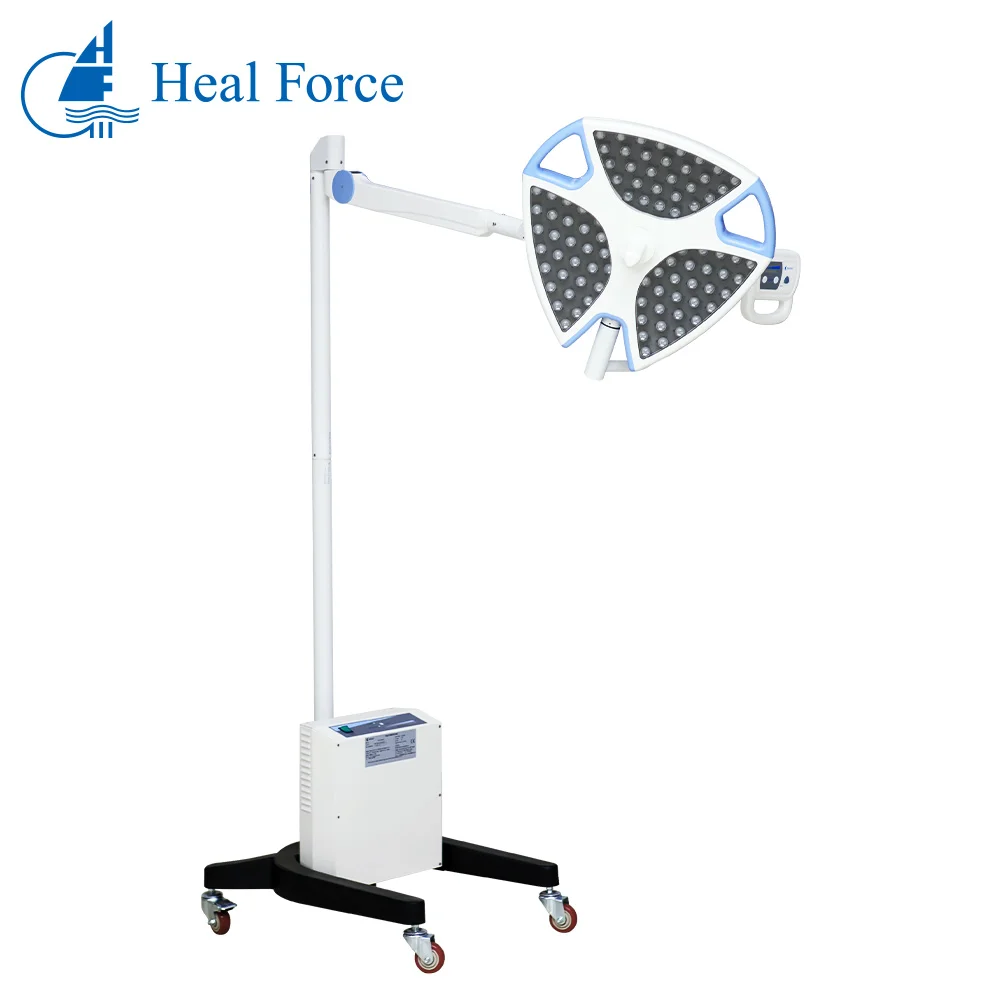

TopLED-6000LE Mobile LED light with battery backup，with 4300k color temperature it is widely applied in operating rooms and clinics for various surgeries like general surgery, ENT, Gynaecology, Urology etc
Shamrock shaped light-head brings no interference to laminar flow
90 LED bulbs to provide excellent lighting uniformity and durability
Operation with panel or optional hand-gesture control
Optional "ENDO" mode for ambient lighting during endoscopy
AC power supply with battery backup for at least 3-4hours lighting
Model | TOPLED-6000LE |
Central illumination (Klux) | 120-140 |
Color temperature(k) | 4300 |
Spot filed (D10),mm | 160-320 |
D10/D50 | ≥50% |
Ra | ≥95 |
Shadow diluton with tube | 95% |
Shadow diluton with 1 mask | 73% |
Shadow diluton with 2 mask | 60% |
Shadow diluton with tube and 1 mask | 68% |
Shadow diluton with tube and 2 mask | 55% |
Illumination depth (L1+L2),mm | 800 |
Ee | 500W/m2 |
Radiant Energy (W/m2*Lux) | 4 |
Buld lifetime(hrs) | 1000 |
Packing size | 1190*1120*610 |
Packing type | Wooden case |
Gross weight | 141 |
Precautions for use
The installation of surgery shadowless lamp is highly demanded, please read carefully the related content in user's manual.
1. Please do NOT scratch or knock the glass cover of the lamp.
2. To avoid being scalded, turn off the power and wait until the bulb cools before
replacing the bulb. Please do NOT touch the bulb glass directly with your hands.
3. The working temperature of some parts in the lamp holder exceeds 75℃, so wires made from polyvinyl fluoride are adopted to stand temperature as high as 200℃.
4. The infrared filter is for containing the temperature increase in the surgery area.
Should the heat absorption glass used for obstructing the infrared ray be broken
or two-lamp holders overlap in the same lighting area, the temperature increase
may be above the standard; and thus the surgery part on the patient may have
the risk of being overheated. Please be aware of the situation when using.
5. The surgery shadowless lamp must be installed with extra uninterruptible power
supply in case that there should be a power failure during the using of the surgery shadowless lamp.
6. To avoid security accident, Personnel without the authorization of our company
are NOT allowed to disassemble or refit the surgery shadowless lamp.
7. The normal life span of the surgery shadowless lamp is ten years. And the equipment should be discarded as useless mandatory when reaching the life span.
The installation of surgery shadowless lamp is highly demanded, please read carefully the related content in user's manual.
1. Please do NOT scratch or knock the glass cover of the lamp.
2. To avoid being scalded, turn off the power and wait until the bulb cools before
replacing the bulb. Please do NOT touch the bulb glass directly with your hands.
3. The working temperature of some parts in the lamp holder exceeds 75℃, so wires made from polyvinyl fluoride are adopted to stand temperature as high as 200℃.
4. The infrared filter is for containing the temperature increase in the surgery area.
Should the heat absorption glass used for obstructing the infrared ray be broken
or two-lamp holders overlap in the same lighting area, the temperature increase
may be above the standard; and thus the surgery part on the patient may have
the risk of being overheated. Please be aware of the situation when using.
5. The surgery shadowless lamp must be installed with extra uninterruptible power
supply in case that there should be a power failure during the using of the surgery shadowless lamp.
6. To avoid security accident, Personnel without the authorization of our company
are NOT allowed to disassemble or refit the surgery shadowless lamp.
7. The normal life span of the surgery shadowless lamp is ten years. And the equipment should be discarded as useless mandatory when reaching the life span.
