Дизельный трехколесный грузовик инженерный самосвал сельскохозяйственный

Дизельный трехколесный грузовик инженерный самосвал сельскохозяйственный

Категория: Dump Trucks >>>
Поставщик: Henan,Huansheng,Mechanical,Equipment,Co.,Ltd.Henan,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.10 $*	0.25 $*
Aug-19-2025	0.19 $*	0.37 $*
Jul-19-2025	0.7 $*	0.7 $*
Jun-19-2025	0.94 $*	0.66 $*
May-19-2025	0.13 $*	0.55 $*
Apr-19-2025	0.61 $*	0.26 $*
Mar-19-2025	0.21 $*	0.68 $*
Feb-19-2025	0.10 $*	0.66 $*
Jan-19-2025	0.22 $*	0.63 $*

Характеристики

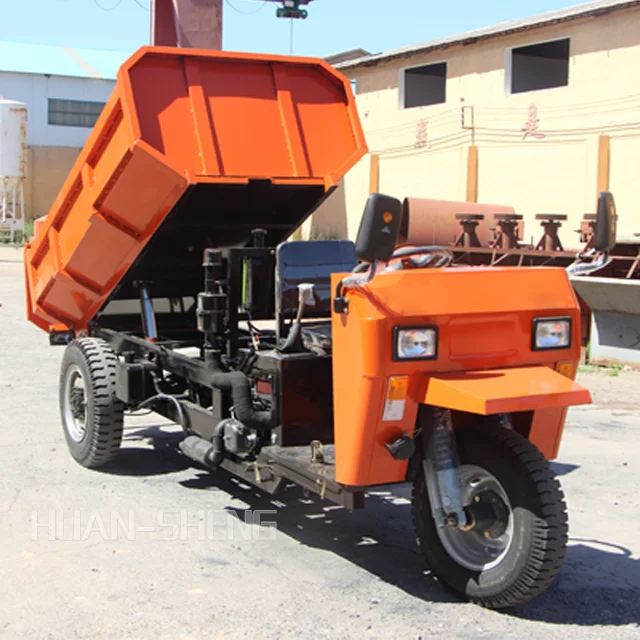

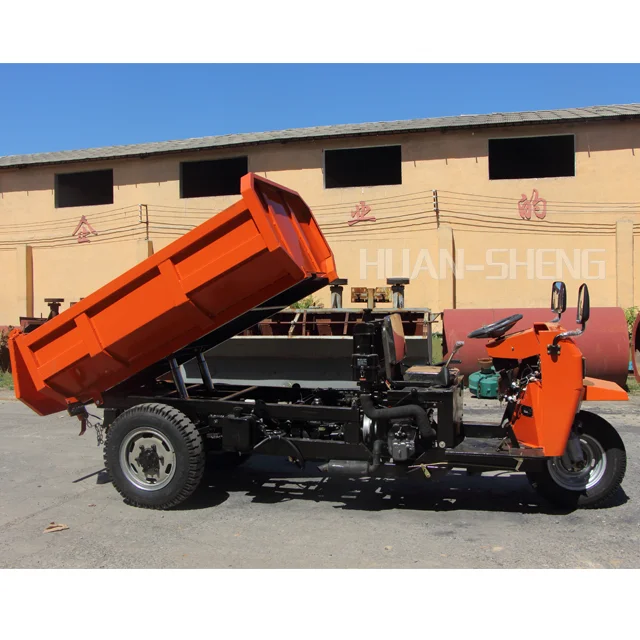

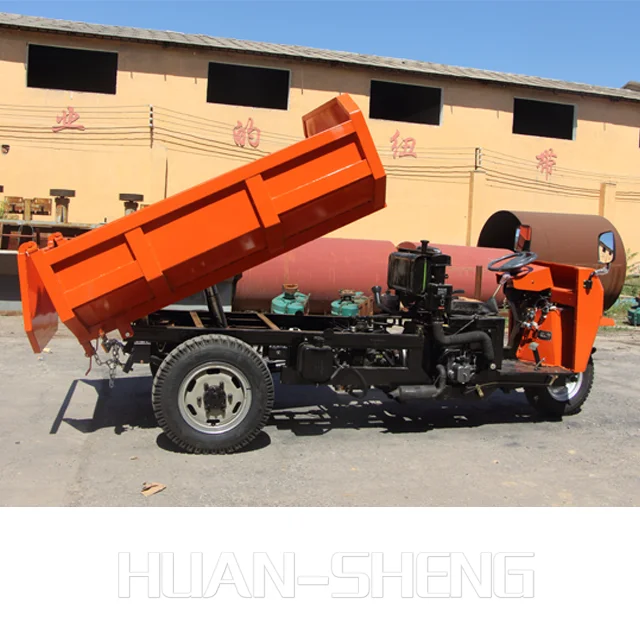

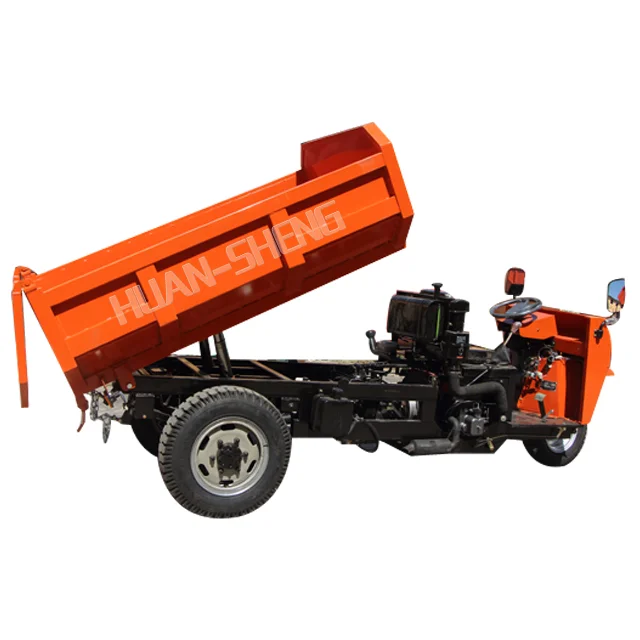

25 Horsepower Engineering Dump Truck Tricycle for Agricultural Construction Projects Diesel Dumper

Diesel Engineering Dump Tricycle has luxurious appearance, beautiful appearance, simple operation, large carrying capacity and comfortable operation. It is an ideal tool for transportation of bulk sand and soil in subway projects, mine transportation, engineering construction, and road transportation.

Diesel Tricycle - Engineering Dump Tricycle - Electric Start Tricycle - Mining Tricycle

Engineering Vehicle With High and Low Speed - Steering Wheel Tricycle - Seven-speed Diesel Tricycle

Product advantage

*Power configuration: 18HP 22HP 25HP

*Body color can meet the diverse needs of users

*The use of a central worm wheel steering machine makes the steering more light, flexible and comfortable, which meets the needs of different users and expands the user's choice space.

Main technical parameters

HS-400 II Diesel Dual Hydraulic Tricycle
Loading capacity	4000-5000kg
Horse power	25HP
Tire size (F/R)	600-14/650-16
Overall sizes	400013001400mm
Cargo box sizes	20001300500mm
Weight	1000kg
Brake system	foot brake(Hydraulic brake)/hand brake
Max speed	55km/h
Dump equipment	Double hydraulic lifting system
Maximum gradeability	35 degrees
Maximum tilt angle of car bucket	45 degrees
Other configuration	Exhaust gas filtration system Double shock absorption

Details Images

—Control System —

Simple and easy to work console

—Brake System —

The brake adopts advanced technology, which brings great safety. The hand brake and foot brake cooperate with each other for easy operation and high safety.

—Filtering System —

It adopts an advanced filter system, which conforms to national standards, can work freely in a variety of scenarios, and has no concerns about exhaust gas.

—Hydraulic System —

Double hydraulic pressure for loading and unloading goods, improving work efficiency and reducing labor, is a must for bulk goods.

-Drive shaft rear axle-

Optimized rear axle, reasonable speed ratio design and careful matching of the power system, smooth gear shifting, achieving a harmonious unity of power and economy, 3mm weighted frame, internal and external double-layer beam structure, strong load-bearing capacity, to meet various working conditions Conditions of Use;

-Diesel Engine-

The 4-ton diesel dump truck uses a 25-horsepower Changchai engine. All our products use well-known brands of engines to solve customers' worries and allow them to use them safely.

-Main Advantage-

1. (Body): It adopts a regular automobile steel frame, which is more tough than the traditional riveted and welded frame, and does not change shape after heavy pressure.

2. (Accessories): All the accessories are well-known products, and the quality has reached the international level. When replacing the parts, it is easier to buy them in time in the local area.

3. (Chassis): The front and rear cast axles are stronger and longer than traditional welded axles. The chassis is reinforced to comply with mining standards.

4. (Process): The whole vehicle breaks through the traditional technology. The vehicle is produced in split type, which can be disassembled and assembled at will, which is convenient for downhole or after-sales maintenance.

5. (Material): The steel and the screws of all parts are made of steel grades above national 8. Since the process of scientific research, production, and assembly, the company strictly controls and the quality has reached the international level.
