Генератор сигналов ZYK XR2206 1 Гц-1 МГц 9-12 В постоянного тока входной синусоидальный/треугольный/квадратный выходной Регулируемый функциональный
- Категория: Signal Generators >>>
- Поставщик: Guilin,Qixing,District,Zhongyinke,Electronic,Equipment,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5.68 $* | 5.39 $* |
| Aug-19-2025 | 5.1 $* | 5.17 $* |
| Jul-19-2025 | 4.10 $* | 4.95 $* |
| Jun-19-2025 | 5.20 $* | 5.82 $* |
| May-19-2025 | 4.86 $* | 4.62 $* |
| Apr-19-2025 | 5.66 $* | 5.60 $* |
| Mar-19-2025 | 5.38 $* | 5.95 $* |
| Feb-19-2025 | 4.43 $* | 4.3 $* |
| Jan-19-2025 | 4.71 $* | 4.29 $* |
Характеристики
Product Overview

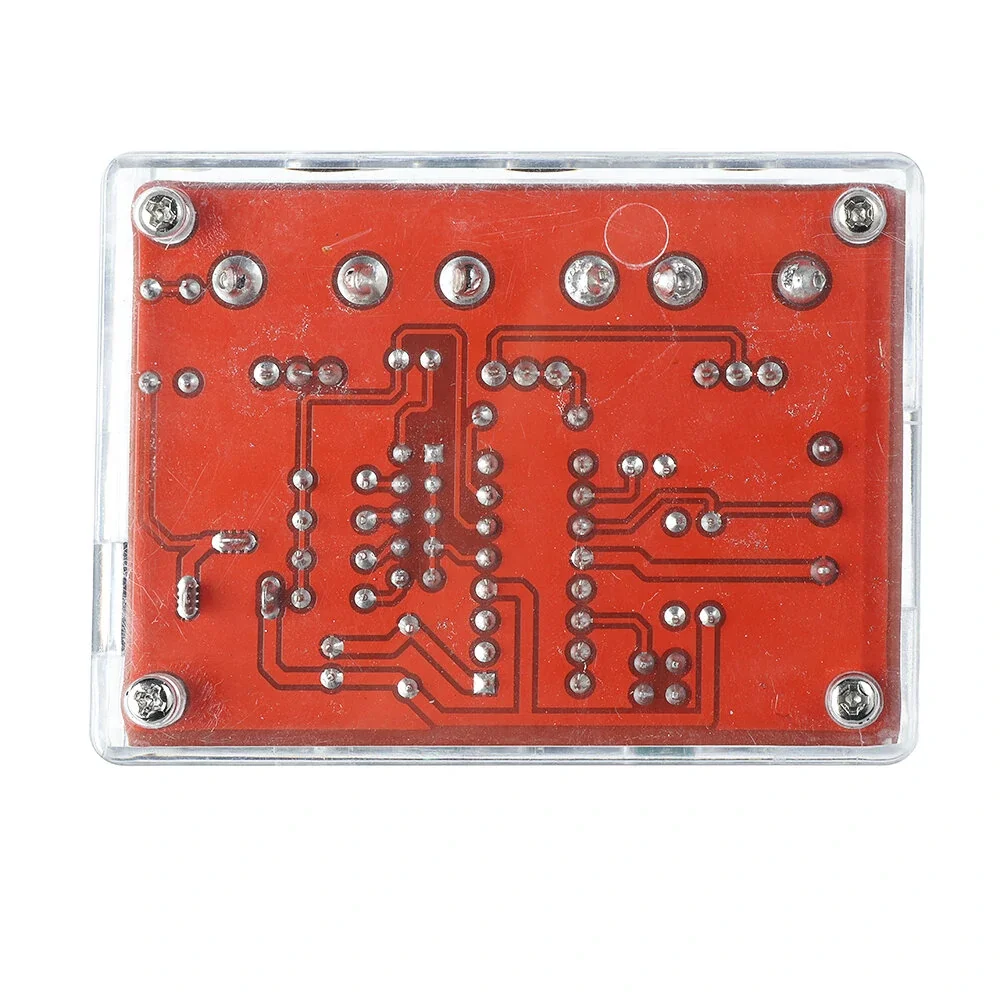

XR2206 Signal Generator
Description:
This signal generator is professional product to generate sine/triangle/square wove.
Features:
High resolution, can generate sine/triangle/square woveforms.
Frequency range: 1Hz-1MHz.
Adjustable frequency and amplitude.
Frequency adjustment features coarse tuning and fine tuning.
Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
Specification:
Type: Finished Product
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz-1MHz
SINE WAVE
Amplitude: 0-3V at 9V DC Input
Distortion: Less than 1% (at 1KHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WoVE
Amplitude: 8V (no load) at 9V DC Input
Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)
Symmetry: Less than 5% (at 1KHz)
TRIANGLE WAVE
Amplitude: 0-3V at 9V DC Input
Linearity: Less than 1% (up to 100KHz) 10mA
Package Size: Approx. 12 * 8 * 2cm / 4.72 * 3.15 * 0.8in
Package Weight: 69g / 2.46oz
Package included:
1 x Signal Generator
1 x English User Manual
This signal generator is professional product to generate sine/triangle/square wove.
Features:
High resolution, can generate sine/triangle/square woveforms.
Frequency range: 1Hz-1MHz.
Adjustable frequency and amplitude.
Frequency adjustment features coarse tuning and fine tuning.
Wide power supply range, use 9-12V external power or 9V battery(NOT Included).
Specification:
Type: Finished Product
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz-1MHz
SINE WAVE
Amplitude: 0-3V at 9V DC Input
Distortion: Less than 1% (at 1KHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WoVE
Amplitude: 8V (no load) at 9V DC Input
Rise Time: Less than 50ns (at 1KHz)
Fall Time: Less than 30ns (at 1KHz)
Symmetry: Less than 5% (at 1KHz)
TRIANGLE WAVE
Amplitude: 0-3V at 9V DC Input
Linearity: Less than 1% (up to 100KHz) 10mA
Package Size: Approx. 12 * 8 * 2cm / 4.72 * 3.15 * 0.8in
Package Weight: 69g / 2.46oz
Package included:
1 x Signal Generator
1 x English User Manual
