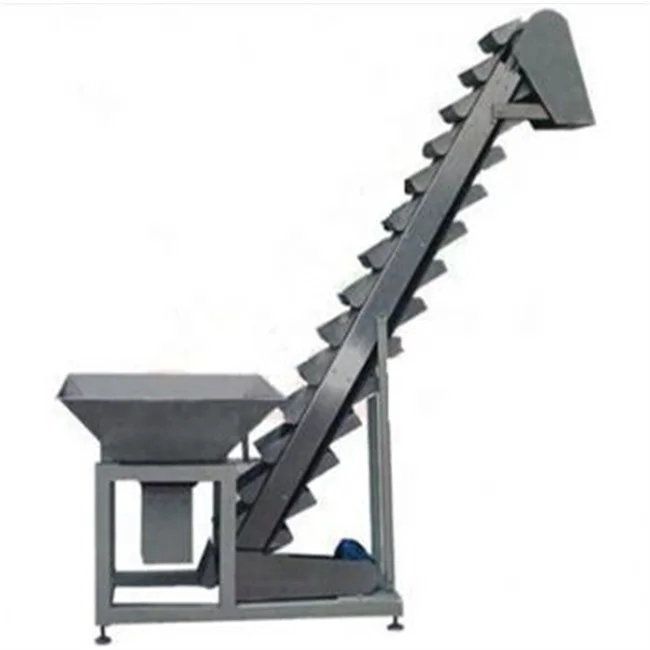

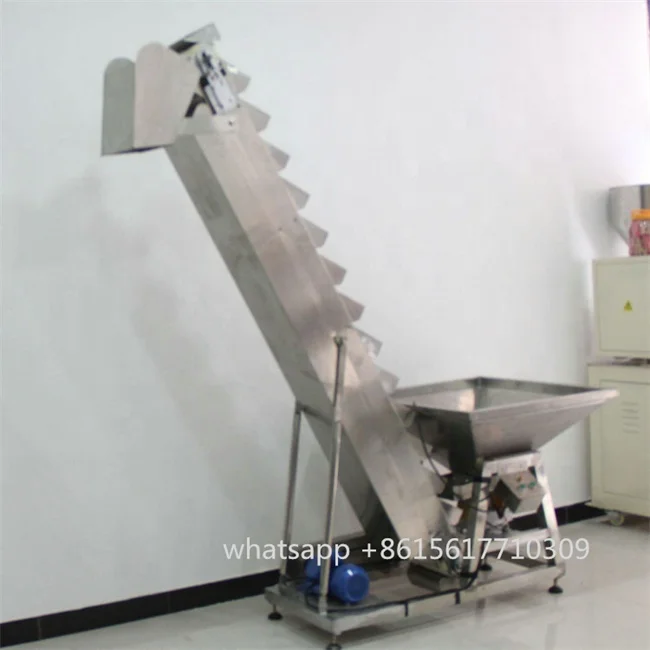

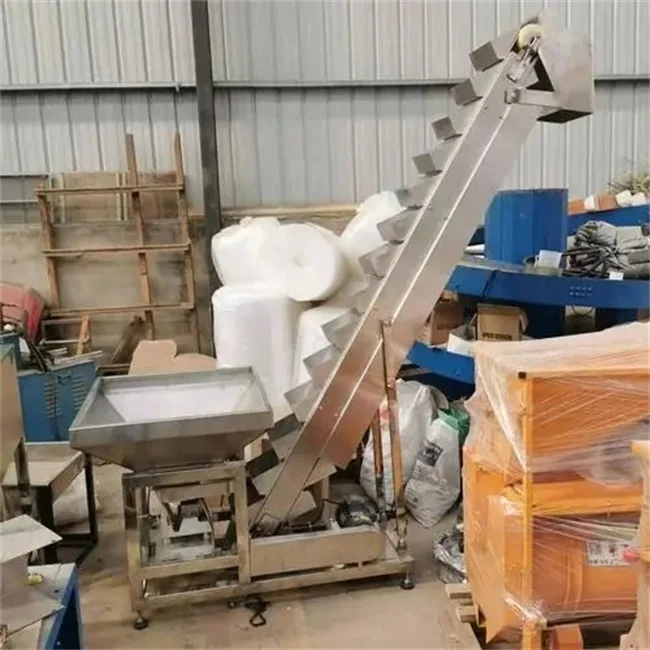

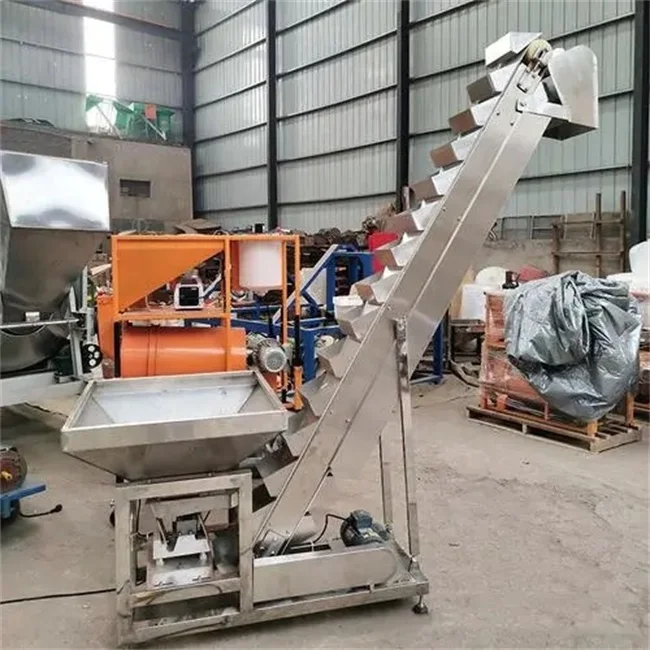

China made bulk material mining industry stainless steel bucket elevator for

 Stainless steel bucket elevator is widely used to lift various bulk materials, such as clinker, grain, chemical fertilizer, food, etc. It has been widely used to upgrade various bulk materials, such as ore, coal, cement, cement clinker, grain, chemical fertilizer, food, etc. In various industrial countries, this kind of hoist is widely used.

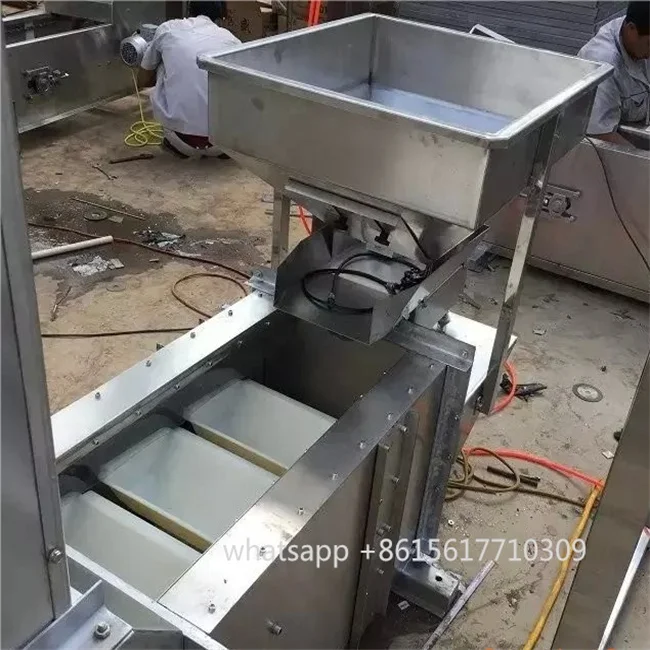

   The bucket elevator is composed of running parts, driving device, upper device, middle casing and lower device.

   Running parts - composed of hopper and sleeve roller chain.

   Driving device - Y series motor is adopted, which is composed of reducer (or cycloidal needle wheel reduction motor directly) and chain drive. (it can be determined according to user requirements).

Normal model specification (can custom-made ) :

Working power supply: 380V 50Hz

Supporting power: 0.75kw-7.5kw

Machine specification: spiral pipe diameter 114 / 159 / 219 optional

Machine length: 0.5-6m (customized according to lifting height)

Hopper volume: conventional 80cm * 80cm (customizable).

Conveying mode: horizontal or inclined (less than 45 degrees recommended)

Conveying materials: powdery and granular materials such as food and chemical industry.

Conveying capacity: 6-30 tons / hour (depending on the actual situation and material proportion)

Material: 201 / 304 / 316 stainless steel

Product features:

1. Wide lifting range: this kind of elevator has few requirements on the type, characteristics and block size of materials. It can not only improve powdery, granular and massive materials, but also improve materials with high grinding and cutting properties and materials with a temperature of 250 ℃.

   2. Large conveying capacity: the lifting capacity range is 15 ~ 800 m3 / h.

  3. Long service life: the feeding of the elevator adopts inflow type, and there is little extrusion and collision between moving parts and materials. The design of the machine ensures that materials will not fall during feeding, lifting and unloading, which prevents the wear of materials to the body. The conveyor chain adopts plate chain high-strength wear-resistant chain, which prolongs the service life of the chain and chain bucket. According to the long-term practice of similar foreign products in production, the service life of the conveyor chain is more than 5 years.

   4. Small driving power: this kind of elevator adopts inflow feeding and gravity induced unloading, and adopts dense large-capacity hopper for transportation, with low chain speed and large lifting capacity. During material lifting, there is almost no material return and excavation, so the invalid power is less. The theoretically calculated shaft power is about 45% of that of the ring chain hoist.

   5. High lifting height: the chain speed of this series of hoists is low, the operation is stable, and the plate chain type high-strength wear-resistant chain is adopted, so it can reach a high lifting height (up to 40m).

   6. Good sealing and less environmental pollution.

   7. Good operation reliability: advanced design principle ensures the operation reliability of the whole machine. The failure free time exceeds 30000 hours.

   8. Convenient operation and maintenance, less vulnerable parts.

   9. The whole machine has good rigidity and high precision: the shell is folded, pressed in the middle, and then welded. The shell has good rigidity and beautiful appearance.

  10. Low use cost: due to energy saving and less maintenance, the use cost is low.
