Характеристики

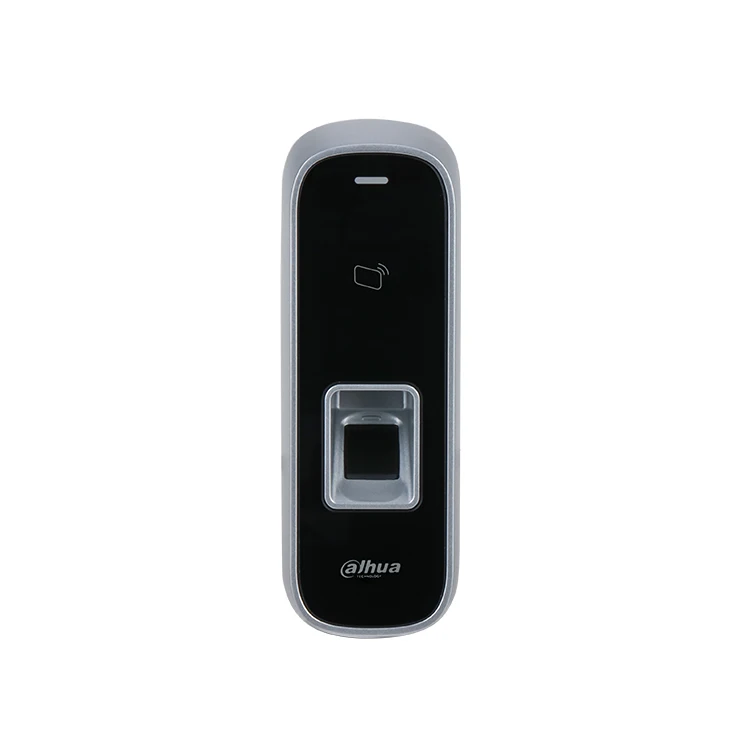

Access Control Standalone Terminal ASI1202M-D Card Reader Fingerprint Identification Instrument
Products Description
ASI1202M / ASI1202M-D
Access Control Standalone Terminal
> Material: Zinc alloy plate
> Support card unlock, fingerprint unlock, and card&fingerprint unlock
> Card reading distance is 1cm–3cm
> Support both RS-485 protocol and Wiegand protocol
> IP65, IK10
> Fingerprint Capacity: 3, 000
> Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card exceeding time alarm
> Support guest card, patrol card, VIP card, general user card, and card for the disabled
Access Control Standalone Terminal
> Material: Zinc alloy plate
> Support card unlock, fingerprint unlock, and card&fingerprint unlock
> Card reading distance is 1cm–3cm
> Support both RS-485 protocol and Wiegand protocol
> IP65, IK10
> Fingerprint Capacity: 3, 000
> Support duress alarm, tamper alarm, intrusion alarm, door contact timeout alarm, and illegal card exceeding time alarm
> Support guest card, patrol card, VIP card, general user card, and card for the disabled
Product Paramenters
System | ||
Main Processor | Embedded processor | |
Network Protocol | IPv4; TCP | |
OSDP Protocol | Yes | |
SDK and API | Yes | |
Basic | ||
Appearance | All-in-one | |
Buzzer | Yes | |
Casing | Zinc alloy | |
Function | ||
Unlock Mode | Fingerprint/Card unlock | |
Card Reading Type | IC or ID card | |
Period List | 128 | |
Holiday Period | 128 | |
Network Update | Yes | |
First Card Unlock | Yes | |
Remote Verification | Yes | |
Blacklist/Whitelist | Yes | |
Peripheral Card Reader | 1 RS-485, 1 Wiegand | |
Multiple Authentication | Support card/fingerprint unlock | |
Real-Time Surveillance | Yes | |
Group Combination | Yes | |
Register | Yes | |
Performance | ||
Card Reading Distance | 1cm–3cm | |
Fingerprint Sensor Type | Optical | |
Fingerprint Verification | 1:N | |
Fingerprint Comparison Time | ≤1.5s | |
Fingerprint Recognition Time | ≤0.5s | |
User | ||
User (Card) Type | General user/VIP/patrol user/guest/blacklist user/special user | |
Capacity | ||
User Capacity | 30,000 | |
Fingerprint Capacity | 3,000 | |
Card Capacity | 30,000 | |
Record Capacity | 150,000 | |
Port | ||
RS-485 | 1 | |
Wiegand | 1 (input and output ports are the same) | |
USB | 1 USB2.0 port | |
Network | 1 RJ-45, 10Mbps/100Mbps self-adaptive | |
Alarm Input | 1 (digital quantity) | |
Alarm Output | 1 (relay) | |
Alarm Linkage | Yes | |
Exit Button | 1 | |
Door Status Detection | 1 | |
Lock Control | 1, off by default | |
Bolt Detection | 1, relay | |
Alarm | ||
Anti-Passback | Yes | |
Tamper Alarm | Yes | |
Duress Alarm | Yes | |
Door Sensor Timeout | Yes | |
Intrusion | Yes | |
Illegal Card Exceeding Threshold | Yes | |
Duress Fingerprint | Yes | |
General | ||
Power Adapter | Optional | |
Power Supply | 12V DC 1A | |
Protection Grade | IP65 (Apply silica gel to gaps, for details, see the quick start guide.) | |
IK10 | ||
Power Consumption | ≤1.8W (standby), ≤3W (working) | |
Product Dimensions | 54.8mm×159.2mm×35.0mm (2.16"×6.27"×1.38") | |
Box Dimensions | 206mm×106mm×97mm (8.11""×4.17""×3.82"") (Product box) | |
553mm×428mm×220mm (21.77""×16.85""×8.66"") (Protective box) | ||
Operating Temperature | -30°C to +50°C (-22°F to +122°F) | |
Operating Humidity | 5%RH–95%RH (non-condensing) | |
Operating Altitude | 0m–1300m (0ft–4265.09ft) | |
Operating Environment | Outdoor | |
Net weight | 0.7kg (1.54lb) | |
Gross Weight | 0.79kg (1.74lb) | |
Accessory | Bracket | |
Installation | Surface mount | |
Certifications | CE | |
FCC | ||
