Дисковые керамические фильтры для вакуумного керамического
- Категория: >>>
- Поставщик: Hebei,Riton,Dali,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.7 $* | 0.98 $* |
| Aug-19-2025 | 0.54 $* | 0.64 $* |
| Jul-19-2025 | 0.88 $* | 0.57 $* |
| Jun-19-2025 | 0.88 $* | 0.69 $* |
| May-19-2025 | 0.77 $* | 0.1 $* |
| Apr-19-2025 | 0.97 $* | 0.37 $* |
| Mar-19-2025 | 0.6 $* | 0.47 $* |
| Feb-19-2025 | 0.6 $* | 0.65 $* |
| Jan-19-2025 | 0.58 $* | 0.66 $* |
Характеристики
Product Overview

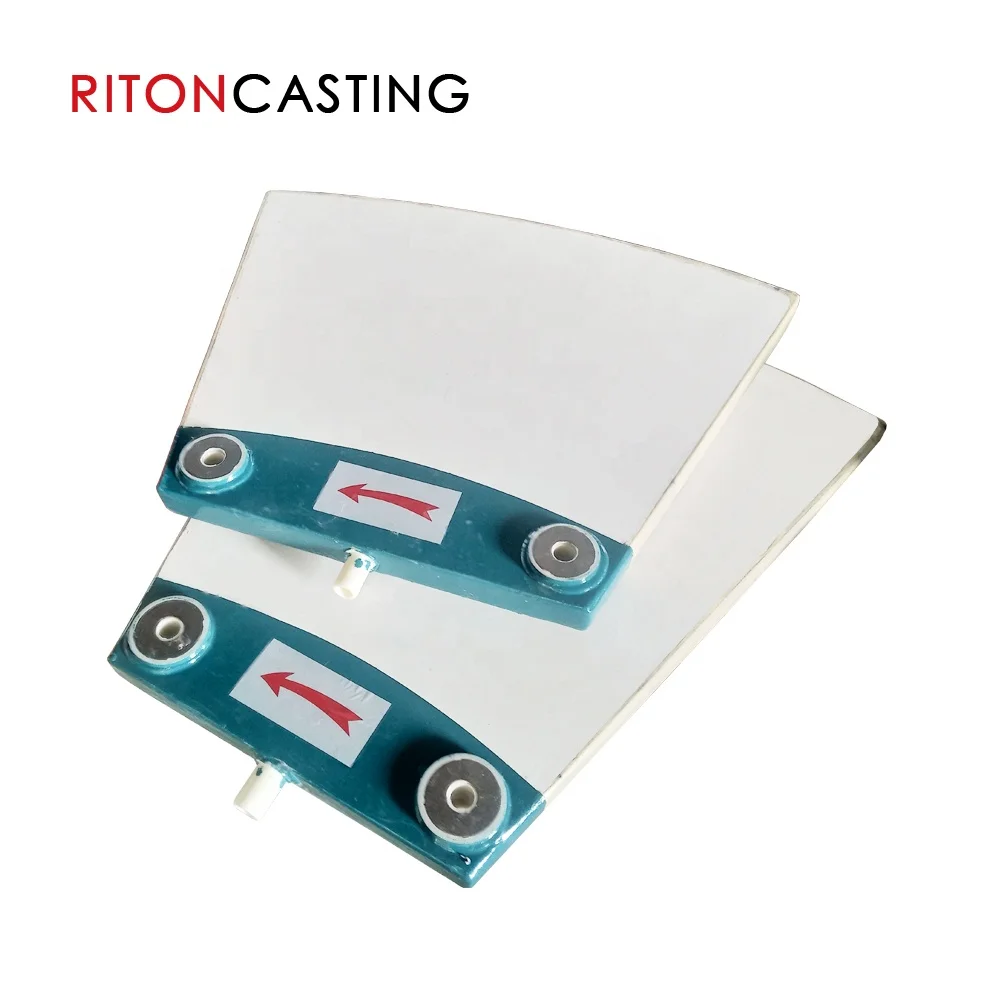

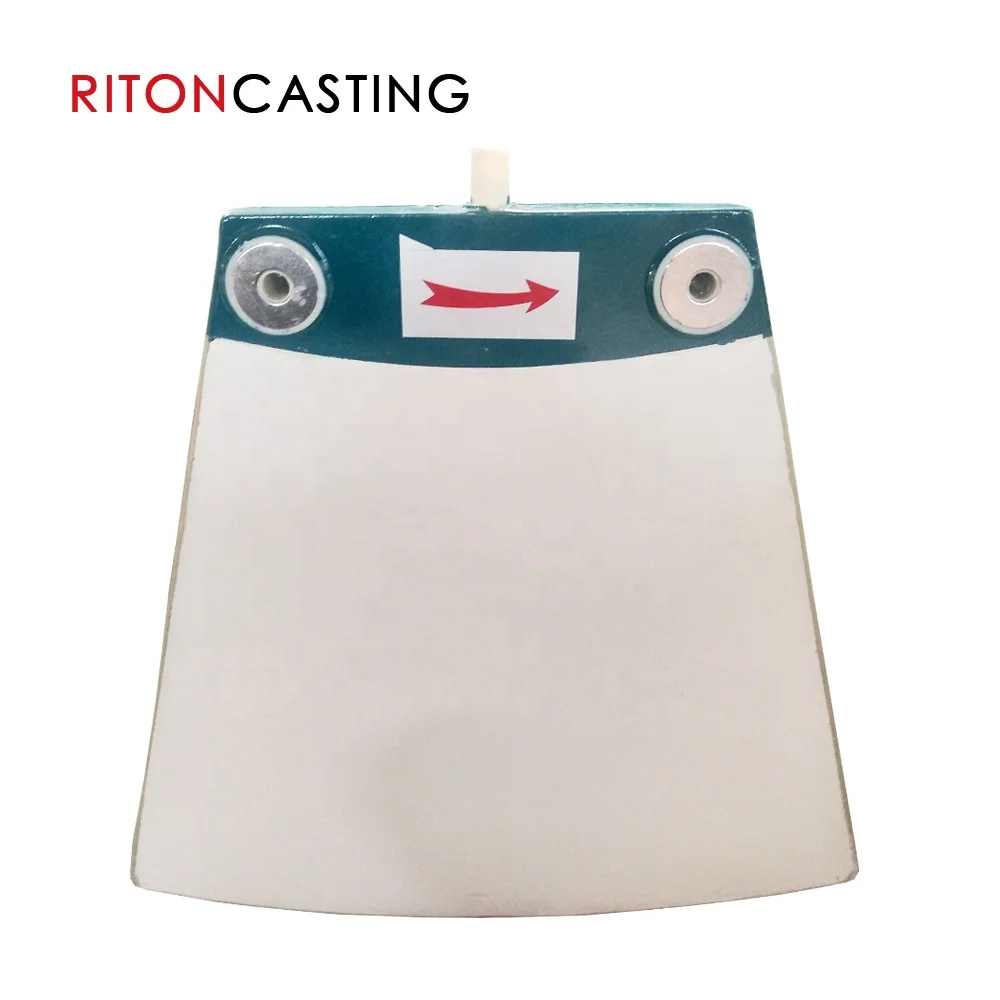

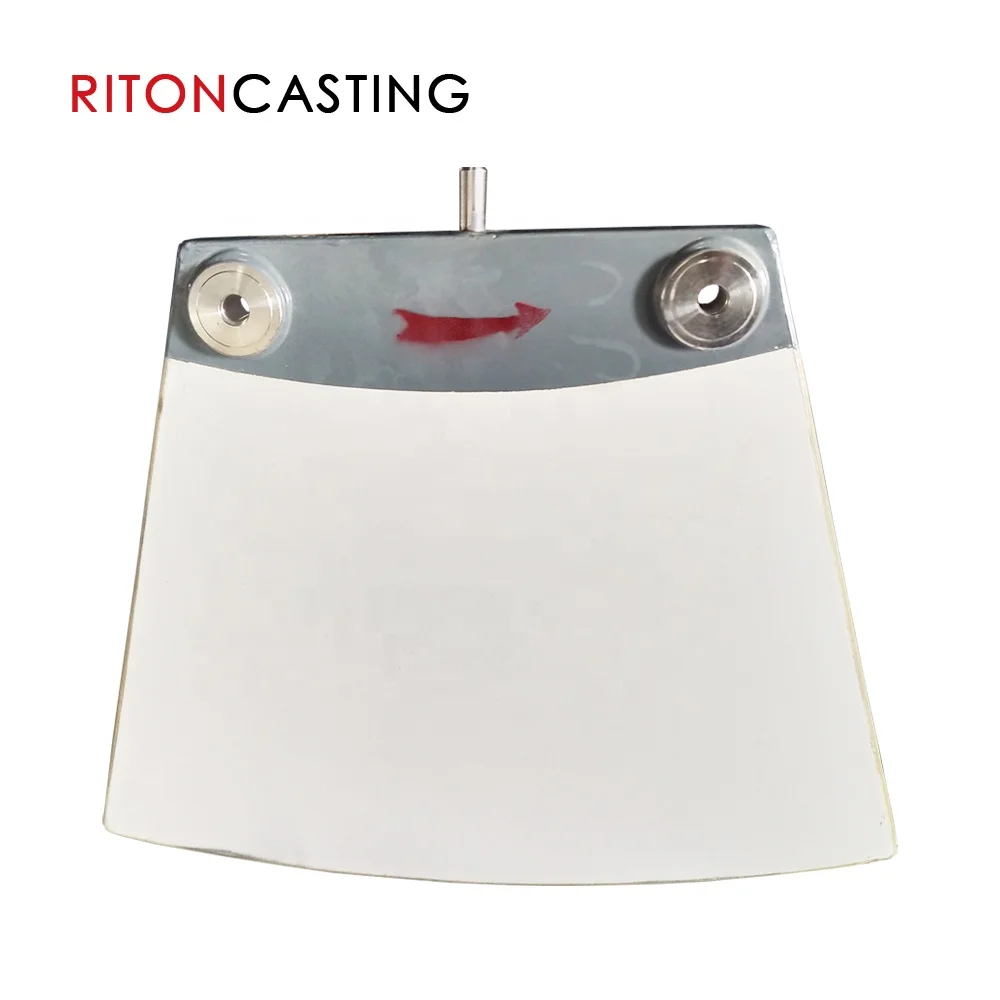

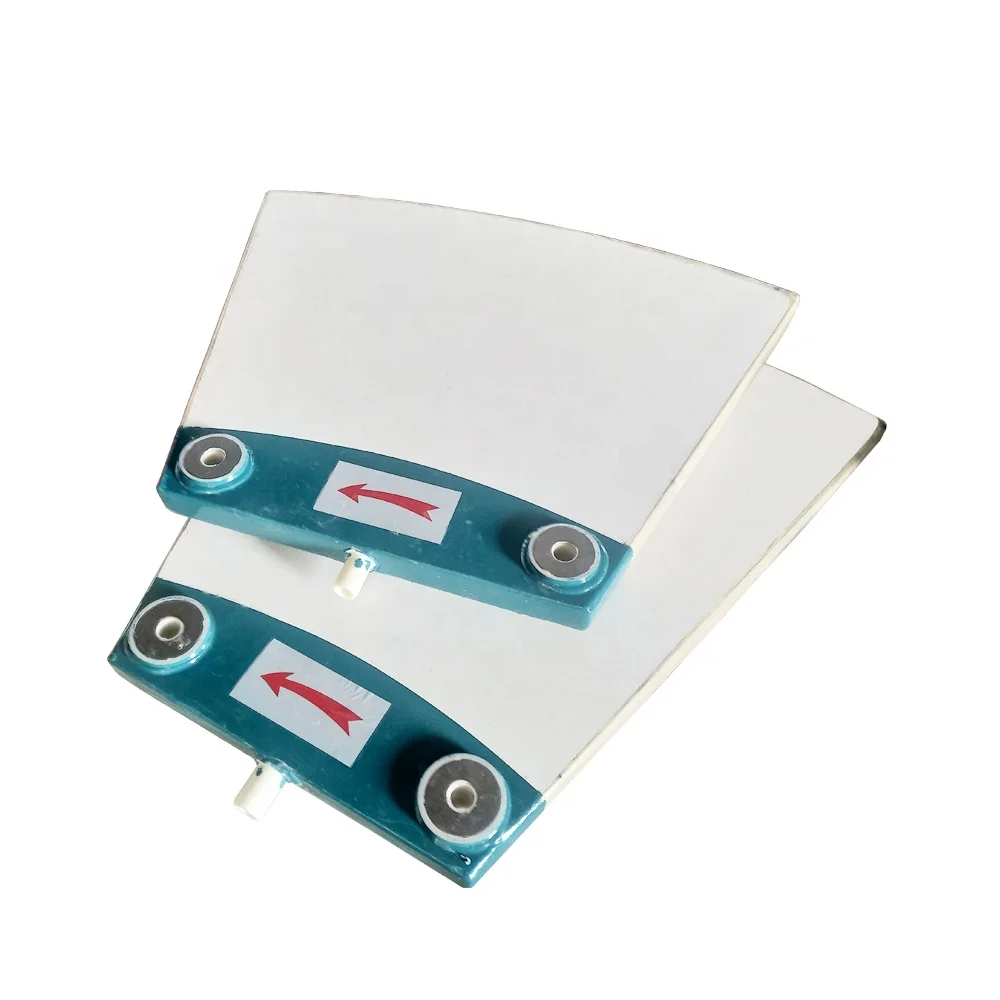

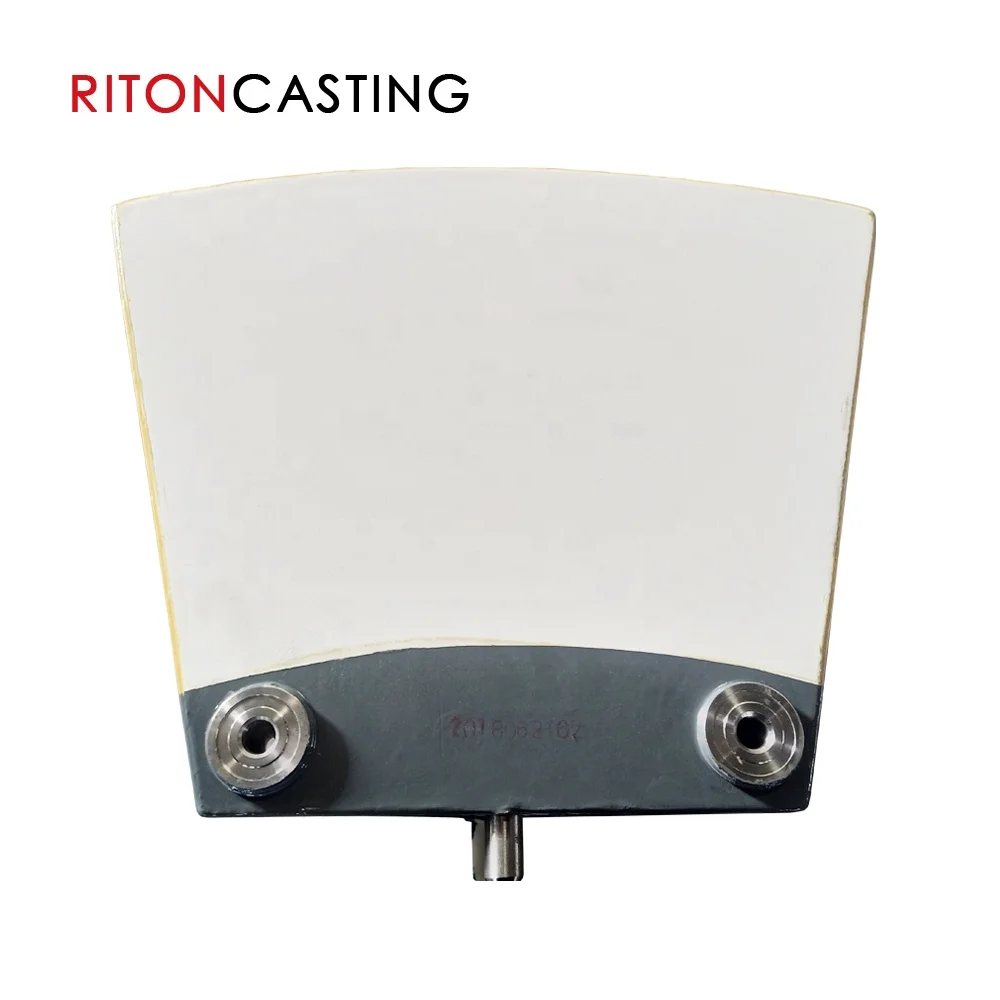

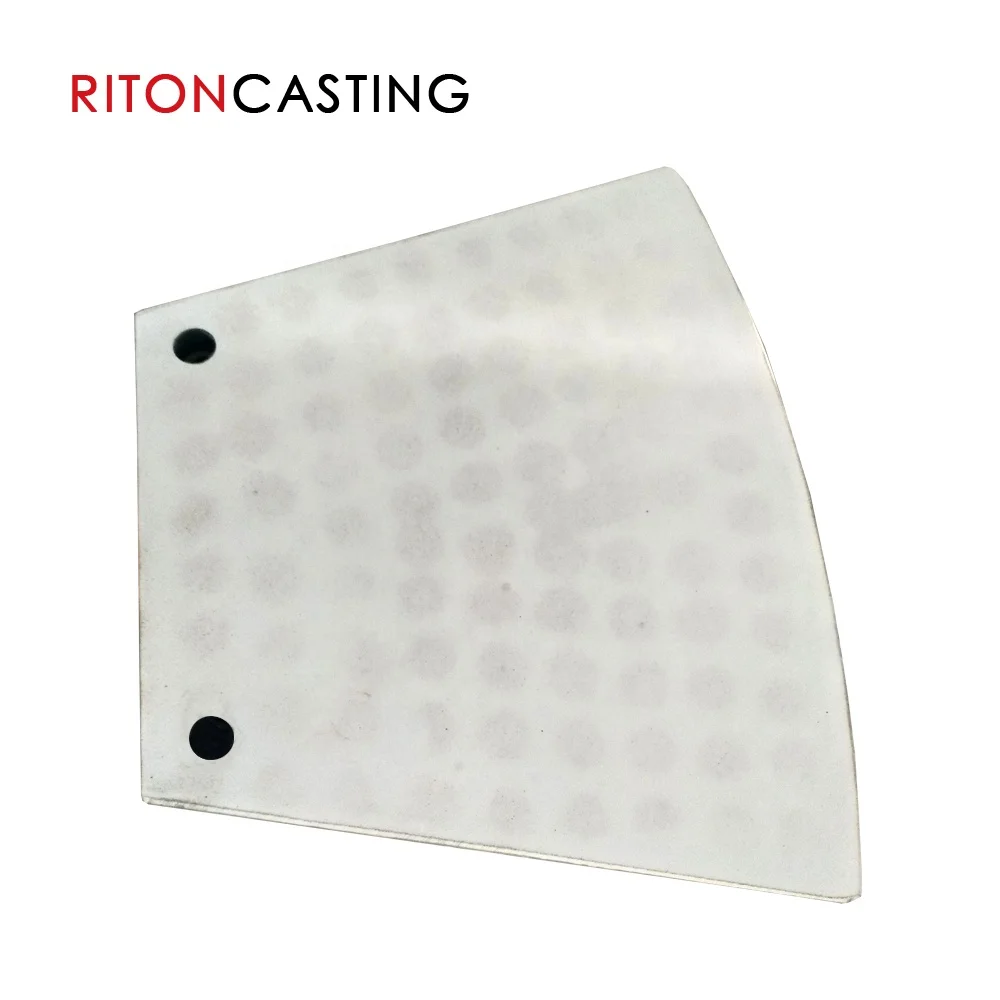

Ceramic Filter Plate
Ceramic filter plate is a kind of large porous ceramic disc which is fired by alumina ceramic and which has good resistance to acid and alkali.. It has following characteristics: large filter area, high intensity and even aperture. Due to the countless capillary in this kind of porous material, only the water can pass through the filter plate due to the capillary function in the whole process, but the air and solid never pass through, thereby to achieve the filtration task. Besides, the aperture size can be adjusted according to actual demands. After a period of application, the ceramic filter board can be cleaned by cycle reverse cleaning, ultrasonic and chemical cleaning agent and so on, to let the boards work with high efficiency.
FEATURES AT A GLANCE
Easy Installation
Large Production Capacity
High Filtration Precision
Low Vacuum Consumption Energy
Withstanding Pressure And Corrosion
Can Be Cleaned In Organic Solvents
Large Production Capacity
High Filtration Precision
Low Vacuum Consumption Energy
Withstanding Pressure And Corrosion
Can Be Cleaned In Organic Solvents
Chromium-iron Ore Slurry
Stainless Steel Ore Slurry
Iron Ore Slurry
PRODUCT SPECIFICATIONS
DISC CERAMIC FILTER PLATE
SPECIFICATION SHEET
Model | Specification | Exterior Dimension (mm) |
RT-P1 | 1m2/12 | L1=128 L2=98 L3=250 B=250 C=20 |
RT-P2 | 2m2/12 | L1=225 L2=165 L3=380 B=320 C=25 |
RT-P3 | 3m2/12 | L1=295 L2=239 L3=485 B=395 C=25-30 |
RT-P4 | 4m2/12 | L1=338 L2=276 L3=555 B=441 C=30 |
RT-P5 | 5m2/12 | L1=300 L2=240 L3=568 B=550 C=35 |
RT-P6 | 6m2/12 | L1=294 L2=235 L3=603 B=619 C=32 |
RT-P12 | 12m2/12 | L2=430 L3=777.3 B=822 C=36 |
Successful Project
Project in South Africa
Project in China
Project in China
SIMILAR PRODUCTS
FAQ
Q1: Are you a manufacture or a trading company?
A: We are a professional manufacturer and a trading company for more than 10 years
Q2: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q3: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q4: What's the lead time？
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q5: What's your warranty terms?
A: We supply 12 months warranty time.
Q6: What's your payment terms?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another questions, please feel free to contact us.
