1325 3d режущий станок для резьбы по дереву деревообрабатывающее оборудование с линейным или каруселевым
- Категория: Wood Router >>>
- Поставщик: Jinan,Dwin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 14280.12 $* | 14994.60 $* |
| Aug-16-2025 | 14160.7 $* | 14868.30 $* |
| Jul-16-2025 | 11880.90 $* | 12474.4 $* |
| Jun-16-2025 | 13920.23 $* | 14616.29 $* |
| May-16-2025 | 12120.50 $* | 12726.17 $* |
| Apr-16-2025 | 13680.42 $* | 14364.97 $* |
| Mar-16-2025 | 13560.46 $* | 14238.44 $* |
| Feb-16-2025 | 13440.16 $* | 14112.54 $* |
| Jan-16-2025 | 13320.43 $* | 13986.0 $* |
Характеристики

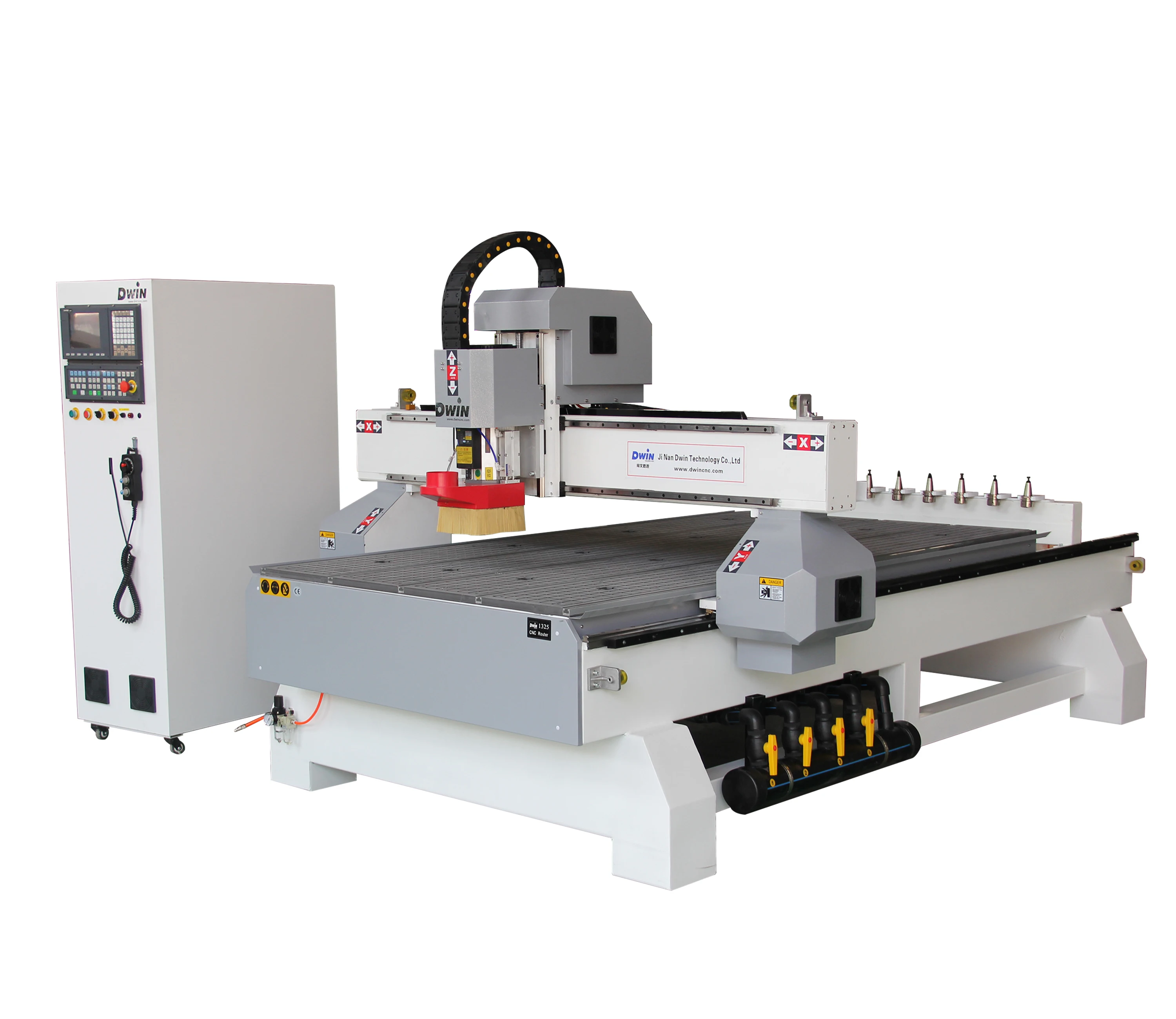

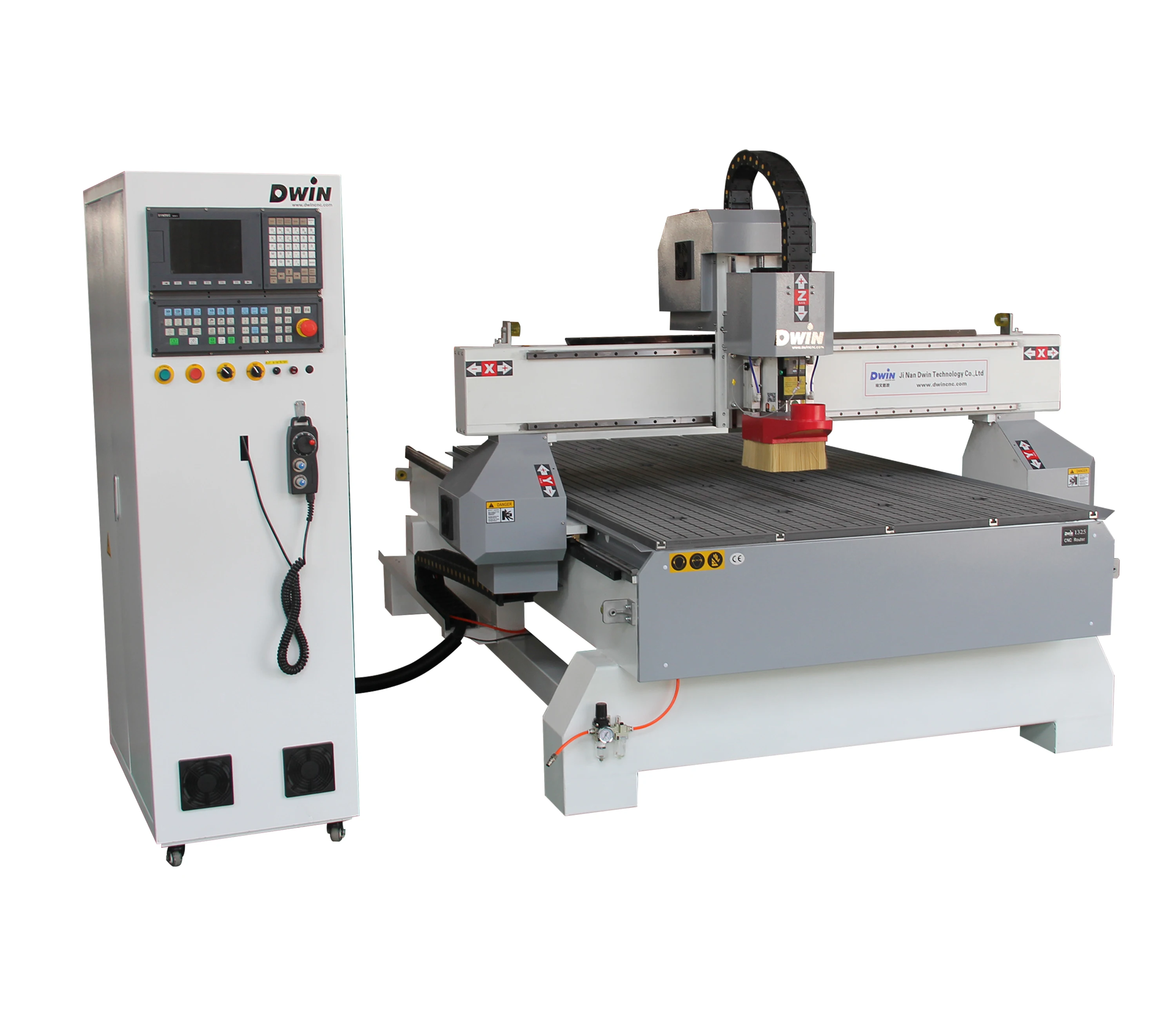

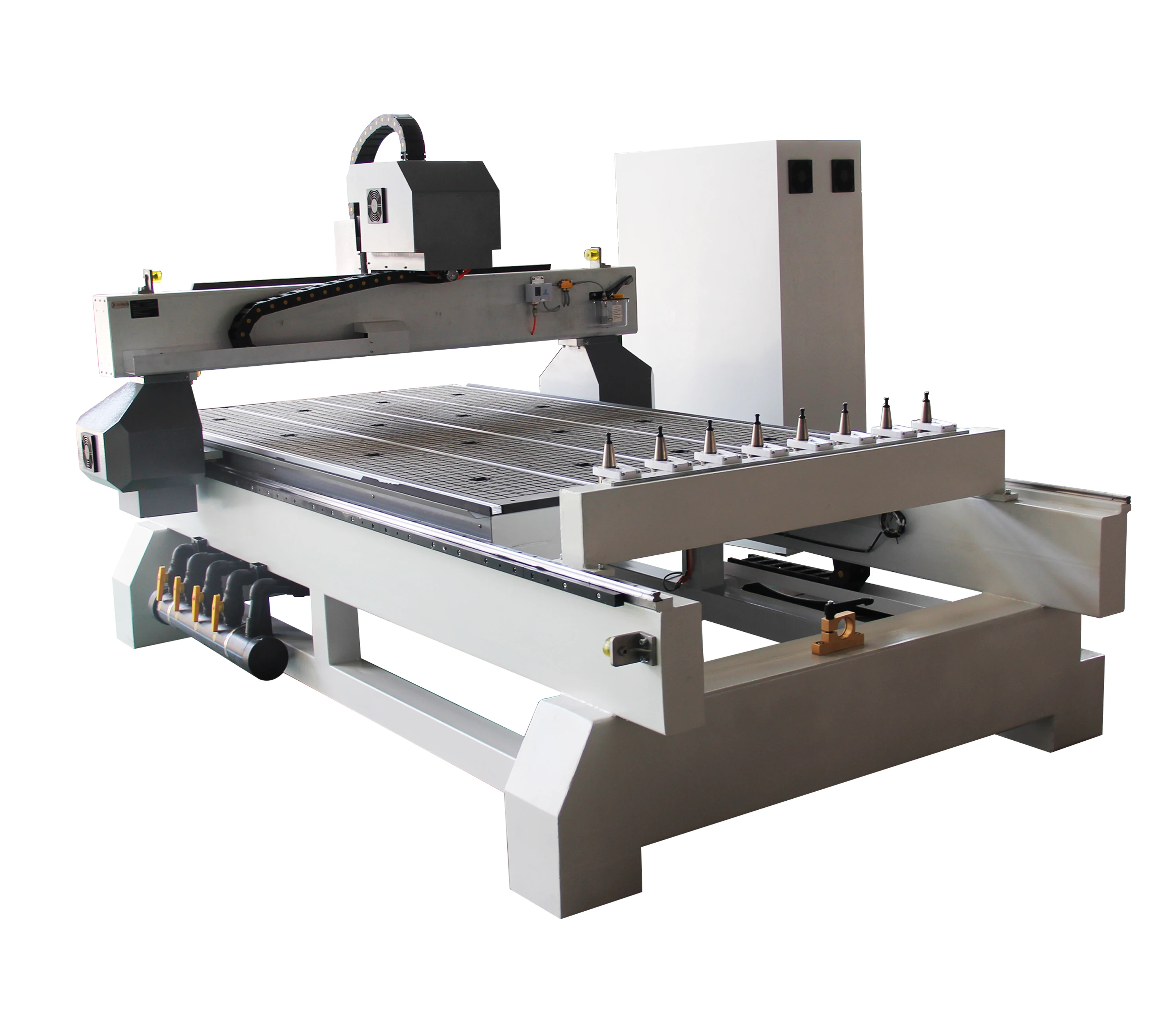

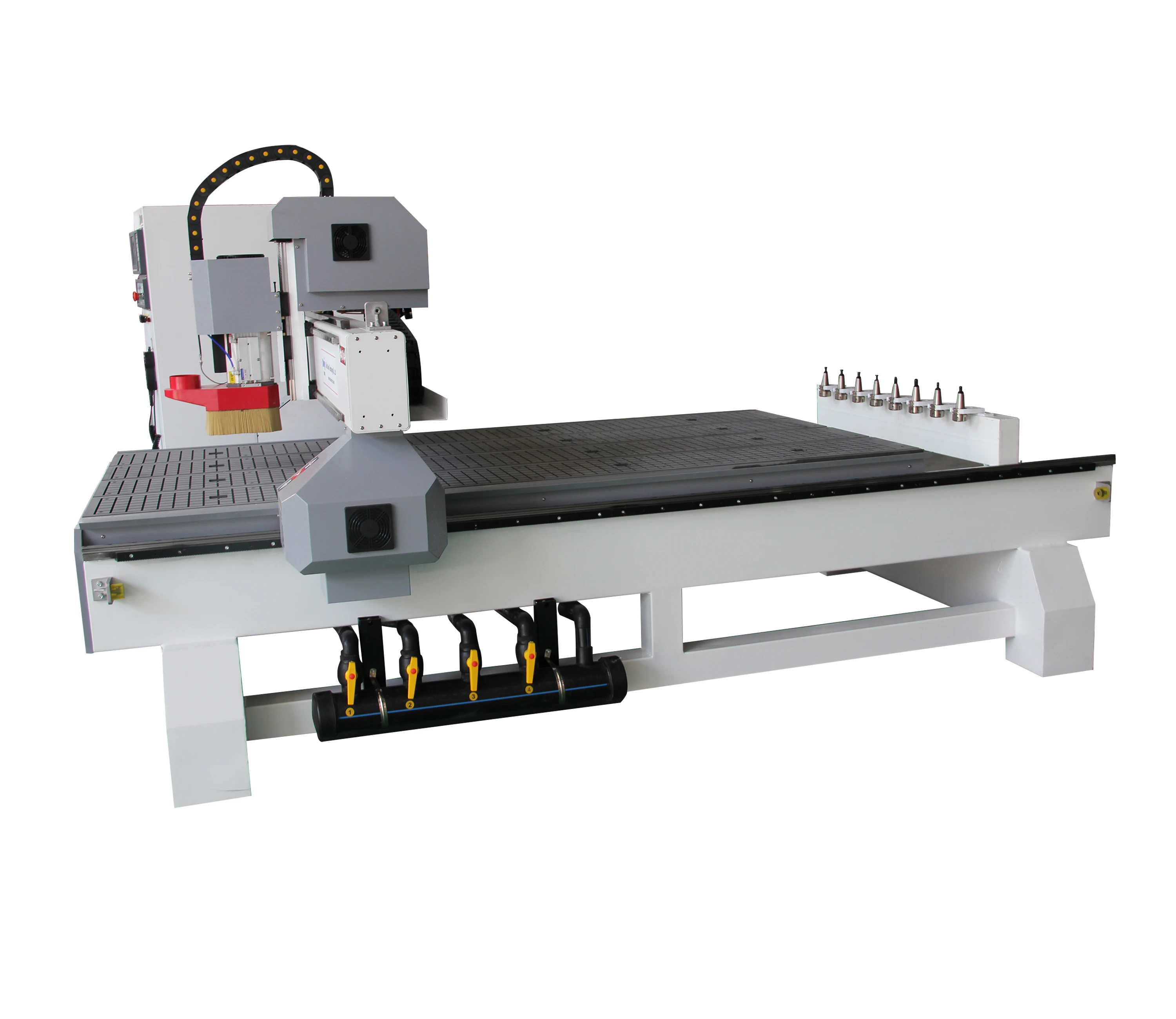

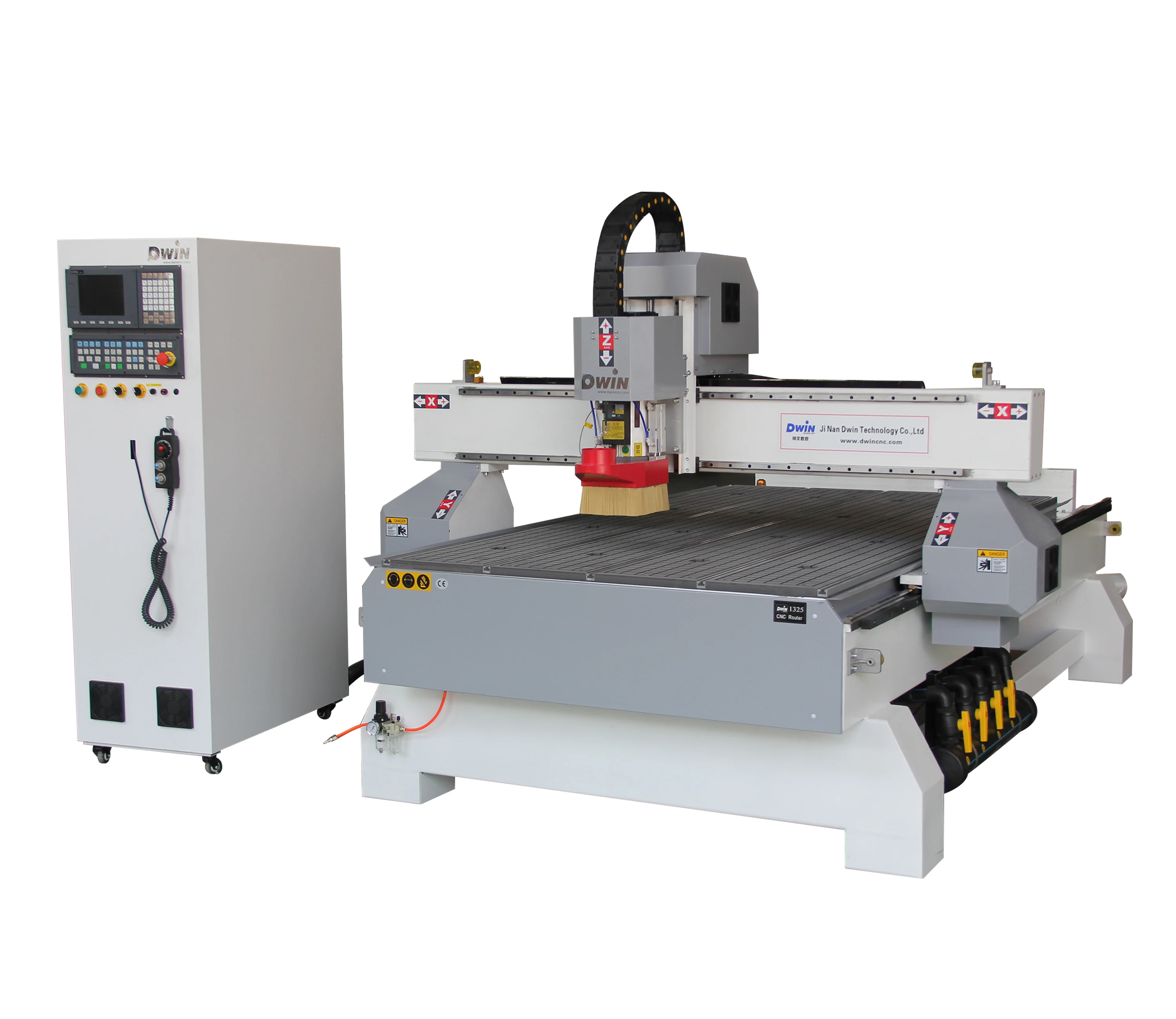

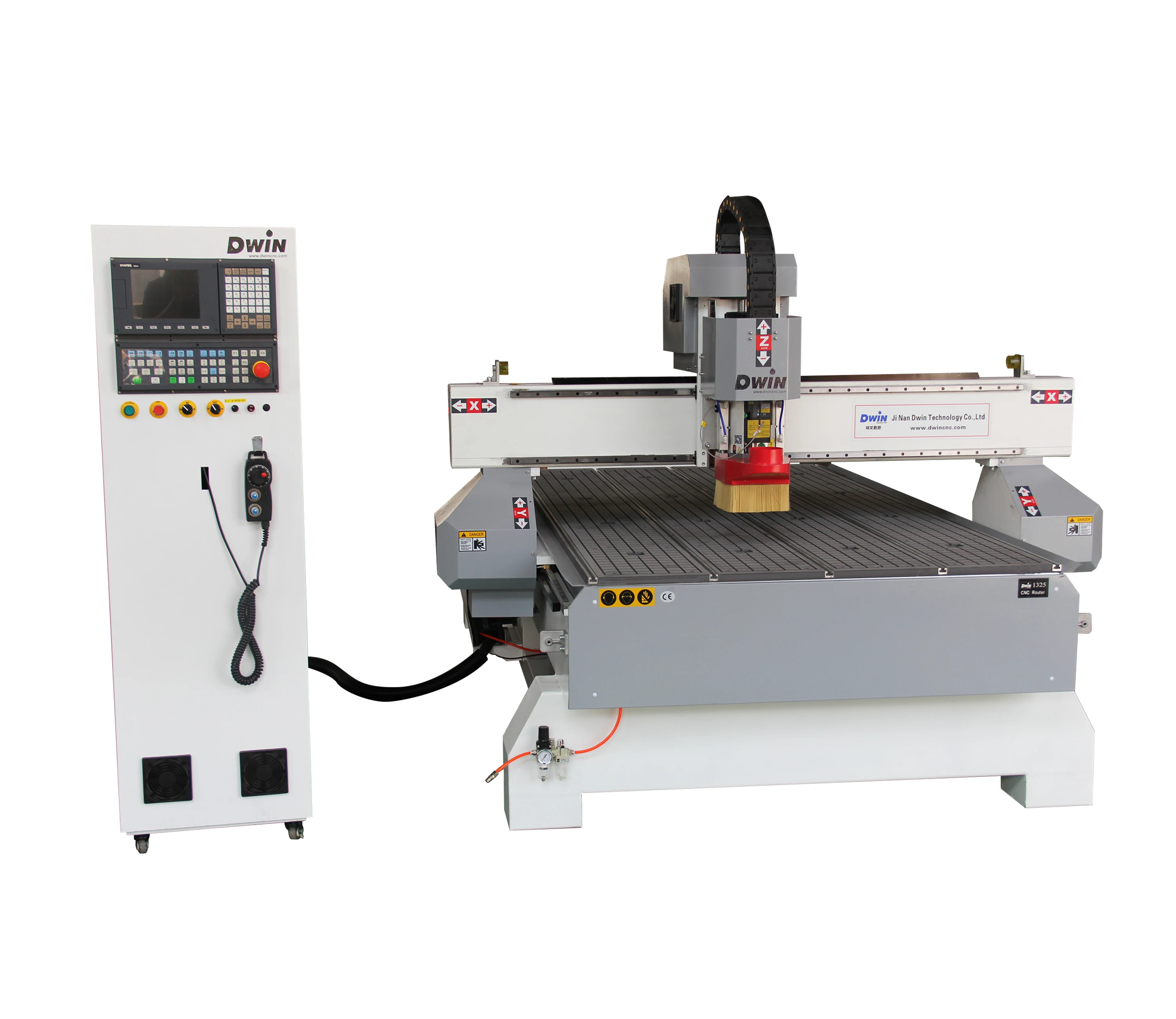

1325 3d wood carving cutting machine woodworking machinery with linear or carousel tool changer
![5.jpg]()
Product Description
| Model No | DW-1325-CNC | |||
| Platform Size (mm) | 1600*2000mm | |||
| Engraving range (mm) | 1300*2500mm | |||
| Z axis traveling height(mm) | 200mm | |||
| Max feeding height | 200mm | |||
| Fuselage Structure | 8MM thick heavy-duty tubular steel frame,Full-welded.VSR processed | |||
| Z-axis Clevis | U-shape casting aluminium,CNC processing | |||
| Y-axis side wall | casting Iron,CNC processing | |||
| Bed body | 8mm thick steel frame CNC processing | |||
| X-axis Clevis | casting Iron,CNC processing | |||
| Beam | 8mm steel frame,CNC processing | |||
| Bed frame | 6mm steel frame | |||
| Sheet metal | 2mm baking paint sheet metal | |||
| Surface material | thicken aluminium | |||
| Adsorption method | 5.5 kw Vaccum table | |||
| XY Transmission | Germany Slanting rack | |||
| Z-axis Transmission | Taiwan Hiwin 25 ball Screw | |||
| Rail configuration | Taiwan Hiwin 25 Square linear guide rail | |||
| Positiong accuracy | 0.15/300mm | |||
| Spindle speed | 0-24000(r/min) | |||
| Y-dual drive | JapanYaskawa Servo-driven | |||
| X/Z axis drive | JapanYaskawa Servo-driven | |||
| Control system | NK200 Nc studion control system human-machine interface | |||
| Code formats | G code ,U00 mmg ,nc | |||
| Idle speed | 0-2000mm/mim | |||
| Working speed | 0-1500mm/min | |||
| Resolution | 0.00625/min | |||
| Cutter diameter | 3.175mm,4mm 6mm,8mm,10mm,12.7mm | |||
| Spindle power | 5.5kw watter cooling ATC | |||
| Cooling systems | Water cooling | |||
| ATC magazine | 8-tool Linear ATC magazine | |||
| Weight | 2700kgs | |||
| Electric Box | Normal Elecrtic Box | |||
| Power | 220-380v 50hz(internal power) | |||
| Mode of motion | Gantry moving | |||
Machine parts :
woodwork application
Wood cnc router is widely used in furniture industry, furniture decoration industry, woodworking decoration industry, musical instrument industry, wooden crafts industry, etc. And this machine is suitable for large area plate engraving, solid wood furniture engraving, solid wood art murals carving, MDF carving and cutting, etc.
Packaging & Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Company Information
Dwin company is high-tech enterprise that is engaged in research ,manufacture and sales of laser machines ,cnc router and relevant advertisement products. our company has gained CE and ISO certificates . our company has successfully produced DW series products which enjoy a good reputation .Excellent quality and fast service make our products spread over Europe ,America ,The middle East and Southeast Asia.
Contact Us
you will get 1-10% discount by the namecard contact me .
