12 24 48 72 96 144 288 сердечник 8 gytc8a кабель fig волоконно-оптический
- Категория: Communication Cables >>>
- Поставщик: Jiangsu,EC,Photoelectric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 133.57 $* | 136.8 $* |
| Jul-19-2025 | 108.7 $* | 110.76 $* |
| Jun-19-2025 | 131.5 $* | 134.76 $* |
| May-19-2025 | 130.23 $* | 133.17 $* |
| Apr-19-2025 | 104.57 $* | 106.25 $* |
| Mar-19-2025 | 128.77 $* | 131.14 $* |
| Feb-19-2025 | 127.86 $* | 130.78 $* |
| Jan-19-2025 | 126.45 $* | 129.86 $* |
Характеристики

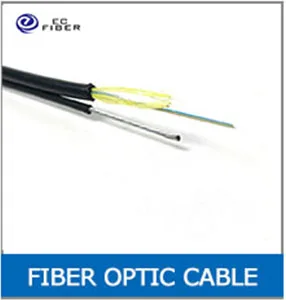

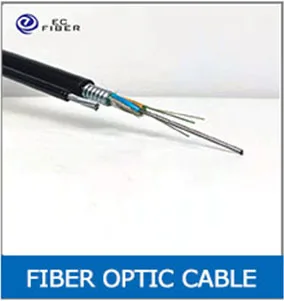

12 24 48 72 96 144 288 core figure 8 gytc8a cable fig 8 fiber optic cable gytc8s aerial cable

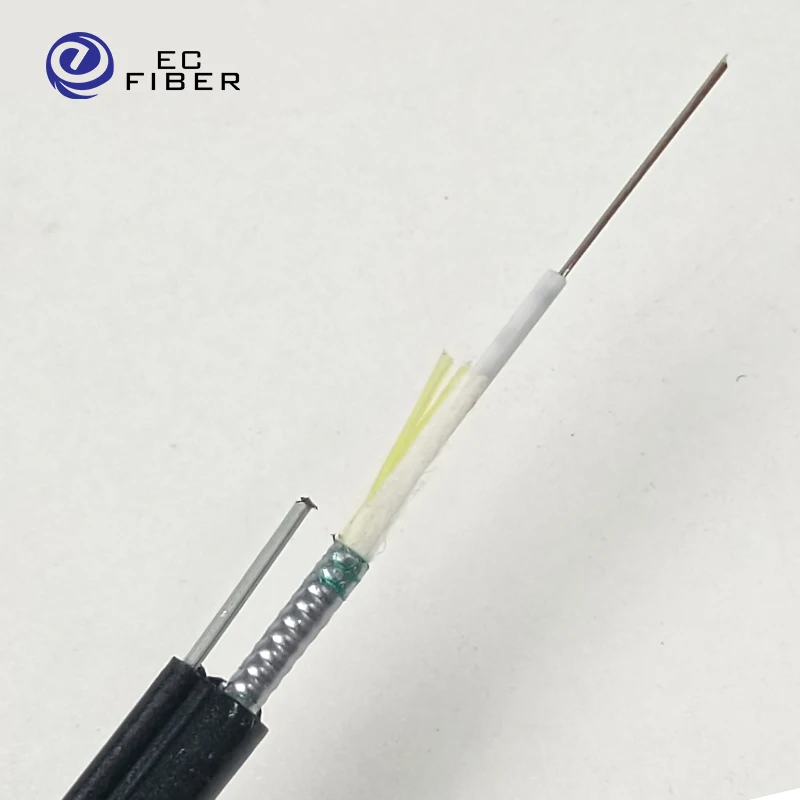

The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. The center of the cable core is a metal reinforced core, Tubes (and fillers) are stranded around the strength member into a compact and round cable core, which is filled with the waterproofing compound to protect it from water ingress. Plastic coated aluminum tape or steel tape is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.With self-supporting messenger wire.
Product Characteristics (GYTC8A)
• With good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
.• The loose tube is filled with special gel, which protect the optical fiber
• Specially designed compact cable structure to effectively prevent casing from retracting
• Anti-UV PE out sheath
• Take the following measures to ensure the waterproof performance of the optical cable
-Single steel wire center reinforced core
-Filled with special Water-blocking material in loose tube
-Complete cable core filling
- Moisture-proof layer of plastic-coated aluminum tape
Applications
• Aerial self-supporting
• Outdoor wiring
Cable Structural Parameter (Take GYXTC8S 12 core as an example)
Items | Specifications | |
Fiber Count | 12 | |
Colored Coating Fiber | Dimension | 250mm±15μm |
Color | Blue,Orange,Green,Brown, Gray,Natural,Red,Black, Yellow,Purple,Pink,Aqua | |
Loose Tube | Dimension | 2.0mm±0.1mm |
Material | PBT | |
Color | Natural | |
Strength Member | Dimension | 3.0mm(1.0mm*7) |
Material | Steel Strand | |
Outer Jacket | Dimension | 4.7mm±0.3mm /7.2mm±0.4mm |
Material | PE | |
Color | Black | |
Fiber Parameter (Take G652D as an example,can make according to your inquiry)
No. | Items | Unit | Specification | |
G.652D | ||||
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
1550nm | dB/km | ≤0.3 | ||
