Whaleflo 48V DC 600W Бесщеточный подводный насос на солнечных батареях в
- Категория: Solar Applications >>>
- Поставщик: Xiamen,Whaleflo,Industry,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 151.5 $* | 154.27 $* |
| Jul-17-2025 | 123.47 $* | 125.7 $* |
| Jun-17-2025 | 149.72 $* | 152.70 $* |
| May-17-2025 | 148.82 $* | 151.46 $* |
| Apr-17-2025 | 118.84 $* | 120.24 $* |
| Mar-17-2025 | 145.55 $* | 148.55 $* |
| Feb-17-2025 | 144.43 $* | 147.51 $* |
| Jan-17-2025 | 143.45 $* | 146.13 $* |
Характеристики
Company Profile

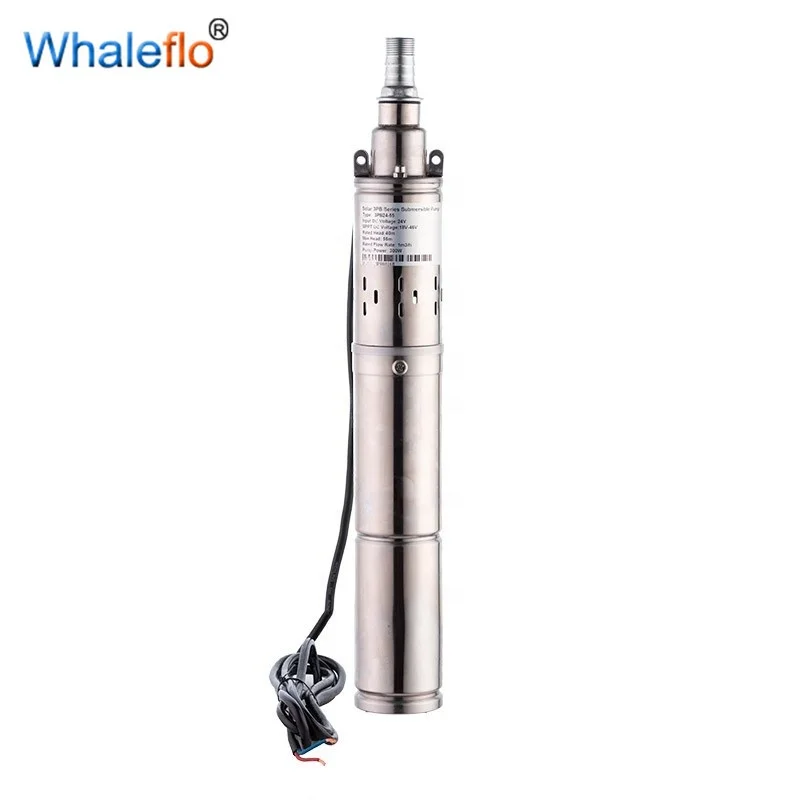

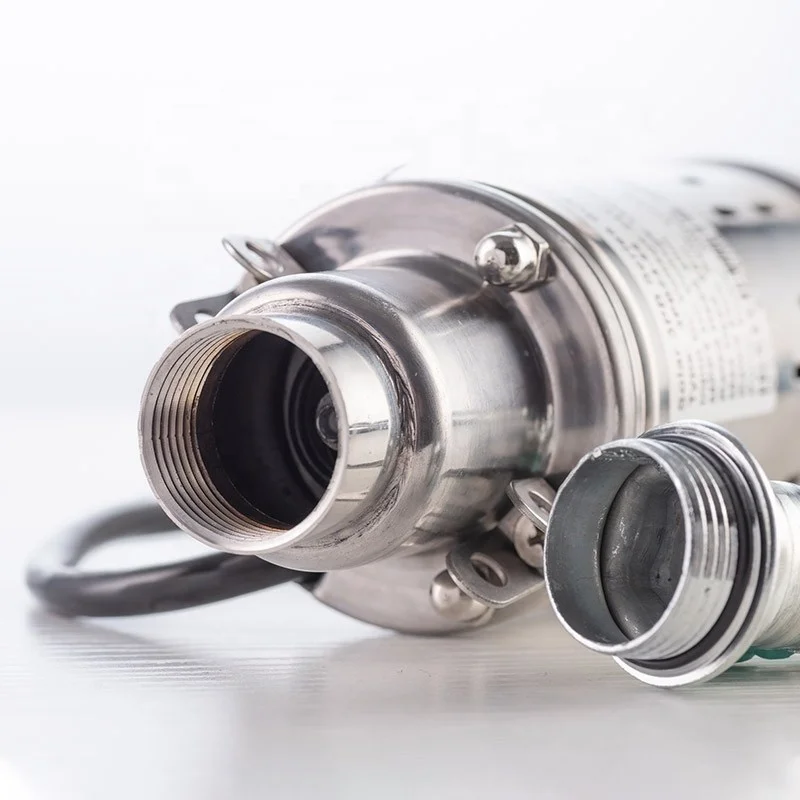

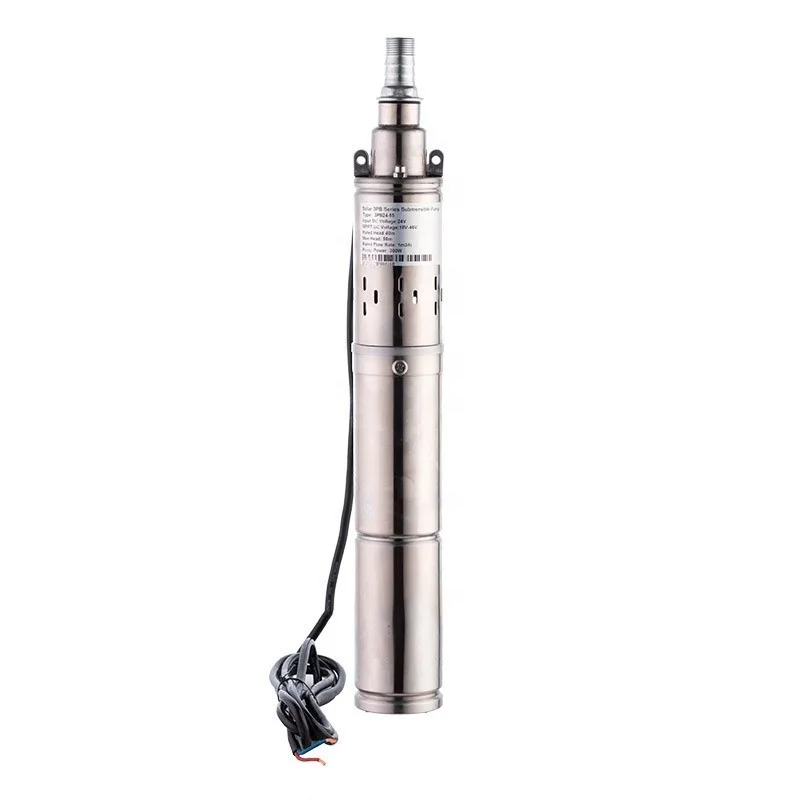

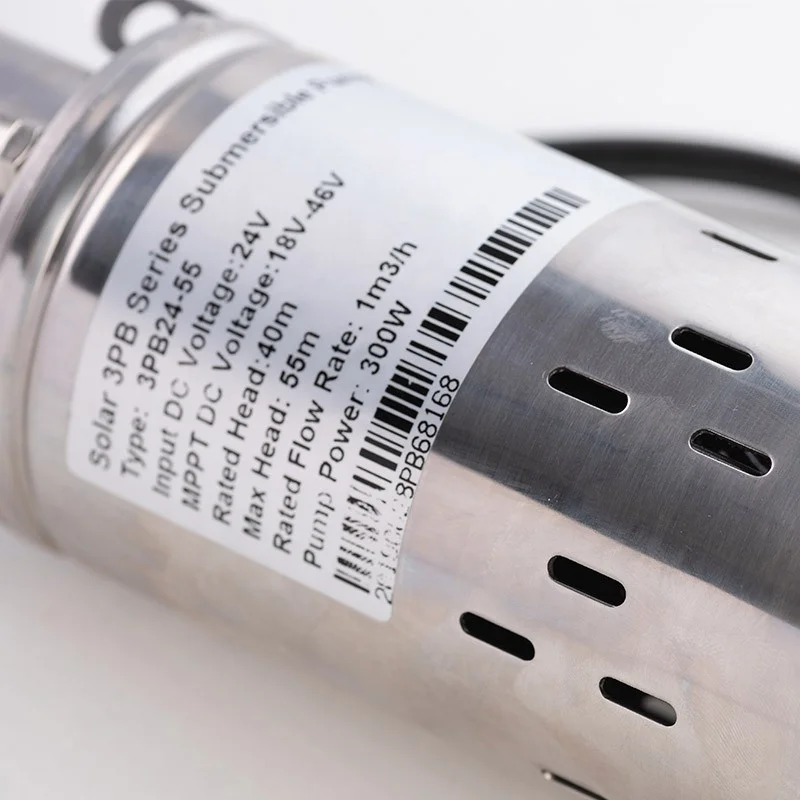

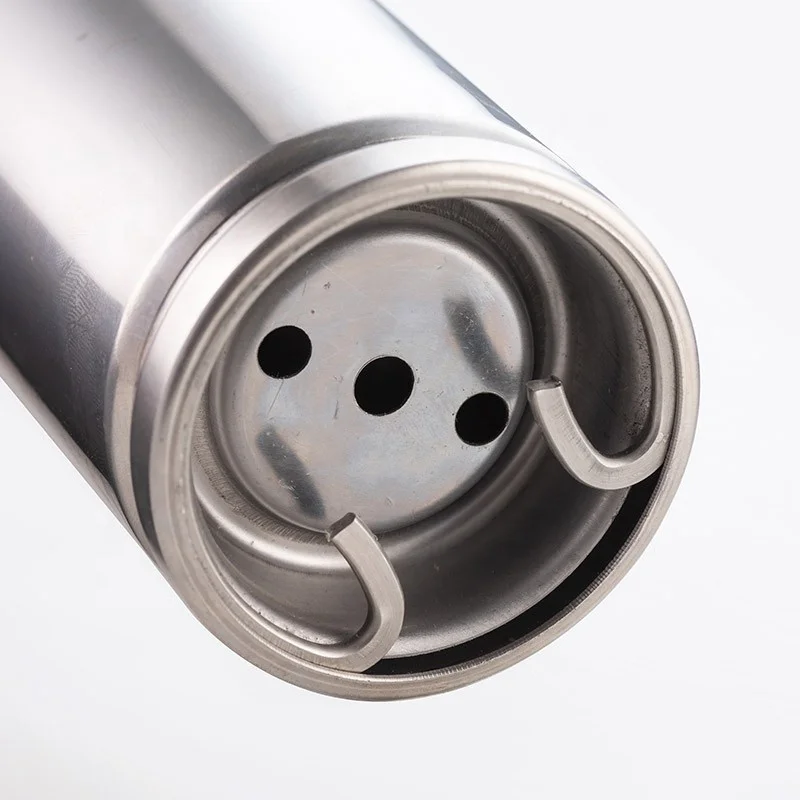

Whaleflo 600W 3" DC Brushless Screw Solar Water Pump Head 110m
Brushless Screw Solar Water Pump Head 110m For Dessert Irrigation
Features&Benefits
Bore water pump Features:
* High precision, corrosion resistance, long service life.
* Built-in MPPT controller to make full use of solar energy.
* Wide working voltage: 18v-45v, the best working voltage is about 36v.
* The water pump can connect directly to the solar panel in the sunlight without connecting the battery.
* The water pump need to connect with battery and controller if it works at night or in the cloudy day.
* Suitable for hand mining, agriculture, construction, aquaculture and high-rise water supply and more.
Overvoltage Protection / Undervoltage Protection:
The pump automatically stops working when the voltage is too high or too low; Then every 10 minutes, when the voltage is restored
to 36v-96v, the pump starts automatically and starts again.
* High precision, corrosion resistance, long service life.
* Built-in MPPT controller to make full use of solar energy.
* Wide working voltage: 18v-45v, the best working voltage is about 36v.
* The water pump can connect directly to the solar panel in the sunlight without connecting the battery.
* The water pump need to connect with battery and controller if it works at night or in the cloudy day.
* Suitable for hand mining, agriculture, construction, aquaculture and high-rise water supply and more.
Overvoltage Protection / Undervoltage Protection:
The pump automatically stops working when the voltage is too high or too low; Then every 10 minutes, when the voltage is restored
to 36v-96v, the pump starts automatically and starts again.
PRODUCT SPECIFICATIONS
Material: Stainless Steel
Color: Silver
Power: 500W
Voltage: 48V
MPPT Voltage: 72V
Open Circuit Voltage: 92V
Max Flow Rate: 2m³/H
Rated Flow Rate: 1m³/H
H-Max: 110m
Rated Lift: 75m
Suitable Work Lift: 0-110m
Protection Level: IP68
Working Principle: Screw Pump
Electric Motor: Permanent Magnet Brushless DC Motor
Water Inlet: 76mm
Water Outlet: 1inch
* Max.acceptalbe media temp:70°C
* Pump Diameter:76mm
* DC Brushless Permanent magnet motors life:18000hours
* Net weight:4.25kgs; Gross weight:5.5kgs
*PB series submersible pump can be installed vertically or horizontally
* Package: wooden case size:54.5*10.5*10.5cm
Color: Silver
Power: 500W
Voltage: 48V
MPPT Voltage: 72V
Open Circuit Voltage: 92V
Max Flow Rate: 2m³/H
Rated Flow Rate: 1m³/H
H-Max: 110m
Rated Lift: 75m
Suitable Work Lift: 0-110m
Protection Level: IP68
Working Principle: Screw Pump
Electric Motor: Permanent Magnet Brushless DC Motor
Water Inlet: 76mm
Water Outlet: 1inch
* Max.acceptalbe media temp:70°C
* Pump Diameter:76mm
* DC Brushless Permanent magnet motors life:18000hours
* Net weight:4.25kgs; Gross weight:5.5kgs
*PB series submersible pump can be installed vertically or horizontally
* Package: wooden case size:54.5*10.5*10.5cm
No | 3PB24-60 | Data | 3PB48-110 | Data |
1 | Power | 300W | Power | 600w |
2 | MPPT Voltage(V) | 36V | MPPT Voltage(V) | 72v |
3 | Open Circuit Voltage（V) | 44V | Open Circuit Voltage（V) | 92v |
4 | H-Max(M) | 60M | H-Max(M) | 110m |
5 | Rated Lift（m) | 40M | Rated Lift（m) | 75m |
6 | Max Flow Rate( m³/H ) | 2T/H | Max Flow Rate( m³/H ) | 2T/H |
7 | inlet(mm) | 76MM | inlet(mm) | 76mm |
8 | outlet | 1inch | outlet | 1inch |
