Характеристики
All Band Heater
Stainless Steel mica band heater was made of stainless steel sheet, mica sheet, resistance wire/ strip , stainless steel sheet standard thickness is 0.3mm to 0.5mm, and in the middle , resistance wire/ strip wrap around the mica sheet, and add 1-2 pieces mica sheet again each side for insulation. They can be made to be many different kinds of shape as your requirement.
It is the ideal solution for high watt densities and high operating temperature applications, especially for the plastics industry. Band heaters can be found in several types of dimensions, wattage, voltages and material. It is an inexpensive form of heating solution to external indirect heating.
It is the ideal solution for high watt densities and high operating temperature applications, especially for the plastics industry. Band heaters can be found in several types of dimensions, wattage, voltages and material. It is an inexpensive form of heating solution to external indirect heating.
Product Pramameters
Gap Between the Clamping Edge | 5 - 10mm |
Power Tolerance | +5% to -10% |
Resistance | -5% to +10% |
Insulation Resistance (Cold) | ≥20 MΩ |
Sheath Material | Stainless Steel cover ,High Temperature Plate |
Metal box Screw post terminals High Temperature Plug High temperature cable Ceramic block | |
Nominal Wall Thickness | Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation) |
Heating Elements (coil) | NiCr 80:20 |
1.Stainless steel braid: stright lead exit/ low profile terminal cover/ used mostly with nozzle heaters/ 180° from gap/ heat shrink sleeving 2.Plain lead wire: straight lead exit/ exiting both sides of the gap/ used 3.mostly with nozzle heaters/ 180° from gap 4.PTFE insulated wire 5.Fiberglass insulation wire |
Features
1.Size: 32*32mm
2.220V
3.180W

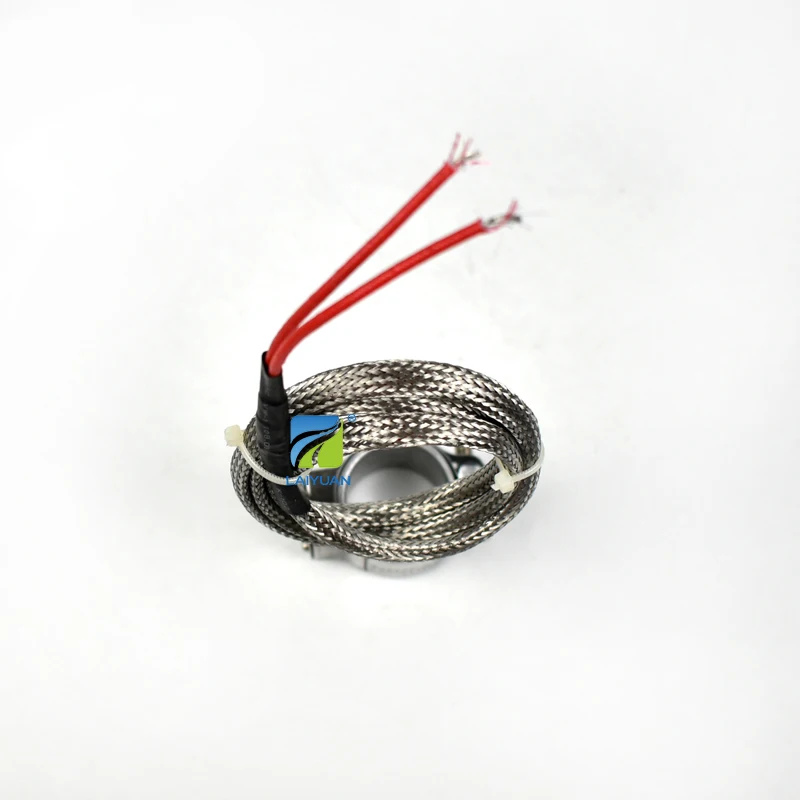

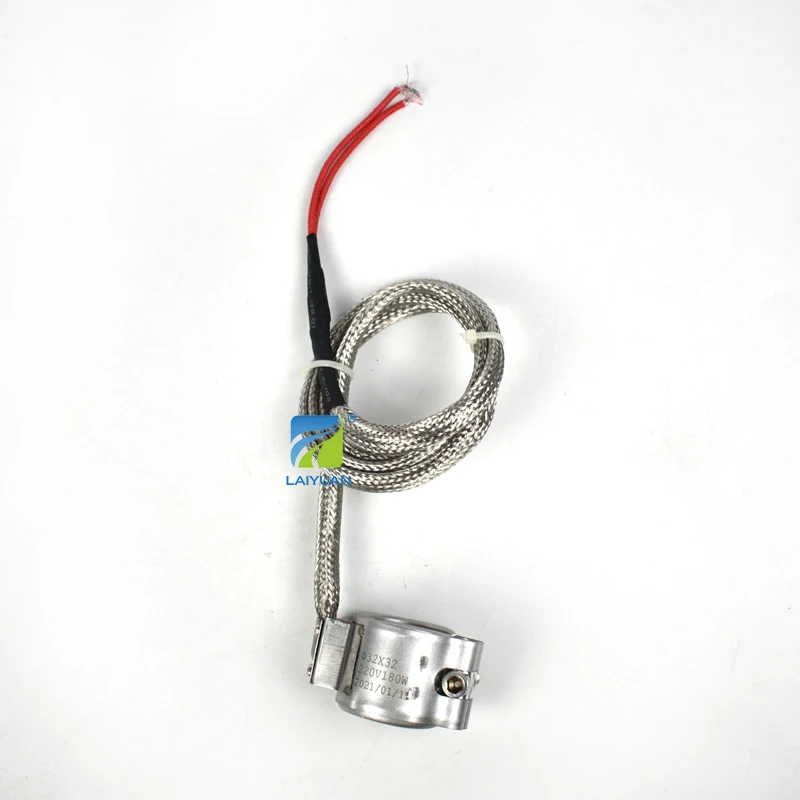

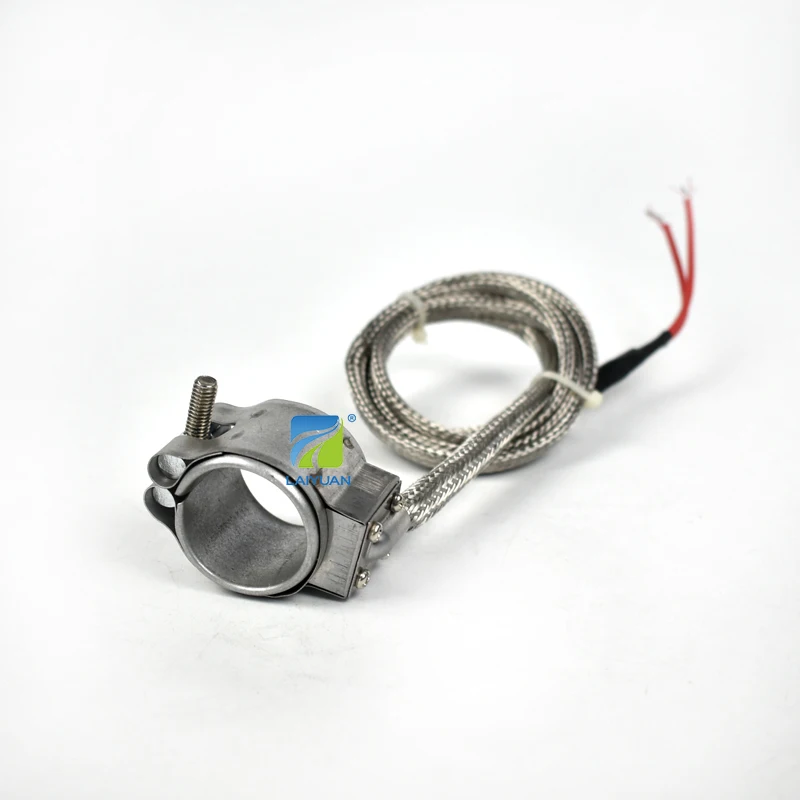

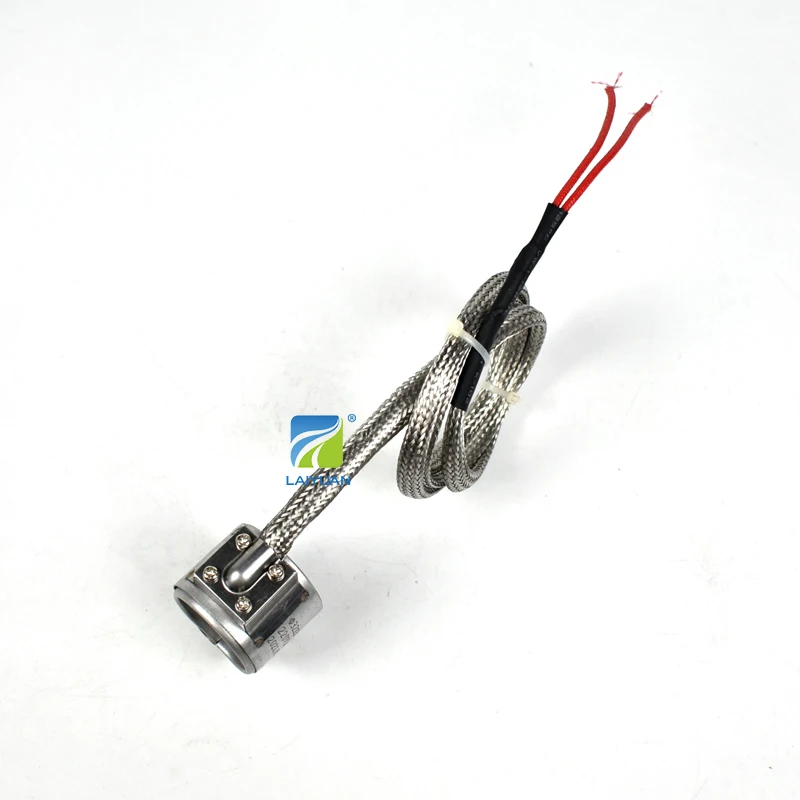

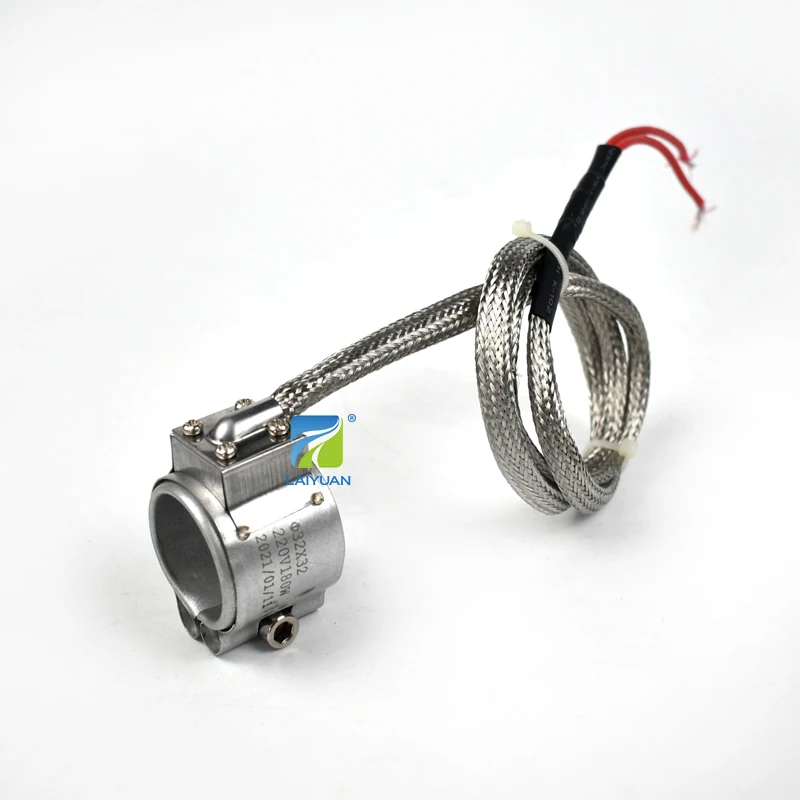

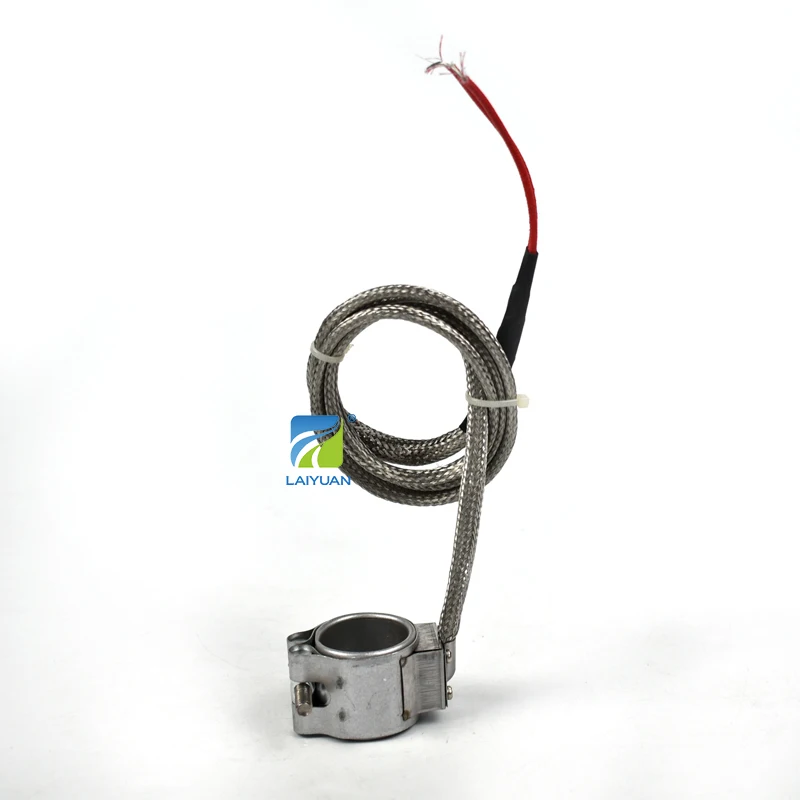

Mica Band heaters are constructed with a mica core wound with wire. The core is then bent into a circle band. Leads are attached before the final outer sheaths are attached to complete the heater. Our Mica Band heaters can be installed directly onto barrel heaters without the requirement of initial heater removal. Only require one set of leads or terminals. Our Mica Bands are assembled with polished precision.
Product Application
Applications of Industry Heater
1. Injection molding
2. Blow-molding
3. Plastic extrusion
4. Container, pipe, or tank heating
5. Pharmaceutical applications
6. Applications in the food industry
