Вертикальная машина для литья под давлением с двойной
- Категория: >>>
- Поставщик: Dongguan,Yingling,Intelligent,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 7735.4 $* | 8122.81 $* |
| Aug-19-2025 | 7670.86 $* | 8054.79 $* |
| Jul-19-2025 | 6435.88 $* | 6757.54 $* |
| Jun-19-2025 | 7540.30 $* | 7917.40 $* |
| May-19-2025 | 6565.90 $* | 6893.35 $* |
| Apr-19-2025 | 7410.97 $* | 7781.21 $* |
| Mar-19-2025 | 7345.77 $* | 7712.27 $* |
| Feb-19-2025 | 7280.49 $* | 7644.12 $* |
| Jan-19-2025 | 7215.56 $* | 7576.72 $* |
Характеристики
Vertical Double Slide Tube Shoulder Injection Molding Machine
Main Features:
1.Chinese/English LCD display,can memorize 60 groups of mold data.
2.Double and three position platen runs smoothly and is suitable for producing various kinds of pocket inserts.It greatly improves work efficiency and saves labor.
3.It is safe because the product and delivery and inserting is not performed in molding station but the same work position.Moreover,automatic device can be used onto the machine.
4.Adopting double(pressure,flux)proportional control,the machine runs with low noise and at a high speed,It is equipped with low-voltage protective function.
Specification of vertical plastic Injection molding machine:
| MODEL | UNIT | JY-350ST-DM | |
| INJECTION UNIT | Screw Diameter | mm | ø26-ø30 |
| Theoretical Injection Volume | cm³ | 66.3-88.3 | |
| Injection Weight(PS) | g(oz) | 62.6(2.2)-83.4(2.94) | |
| Max.Injection Pressure | Mpa(kgf/cm²) | 227(2319)-170.8(1742) | |
| Injection Rate | cm³/s | 53-72 | |
| Injection Speed | mm/s | 75 | |
| Injection Stroke | mm | 125 | |
| Screw Speed Rotation | r.p.m | 0-190 | |
| NO.of Temperaturecontrol | 3 | ||
| Nozzle Out From Platens | mm | ≥45 | |
| CLAMPINGUNIT | Clamping Force | KN(tf) | 343(35) |
| Clamping Stroke | mm | 200 | |
| Min.Mold Thickness | mm | 80/180 | |
| Max.Opening | mm | 280/380 | |
| (L*W)Distance Between Tie Bars | mm | 370*205 | |
| (L*W)Max.MouldSize | mm | 300*300 | |
| (L*W)Platen Size | mm | 750*350 | |
| Ejector Distance | mm | 85 | |
| Ejector Force | KN(tf) | 17.2(1.75) | |
| OTHERS | Oli Tank Capacity | L | 80 |
| Electric Power | KW(HP) | 4(7.5) | |
| Heater Power | KW | 2.4 | |
| Machine Dimensions | L*W*H | 1.5*1.15*2.6M | |
| Machine Weight | tf | 1.5 |
Machine Application:
Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,usb cable,etc.

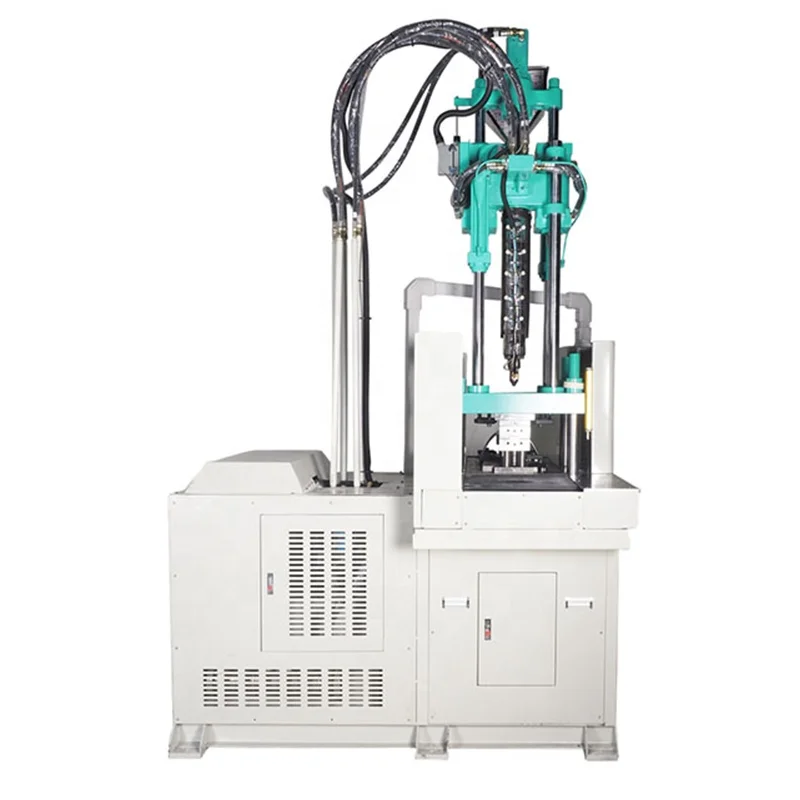

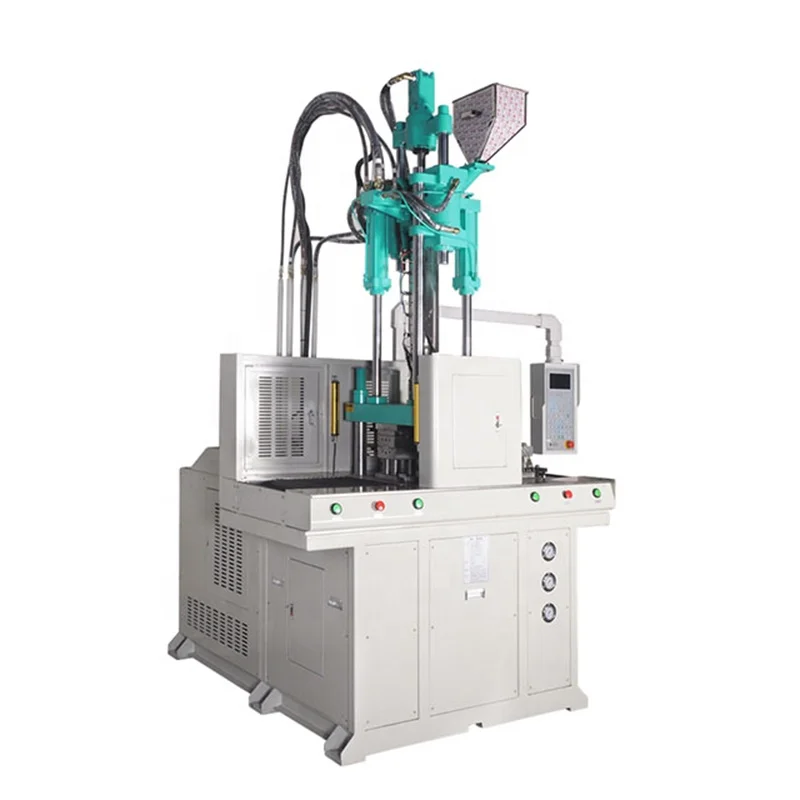

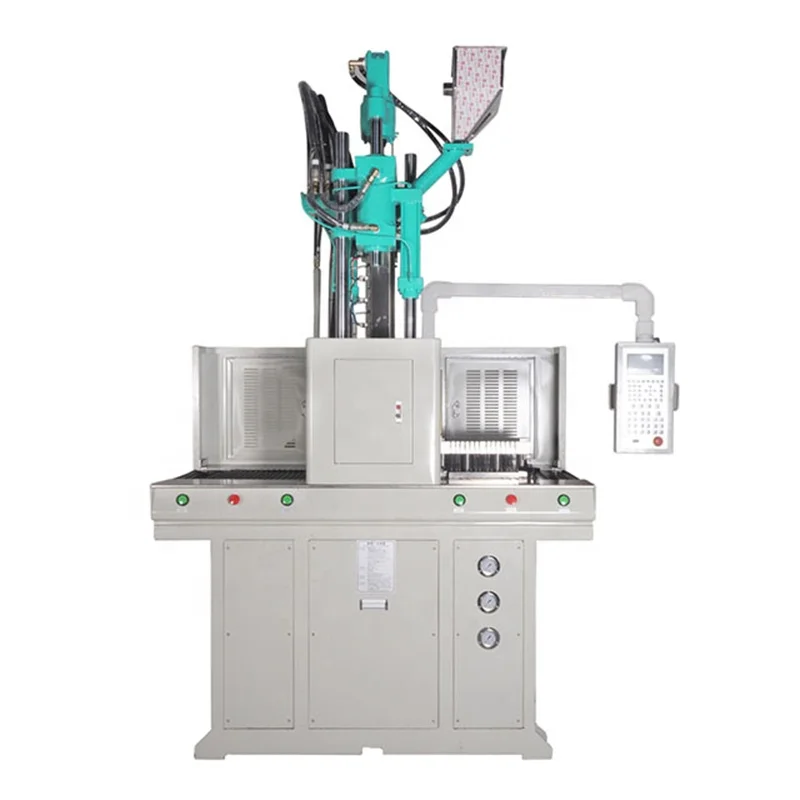

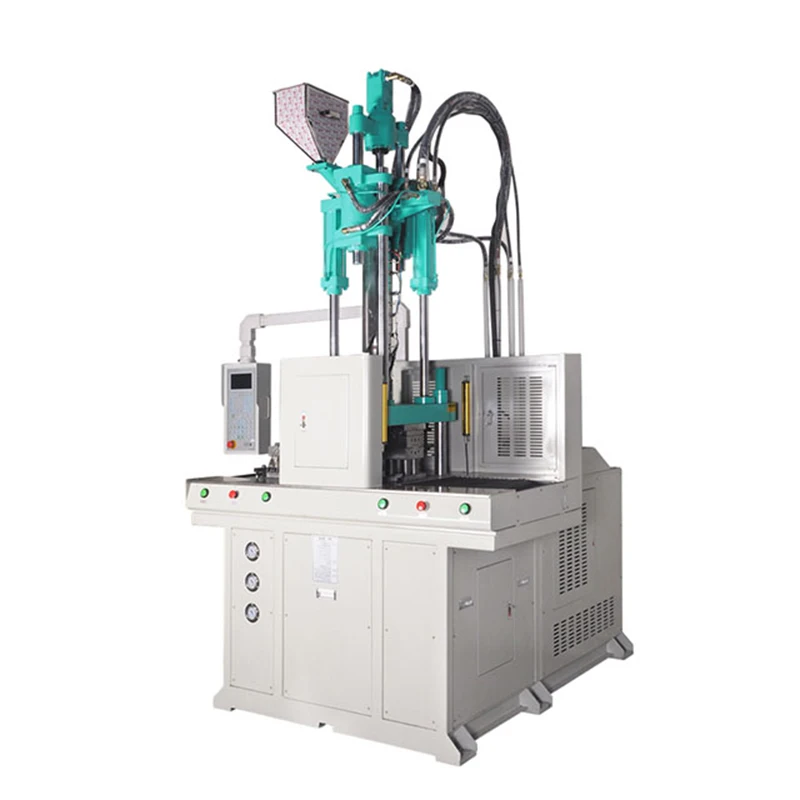

Detailed Images
Packaging & Shipping
1.We will arrabge to manufacture the machine the second day after your confirmation.
2.Before shipment,we will check and test the machine carefully.
3.We will send the machine to your designated place in China.Besides,we can help you send the machine to your seaport if you need.
| Packaging | |
| Dimensions | 1.6*1.25*2.33m |
| Weight | 1.6kg |
Company Information
Our Services
1) 24 hours services, the answers to any questions will be replied sooner.
2) Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3)Materials suppliers offered ,the contact ways to different kinds of the materials and equipments of your products can be supported here, you can contact them by yourself.
4) After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5) The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6)12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
FAQ
Q1: Are you a trading company or a manufacturer? |
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements |
Q2: What's your warranty for the machine? |
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance. |
Q3: What's your Delivery Time? |
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season. |
Q4: Where is your factory? How can visit you? |
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station. |
Q5: Why choose us.? |
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service. |
Welcome to visit our factory to view more details
