All-dielectric self-support fiber optic cable (ADSS)

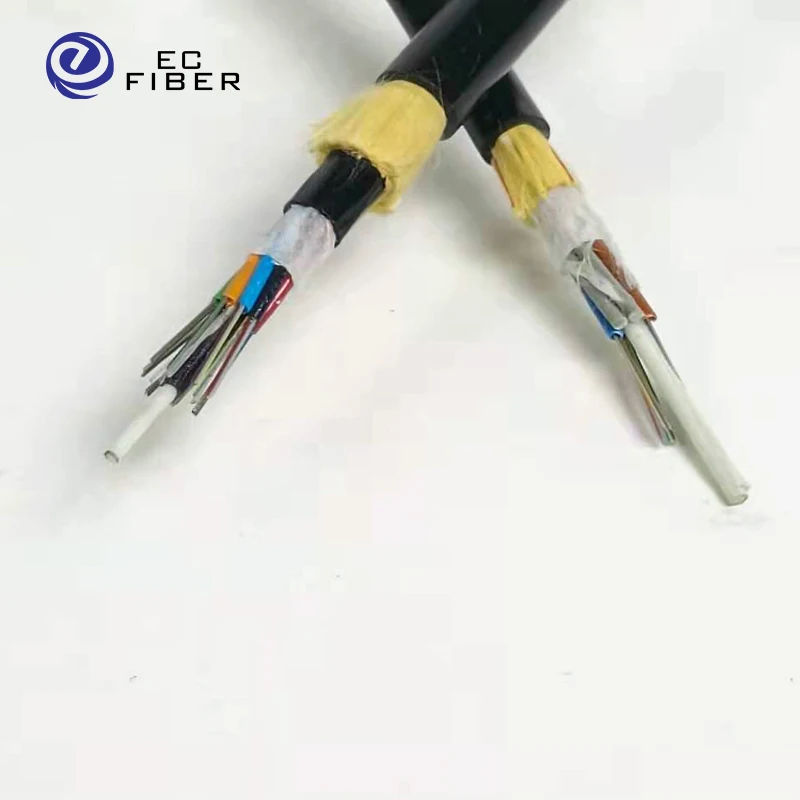

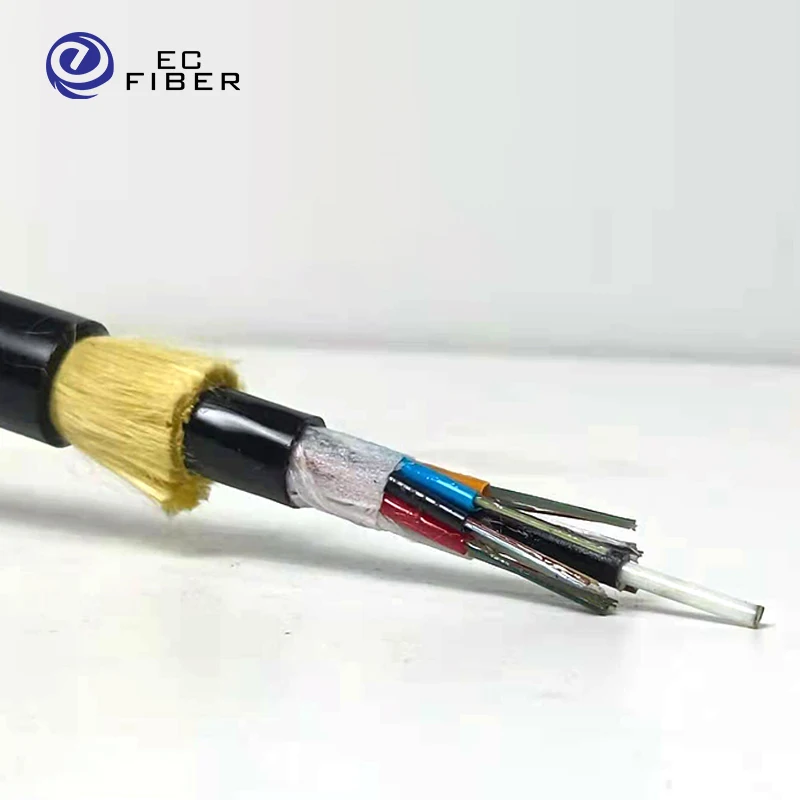

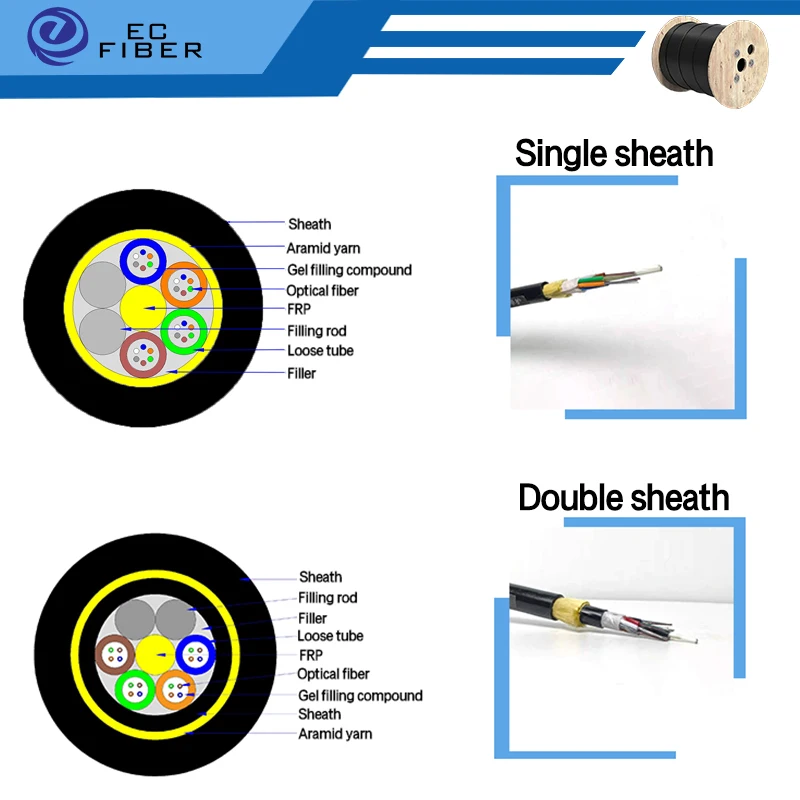

ADSS cable is loose tube stranded structure. The optical fiber is 250µm, the loose tube is made of high modulus plastic, which is filled with waterproof compound. In the center of the cable core is a FRP strength member,The loose tube (and the filling rope) is twisted around the central reinforcement core to form a compact and round cable core, and the gap in the cable core is filled with a water blocking filler. The outer of the cable is a polyethylene (PE) inner sheath,then twisted high tensile strength aramid, normally use high-density polyethylene (HDPE) outer sheath or electric tracking (AT) outer sheath.





Product Characteristics

•  All-dielectrical self-supporting aerial fiber optic cable, no metal material in the structure, can be set up without interruption.

•  Large number of fiber cores, light weight, can be laying with the power line, saving resources.

•  Adopt high tensile strength aramid material to withstand strong tension and prevent cockles and gunshots.

•  Small thermal expansion, the variation of the arc of the cable line is small when the temperature changes greatly.

•  Can make single jacket or double jacket

•  Large span, the maximum span exceeds 1000 meters

•  Life expectancy greater than 30 years



Applications

• Nonmetallic environment required

• Outdoor wiring



Cable Structural Parameter  (Take single sheath ADSS 12 core span 100m as an example)

Items		Specifications
Fiber Count		12
Colored Coating Fiber	Dimension	250±15μm
	Color	Blue,Orange,Green,Brown,Grey,White
Loose Tube	Dimension	2.0mm±0.05mm
	Material	PBT
	Color	Blue,Orange
Filler	Dimension	2.0mm±0.05mm
	Material	PVC
	Color	Grey
Strength Member	Diameter	2.1±0.05mm
	Material	FRP
Armaid Yarn	Span	100M
	Material	Armaid Yarn
Outer Jacket	Dimension	9.5. mm±0.5mm
	Material	HDPE
	Color	Black



Fiber Parameter (Take G652D as an example,can make according to your inquiry)

No.	Items		Unit	Specification
				G.652D
1	Mode Field Diameter	1310nm	μm	9.2±0.4
		1550nm	μm	10.4±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation(max.)	1310nm	dB/km	≤0.4
		1550nm	dB/km	≤0.3
