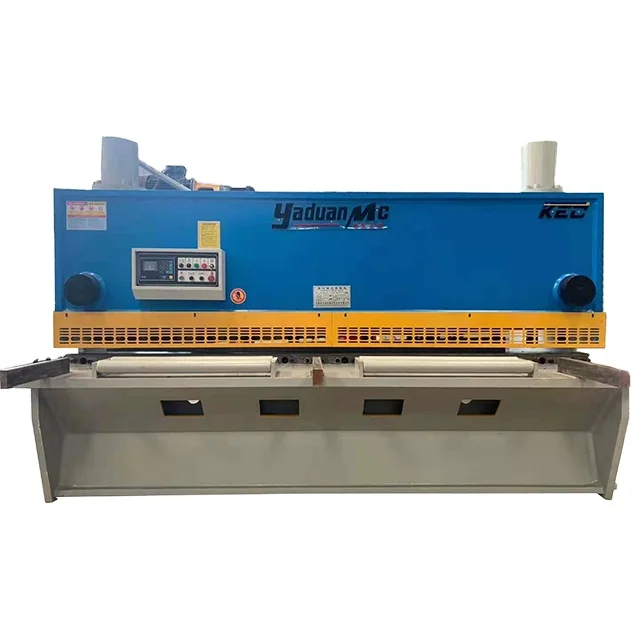

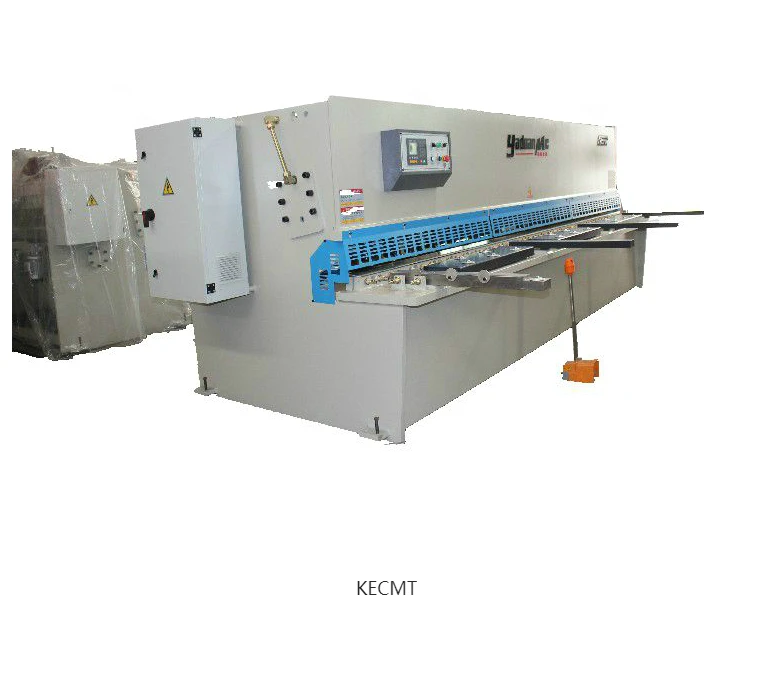

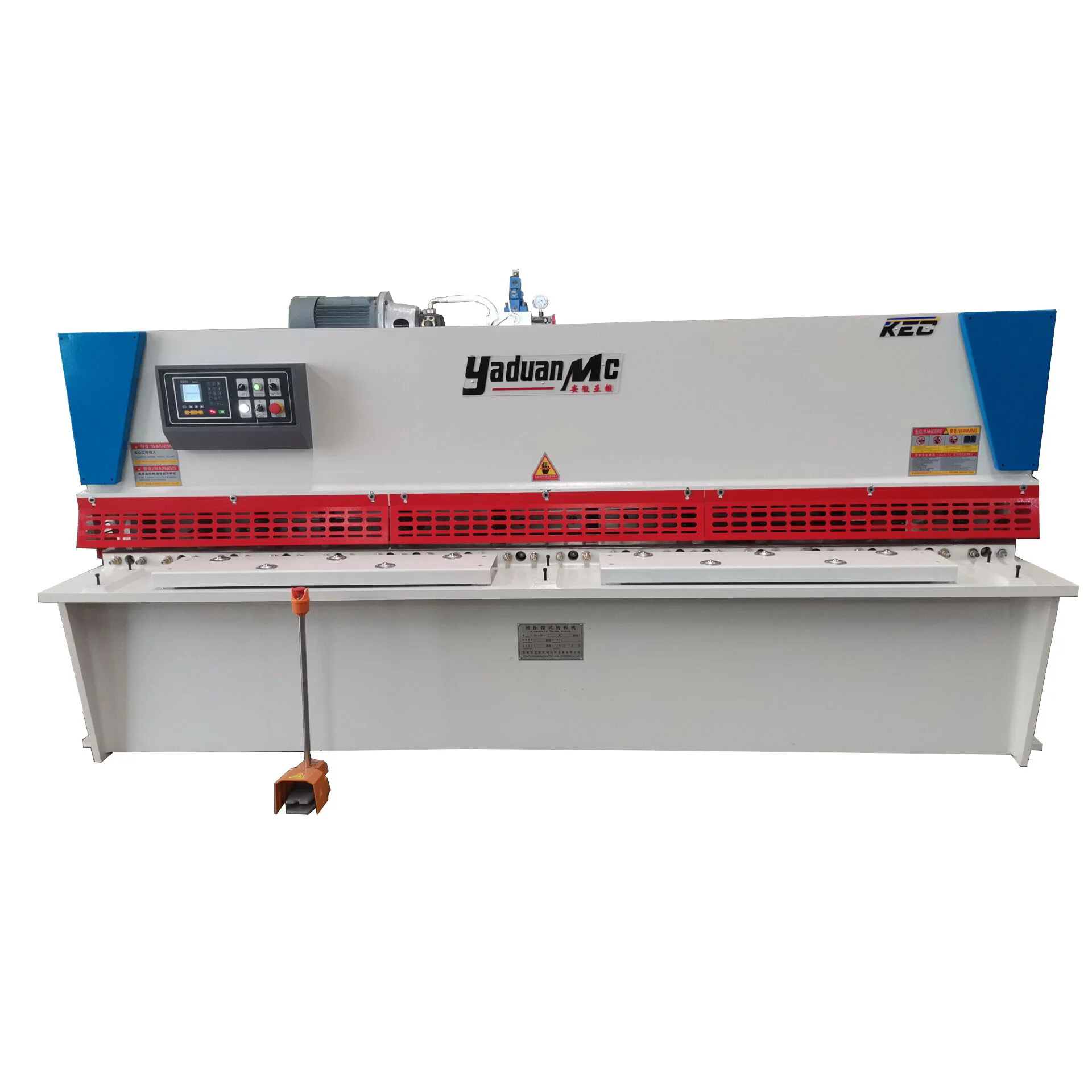

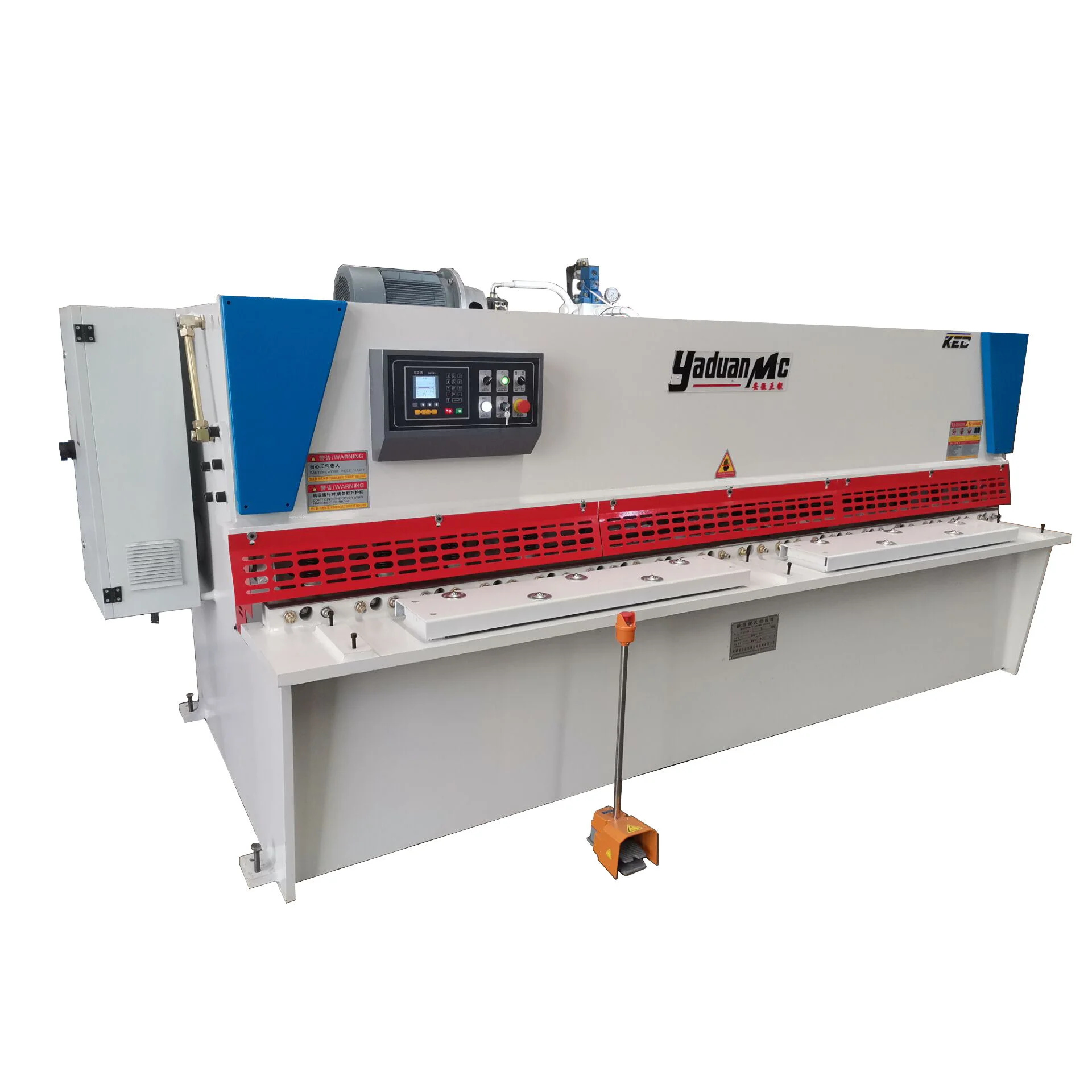

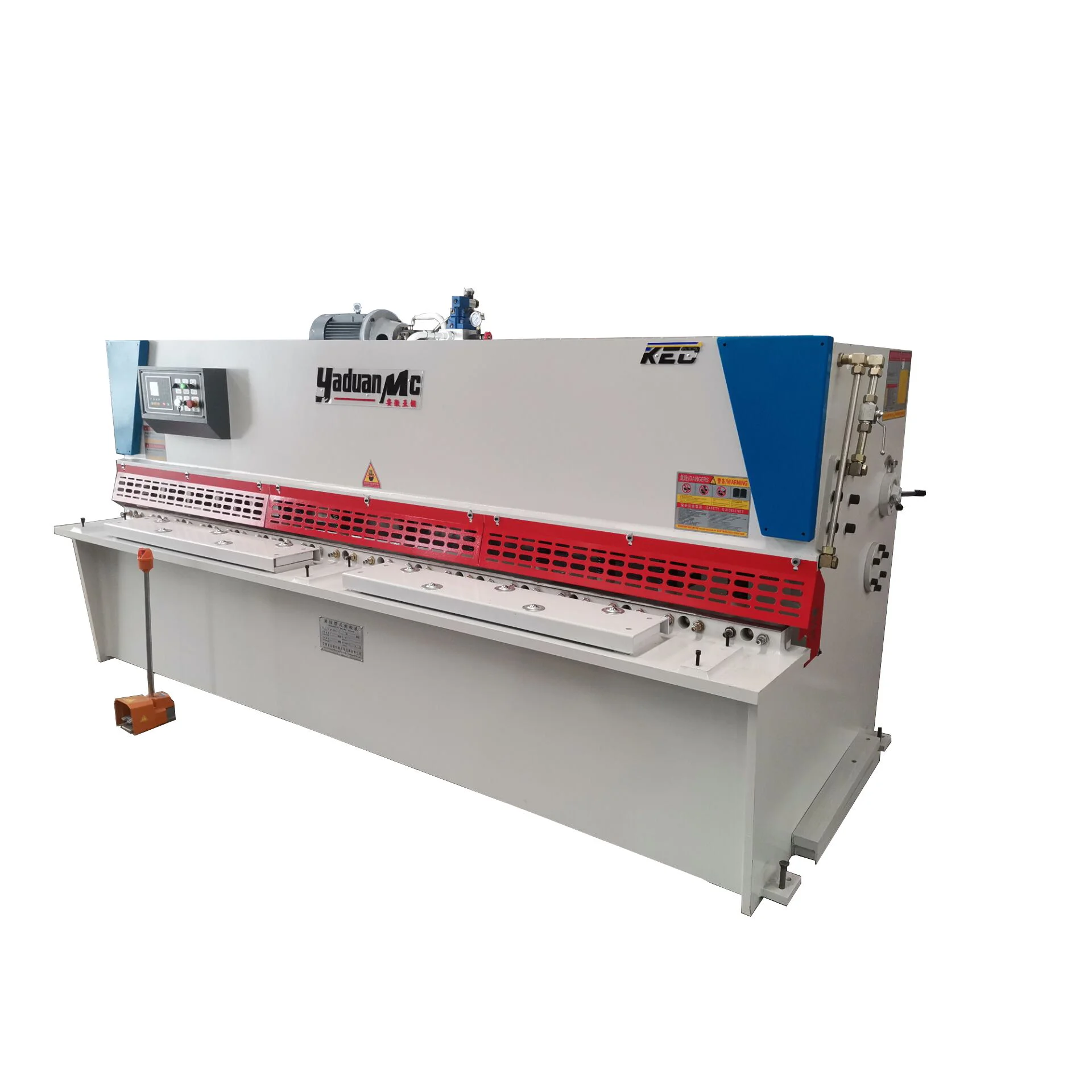

CNC Hydraulic Guillotine
- Категория: Notching Machine >>>
- Поставщик: Anhui,Prd,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 15468.8 $* | 16241.17 $* |
| Aug-15-2025 | 15338.74 $* | 16105.39 $* |
| Jul-15-2025 | 12868.16 $* | 13511.32 $* |
| Jun-15-2025 | 15078.27 $* | 15832.17 $* |
| May-15-2025 | 13128.58 $* | 13784.67 $* |
| Apr-15-2025 | 14818.47 $* | 15559.60 $* |
| Mar-15-2025 | 14688.89 $* | 15422.17 $* |
| Feb-15-2025 | 14558.31 $* | 15286.30 $* |
| Jan-15-2025 | 14428.41 $* | 15149.15 $* |
Характеристики
Our Advantages
We are a group company integrating production, design and trade. We are committed to providing the most reliable sheet metalworking solutions for customers all over the world!!!

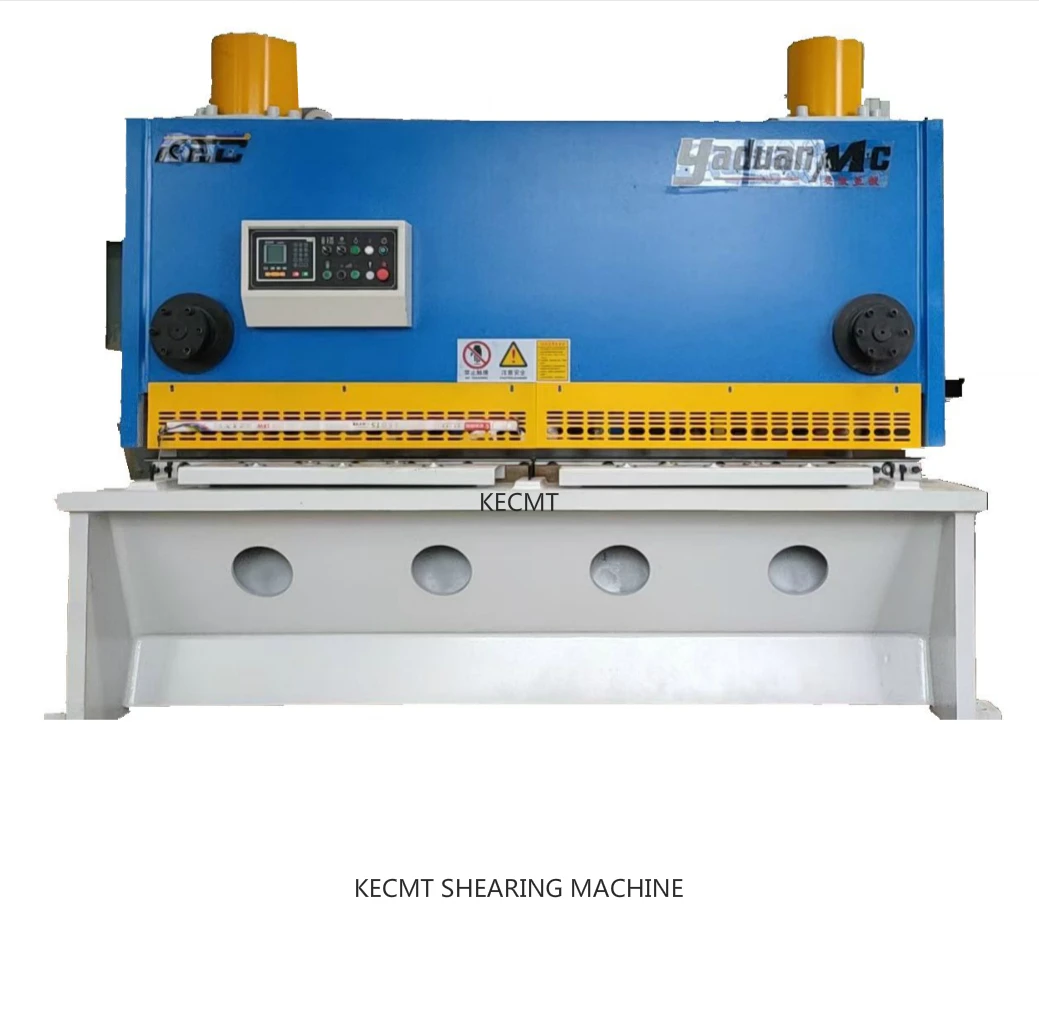

Shearing Machine
Details Images
CNC Control And Tooling System
Products Description
Introduction of hydraulic NC plate shears
1. The hydraulic digital display shearing machine adopts steel plate welding structure, hydraulic transmission, accumulator return, easy to operate, reliable performance, beautiful appearance, light and rapid assembly;
2. The clearance adjustment of the cutting edge is indicated by a sign, which is light and fast;
3. It is equipped with light alignment device and shearing stroke control device, which is convenient and quick to adjust;
4. Roll the ball to reduce the scratch and friction resistance;
5. It has the functions of digital display of back stop position, soft limit, one-way positioning clearance prompt and automatic cutting counting;
6. The back stop is equipped with encoder and digital display system, which makes the back stop position display more accurate and further improves the shearing accuracy of the machine.
Shear plate thickness: 4-40 mm
Shear width: 2500-7000 mm
Back stop range: 600 ~ 1000mm
Throat depth: 100-125mm
Main motor power: 5.5 ~ 75KW
Main configuration of hydraulic NC plate shears
1. E21s NC control system ESA, delem cybelec or Estan
2. X-axis electric rear stop device
3. Delta frequency converter controls back blocking (optional)
4. Precision HIWIN ball screw
5. Front carrier
6. Imported hydraulic system
7. German EMB ferrule connector
8. Imported motor
9. Schneider Electric
10. Hydraulic / electrical overload protection
11. Two edges of the upper blade are available, and four edges of the lower blade are available
Safety standard for hydraulic NC plate shears
1. Safety standard (1006 / 42 / EC)
EN 12622:2009+A1:2013
EN ISO 12100:2010
EN 60204-1:2006+A1:2009
2. Relay with safety switch and protection device
1. The hydraulic digital display shearing machine adopts steel plate welding structure, hydraulic transmission, accumulator return, easy to operate, reliable performance, beautiful appearance, light and rapid assembly;
2. The clearance adjustment of the cutting edge is indicated by a sign, which is light and fast;
3. It is equipped with light alignment device and shearing stroke control device, which is convenient and quick to adjust;
4. Roll the ball to reduce the scratch and friction resistance;
5. It has the functions of digital display of back stop position, soft limit, one-way positioning clearance prompt and automatic cutting counting;
6. The back stop is equipped with encoder and digital display system, which makes the back stop position display more accurate and further improves the shearing accuracy of the machine.
Shear plate thickness: 4-40 mm
Shear width: 2500-7000 mm
Back stop range: 600 ~ 1000mm
Throat depth: 100-125mm
Main motor power: 5.5 ~ 75KW
Main configuration of hydraulic NC plate shears
1. E21s NC control system ESA, delem cybelec or Estan
2. X-axis electric rear stop device
3. Delta frequency converter controls back blocking (optional)
4. Precision HIWIN ball screw
5. Front carrier
6. Imported hydraulic system
7. German EMB ferrule connector
8. Imported motor
9. Schneider Electric
10. Hydraulic / electrical overload protection
11. Two edges of the upper blade are available, and four edges of the lower blade are available
Safety standard for hydraulic NC plate shears
1. Safety standard (1006 / 42 / EC)
EN 12622:2009+A1:2013
EN ISO 12100:2010
EN 60204-1:2006+A1:2009
2. Relay with safety switch and protection device
Product Paramenters
Model | Max. Thickness | Yield strength | Max. Length | Angle | X.Stroke | Frequency | PowerKW | L*W*H(mm) | WeightKG |
QC12Y-4*2500 | 4mm | ≤450kN/cm | 2500mm | 1°30' | 20~600mm | 16Times/min | 5.5 | 3040*1610*1620 | 3800 |
QC12Y-4*3200 | 4mm | ≤450kN/cm | 3200mm | 1°30' | 20~600mm | 14Times/min | 5.5 | 3840*1610*1620 | 5000 |
QC12Y-4*4000 | 4mm | ≤450kN/cm | 4000mm | 1°30' | 20~600mm | 10Times/min | 5.5 | 4600*1700*1700 | 6500 |
QC12Y-4*6000 | 4mm | ≤450kN/cm | 6000mm | 1°30' | 20~600mm | 8Times/min | 7.5 | 6460*2100*3200 | 11000 |
QC12Y-6*2500 | 6mm | ≤450kN/cm | 2500mm | 1°30' | 20~600mm | 14Times/min | 7.5 | 3040*1610*1620 | 5000 |
QC12Y-6*3200 | 6mm | ≤450kN/cm | 3200mm | 1°30' | 20~600mm | 12Times/min | 7.5 | 3840*1610*1620 | 6000 |
QC12Y-6*4000 | 6mm | ≤450kN/cm | 4000mm | 1°30' | 20~600mm | 8Times/min | 7.5 | 4620*1750*1700 | 8200 |
QC12Y-6*5000 | 6mm | ≤450kN/cm | 5000mm | 1°30' | 20~600mm | 6Times/min | 11 | 5400*1800*1900 | 10500 |
QC12Y-6*6000 | 6mm | ≤450kN/cm | 6000mm | 1°30' | 20~600mm | 5Times/min | 11 | 6480*2100*2300 | 16500 |
QC12Y-8*2500 | 8mm | ≤450kN/cm | 2500mm | 1°30' | 20~600mm | 10Times/min | 11 | 3040*1700*1700 | 6000 |
QC12Y-8*3200 | 8mm | ≤450kN/cm | 3200mm | 1°30' | 20~600mm | 8Times/min | 11 | 3860*1700*1700 | 7200 |
QC12Y-8*4000 | 8mm | ≤450kN/cm | 4000mm | 1°30' | 20~600mm | 8Times/min | 11 | 4640*1700*1700 | 8800 |
QC12Y-8*5000 | 8mm | ≤450kN/cm | 5000mm | 1°30' | 20~600mm | 8Times/min | 11 | 5400*2100*2000 | 11500 |
QC12Y-8*6000 | 8mm | ≤450kN/cm | 6000mm | 1°30' | 20~600mm | 8Times/min | 11 | 6480*2100*2350 | 18000 |
QC12Y-10*2500 | 10mm | ≤450kN/cm | 2500mm | 2° | 20~600mm | 9Times/min | 11 | 3040*1700*1700 | 7300 |
QC12Y-10*3200 | 10mm | ≤450kN/cm | 3200mm | 2° | 20~600mm | 9Times/min | 11 | 3860*1700*1700 | 8000 |
QC12Y-10*4000 | 10mm | ≤450kN/cm | 4000mm | 2° | 20~600mm | 8Times/min | 11 | 4650*2100*2000 | 12050 |
QC12Y-10*6000 | 10mm | ≤450kN/cm | 6000mm | 2° | 20~1000mm | 5Times/min | 15 | 6500*2100*2300 | 24000 |
QC12Y-12*2500 | 12mm | ≤450kN/cm | 2500mm | 1°40' | 20~600mm | 9Times/min | 18.5 | 3140*2150*2000 | 9000 |
QC12Y-12*3200 | 12mm | ≤450kN/cm | 3200mm | 1°40' | 20~600mm | 9Times/min | 18.5 | 3880*2150*2000 | 10800 |
QC12Y-12*4000 | 12mm | ≤450kN/cm | 4000mm | 1°40' | 20~1000mm | 8Times/min | 18.5 | 4680*2150*2000 | 13000 |
QC12Y-12*5000 | 12mm | ≤450kN/cm | 5000mm | 2° | 20~1000mm | 6Times/min | 18.5 | 5900*2150*2000 | 16000 |
QC12Y-12*6000 | 12mm | ≤450kN/cm | 6000mm | 2° | 20~1000mm | 5Times/min | 18.5 | 6900*2600*2700 | 29500 |
QC12Y-12*8000 | 12mm | ≤450kN/cm | 8000mm | 2° | 20~1000mm | 5Times/min | 18.5KW | 9000*3500*3500 | 46500 |
QC12Y-16*2500 | 16mm | ≤450kN/cm | 2500mm | 2°30' | 20~600mm | 9Times/min | 22 | 3140*2150*2000 | 11000 |
QC12Y-16*3200 | 16mm | ≤450kN/cm | 3200mm | 2°30' | 20~600mm | 8Times/min | 22 | 3880*2150*2000 | 13000 |
QC12Y-16*4000 | 16mm | ≤450kN/cm | 4000mm | 2°30' | 20~1000mm | 8Times/min | 22 | 4650*2150*2200 | 16300 |
QC12Y-16*5000 | 16mm | ≤450kN/cm | 5000mm | 2°30' | 20~1000mm | 6Times/min | 22 | 5900*2600*2700 | 20000 |
QC12Y-16*6000 | 16mm | ≤450kN/cm | 6000mm | 2°30' | 20~1000mm | 5Times/min | 22 | 6900*2700*2700 | 36000 |
QC12Y-16*8000 | 16mm | ≤450kN/cm | 8000mm | 2°30' | 20~1000mm | 5Times/min | 22 | 9000*3500*3500 | 75000 |
QC12Y-20*2500 | 20mm | ≤450kN/cm | 2500mm | 3° | 20~1000mm | 8Times/min | 22 | 3440*2300*2500 | 15800 |
QC12Y-20*3200 | 20mm | ≤450kN/cm | 3200mm | 3° | 20~1000mm | 8Times/min | 22 | 4150*2350*2700 | 18500 |
QC12Y-20*4000 | 20mm | ≤450kN/cm | 4000mm | 3° | 20~1000mm | 5Times/min | 22 | 4850*2600*2700 | 21500 |
QC12Y-20*6000 | 20mm | ≤450kN/cm | 6000mm | 3° | 20~1000mm | 4Times/min | 30 | 6700*3000*3000 | 47000 |
QC12Y-25*2500 | 25mm | ≤450kN/cm | 2500mm | 3° | 20~1000mm | 8Times/min | 37 | 3200*2700*2900 | 19000 |
QC12Y-25*3200 | 25mm | ≤450kN/cm | 3200mm | 3° | 20~1000mm | 5Times/min | 37 | 4200*2700*2900 | 23000 |
QC12Y-30*2500 | 30mm | ≤450kN/cm | 2500mm | 3° | 20~1000mm | 4Times/min | 37 | 3300*2900*3000 | 23500 |
QC12Y-30*3200 | 30mm | ≤450kN/cm | 3200mm | 3°30 | 20~1000mm | 4Times/min | 40 | 4200*2900*3200 | 26000 |
QC12Y-40*2500 | 40mm | ≤450kN/cm | 2500mm | 4° | 20~1000mm | 3Times/min | 55 | 3200*3300*3000 | 38000 |
QC12Y-40*3200 | 40mm | ≤450kN/cm | 2500mm | 4° | 1000mm | 3Times/min | 55 | 4300*3300*3200 | 49000 |
Company Profile and Manufacturing Equipment
KECMT CNC MACHINE
Kecmt is located in the industrial park of high tech Development Zone in Bowang District, only 28 kilometers away from Nanjing Lukou International Airport, and close to Ma'anshan, the forefront of China's economic development. It has a superior geographical location and developed transportation. With modern enterprise management methods, the company is committed to fine management and zero defect operation management, based on the quality management of products. With its excellent quality, professional production, reasonable price and perfect after-sales service, it has won the praise of the majority of Chinese and foreign customers, and won the "quality, integrity, China credit enterprise system demonstration unit, Measurement management system certification, AAA standardization good behavior certification and other honorary titles.
The company is committed to sheet metal working solutions, the main products: press brake, shearing machine, press brake tools, cutting blades and so on.
Our company has been developing rapidly for a long time with the management concept of solving problems for customers and putting users first. We have followed the world trend, solved many technical problems, and developed many products with the best cost performance, which are deeply trusted by users at home and abroad, A large number of foreign advanced equipment has been introduced to adapt to the development of the company and meet the needs of users.
The company has a number of professional technicians, which can produce and design the products most needed by customers according to the requirements of customers, provide more efficient supporting solutions to meet the needs of all kinds of customers.
Our company has been developing rapidly for a long time with the management concept of solving problems for customers and putting users first. We have followed the world trend, solved many technical problems, and developed many products with the best cost performance, which are deeply trusted by users at home and abroad, A large number of foreign advanced equipment has been introduced to adapt to the development of the company and meet the needs of users.
The company has a number of professional technicians, which can produce and design the products most needed by customers according to the requirements of customers, provide more efficient supporting solutions to meet the needs of all kinds of customers.
Thecompany's business philosophy: "sincere cooperation, value creation!"
Welcome to inquire and order our products!
Welcome to inquire and order our products!
FAQ
1. Q: We see many Chinese brands there in market, are they all manufacturers? What about KEC/yaduan? A: It is true that among all those Chinese brands, most of them are trading brands. But KEC/yaduan is the real manufacturer that has been making hydraulic press brakes and shearing machines since 2008.
2. Q: How to get an accurate quotation from KEC ? A: Simply provide us the details of material , max thickness and max width you would like to work with. Send email to alan@kecmt.com alantool@139.com or call directly +86-18355321931.
3. Q: Can you do OEM service ? A: Sure. your design or other requirements are accepted , your own logo can be effected on the machine.
4. Q: What's the shipping cost from China to your country ? A:We can send machine to your port or
door address by sea. Please kindly tell us your nearest port or address with postcode. We work with several reliable shipping agents to arrange global shipping in multiple ways.
door address by sea. Please kindly tell us your nearest port or address with postcode. We work with several reliable shipping agents to arrange global shipping in multiple ways.
5. Q: What is the average lead time? A:For stocks, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective upon deposit receipt. If our lead times do not work with your deadline, We could arrange special urgent production so to catch our deadline. In all cases we will try to accommodate your needs. In most cases we are able to manage quick delivery.
6. Q: Can you supply the relevant shipping documentation? A:Yes, we can provide most documents including Bill of lading; Certificates of Analysis /Conformance; CE certificate, COC certificate; Insurance; Country of Origin; Commercial invoice; Packing list and other export documents whatever required.
7. Q: Do you accept LC payment ? A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
8. Q: How to operate the machines ordered ? A:Videos of the machines before shipment in our factory will be sent to you directly.
9. Q: What about commissioning service ? A: We can offer commissioning service , the buyer need to afford plane tickets. 10. Q: What is the product warranty? A:Normally 3 years. Our commitment is to your satisfaction with our products. In
warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
11. Q: Do you guarantee safe and secure delivery of products? A:Yes, we always use high quality export packaging. We also use specialized solid packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Special packaging and non-standard packing requirements will charge additionally.
