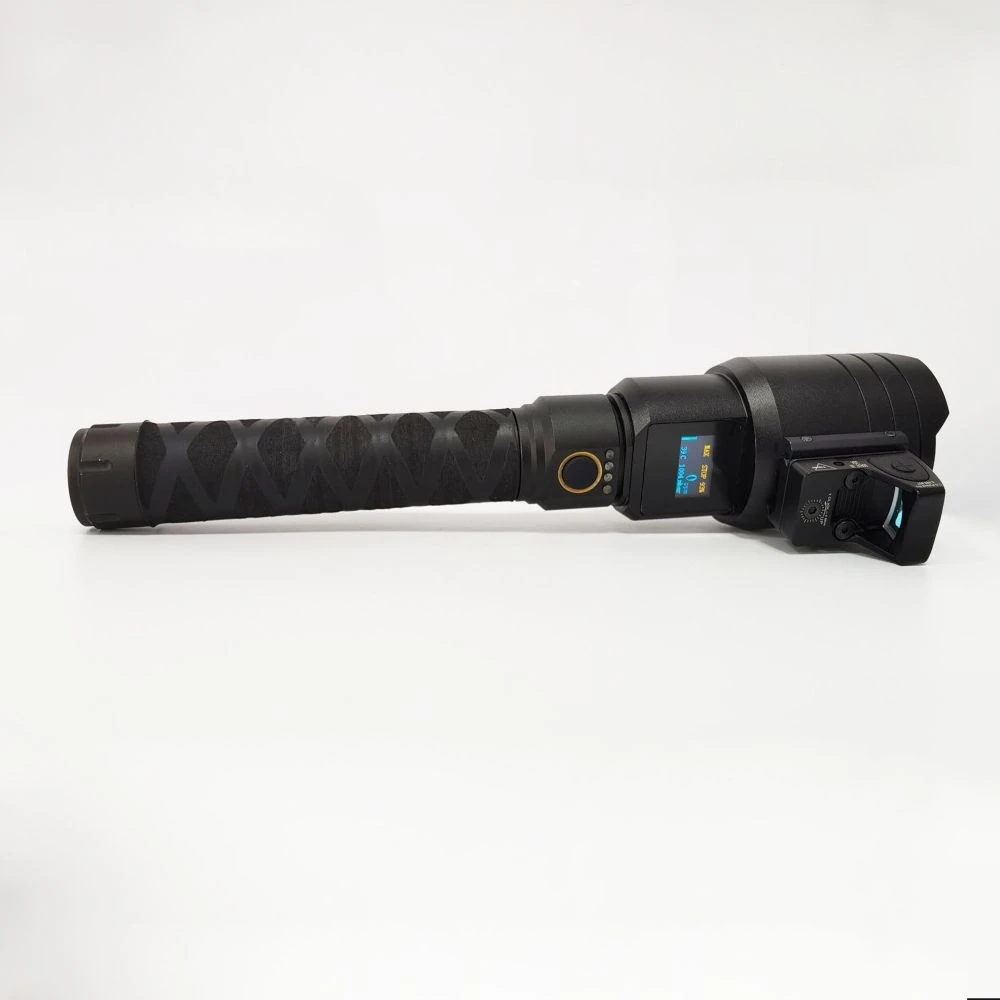

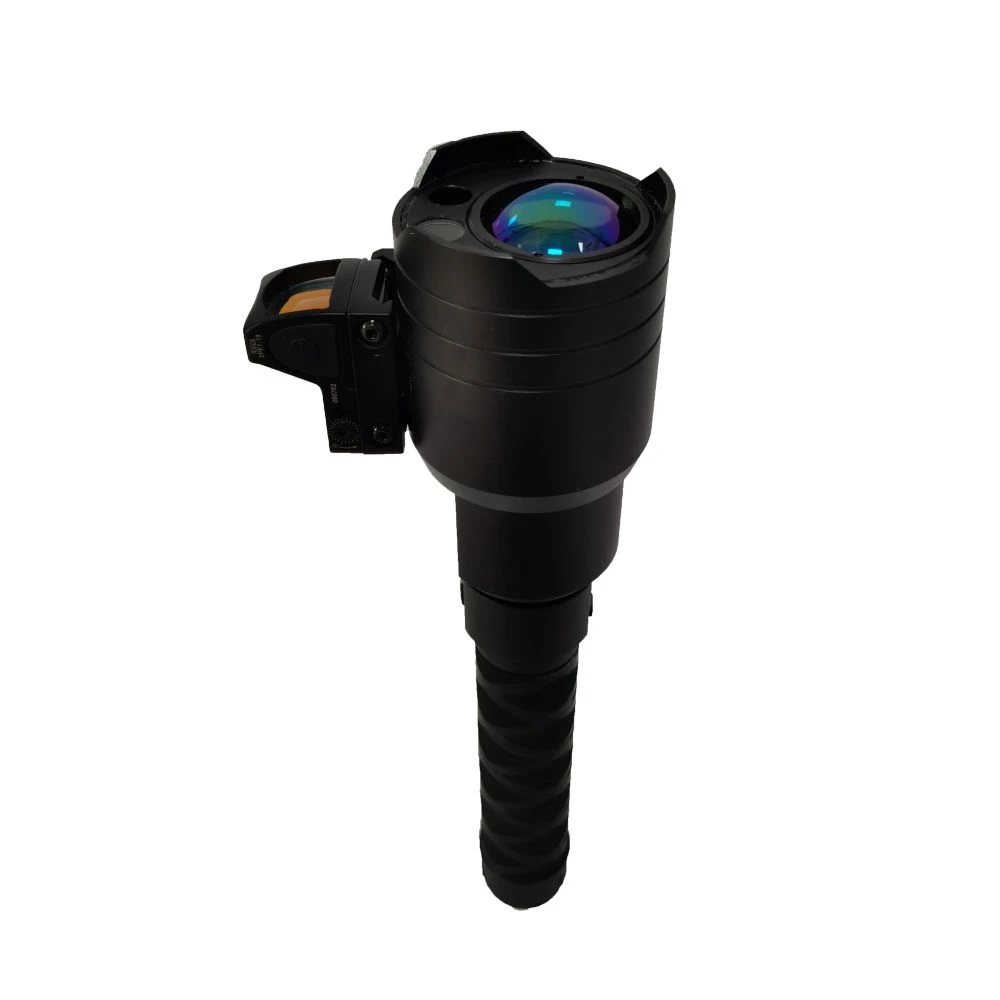

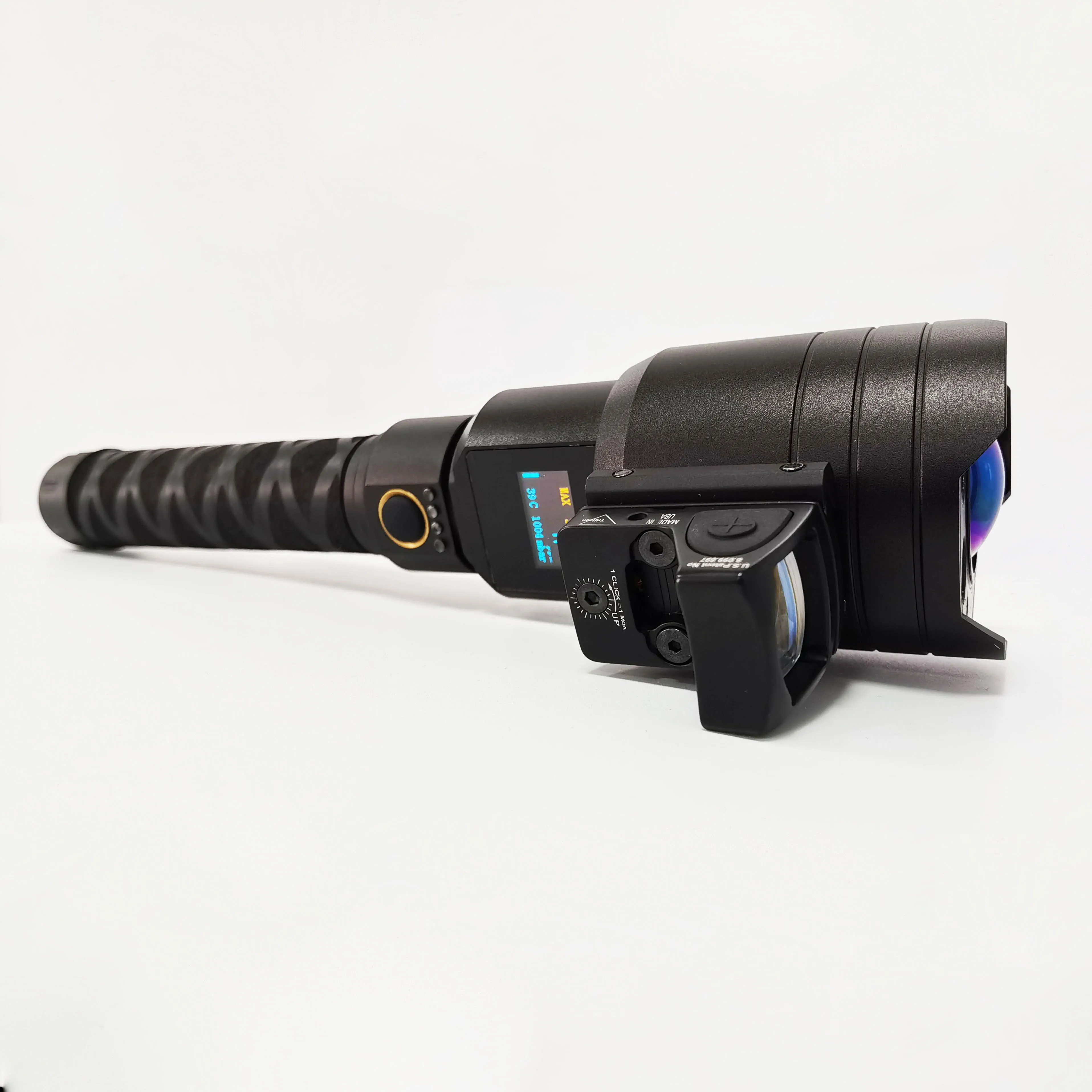

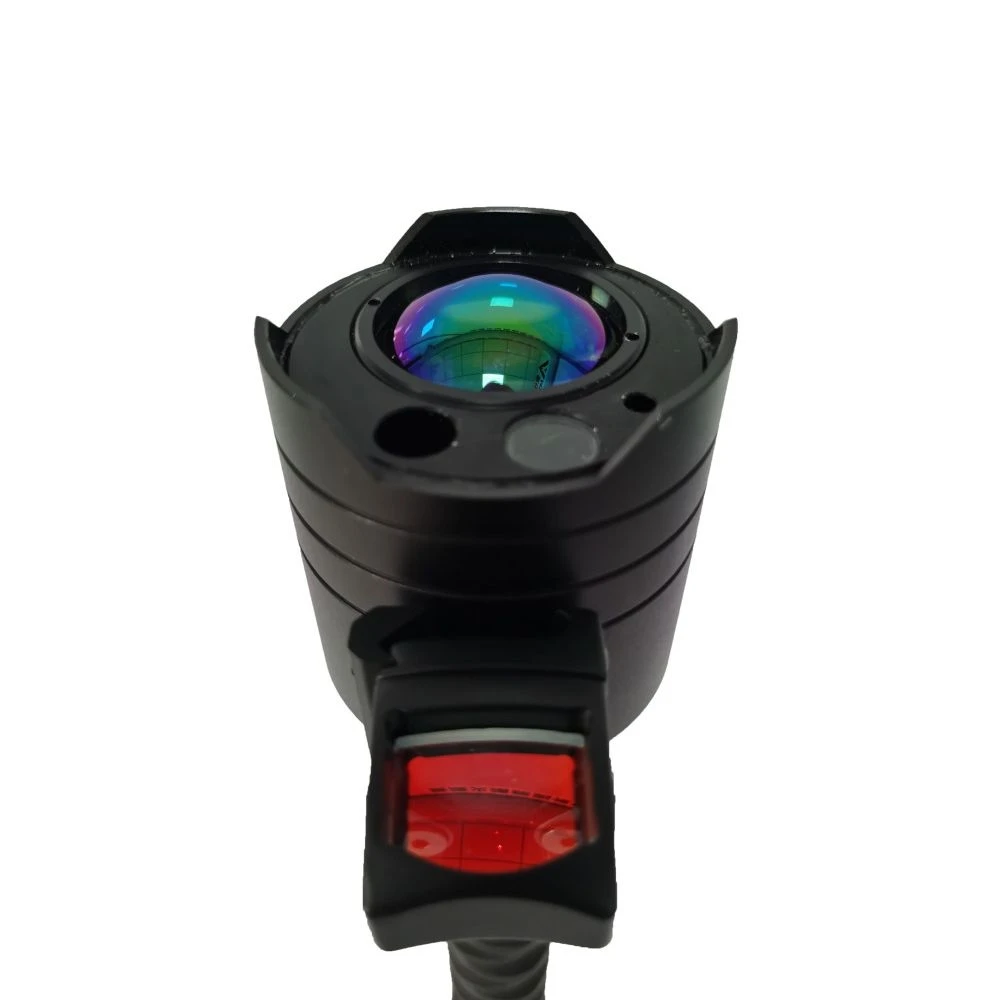

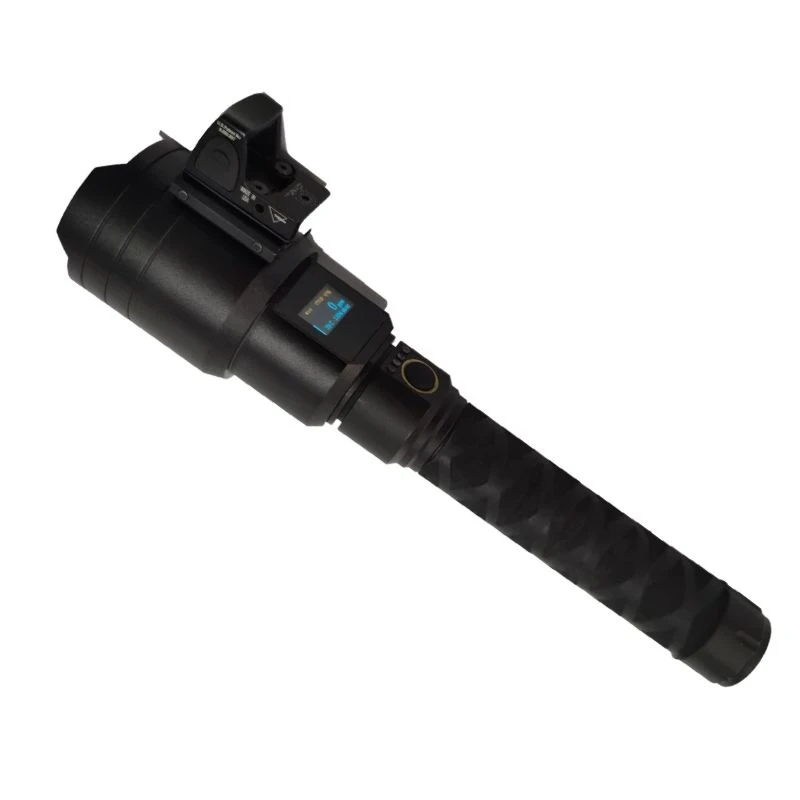

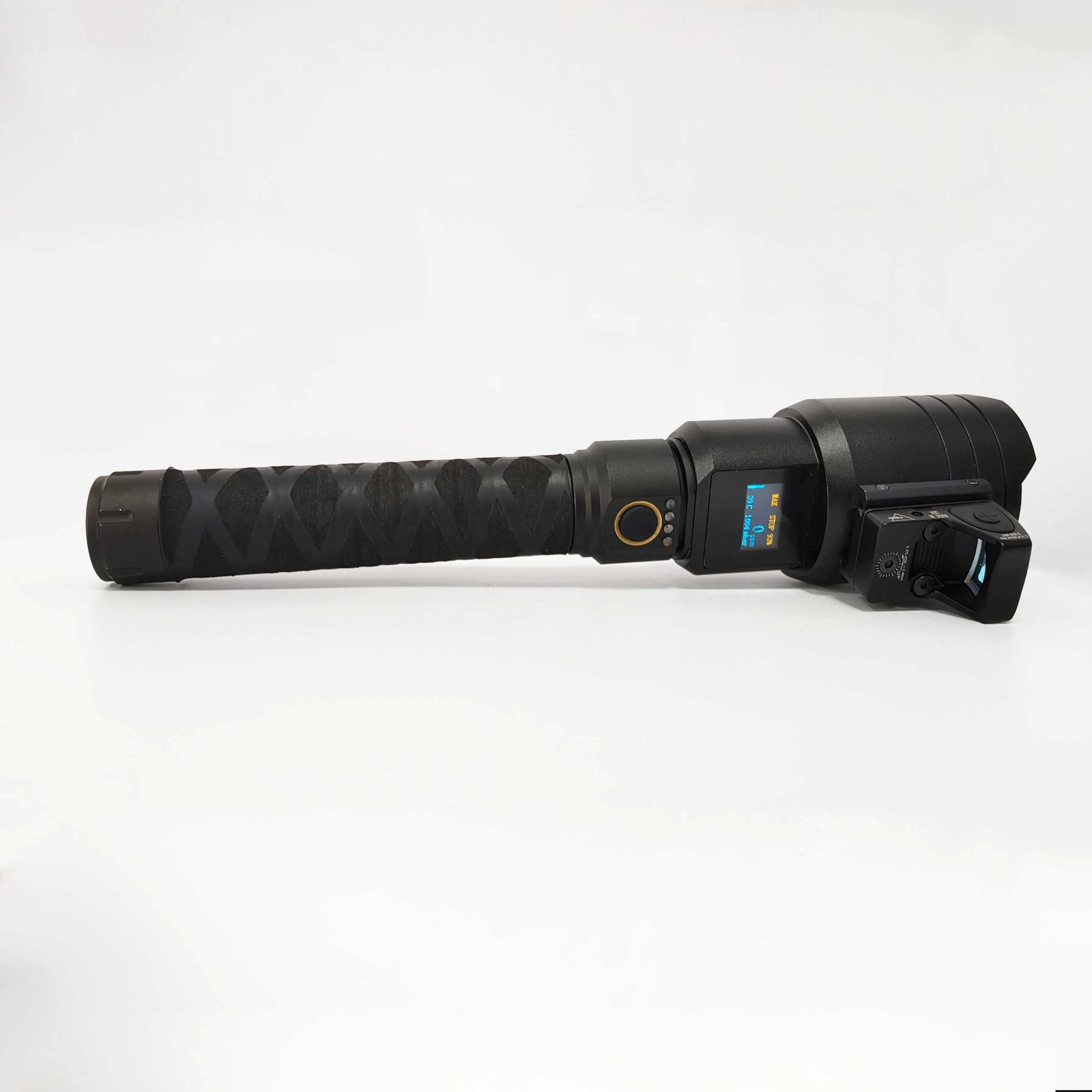

Портативный детектор метанового газа лазерный ch4
- Категория: Gas Analyzers >>>
- Поставщик: Shenyang,Anshide,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 9044.21 $* | 9496.28 $* |
| Aug-18-2025 | 8968.92 $* | 9416.44 $* |
| Jul-18-2025 | 7524.67 $* | 7900.67 $* |
| Jun-18-2025 | 8816.59 $* | 9257.90 $* |
| May-18-2025 | 7676.43 $* | 8060.10 $* |
| Apr-18-2025 | 8664.11 $* | 9097.21 $* |
| Mar-18-2025 | 8588.42 $* | 9017.97 $* |
| Feb-18-2025 | 8512.27 $* | 8938.15 $* |
| Jan-18-2025 | 8436.29 $* | 8858.48 $* |
Характеристики
Parameter | Minimum | Typical value | Maximum | Unit | |||
Diminsion | H292*Diameter 60 | mm | |||||
Main material | 7075-T5 Extruded aluminium alloy | -- | |||||
Surface Treatments | Black superfical wiredrawing anodized | -- | |||||
Weight | -- | 550 | -- | g | |||
IP ratting | IP65 | -- | |||||
General Parameters | |||||||
Measuring distance | 0.1 | 100 | 150 | m | |||
Respond time | -- | 5 | 50 | ms | |||
Detection range | 0 | -- | 40000 | ppm·m | |||
Storage Temperature | -40 | -- | 70 | ℃ | |||
Pressure for testing | 20 | 1200 | Mbar | ||||
Error range | （0-1000） ±50 | ppm·m | |||||
(1000-40000)truth condition±20% | |||||||
Laser safety Standard | CLASS IIIA | -- | |||||
Operating voltage | 6.5V | 7.2V | 8.4 | V | |||
Working consumption | 1.5 | 2 | 2.5 | W | |||
Start-up current | -- | 1 | -- | A | |||
Ex rate | Exib IIA T4 Gb | ||||||
Intrinsic safety parameter | Uo：8.4V Io：1.2A | ||||||
Work environment | |||||||
Operating temperature | -20 | -- | 50 | ℃ | |||
Operating humidity | -- | -- | 98 ( non-condensing） | %RH | |||
Working pressure | 68 | -- | 115 | Kpa | |||
