Part Number: RS232/485 TO ETH

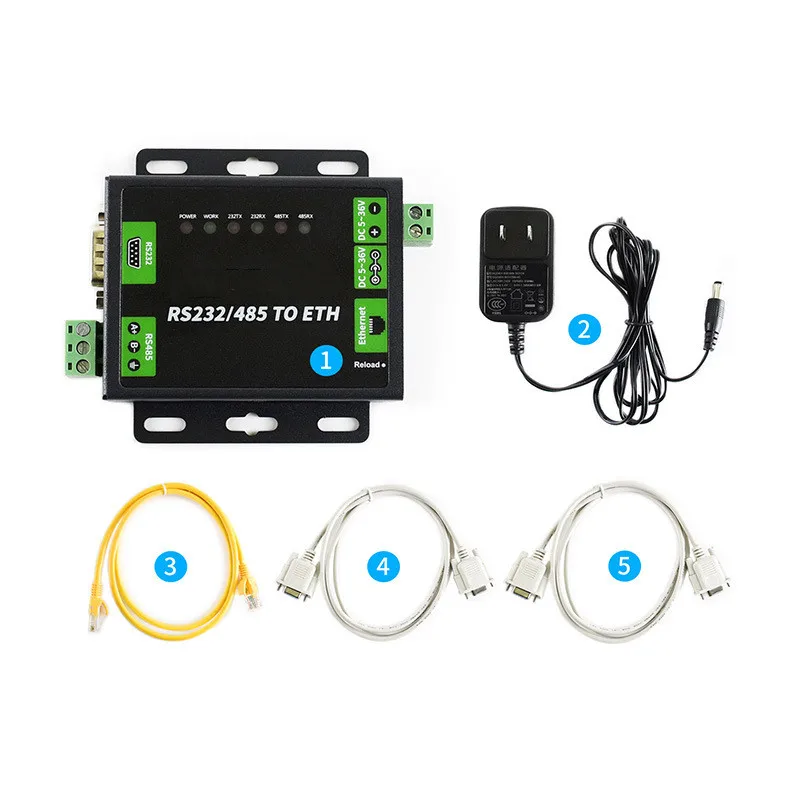

Comes with US plug power adapter. More options for the power plug: US, EU,or customation for you specail, TALK to us NOW!!!

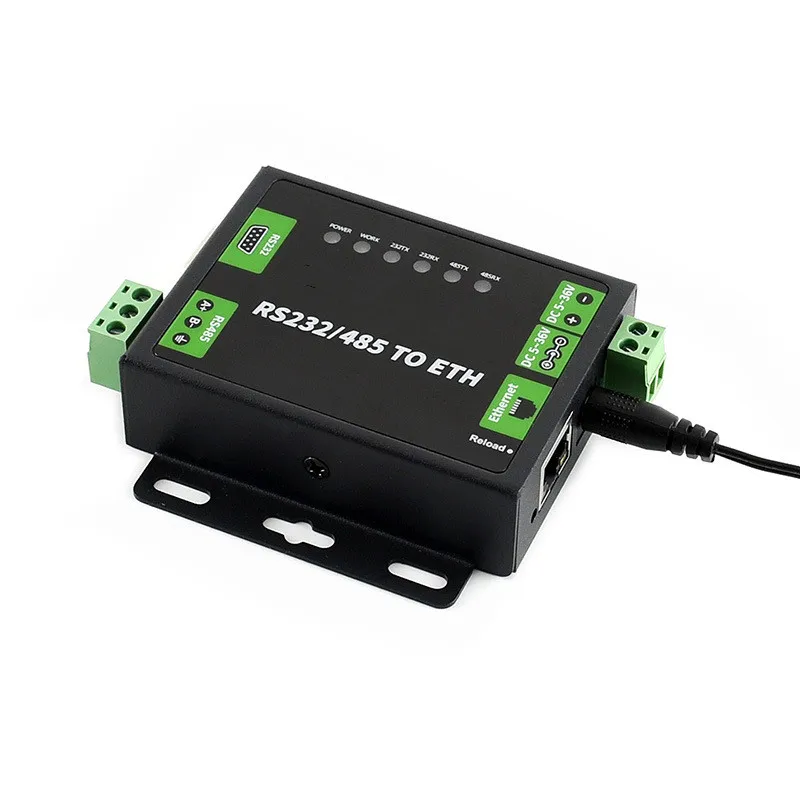

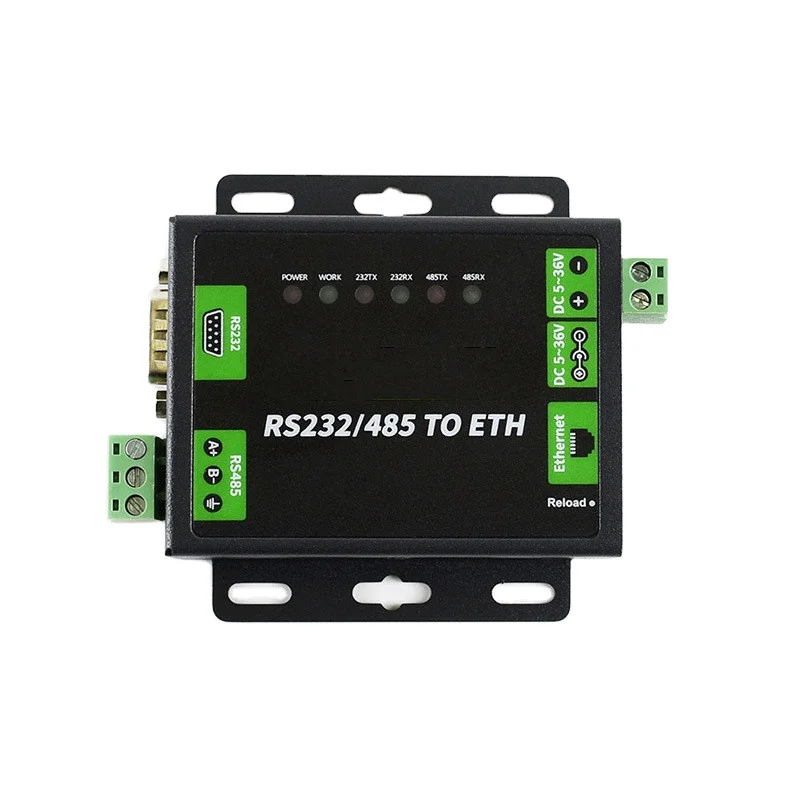

The RS232/485 TO ETH is an industrial RS232/RS485 to Ethernet converter, which allows bi-directional transparent data transmission between RS232/RS485 and RJ45 port Ethernet, even at the same time, it can be configured via webpage.

Features

• C4 series 32-bit ARM processor with up to 120MHz frequency, fast speed, stable and reliable


• 10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable


• Both RS232 and RS485 interface, allows to work independently at the same time, without interfering each other


• Configurable baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space


• Multi indicators, for monitoring communicating and working status


• Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)


• Supports Modbus, suit for industrial application


• Supports Websocket, allows bi-directional transparent data transmission with RS232/RS485 port via webpage directly


• Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software


• Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data


• Supports customized registration packets, auto passing the registered packet as identifier after the connection is established, so that different devices can be distinguished


• Supports customized webpage, allows user to customize the module configuration page


• Supports RFC2217-like protocol, be able to communicate with devices whose serial setting (baudrate, data bit, etc.) may change


• KeepAlive mechanism, detects broken connection, auto re-connecting


• Supports time-out reboot (no-data reboot), ensures a long-term stable connection, configurable reboot time


• Supports DNS domain name resolution, configurable DNS server


• Supports DHCP, auto-obtained IP or static IP


• Firmware is upgradable via the network


• Restore to factory settings via software and/or hardware


• Comes with default MAC address, which is customizable


• Provided software: module configuration software, TCP/UDP testing tool, VCOM virtual serial port software


• Example code: host computer (socket ), VB, C++, Delphi, Android, iOS, etc.

Specifications

• Ethernet:



  • Connector: 4-pin RJ45


  • Communication rate: 10/100Mbps


  • Interface protection: 2KV electromagnetic isolation


  • Protocols: IP, TCP, UDP, ARP, ICMP, DHCP, DNS, HTTPD Client, Websocket


  • TX cache: 16Kbyte


  • RX cache: 16Kbyte






• RS485/RS232:



  • Connector:



    • RS485: screw terminal (A+, B-, GND)


    • RS232: DB9 male






  • Data bit: 5bit, 6bit, 7bit, 8bit


  • Stop bit: 1, 2


  • Parity bit: None, Odd, Even, Mark, Space


  • Baudrate: 600bps~230.4Kbps


  • TX cache: 2Kbyte


  • RX cache: 2Kbyte


  • Hardware flow control: RTS/CTS


  • Interface protection:



    • RS485: 2KV ESD protection, lightningproof, anti-surge, over-current protection


    • RS485 pull up/down registers: 2.2KΩ










• Power:



  • Power supply: 5.0~36.0V (5V recommended)


  • Operating current: 86.5mA (@5V)


  • Power consumption: <1W


  • Interface protection: reverse-proof, ESD protection, anti-surge






• Environment:



  • Operating temperature: -40~85°C


  • Storage temperature: -40~105°





Dimensions

Weight: 0.54 kg

Selection guide

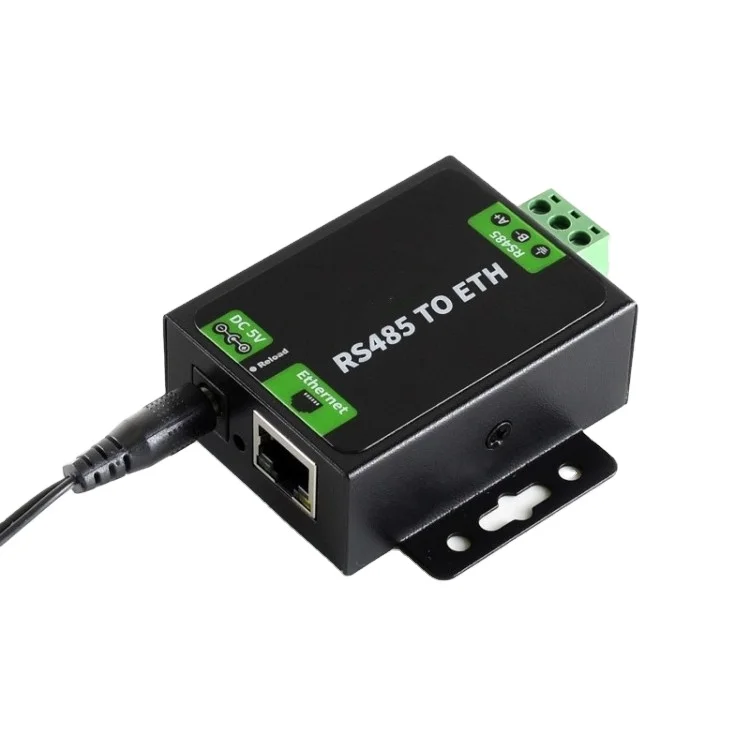

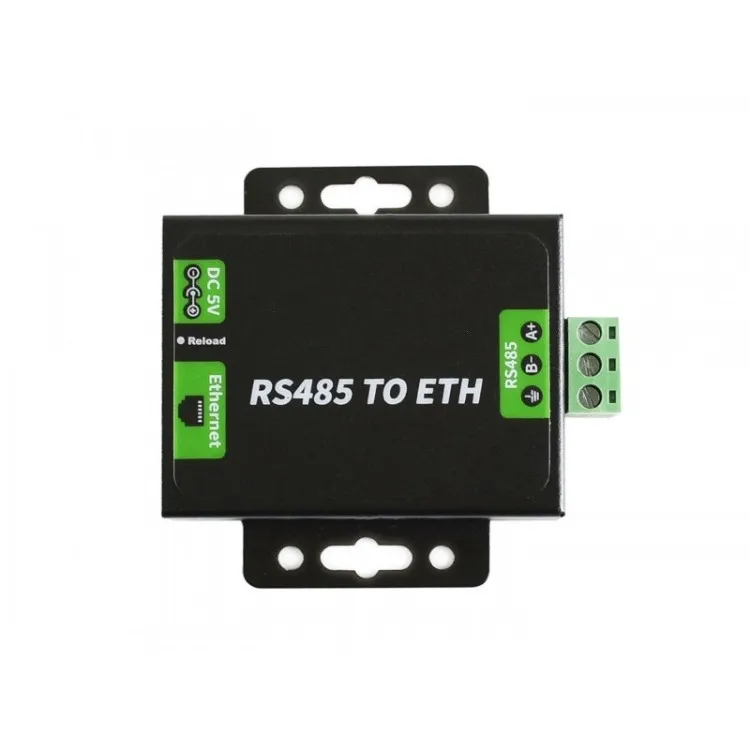

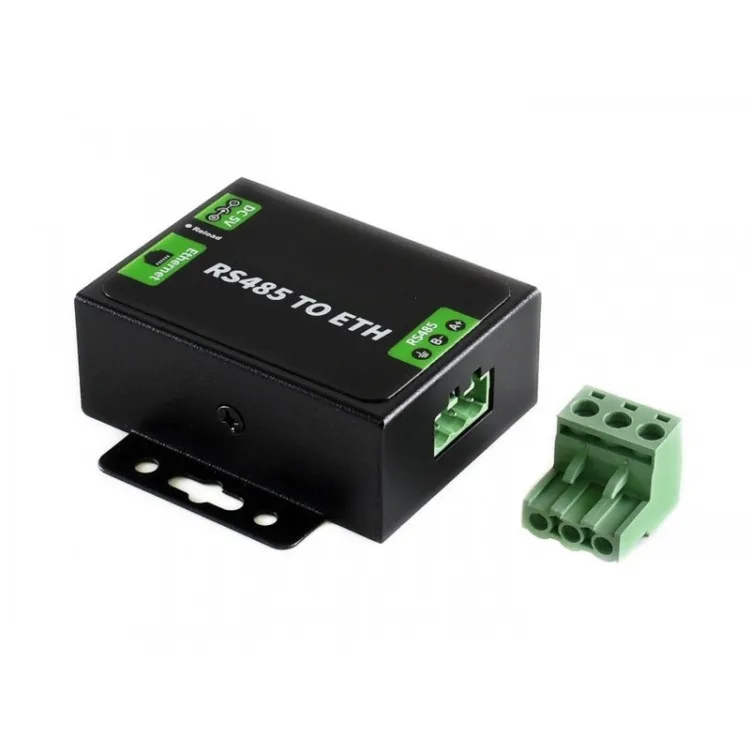

	UART TO ETH	RS485 TO ETH	RS232/485 TO ETH	2-CH-UART-TO-ETH
Processor	Cortex-M0	Cortex-M0	Cortex-M4 (up to 120MHz frequency)	CA9121
ETHERNET
Type	RJ45 (10/100Mbps auto-negotiation)
UART
Type	UART	RS485	RS232+RS485 (allows concurrent operation)	UART
Baudrate	600bps~460.8Kbps	600bps~230.4Kbps		300bps~921.6Kbps
Hardware flow	NOT supported		supported	NOT supported
Data bit	5, 6, 7, 8
Stop bit	1, 2
Parity bit	None, Even, Odd, Space, Mark
INTERFACE PROTECTION
Power supply	reverse-proof, ESD protection, anti-surge
Ethernet	1.5KV electromagnetic isolation
RS485	-	2KV ESD protection, 2.2KΩ pull up/down registers		-
Other	-	-	lightningproof, over-current protection	-
OPERATING MODE
Type	TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client			TCP Server, TCP Client, UDP Server, UDP Client
TCP Server	customizable 1~16 Clients		supports 2-ch Socket, 8 Clients per ch	customizable 1~16 Clients
MISC
Features	customized heartbeat packets, customized registration packets, customized webpage, RFC2217-like protocol, KeepAlive, timeout auto reboot, short connection, firmware upgrade via network			KeepAlive, firmware upgrade via network
	-	-	Modbus gateway, Websocket (webpage to serial)	-
Configuration	Built-in webpage, Host computer config software, Serial commands			Host computer config software, Serial commands
Power supply	3.3V/5V	5~7V	5~36V	3.3V/5V
Operating current	150mA@5V	110mA@5V	86.5mA@5V	140mA@5V
Operating temp.	-25~75℃		-40~85℃
Storage temp.	-40~105℃			-55℃~125℃
