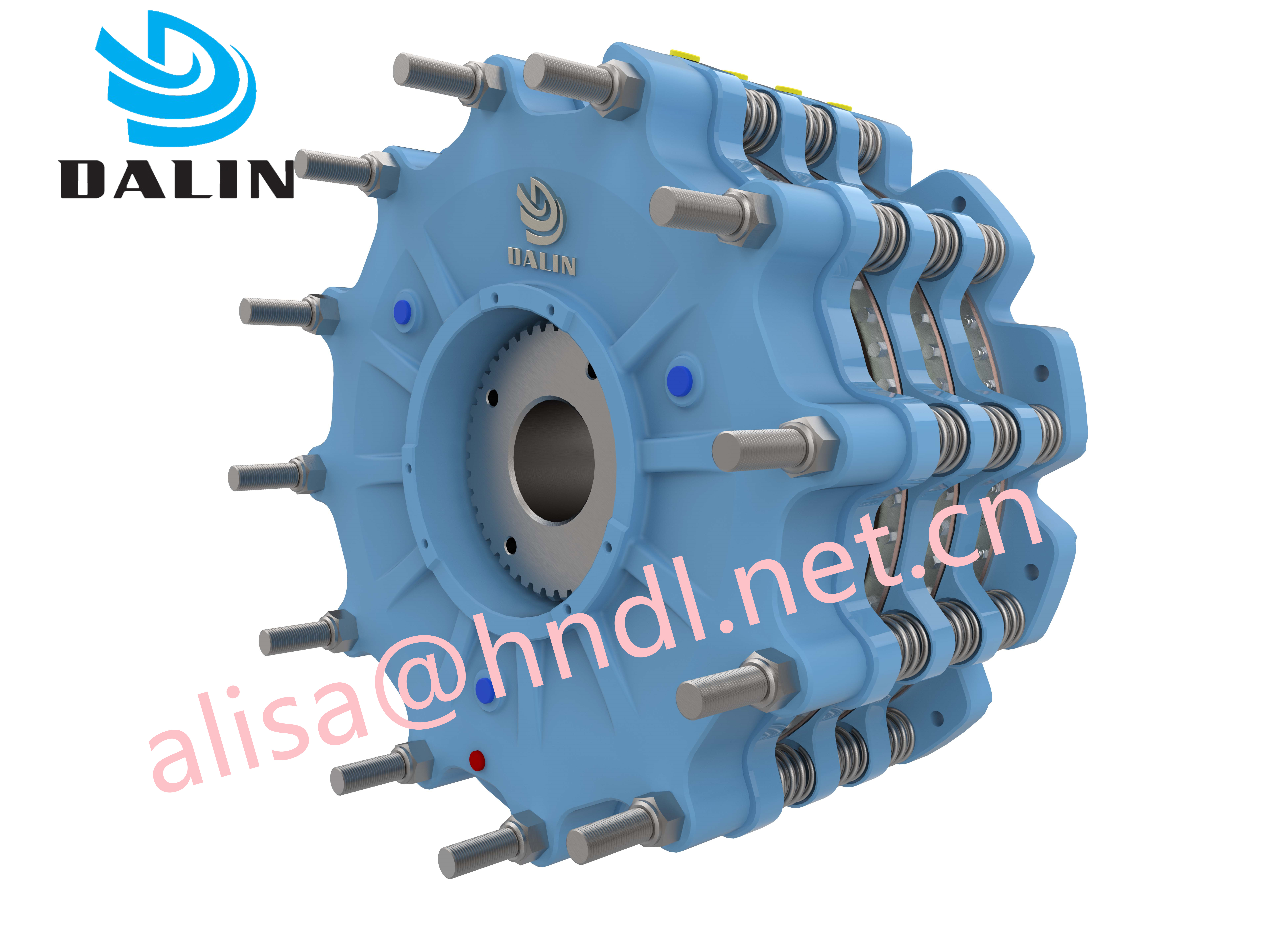

Hot Selling Rubflex water cooled brake WCB418 Replacement Eaton
- Категория: Industrial Brake >>>
- Поставщик: Henan,Dalin,Rubber,And,Telecommunications,Apparatus,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.19 $* | 0.2 $* |
| Aug-17-2025 | 0.81 $* | 0.7 $* |
| Jul-17-2025 | 0.12 $* | 0.71 $* |
| Jun-17-2025 | 0.62 $* | 0.84 $* |
| May-17-2025 | 0.12 $* | 0.37 $* |
| Apr-17-2025 | 0.48 $* | 0.67 $* |
| Mar-17-2025 | 0.59 $* | 0.70 $* |
| Feb-17-2025 | 0.28 $* | 0.99 $* |
| Jan-17-2025 | 0.39 $* | 0.99 $* |
Характеристики
Product Description
Power Grip Clutches are designed to accommodate in-line and shaft-to-shaft power transmission applications with large inertia loads. Our air-tube design allows seamless, controlled engagement and disengagement with minimal air volume. Power Grip clutches allow for quick response, space-saving footprints, minimal maintenance requirements and are available in sizes ranging from 8” to 60”.

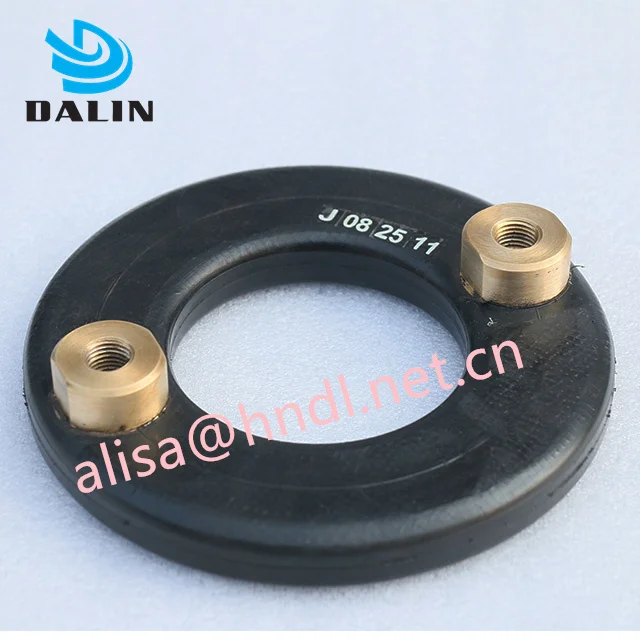

Disc clutch air tube for heavy duty clutch is composed of metal air nozzle,outer rubber lining,cord fabric and inner rubber lining,this rubber air tube is widely used in dis
clutch for petroleum equipment,drillingrig,drawwork,mooring winches,paper mills,steel service centers etc.
Our air tube passed ISO9001:2008 international quality systerm authentication,and have a long-term cooperation with USA,UK,RUSSIA,Middle East customers.
clutch for petroleum equipment,drillingrig,drawwork,mooring winches,paper mills,steel service centers etc.
Our air tube passed ISO9001:2008 international quality systerm authentication,and have a long-term cooperation with USA,UK,RUSSIA,Middle East customers.

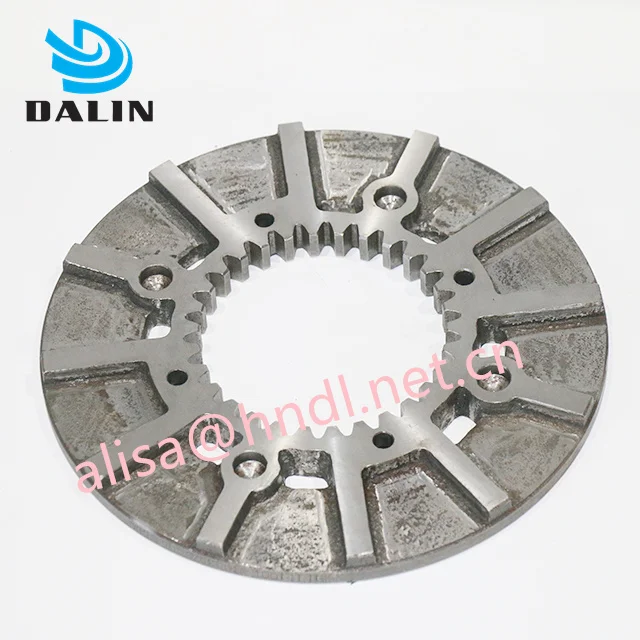

Pressure Plate
Our company supply an extensive range of Centre Plates.Available in various sizes and styles.Ductile iron material offers
excellent product performance.
excellent product performance.
Floating PLate
The floating Plate have been designed for continuous high-frequency applications.The design offers low inertia and high ventilation properties.
Size | Torque Ratings @100psi(lb-in)/7bar(Nm) | WEIGHT AND INERTIA | ||||||||||
Standard Friction Material | High Coeff Friction Material | Total Weight | Hub&DP Weight | Hub&DP Inertia | ||||||||
lb-in | Nm | lb-in | Nm | lb(kg) | lb(kg) | lbft2(wr2) | ||||||
(kgm2(J)) | ||||||||||||
118 | 44900 | 5150 | 67100 | 7700 | 331(150) | 86(39) | 18.8(0.79) | |||||
218 | 89800 | 10310 | 134200 | 15400 | 460(209) | 172(78) | 38.1(1.61) | |||||
318 | 134700 | 15460 | 201300 | 23100 | 848(385) | 272(123) | 57.4(2.42) | |||||
418 | 179600 | 20620 | 268400 | 30810 | 1236(561) | 372(169) | 78.1(3.29) | |||||
124 | 111600 | 12800 | 166700 | 19130 | 810(367) | 196(89) | 71.9(3.03) | |||||
224 | 223200 | 25600 | 333400 | 38260 | 1208(548) | 428(194) | 148(6.21) | |||||
324 | 334800 | 38400 | 500100 | 57380 | 1624(737) | 631(286) | 219(9.21) | |||||
424 | 446400 | 51200 | 666700 | 76510 | 1950(884) | 850(386) | 294(12.4) | |||||
136 | 375500 | 43080 | 561200 | 64380 | 2687(1219) | 474 (215) | 374(15.8) | |||||
236 | 751000 | 86160 | 1122400 | 128750 | 3919(1777) | 908 (412) | 704(29.7) | |||||
336 | 1126500 | 129250 | 1683600 | 193130 | 5400(2449) | 1345(610) | 1107(46.6) | |||||
436 | 1502000 | 172330 | 2244800 | 257500 | 6501(2948) | 1997(906) | 1524(64.2) | |||||
Specification
item | value |
Condition | New |
Warranty | 1.5 years |
Applicable Industries | Machinery Repair Shops, Energy & Mining, Other |
Weight (KG) | 100 |
Showroom Location | India, Russia, Malaysia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 1 Year |
Core Components | Engine, Motor, Pressure vessel, Pump |
Place of Origin | China |
Henan | |
Brand Name | Dalin |
Product name | Water Cooled Brake118 |
Type | Disc Clutch Brake Spare Parts |
Color | Customer's Request |
Size | 8''/14''/18''24''/36''/48'' |
Application range | High Inertia Stopping |
Package | Plywood Case |
Interchange brand | eaton airflex |
Company | Rubflex |
Other model | 218/318/124/224/324/424/136/236 |
Delivery Time | In Stock |
Our Services
1. Well trained and experienced staffs at your service.
2. Short lead time.
3. International standard matched.
4. Designed in accordance with customers’ request.
5. Packed and delivered by customers’ requirement.
2. Short lead time.
3. International standard matched.
4. Designed in accordance with customers’ request.
5. Packed and delivered by customers’ requirement.
Company Profile
Founded in 1975,Henan Dalin Rubber and Telecommunications Apparatus Co,.Ltd specializes in designing and manufacturing for pneumatic air tube and its accessories,owns advanced and complete set of production equipment and technical testing instruments.
1.More than 25 years production experience.
2.Boast complete set of production equipment and technical instruments.
3.Registered Captical:$8,300,000
4.Number of staff:200
5.Address:1 Jiushan Road,Huixian,Xinxiang,Henan,China
Meantime,we also have a long term cooperation with customers from USA,UK,Russia,etc.
1.More than 25 years production experience.
2.Boast complete set of production equipment and technical instruments.
3.Registered Captical:$8,300,000
4.Number of staff:200
5.Address:1 Jiushan Road,Huixian,Xinxiang,Henan,China
Meantime,we also have a long term cooperation with customers from USA,UK,Russia,etc.
Package
Certifications
Exhibition
FAQ
1. Are you Manufactory or trade company?
We are Manufactory specialized in designing and manufacturing for pneumatic air tube and its accessories.
2. Do you have stock?
Yes,we have most standard products in stock.
3.What is your MOQ?
1 PCS for most standard products.
4. How to control quality?
We have a very strict quality controlling system which promises that goods we produced are always of the best quality.
5. How soon can you deliver the goods?
We will deliver the goods in 3-5days after we receive the payment.
6. About payment:
We accept T/T, Paypal, Western Union or credit card.
Please feel free to send us your detailed requirements,you should be satisfied with our service.
We are Manufactory specialized in designing and manufacturing for pneumatic air tube and its accessories.
2. Do you have stock?
Yes,we have most standard products in stock.
3.What is your MOQ?
1 PCS for most standard products.
4. How to control quality?
We have a very strict quality controlling system which promises that goods we produced are always of the best quality.
5. How soon can you deliver the goods?
We will deliver the goods in 3-5days after we receive the payment.
6. About payment:
We accept T/T, Paypal, Western Union or credit card.
Please feel free to send us your detailed requirements,you should be satisfied with our service.
