Металлическое кольцо из нержавеющей стали
- Категория: Metals & Metal Products >>>
- Поставщик: Pingxiang,Zhongtai,Environmental,Chemical,Packing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.43 $* | 0.60 $* |
| Aug-17-2025 | 0.16 $* | 0.74 $* |
| Jul-17-2025 | 0.33 $* | 0.2 $* |
| Jun-17-2025 | 0.29 $* | 0.64 $* |
| May-17-2025 | 0.76 $* | 0.2 $* |
| Apr-17-2025 | 0.45 $* | 0.17 $* |
| Mar-17-2025 | 0.51 $* | 0.88 $* |
| Feb-17-2025 | 0.83 $* | 0.90 $* |
| Jan-17-2025 | 0.76 $* | 0.92 $* |
Характеристики
Product Description
Stainless Steel 304 Tower Packing Metal Pall Ring
Metal Pall Ring packing use of sheet metal by punching in the ring out of the wall with two rows of fenestrae with leaves.
Fenestrae in each row there are five tongue leaves, each leaf tongue ring, point to ring heart, almost in the center up, the
location of the upper and lower levels staggered fenestrae, the general opening of the ring a total area of about 35% of wall area
around Pall Ring packing as a result of in-the-loop to open a lot of window walls, making the tower the gas and liquid can move
freely through the window, the current Central fill Powell was used by one of the main ring packing.
Fenestrae in each row there are five tongue leaves, each leaf tongue ring, point to ring heart, almost in the center up, the
location of the upper and lower levels staggered fenestrae, the general opening of the ring a total area of about 35% of wall area
around Pall Ring packing as a result of in-the-loop to open a lot of window walls, making the tower the gas and liquid can move
freely through the window, the current Central fill Powell was used by one of the main ring packing.
Specification
Size (Inch/mm) | Bulk density (304,kg/m3) | Number (per m3) | Surface area (m2/m3) | Free volume (%) | Dry packing factorm-1 | ||
1/4” | 6*6*0.3 | 900 | 4000000 | 904 | 88.6 | 1307.4 | |
3/8” | 10*10*0.3 | 480 | 768000 | 482 | 93.8 | 583.8 | |
1/2” | 13*13*0.3 | 420 | 410000 | 415 | 4.8 | 489.2 | |
5/8” | 16*16*0.3 | 348 | 201000 | 344 | 95.5 | 393.2 | |
1” | 25*25*0.4 | 288 | 53500 | 212 | 96.2 | 229.8 | |
1” | 25*25*0.5 | 367 | 53500 | 216 | 95 | 237.2 | |
1” | 25*25*0.6 | 439 | 53500 | 219 | 94.2 | 244.1 | |
1.5” | 38*38*0.4 | 193 | 15180 | 143 | 97.2 | 148.4 | |
1.5” | 38*38*0.5 | 246 | 15180 | 145 | 96.7 | 151.7 | |
1.5” | 38*38*0.6 | 328 | 15000 | 146 | 95.9 | 154.6 | |
2” | 50*50*0.5 | 185 | 6500 | 106 | 97.5 | 128.5 | |
2” | 50*50*0.8 | 315 | 6500 | 108 | 96.8 | 130.5 | |
2” | 50*50*1.0 | 380 | 6500 | 132.5 | 96.0 | 134.0 | |
3” | 76*76*1.0 | 265 | 1920 | 69 | 97.4 | 79.6 | |
3.5” | 89*89*1.0 | 224 | 1220 | 61 | 97.1 | 66.2 | |

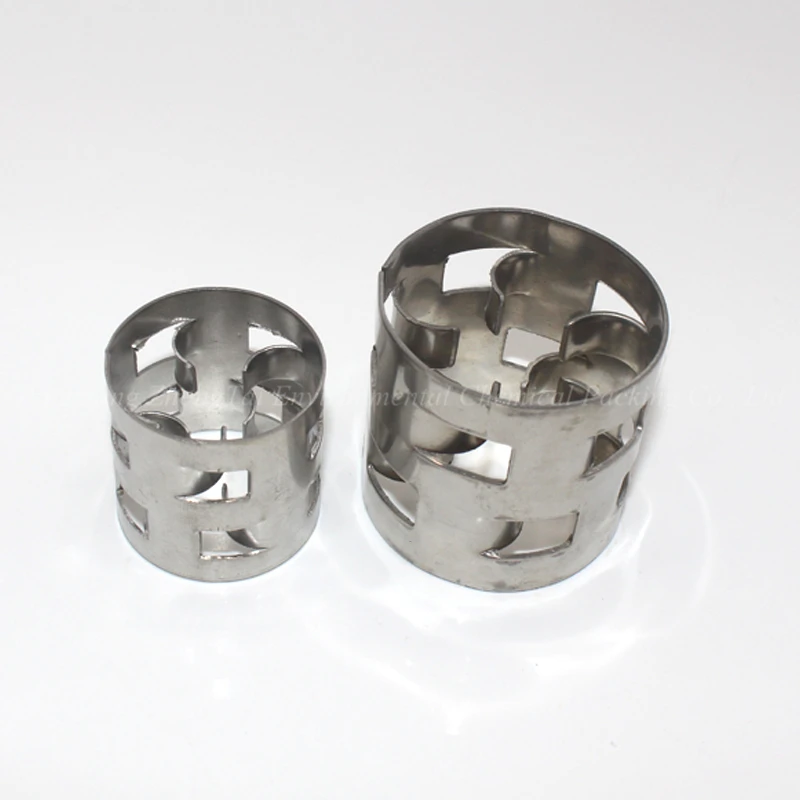

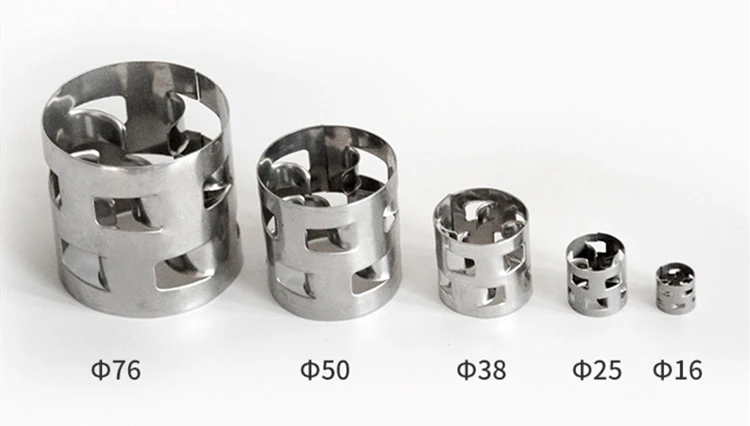

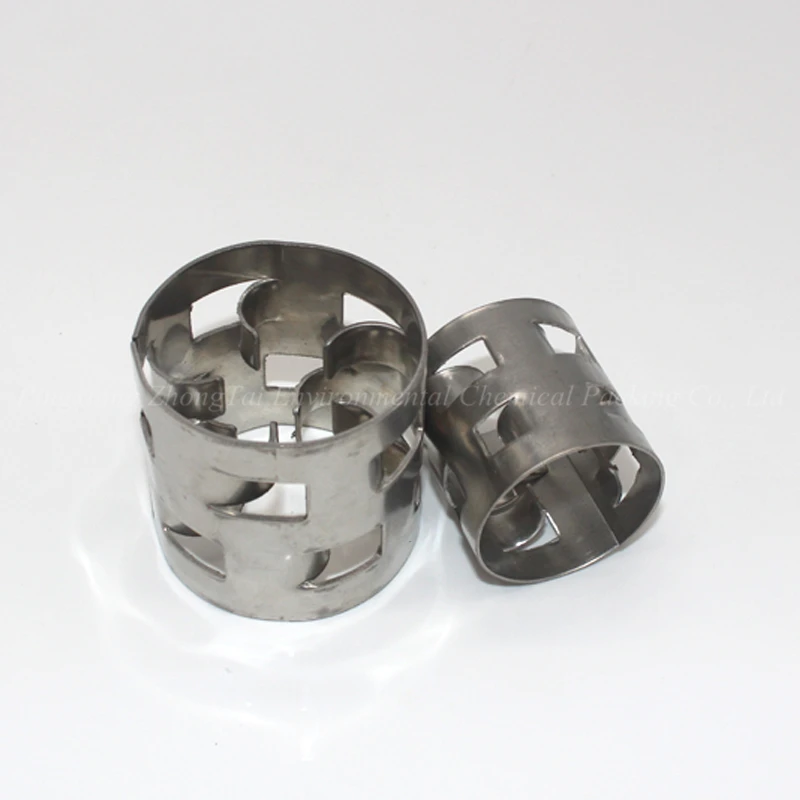

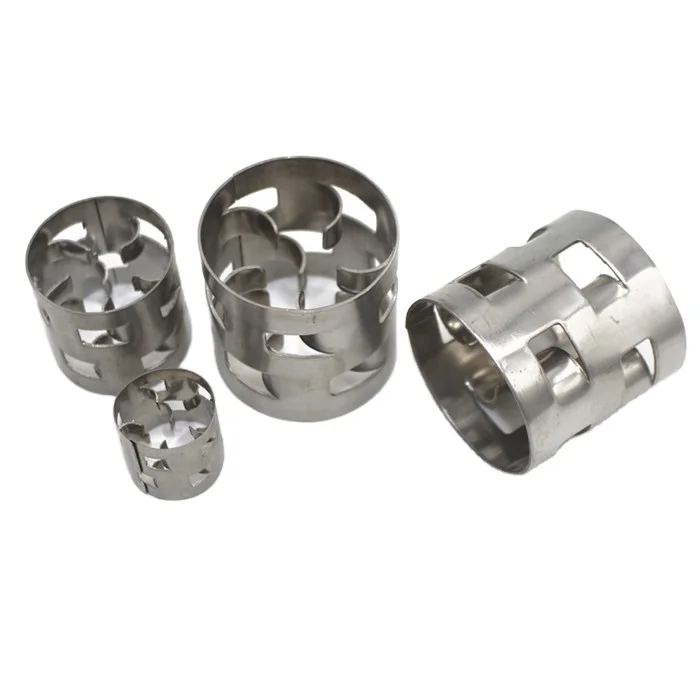

Product pictures
Product Series
Application
Metal Pall Ring Application:
Stainless Steel 304 Tower Packing Metal Pall Ring
It is applied to various of device of isolation,absorption,desorption,common decompression such as Toluene separation,Ethylbenzeneseparation,Isooctane separation,and desulfurization systerm and so on.
Packing & Delivery
Stainless Steel 304 Tower Packing Metal Pall Ring
Packaging Details:Jumbo Bag; carton box palletized and plastic woven bag for optional.PortShanghai/Ningbo/Shenzhen
FAQ
Our Company
Pingxiang Zhongtai Environmental Chemical Packing Co., Ltd was established in 2003, It is a professional manufacturer and exporter that has more than 10 years experience in Chemical Packing. We are located in West Section Hi-Tech Industry Park Pingxiang City, Jiangxi Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
