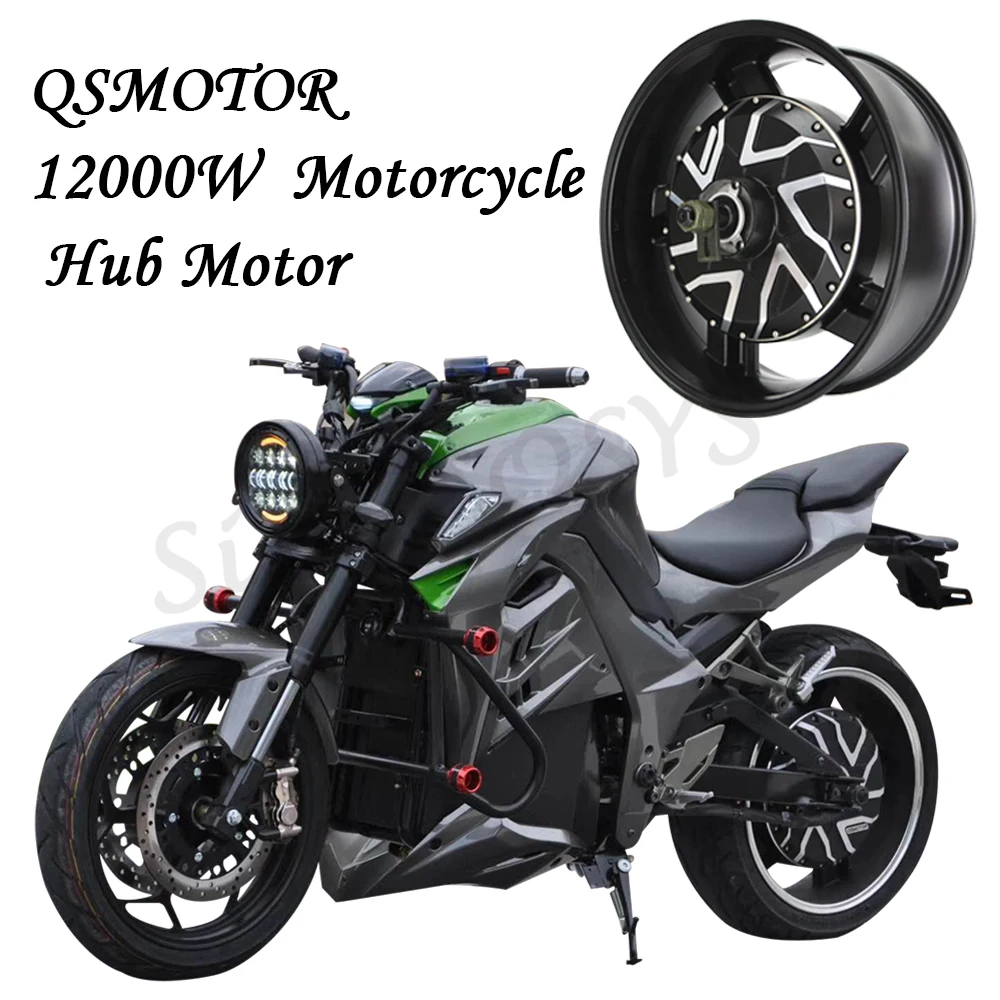

QS Motor 12000W 12KW 17 x 6.0 inch 130kph In Wheel Hub Motor with Kelly QSKLS72601 controller for Electric Motorcycle

Key Features

1). Simplify to make a electric-scooter. Gearbox, transmission shaft, clutch are no need. Which save space.

2). It could be installed in the rear to save more space for battery.

3). Support regenerative braking

4). High efficiency: 85~92%

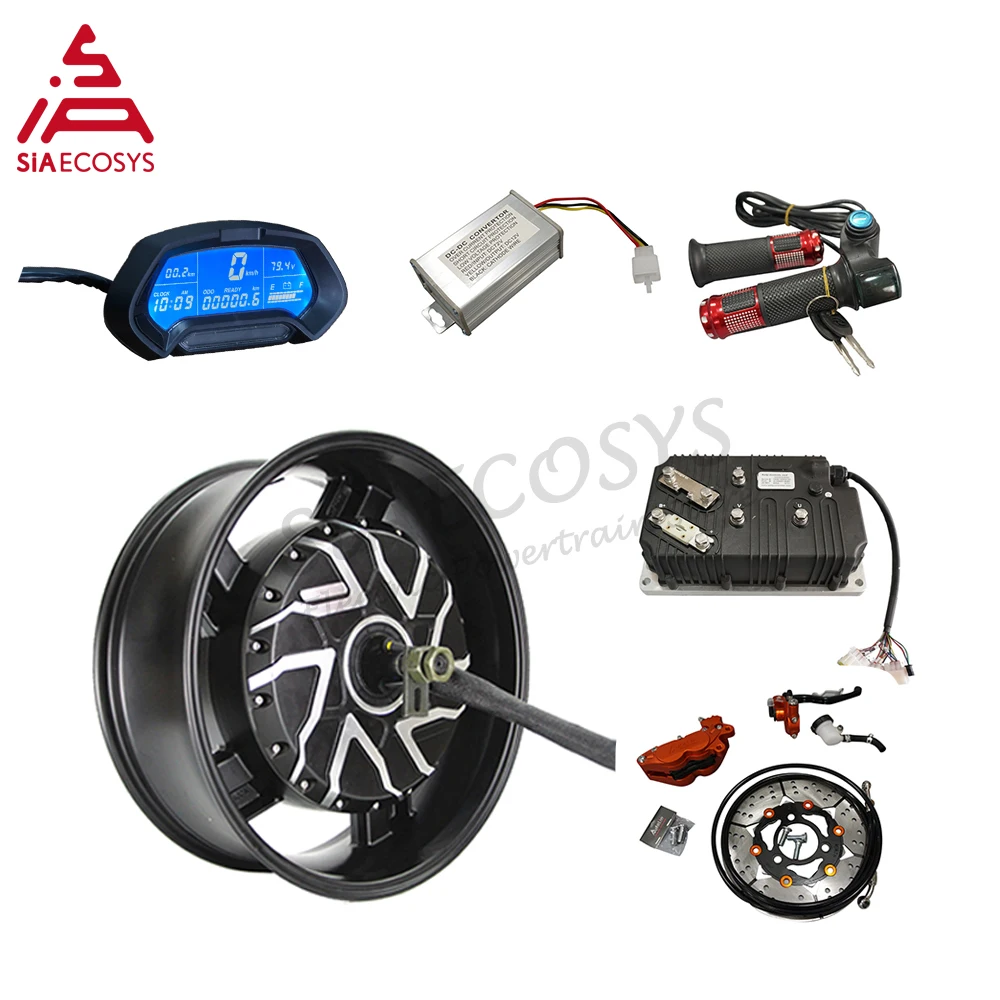

One set including below kits

Combo 1:

$1637.8/set

1. 1pcs X QS 17x6.0inch 12000W E-Motorcycle In-Wheel Hub Motor

2. 1pcs X QSKLS72601-8080H Controller

3. 1pcs X CT-22 speedometer

4. 1pcs X 72V to 12V 10A dc-dc converter

5. 1pcs X Disc brake system

6. 1pcs X Twist throttle with voltage display



Combo 2:

$1498.4/set



1. 1pcs X QS 17x6.0inch 12000W E-Motorcycle In-Wheel Hub Motor

2. 1pcs X QSKLS72601-8080H Controller



Product description

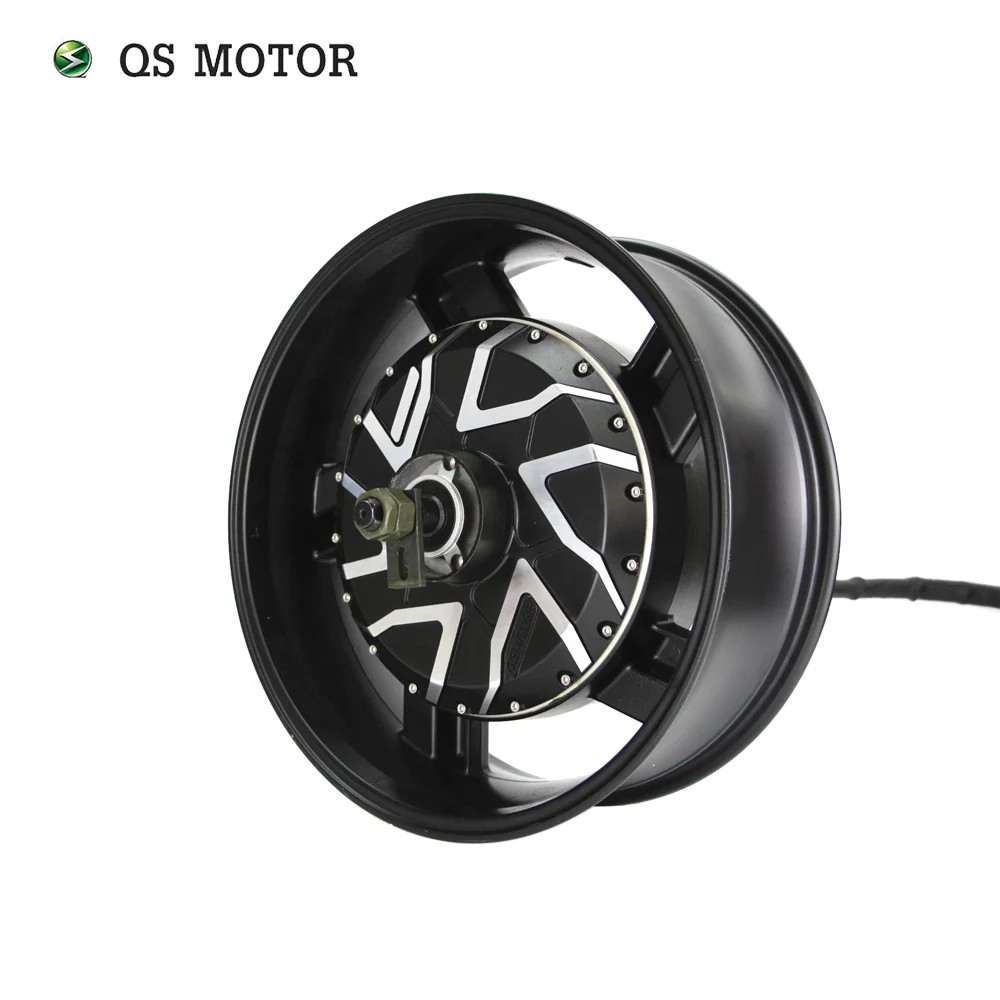

Genearlly Spec for 17*6.0 12kw hub motor:

•


  Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor





•


  Brand: QS Motor, QSMOTOR





•


  Motor Design: Double axle with 17inch moped rim (integrated)





•


  Rim Size:17x6.0inch(Narrow Tire as default), matched tire: 180/70-17 etc





•


  Magnet Height: 70mm, 16 pole pairs





•


  Stator: Aluminum Core





•


  Rated Power: 12000W





•


  Speed: 72V@120KPH





•


  Work voltage range: 48V-144V, will be 72V as default





•


  Thermic Probe: KTY83-122 (as default, optional)





•


  Max Efficiency approx 88%





•


  Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm





•


  Drop-outs: 230mm





•


  Dual Halls with waterproof connectos(One for spare, in case of damage)





•


  25mm² Phase Wire





•


  Waterproof Grade: IP54





•


  Color: Black (As default)








Drawing:









Please noted:

Optional appearance, drawing, performance curve/test report are available.

If you need more technical information, please feel free to contact us.

We will give you reply in 12hours.







Genearl spec for Kelly Controller:

•


  1. Sine wave controller, programmable, with regen function





•


  2. Motor Current Limit, 20 seconds: 600A





•


  3. Motor Current Limit, continuous: 240A





•


  4. Thermic Probe: KTY83-122





•


  5. Including one controller + USB convertor cable + matched plug





•


  6. Controller size: 288mm*188mm*92mm





•


  7. Net weight: 6.0kg





•


  8. Waterproof IP66





•


  9. Default not including dongle, waterproof(those function are optional); Can support can-bus





•


  10. Work voltage: 18V~90V; Rated voltage: 24V~72V

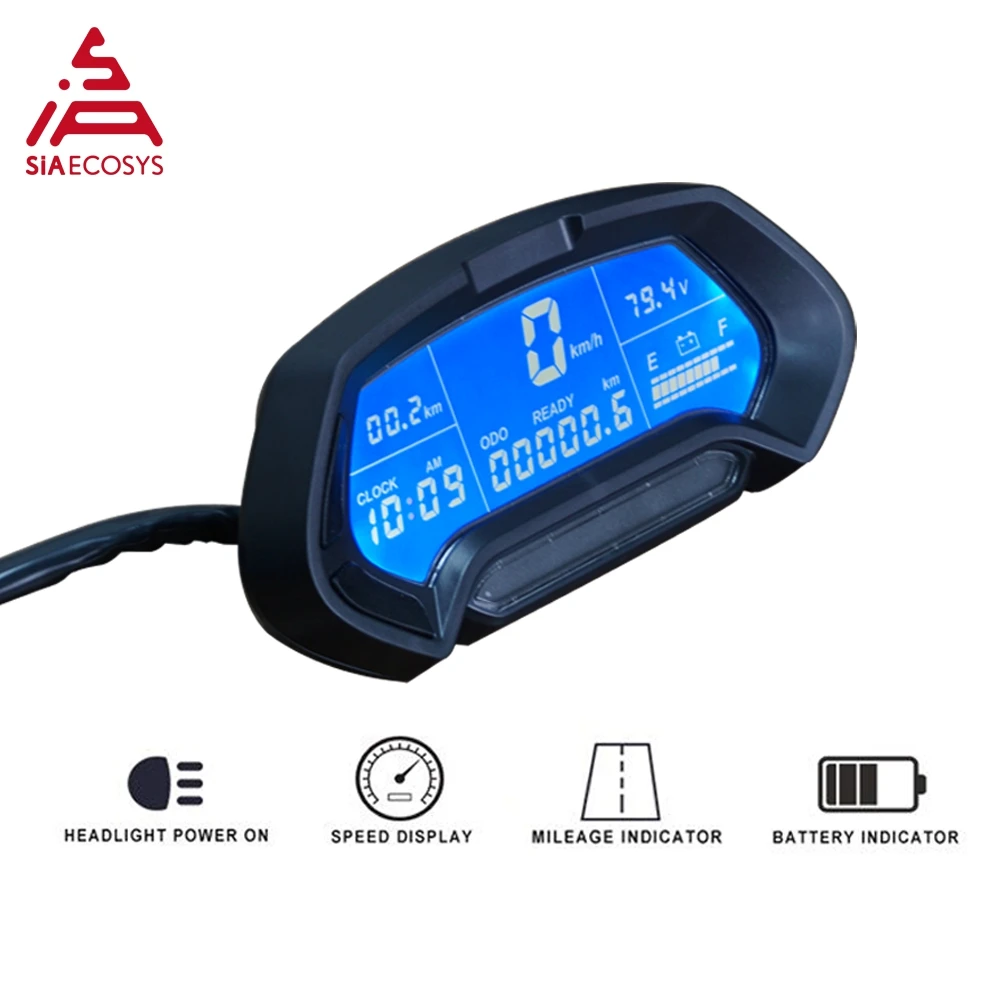

CT-22 Hall speedmeter:



1. Speedometer Size: 185mm*90mm*80mm

2. Net weight: 0.35kg

3. Work voltage: 48v-120v rated

4. Hall

PS. There is no letter on speedometer buttons now.

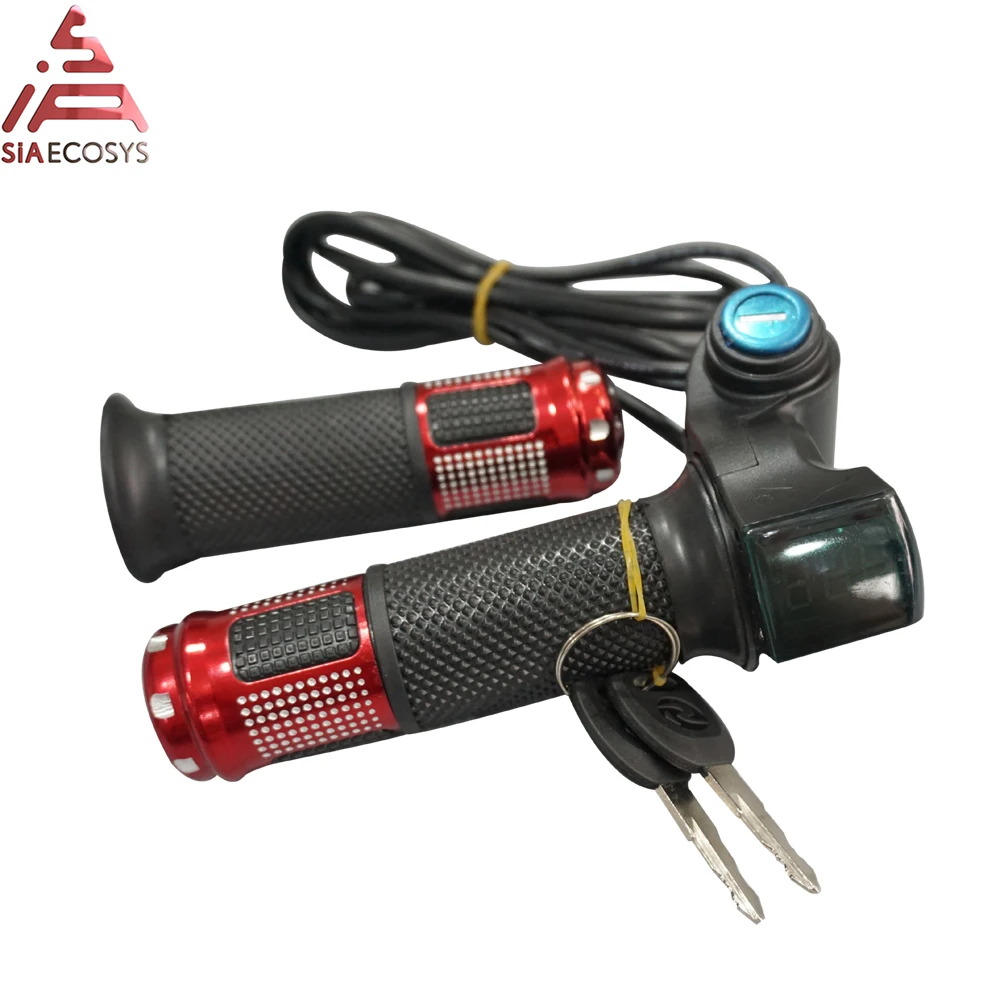

Twist throttle with ignition:

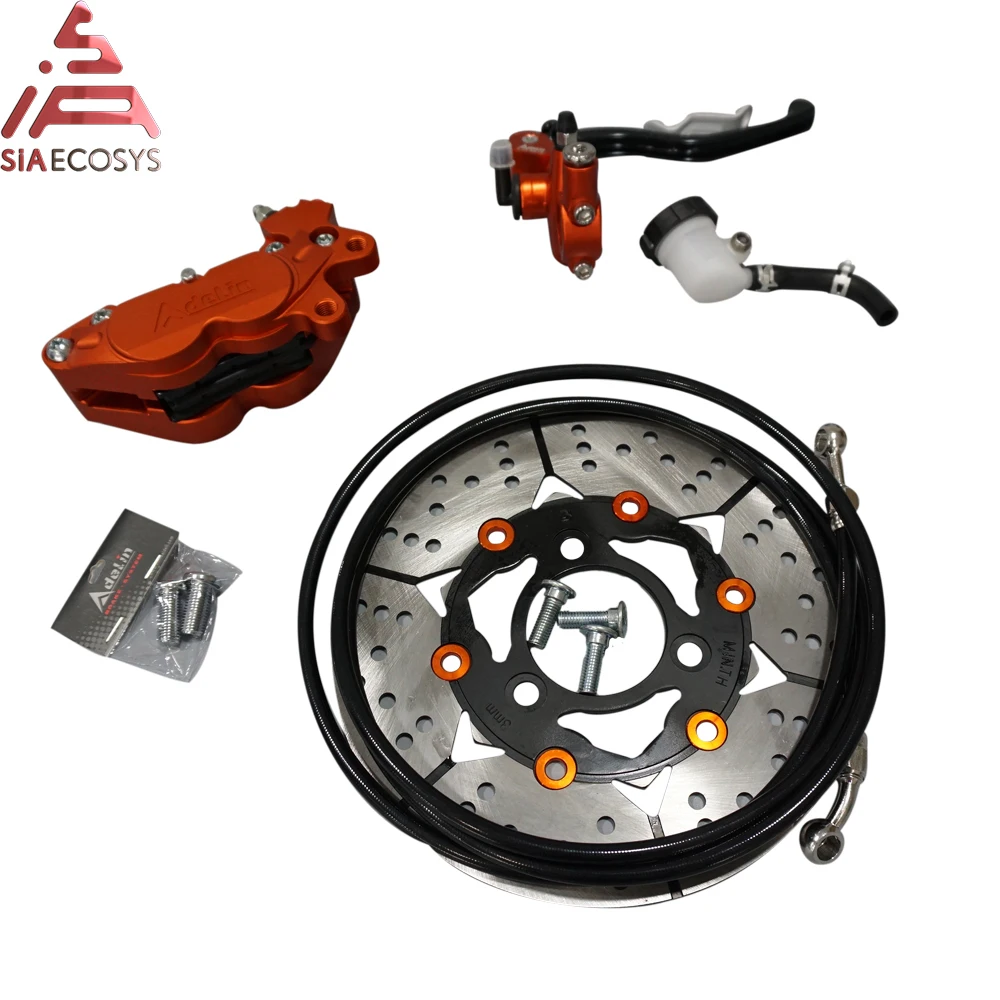

Adelin disc brake system:







Application
