Предотвращает попадание высокочастотного сигнала на кабели используемые для оборудования внутренней
- Категория: Instrumentation Cables >>>
- Поставщик: Hangzhou,Jilong,Sensing,Special,Cable,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.34 $* | 0.29 $* |
| Aug-16-2025 | 0.81 $* | 0.35 $* |
| Jul-16-2025 | 0.91 $* | 0.11 $* |
| Jun-16-2025 | 0.28 $* | 0.9 $* |
| May-16-2025 | 0.63 $* | 0.31 $* |
| Apr-16-2025 | 0.31 $* | 0.66 $* |
| Mar-16-2025 | 0.33 $* | 0.14 $* |
| Feb-16-2025 | 0.33 $* | 0.69 $* |
| Jan-16-2025 | 0.42 $* | 0.75 $* |
Характеристики
Quick Details
Place of Origin: | ZheJiang,China | Brand Name: | HianHeJiLong |
Model Number: | customized | Type: | Special data cable |
Application: | signal technology,measurement,control and intercom devices | Conductor Material: | Tinned copper |
Conductor Type: | 0.2m² | Insulation Material: | PE |

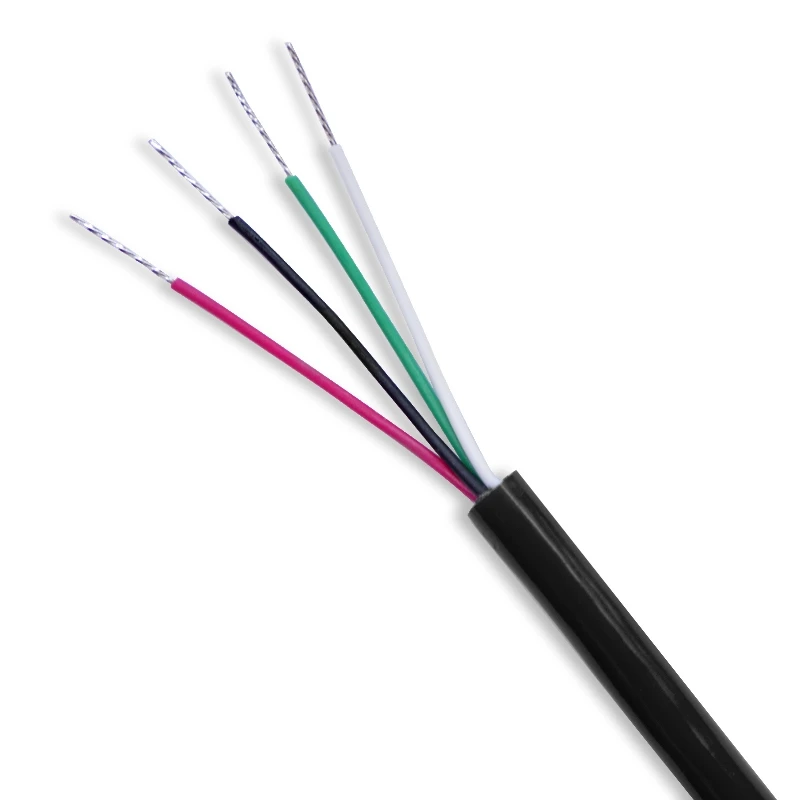

Product name: | Sensor cable | Color : | Black |
Diameter: | 5.0mm | Jacket: | PVC |
MOQ: | 3000 Meters | Delivery time: | According to quantity |
Supply Ability
Supply Ability | 2000000 Meter/Meters per Month |
Lead Time
Quantity(Meters) | 1-3000 | <3000 |
Est.Time(days) | 30 | To Be negotiate |
Products Description
AVAILABLE FOR | Signal technology, measurement, control and intercom equipment |
APPLY TO | Paging and intercom system, clock system, weighing equipment and office equipment |
OPERATIONAL ENVIRONMENT | In dry, wet and damp rooms, as well as in masonry and concrete |
APPLIED ARCHITECTURE | Telecommunications and information processing systems in public buildings, laboratories, warehouses and other fire situations |
MASKABLE | Shielding can prevent the interference of external pulse or high-frequency signal |
technical data | Cable structure | characteristic |
Special data cable | Tinned copper conductor to | PE insulated core wire, and Compared with PVC insulated core wire, It is more conducive to ensure the capacitance value test. |
Temperature range | DIN VDE 0812, thin copper wire conductor | |
Service temperature - 40 ℃ to + 80 ℃ | Conductor structure | |
0.2m㎡=7x0.2 mm | ||
Peak operating voltage | PE L / MD core wire insulation, conforming to | |
(not suitable for high current equipment) | DIN VDE 0819-103/DIN EN 50290-2-23 | |
Core identification according to DIN 47100 | ||
≥0.25m㎡2=1000V | The core wire is stranded in layers with the best pitch | |

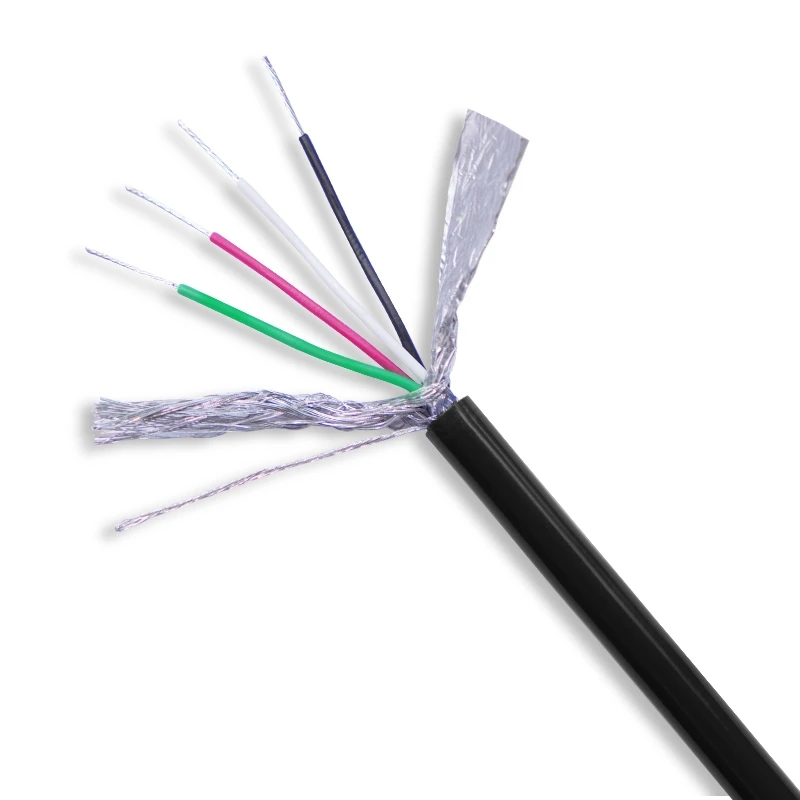

Test voltage | Aluminum foil wrapping | |

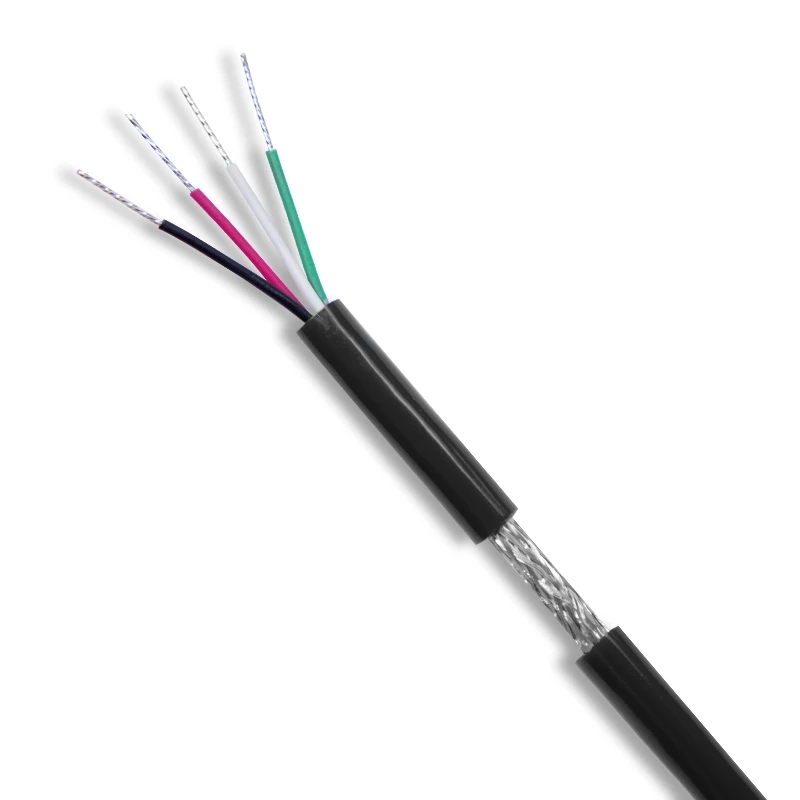

0.14mm=800V | Tinned copper braided shield | |
≥0.25mm=1500V | The coverage area is about 85% | |
Insulation resistance | Hm2 outer sheath, conforming to | |
1000Ω/KM | DIN VDE 0207 Part 24 | |
Capacitance | Black outer sheath (RAL 7005) | |
Core / core > 70 NF / km | ||

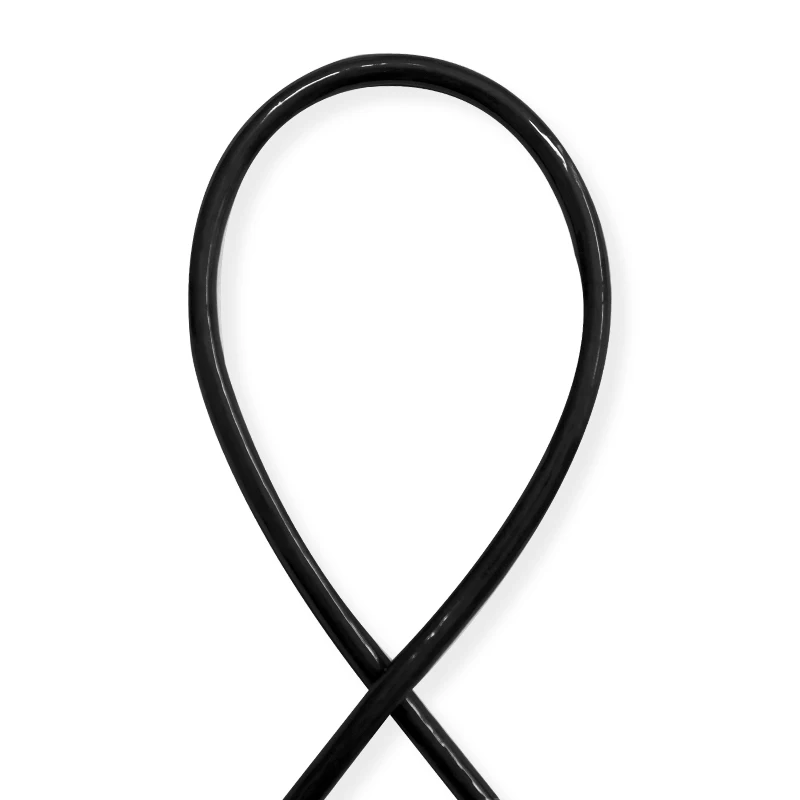

Minimum bending radius | be careful | |
7.5x cable diameter Ø | ·AWG dimensions are approximate, The actual cross-sectional area is in mm2. | |
Coupling resistance | ||
Max. 250 ohm / km | ||
Radiation resistance | ||
Up to 100x106cj / kg (up to 100 mrad) | ||
Product Application
Production Process
Our Advantages
Advanced technology
In terms of production and service, we use advanced technology to produce products according to the special needs of each customer.
Reputation and Service
Following the concept of "customer demand is our demand".In good faith management and good product quality, cooperate with customers for development and mutual benefit.
humanistic concern
The enterprise and employees make common progress, protect employees' rights and interests, and care about employees' physical and mental health.
Texting Equipment
Company Profile
Hangzhou Jilong Sensor Cable Factory is the earliest enterprise to start development and production of different types sensor cables in China, and it has become one of the most professional enterprises in production of cables after many years of constant innovation and development.
The factory is located in Lin'an of Zhejiang Province, a beautiful city often nicknamed as “Hometown of Cables in China”.
The factory has advanced cable production and testing equipment, more than 60 skilled workers and technicians, with an annual production capacity of 1.2 million kilometers, has passed ISO9001:2000 quality management system certification, CE certification, environmental ROHS certification, etc., and has obtained the special license for self inspection records issued by Hangzhou entry exit inspection and Quarantine Bureau of the people's Republic of China.
Work Shop
Packaging & Delivery

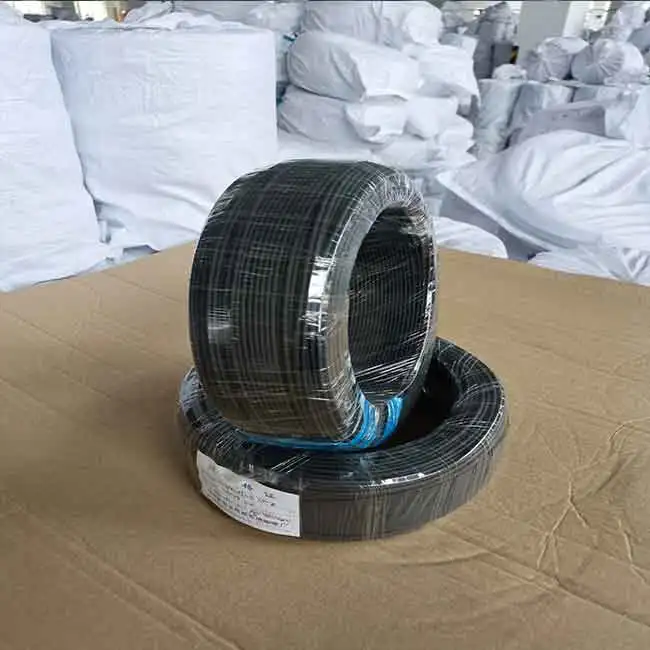

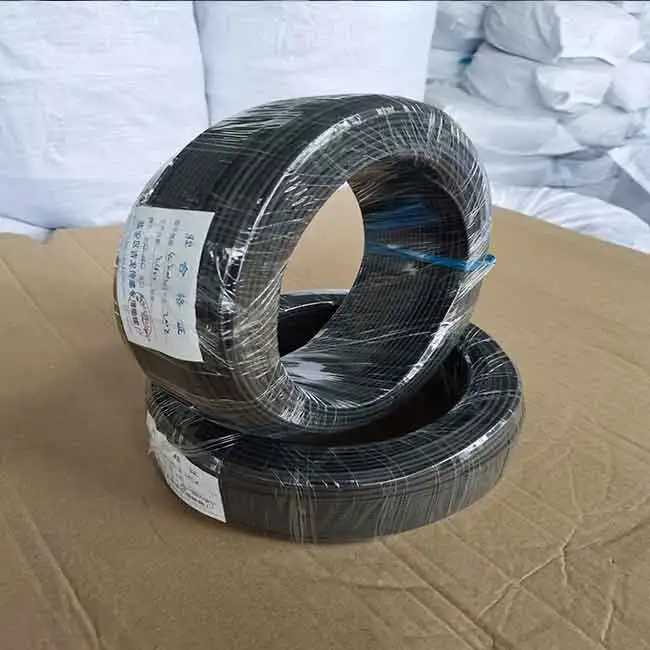

Packaging Details : | sea worthy package |
Port : | NingBo,Shanghai |
Certifications
FAQ
Q1: Do you have the real manufacturer?
A: Yes, we have the real manufacturer with 20 year’s history.
Q2: What's delivery time?
A:Mass production time needs 1-2 week.
Q3: What’s your payment terms?
A: We accept T/T, L/C.
Q4: What kind of cable do you produce?
A:We specialize in the production of signal cables, control cables, robot drag chain cables, instrument cables, etc.
Q5: What kind of certifications do you have?
A: We have passed CE, RoHS and ISO.
Q6: Do you have direct trading right?
A: Yes, we’re both manufacture and trading company about 20 years.
Q7: What’s your annual capability?
A: We are specialized in signal cables, whose annual output reaches to 30,000 kilometers.
Q8: Do you have OEM and ODM?
A: Yes, we could provide professional suggestions and best solutions to your requirements.
Q9: May I get free sample?
A:Normally, our samples are free. If the sample quantity is large, it will be charged.However, the sample fee will be refunded when customer place bulk orders for that item.
Q10: What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW, etc.
