Universal wall-mounted AC fast car EV charging pile wallbox 7kw 11kw
- Категория: Charging Stations >>>
- Поставщик: Shenzhen,Bwitt,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 433.87 $* | 442.21 $* |
| Jul-18-2025 | 351.6 $* | 358.73 $* |
| Jun-18-2025 | 426.54 $* | 435.87 $* |
| May-18-2025 | 423.40 $* | 431.59 $* |
| Apr-18-2025 | 338.9 $* | 345.77 $* |
| Mar-18-2025 | 416.30 $* | 424.64 $* |
| Feb-18-2025 | 413.43 $* | 421.89 $* |
| Jan-18-2025 | 409.17 $* | 417.91 $* |
Характеристики
Products Description

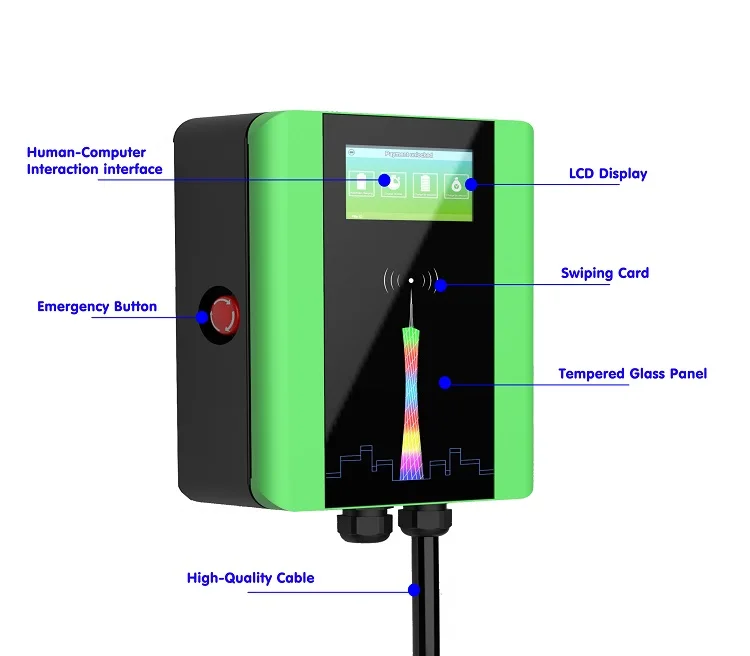

BWT AC-E22 wall-mounted AC charger is composed of main control unit, human-computer interaction interface, charging interface, metering and charging unit.It’s resistant to vibration and has complete protection functions,the protection class is IP54, which covers a small area, meets the installation and use of indoor and outdoor environments, and provides AC power for electric vehicles with on-board charger.
Product Name | |||||||
Brand Name | BWT-charge | ||||||
Model Number | BWT-AC-E22- 7/11/22KW | ||||||
Warranty | 1Years | ||||||
Installation | fall to the ground | ||||||
Input frequency | 50Hz | ||||||
Networking way | Ethernet | ||||||
Product Parameter
Technical Parameter: Support OEM custom power
Model | XY AC-E22-7KW | XY AC-E22-11KW | XY AC-E22-22KW | |||||
Electrical index | ||||||||
Power connection | 1P+N+PE | 3P+N+PE | 3P+N+PE | |||||
Input/output voltage | 230VAC±10% | 400VAC±10% | 400VAC±10% | |||||
Frequency | 50HZ±10% | |||||||
Rated power | 7KW | 11KW | 22KW | |||||
Rated current | 32A | 16A | 32A | |||||
General Specifications | ||||||||
Charging mode | IEC 61851-1， IEC 61851-22 Charging model-3 | |||||||

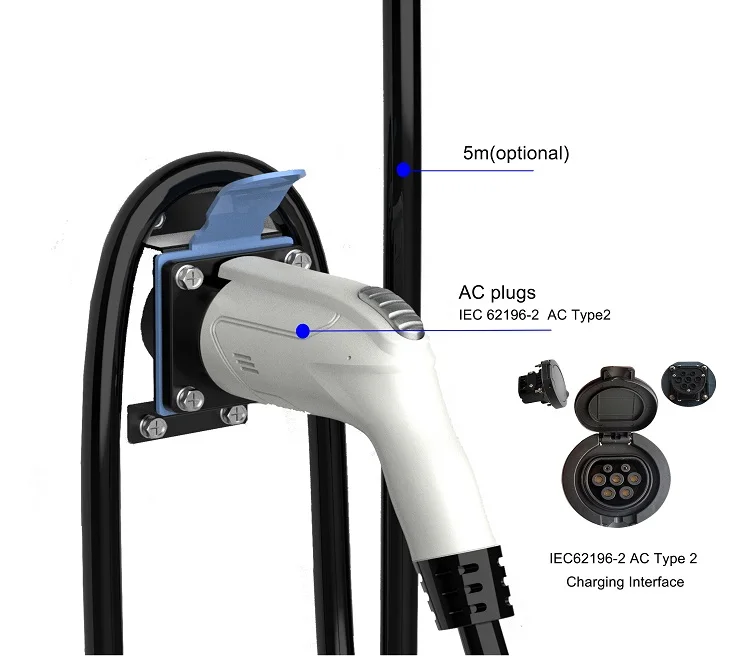

AC plugs | IEC 62196-2 AC Type2 | |||||||
Display | 4.3”TFT Color touch screen | |||||||
RFID system | Mifare (Classic, DesFire EV1) or others on request | |||||||
Communication | GPRS /LAN/Wi-Fi | |||||||
Communication Protocols | Customizable | |||||||
Place of installation | Indoor and outdoor | |||||||
Altitude | 6000m（Derating over 3000m ） | |||||||
Protection grade | IP54 | |||||||
Operating Temperature | -20-60℃（Derating over 50℃ ） | |||||||
Storage Temperature | -40-70℃ | |||||||
Humidity | 5%~95% without condensation | |||||||
Cooling mode | Natural cooling | |||||||
Length of charging gun cable | 5m(optional) | |||||||

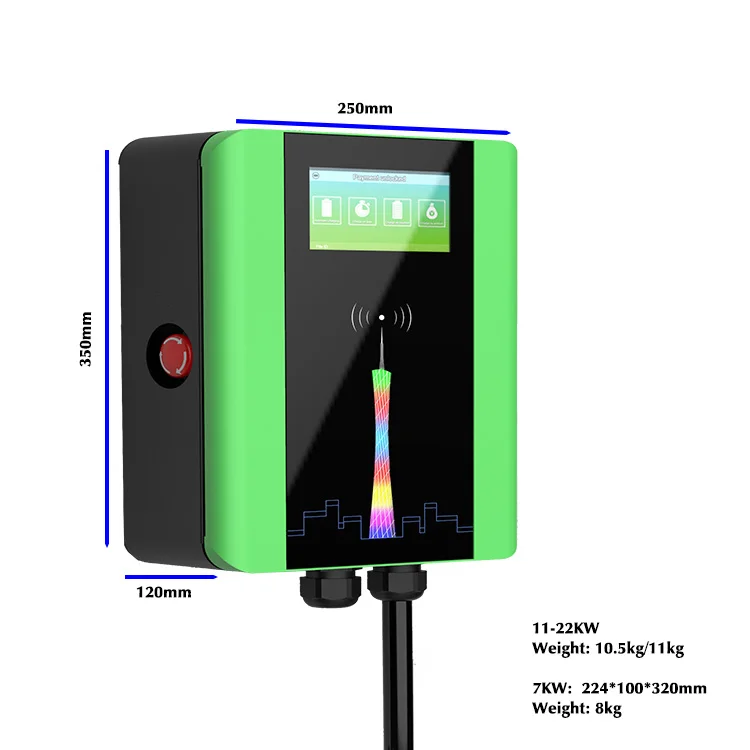

Dimensions(W*D*H) | 224*100*320mm | 250*120*350mm | ||||||
Weight | 8kg | 10.5kg | 11kg | |||||
Details Images
★ Perfect charging protection such as input over/under voltage, connection abnormality, emergency stop
★ Touch screen operation interface, charging mode can be set up to fill automatically, charge according to electric quantity, charge according to amount and charge according to time, etc.
★ Support swiping card/ WeChat Mini Program starts
★ Support IEC 61851 standard charging
★ Protection against lightning protection, leakage, short circuit, over current, over temperature, reverse battery connection, etc.

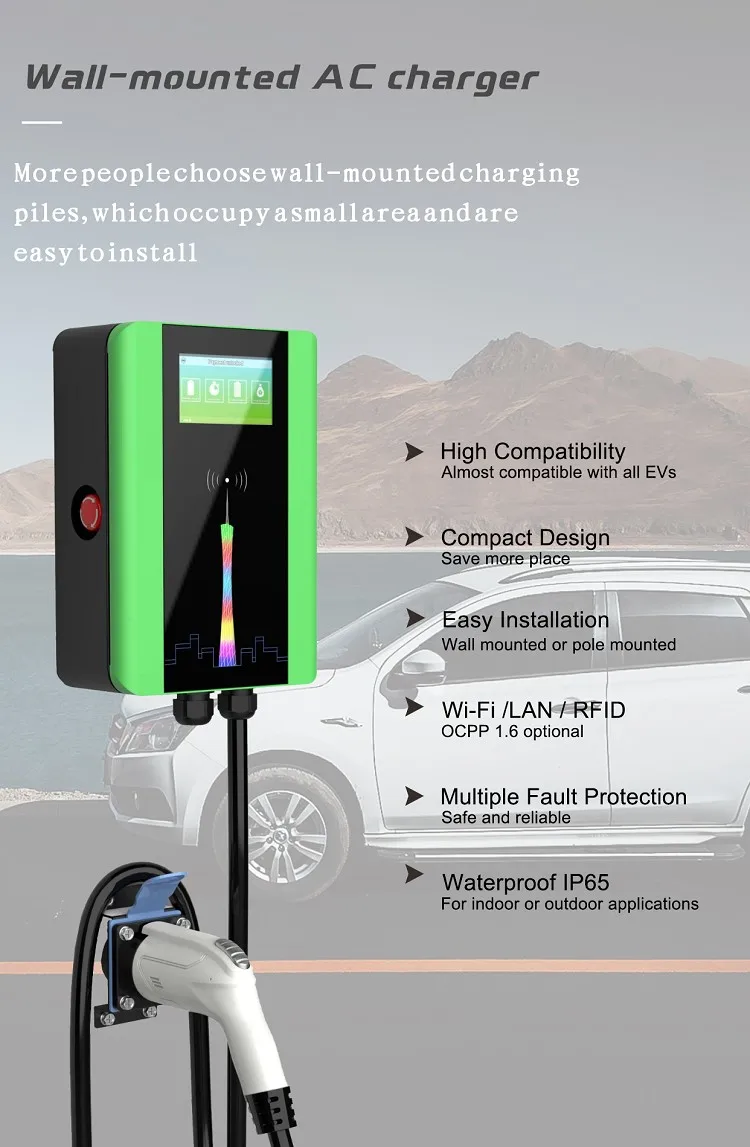

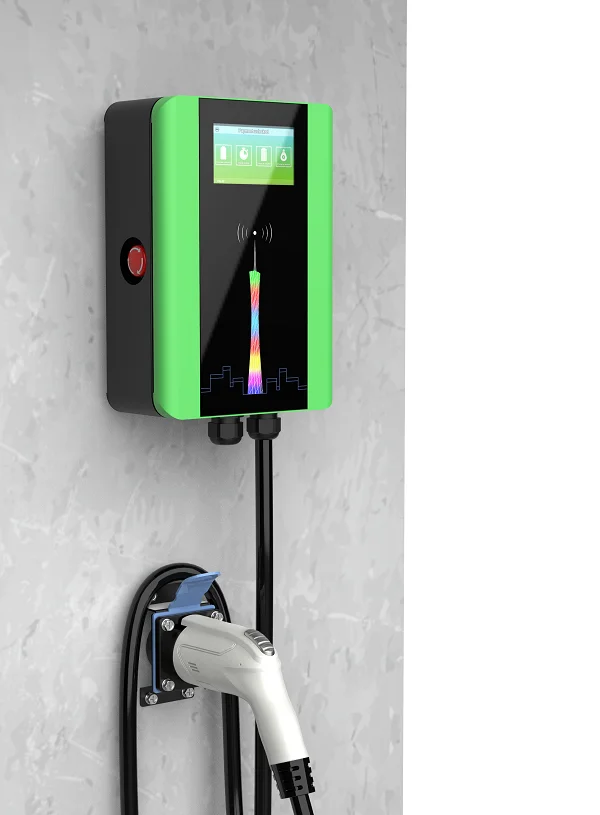

★ Wall-mounted installation, cover an area of an area small, easy to install
★ Wall-mounted installation, cover an area of an area small, easy to install
★ Touch screen operation interface, charging mode can be set up to fill automatically, charge according to electric quantity, charge according to amount and charge according to time, etc.
★ Support swiping card/ WeChat Mini Program starts
★ Support IEC 61851 standard charging
◆ EV charging stations for large, medium and small
◆ Private installation or public parking
◆ EV dealers and service providers
◆ Private installation or public parking
◆ EV dealers and service providers
Application Display
Company Profile
Certifications
FAQ
Q1: What is your terms of packing of EV Charging point?
A: We pack our EV Charging Point in cartons.
Q4: What is your sample policy?
A: We pack our EV Charging Point in cartons.
Q2: What's the MOQ?
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We willprovide specific solutions for your requirements.
A: Most of our products are in stock,no MOQ.If you have customized requirements, please contact us. We willprovide specific solutions for your requirements.
Q3: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
