Стальная арматурная винтовая машина для прокатки резьбы по более низкой цене
US $580.00-$670.00
Производители станок для волочения стальной
- Категория: Metal Moulding Machinery >>>
- Поставщик: Tangshan,Junnan,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 35700.93 $* | 37485.14 $* |
| Aug-17-2025 | 35400.49 $* | 37170.13 $* |
| Jul-17-2025 | 29700.40 $* | 31185.60 $* |
| Jun-17-2025 | 34800.96 $* | 36540.35 $* |
| May-17-2025 | 30300.14 $* | 31815.7 $* |
| Apr-17-2025 | 34200.33 $* | 35910.75 $* |
| Mar-17-2025 | 33900.44 $* | 35595.73 $* |
| Feb-17-2025 | 33600.54 $* | 35280.3 $* |
| Jan-17-2025 | 33300.82 $* | 34965.86 $* |
Характеристики
Product Description

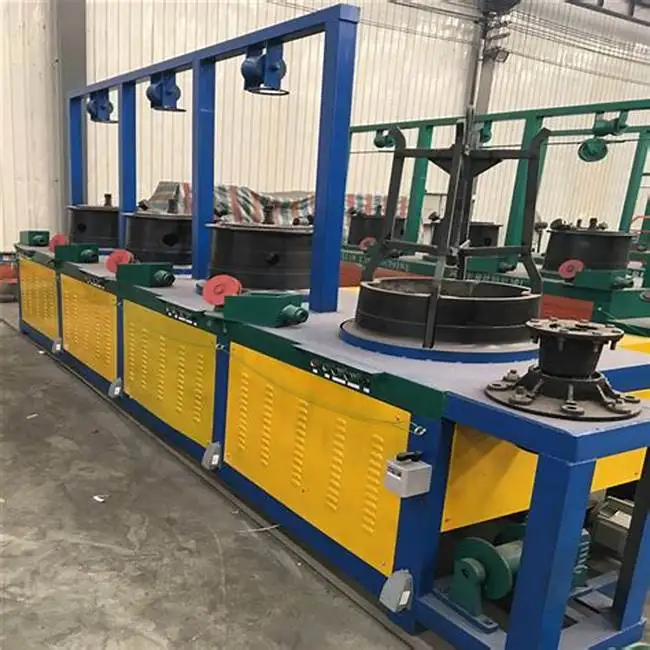

Straight-line wire drawing machine
SIt is applied for the production of prestressing strand, steel cord, bead wire, steel wire, spring steel wire, stainless steel
wire, gas welding wire, arc welding wire,etc.
wire, gas welding wire, arc welding wire,etc.
winding drum diameter | mm | 900 | 800 | 700 | 560-600 | 400 |
drawing mode munber | time | 9 | 9 | 9 | 10 | 10 |
maximum inlet wire diameter | mm | Ø14-8 | Ø10-8 | Ø8-6.5 | Ø6.5-5.5 | Ø2.4-1.8 |
minimun outlet wire diameter | mm | Ø5-3 | Ø4-3 | Ø3-2.5 | Ø2-1.8 | Ø1-0.8 |
drawing speed | m/min | 300 | 360 | 480 | 750 | 840 |
inlet strength | mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
total percent reduction | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24 |
average partial percent reduction | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-21.03 | 18.61 |
power | kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
Note: We can design the machine according to customers' requirements.
(1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.
(2) It’s kind of high-efficient machine with easy operation, high degree of automation.
(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading
(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire
(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.
(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.
(1) The equipment contains the functions of human-machine dialogue, over-temperature protection for motor, alarm for abnormal water pressure, fault display.
(2) It’s kind of high-efficient machine with easy operation, high degree of automation.
(3) Between the drawing process without intermediate pulley and the guide wheel, it does not generate bending and torsion, and convenient threading
(4) Straight line drawing machine suitable for drawing large diameter, high strength and special shaped steel wire
(5) As the use of the frequency technology, changes in the larger context of patts of the compression ratio to meet the wide range of technology and high speed drawing.
(6) There is no relative sliding between wire and capstan. The quality of finished wire is much better.

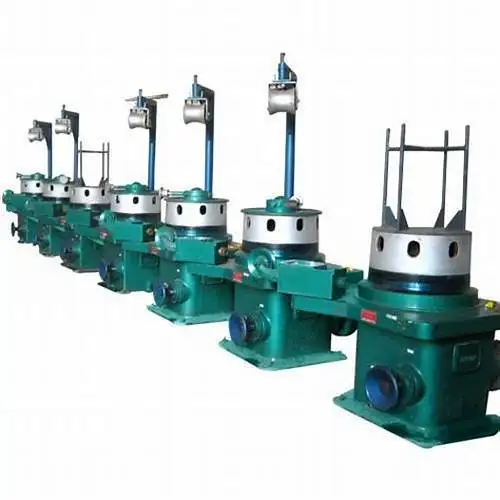

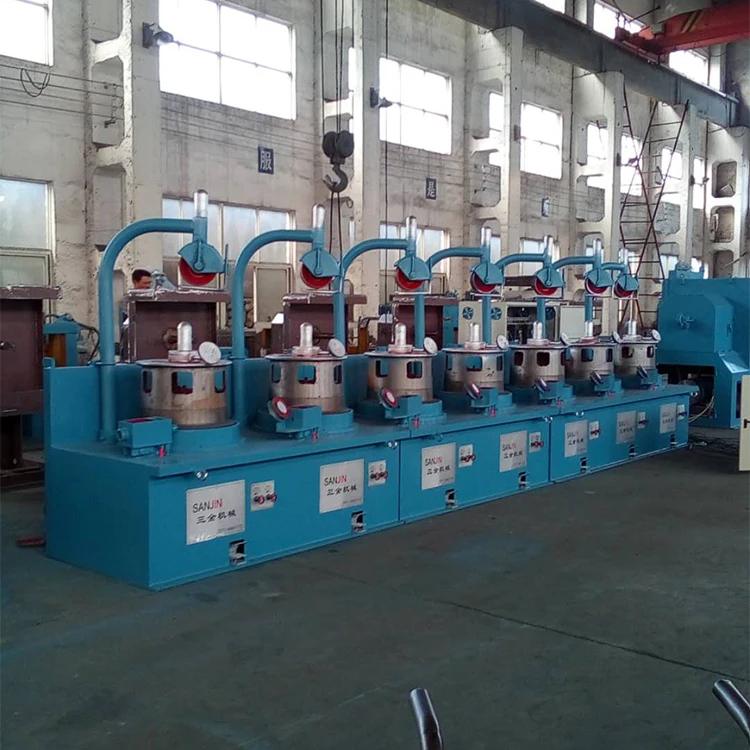

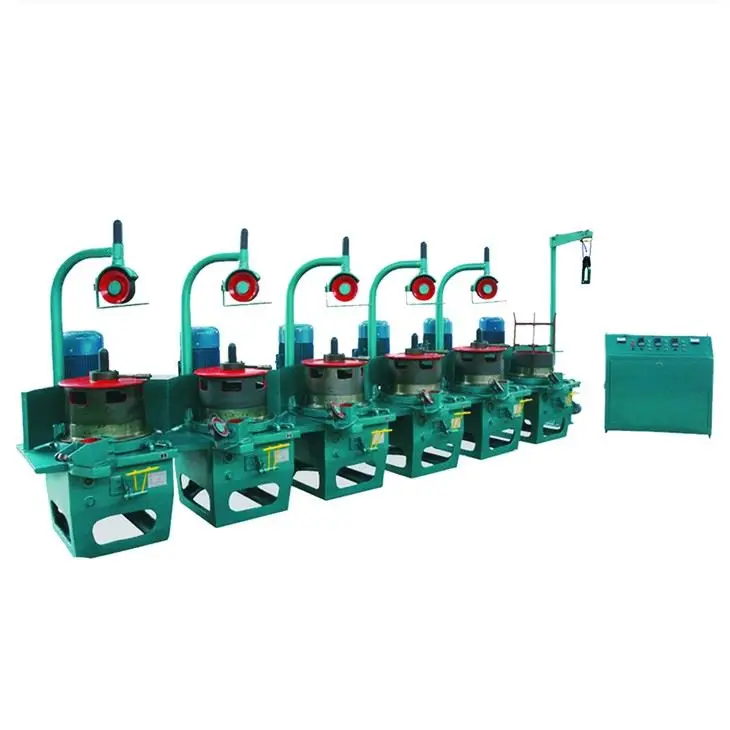

Pulley type wire drawing machine
Type | Unit | 560 | 650 | 550 | 450 | 350 |
drum diameter | mm | 560 | 650 | 550 | 450 | 350 |
max inlet | mm | 6.5-8 | 10-12 | 6.5 | 4 | 2.5 |
min outlet | mm | 2.5 | 4 | 2.5 | 1.5 | 0.8 |
total percent reduction | % | 78.7 | 74-87 | 74.88 | 84 | 87 |
average partial percent reduction | % | 22.72 | 20-30 | 20-30 | 23 | 22.5 |
speed | m/min | 260 | 60-140 | 260 | 318.7 | 280 |
power | kw | 30 | 45 | 18.5 | 11 | 4 |
weight | kg | 2500 | 3000 | 1570 | 1280 | 700 |
meas | mm | 2657*1100*2600 | 2800*1300*2600 | 2657*1100*2600 | 650*1600*2270 | 660*1065*2380 |
