Характеристики

Product Description

Happy Model -Moblite7 1S 75mm Brushless Whoop FPV Racing Drone

Specifications:
Brand Name: Happymodel
Item Name: Moblite7 1S 75mm light brushless whoop
Wheelbase: 75mm
Size: 97mm*97mm*25mm

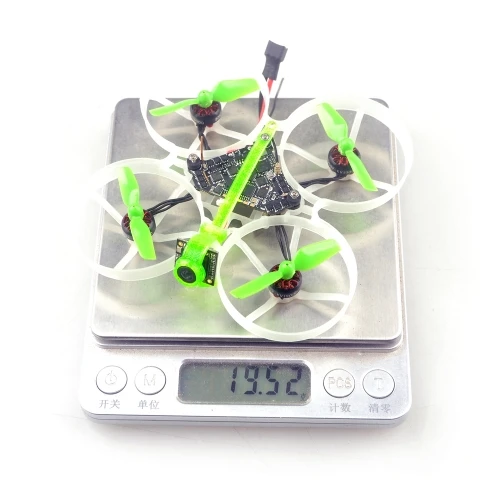

Weight: 19.5g (without battery)
Weight:36g(with Original 1s 650mah Lipo battery )

Features:
The lightest 1s 75mm brushless whoop
Powerful and efficiency
The lightest 1s AIO 5IN1 F4 flight controller
New Unibell EX0802 brushless motors
Low profile Canopy design
VTX power switchable 25mw~200mw

Spare parts specifications:

Motor

Mode: EX0802 19000KV
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.7g
No.of Cells(Lipo):1S only

Flight controller

(Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR
(Flysky SPI RX version)DiamondF4 FS FC Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC

Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_50_REV16_8.HEX
Default protocol: DSHOT600

Onboard Frsky SPI D8 receiver Version

Compatible Non EU transmitter D8 model
Channels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m

Onboard Flysky SPI receiver Version

SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200~300m
Failsafe support

Onboard 5.8g VTX

Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels(include Race band)
Smartaudio ready

Runcam Nano4 Lite

Model: RunCam Nano4 Lite
Image Sensor: 1/3" CMOS
Horizontal Resolution: 800TVL
Lens : 2.1mm(M8) FOV 160°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 170mA@5V 180mA@3.3V
Housing Material: ABS
Net Weight: 1.0g
Dimensions: L14mm*W12mm*H9mm
