Мужской женский SMT Dip один двойной ряд контактов 2 пинов 5 контактный кабель для зарядки с портом Usb разъем
- Категория: Connectors and Accessories >>>
- Поставщик: Shenzhen,Tuozhi,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.29 $* | 0.44 $* |
| Aug-19-2025 | 0.25 $* | 0.30 $* |
| Jul-19-2025 | 0.50 $* | 0.63 $* |
| Jun-19-2025 | 0.14 $* | 0.55 $* |
| May-19-2025 | 0.53 $* | 0.4 $* |
| Apr-19-2025 | 0.14 $* | 0.12 $* |
| Mar-19-2025 | 0.22 $* | 0.13 $* |
| Feb-19-2025 | 0.78 $* | 0.87 $* |
| Jan-19-2025 | 0.95 $* | 0.77 $* |
Характеристики
Specifications | ||||

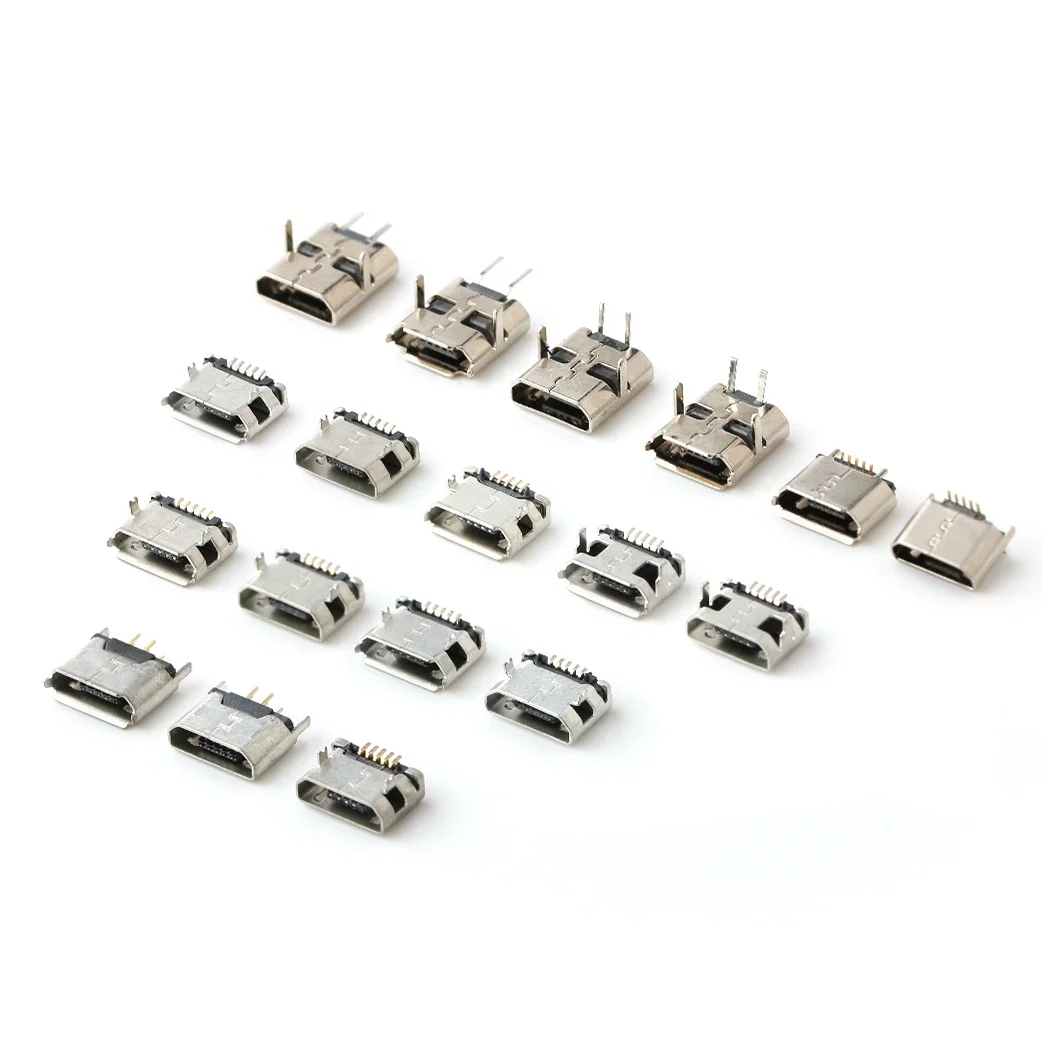

Product Name | Usb Micro B Connector | |||
Electrical Feature | Current Rating | 1A Max | ||
Voltage Rating | 30V DC | |||
Contact Resistance | 50mΩ Max | |||
Dielectric Withstanding Voltage | 100V AC For 1 Min | |||
Insulation Resistance | 100MΩ Min | |||

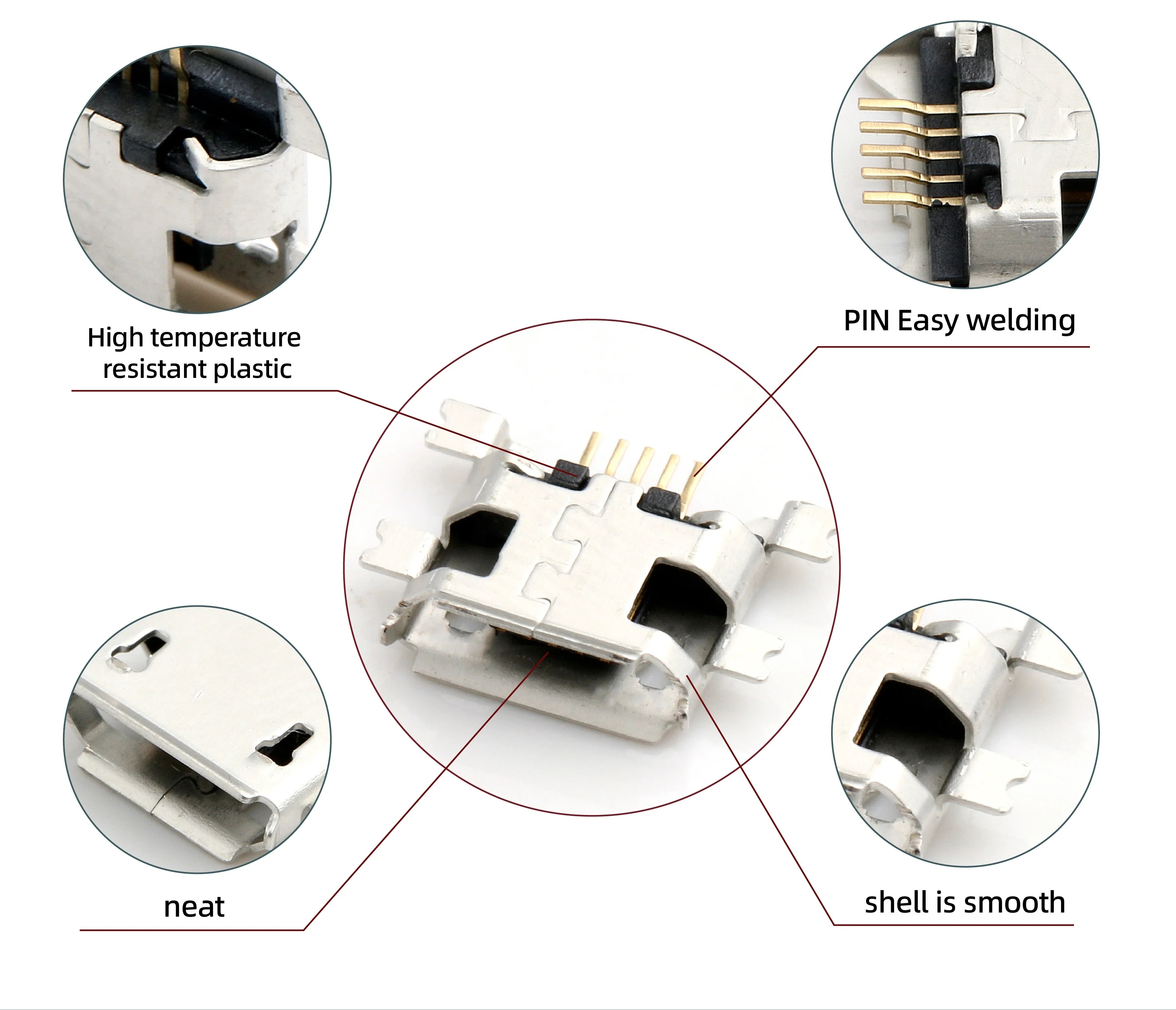

Material | Housing | Hight Temperature Thermaplastics,with g.f,UL94v-0 | ||
Contact | Copper Alloy,t=0.20mm | |||
Shell | Copper Alloy,t=0.25mm | |||
Total Mating Force | 3.57 Kgf Max | Plating Gold In contacting Area;Tin On Soldering | ||
Total Unmating Force | 1.0 Kgf Min.0.81~2.05 Kgf Min.after 10,000 Insertion/Extration Cycles | Nickel Plating | ||
Temperature range | -30℃~+80℃ | |||
Oem/Odm | Support | |||
Application | Video Game Consoles,Home Audio/Video Receivers,Smart Telecisions,DVRs,Streaming Players,DVD and Blue-Ray Players,and more. | |||
Product Description
What Can I do for you?
●Different Optional Product
●Oem/Odm Custom Service
●Strict Product Quality Test
●Fast Delivery Service
Welcome to send your quotation.
to get latest price and wonderful service.
We are sincerely looking forward to cooperatering with you!
