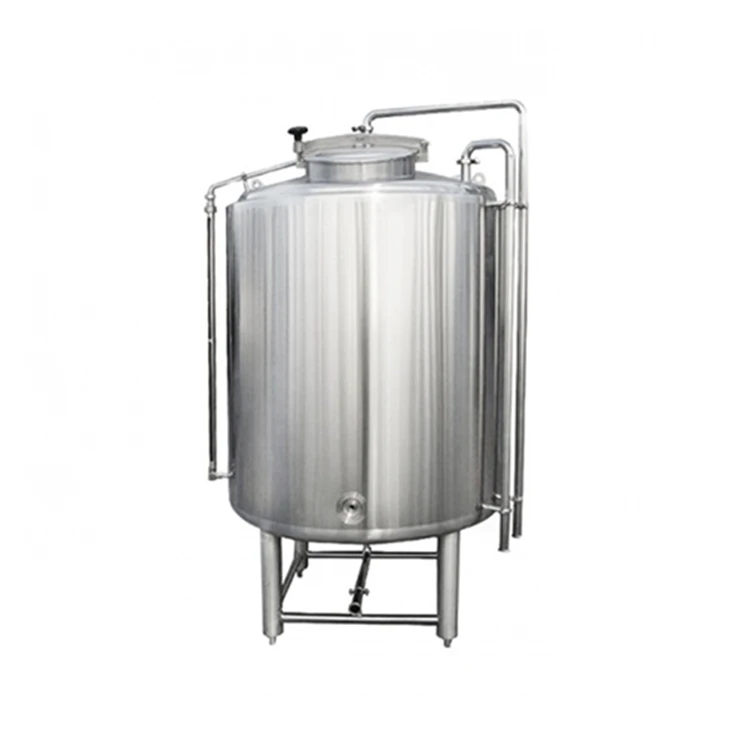

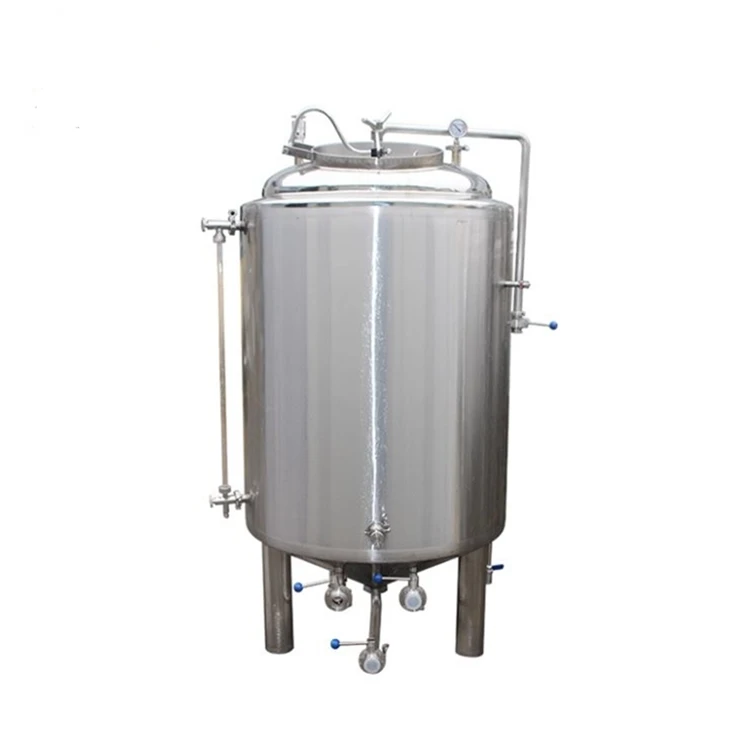

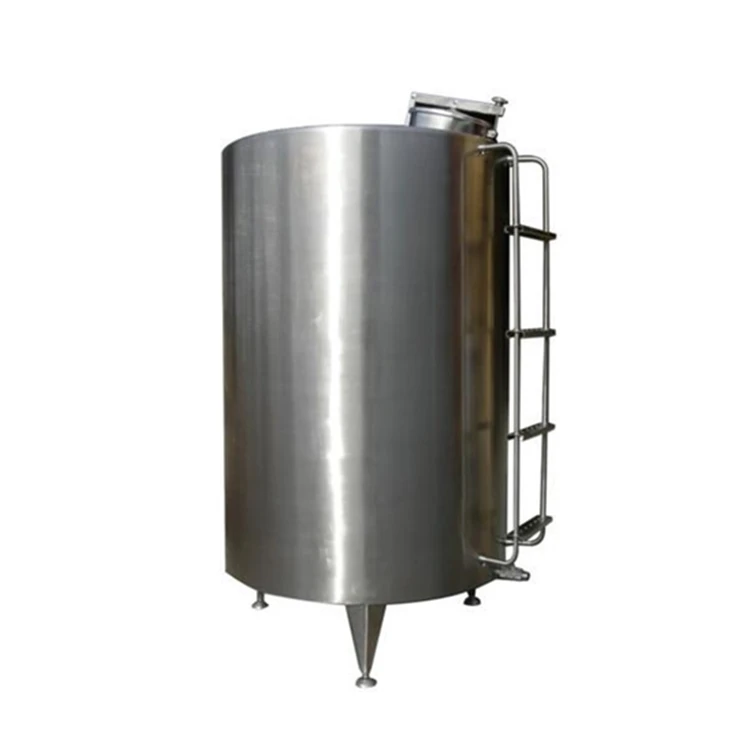

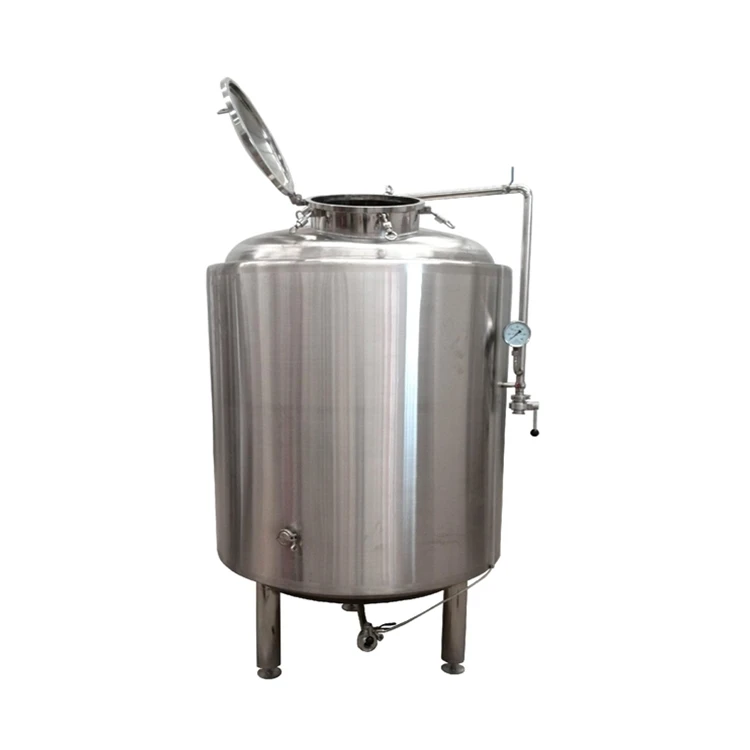

Hot sale 5000L Stainless Steel Insulation beverage/juice/extract liquid/Brew/chemical storage Tank for processing

Описание и отзывы

Трекер стоимости

Характеристики

Long service  2000L Stainless Steel  Insulation  storage Tank for beverage/juice/extract liquid/Brew/chemical  storage plant





Brief Introduction:

Stainless steel storage tank, stainless steel pressure tank, stainless steel mixing tank, stainless steel milk tank, stainless steel insulation tank, stainless steel vacuum tank, stainless steel fermentation tank

Technical Parameters

Volume: 300L~5000L,others can be customized

Structure: Vertical tank, single layer or double layer insulation tank

Material: SUS304 or SUS316L, as per client’s need;

Surface treatment: inner layer polished to be Ra≤0.4um, outer surface to be matt polished Ra≤0.8um;

Accessories: top or side mounted manhole, air vent,

Manhole diameter: 400mm/500mm

Working pressure:0-0.03Mpa;

The number and position of the process pipe mouth shall be in accordance with the requirements of the demander, and there is no dead Angle of cleaning, which is in line with the new VERSION of GMP.

Technical Parameter:

Model	JY-CG300	JY-CG500	JY-CG1000	JY-CG-3000	JY-CG-5000
Volume	300L	500L	1000L	3000L	5000L
Material	SUS304	SUS304	SUS304	SUS304	SUS304
Structure	Single layer or insulated	Single layer or insulated	Single layer or insulated	Single layer or insulated	Single layer or insulated
Tank type	Vertical tank	Vertical tank	Vertical tank	Vertical tank	Vertical tank
Manhole Size	400mm	400mm	500mm	500mm	500mm
Working Pressure	0-0.3MPa	0-0.3MPa	0-0.3MPa	0-0.3MPa	0-0.3MPa
Working Temperature	0-100℃	0-100℃	0-100℃	0-100℃	0-100℃
Inner Corner Polishing	Ra≤0.4um	Ra≤0.4um	Ra≤0.4um	Ra≤0.4um	Ra≤0.4um
Application	Filter liquid storage tank; essential liquid storage tank; Solvent liquid storage



Tank Types and Classification

1. Classified by form: can be divided into vertical stainless steel tanks and horizontal stainless steel tanks.

2 Classified by purpose: can be divided into brewing stainless steel tanks, food stainless steel tanks, pharmaceutical stainless steel tanks, dairy stainless steel tanks, chemical stainless steel tanks, petroleum stainless steel tanks, building materials stainless steel tanks, electric power stainless steel tanks, metallurgy Stainless steel tank.

3 Classified according to hygienic standards: sanitary stainless steel tank, ordinary stainless steel tank.

4 Classification according to pressure requirements: stainless steel pressure vessels, non-stainless steel pressure vessels.

Tank Applications

1. Food and pharmaceutical stainless steel storage tanks:

Stainless steel ingredient storage tank, stainless steel concentrated storage tank, stainless steel rare distribution storage tank, stainless steel extraction storage tank, stainless steel reaction storage tank, stainless steel liquid storage tank, stainless steel mixing tank, stainless steel seed storage tank, stainless steel nitric acid storage tank, stainless steel acetic acid storage Tanks, stainless steel carbon disulfide drums, stainless steel water tower storage tanks.

2. Stainless steel tanks for wine and dairy industry:

Stainless steel wine storage tank, stainless steel liquor storage tank, stainless steel wine storage tank, stainless steel milk (milk) tank, stainless steel beverage storage tank

3. Chemical stainless steel tank:

Stainless steel oil storage tanks, stainless steel transportation storage tanks, stainless steel cooling storage tanks, stainless steel insulation storage tanks, stainless steel heat exchange storage tanks, stainless steel buffer tanks, stainless steel outdoor storage tanks and various levels of stainless steel pressure vessels in the chemical industry.



Features of stainless steel storage tanks:

1. The stainless steel tank has strong corrosion resistance, and it is not corroded by outside air and residual chlorine in water. Each spherical tank undergoes super-strong pressure testing and inspection before leaving the factory, and its service life can reach more than 10 years under normal pressure.

2. The stainless steel tank has good airtightness; the sealed design completely prevents harmful substances in airborne dust and mosquitoes from invading the tank, ensuring that the water quality is free from external pollution and breeding of bloodworms.

3. The scientific water flow design prevents the sediment at the bottom of the tank from turning up due to the water flow, ensuring the natural stratification of domestic water and fire fighting water, and the turbidity of the domestic water coming out of the tank is reduced by 48.5%; but the water pressure is significantly increased . It is beneficial to improve the performance of domestic water and fire-fighting water facilities.

4. The stainless steel tank does not need to be cleaned frequently; the sediment in the water can be discharged only by regularly opening the drain valve at the bottom of the tank. Simple equipment can be used to remove scale once every 3 years, which greatly reduces cleaning costs and completely avoids bacterial and virus contamination of the human body.

 Uses of stainless steel storage tanks

Stainless steel storage tank is a storage tank made of stainless steel. Compared with ordinary rotomolding storage tanks, stainless steel storage tanks can withstand higher pressures and are widely used in many high-pressure situations. At the same time, stainless steel storage tanks have a very significant feature: the tank body has excellent sealing performance and completely eliminates the air. The intrusion of harmful substances and mosquitoes ensures that the liquid stored in the tank will not be contaminated by the outside world and will not breed red worms. Therefore, stainless steel storage tanks are mostly used to store and transport food and medicine, and are widely used in the wine industry and dairy industry.
