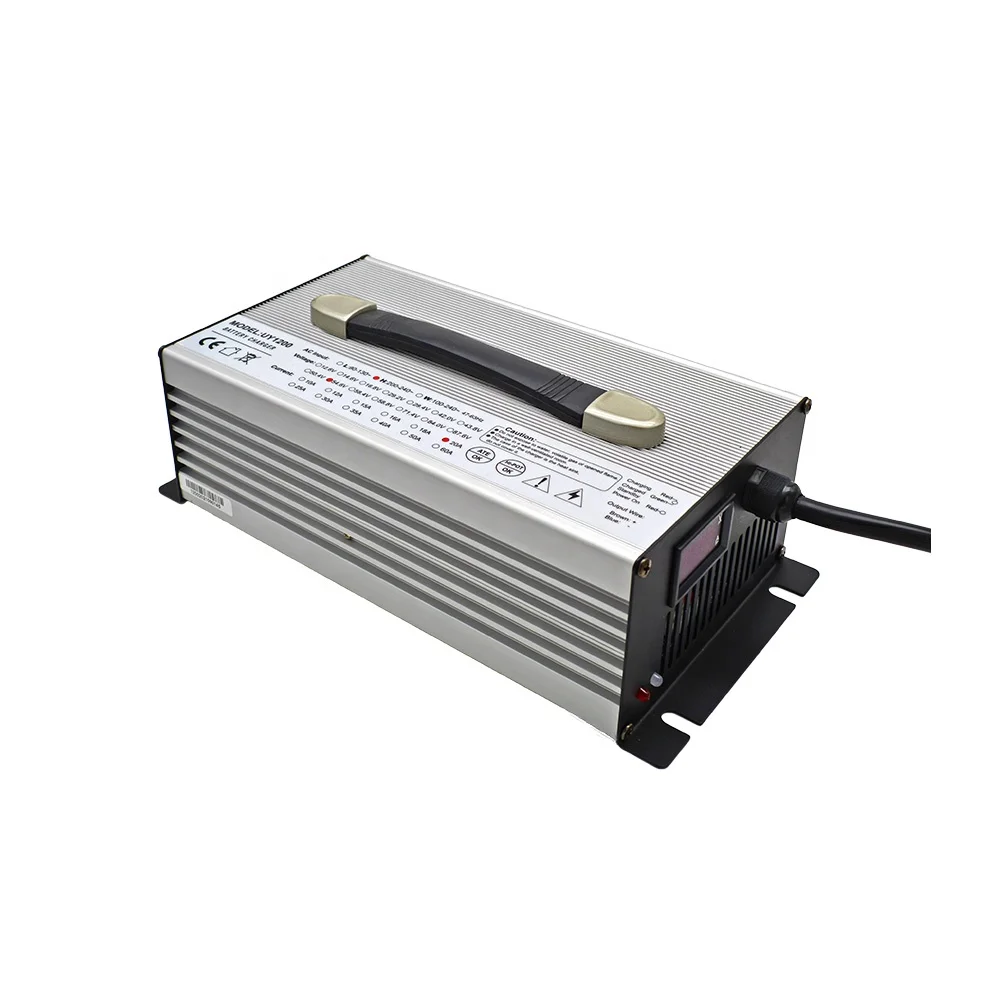

lithium battery charger 60v 36v 24v 12v lead acid 4s lifepo4 50a 30a 25a

Цена:100,50 $ - 107,00 $*

Количество:

UY1200_01

Product Features

l1200W

lAluminum case, ease handling

lCircuit topology: Current Half-bridge type

lOptional function: MCU,CAN Communicate etc

lCPU and intelling PWM IC control, full automatic transition of CC, CV and Float/Cut-off, meet the

demands for different Curve

lProtections: Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut

off or trickle and anti-reverse charge

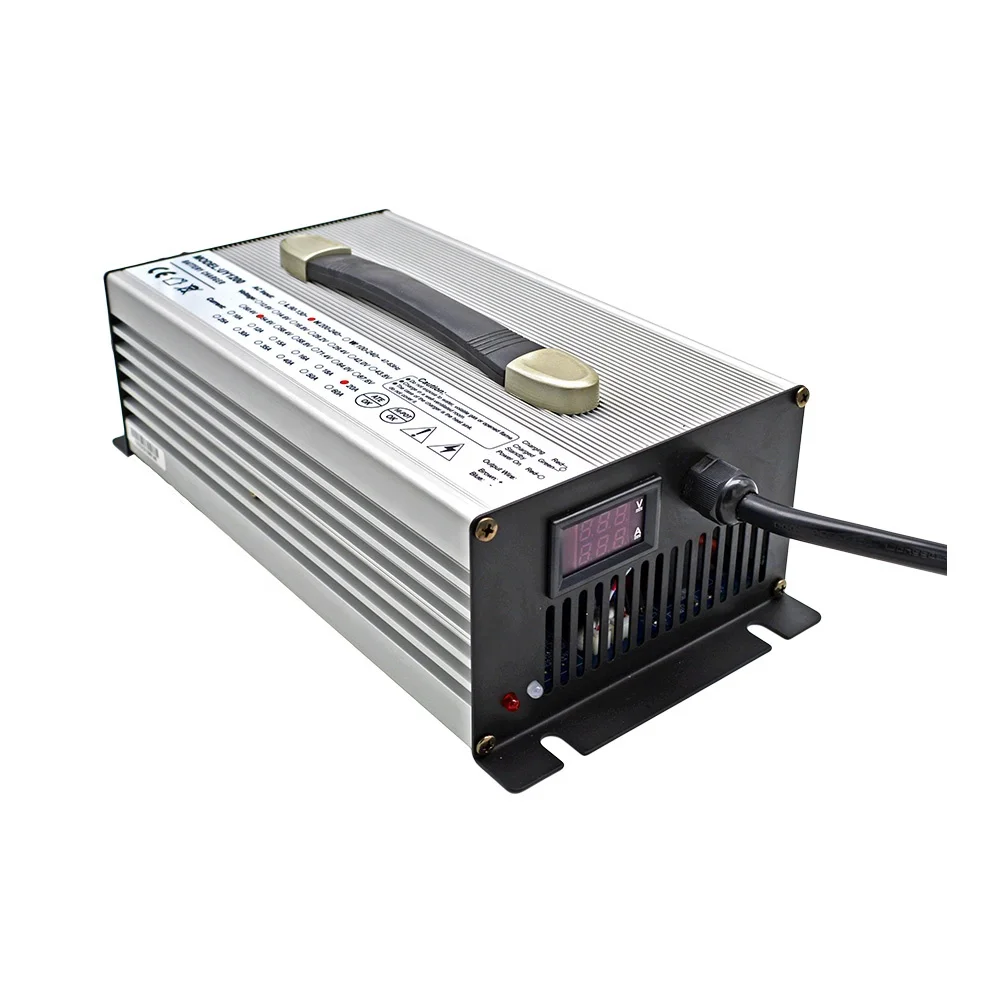

lVoltage & Current LED meter display

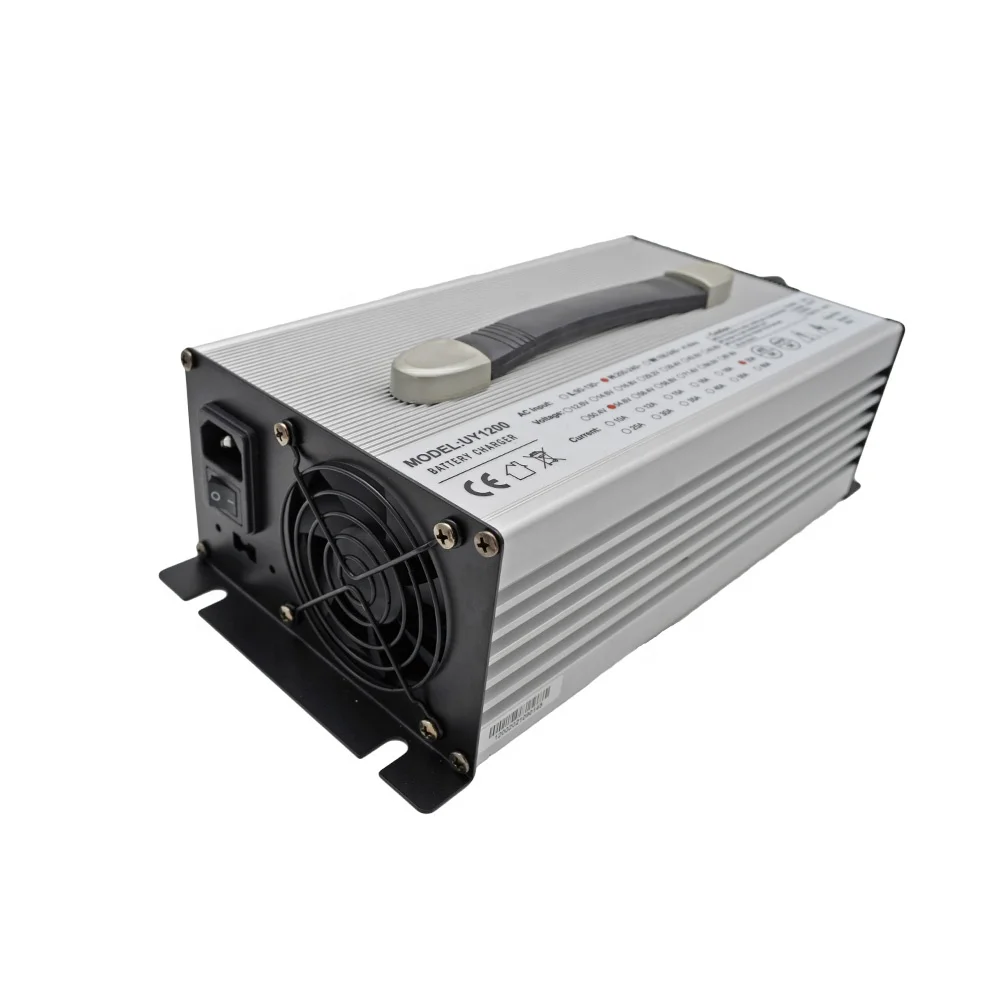

lIntelligent cooling fan, controlled by temperature

Output Reference

Type	Specification	DC Voltage(Max)			(CC:A) Charging current	Light Turning(A)
		Li-ion	Lifepo4	Lead acid		Lithium	Lead acid

Brand Name	YEWY	Model Number	UY1200
Input Voltage	110/220Vac	Frequency	50~60HZ
Input fuse	25A	Dimension	*26315090mm*
Efficiency	>=89%	Leakage Current	<=0.75mA
Operating humidity	5%-95% RH Non-condensing	Altitude	2000m
Operating Temperature	-20℃—+40℃	Storage Temperature	-40℃-+70℃
Safety certifications	CE, RoHS Directive-compliant
Suitable battery Type	Lead Acid/LiFePo4/Li-ion
Charging Time	Cut-off point for Li battery is 8% of CC and it can be set between 3- 10%.(charging time:3-4 hours)
Charging Time	Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours)
Protection	Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge
Advantage	CPU and intelligent PWM IC control ,full automatic transition of CC, CV and Float/Cut-off, meet the demands for different Curve.
Advantage	Aluminum case, Robust, Elegant and Reliable
Package Contents	*1battery charger 1Input Wire* *1User Manual This battery charger is your affordable necessity without sacrificing performance. It features an integrated MCU and PWM for power control.**
