12mm закаленное стекло
US $1.06-$5.80
Remote Control Electric Switchable Privacy Pdlc Smart Glass Opaque
- Категория: Building Glass >>>
- Поставщик: Yantai,Rushui,Optoelectronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 60.54 $* | 63.25 $* |
| Aug-16-2025 | 59.46 $* | 62.67 $* |
| Jul-16-2025 | 50.2 $* | 53.77 $* |
| Jun-16-2025 | 58.24 $* | 61.54 $* |
| May-16-2025 | 51.49 $* | 54.81 $* |
| Apr-16-2025 | 57.10 $* | 60.20 $* |
| Mar-16-2025 | 57.42 $* | 60.86 $* |
| Feb-16-2025 | 56.64 $* | 59.44 $* |
| Jan-16-2025 | 56.95 $* | 59.77 $* |
Характеристики
Product Parameter
| Product Name | Electric Switchable Glass | |||||
| Product Description | 65V High Transparent Switchable PDLC Film | |||||

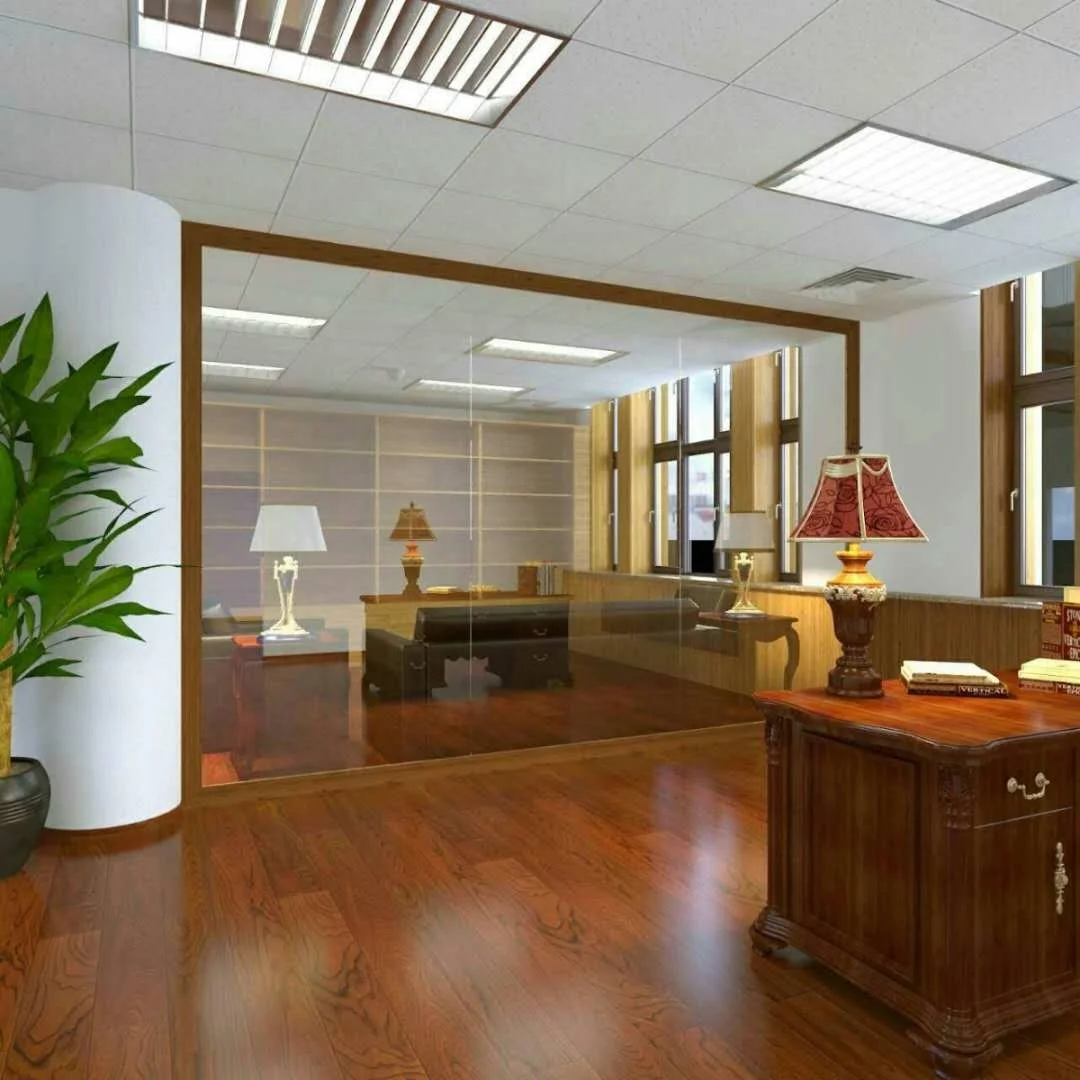

| Operation Model | Power On | Transparent | ||||

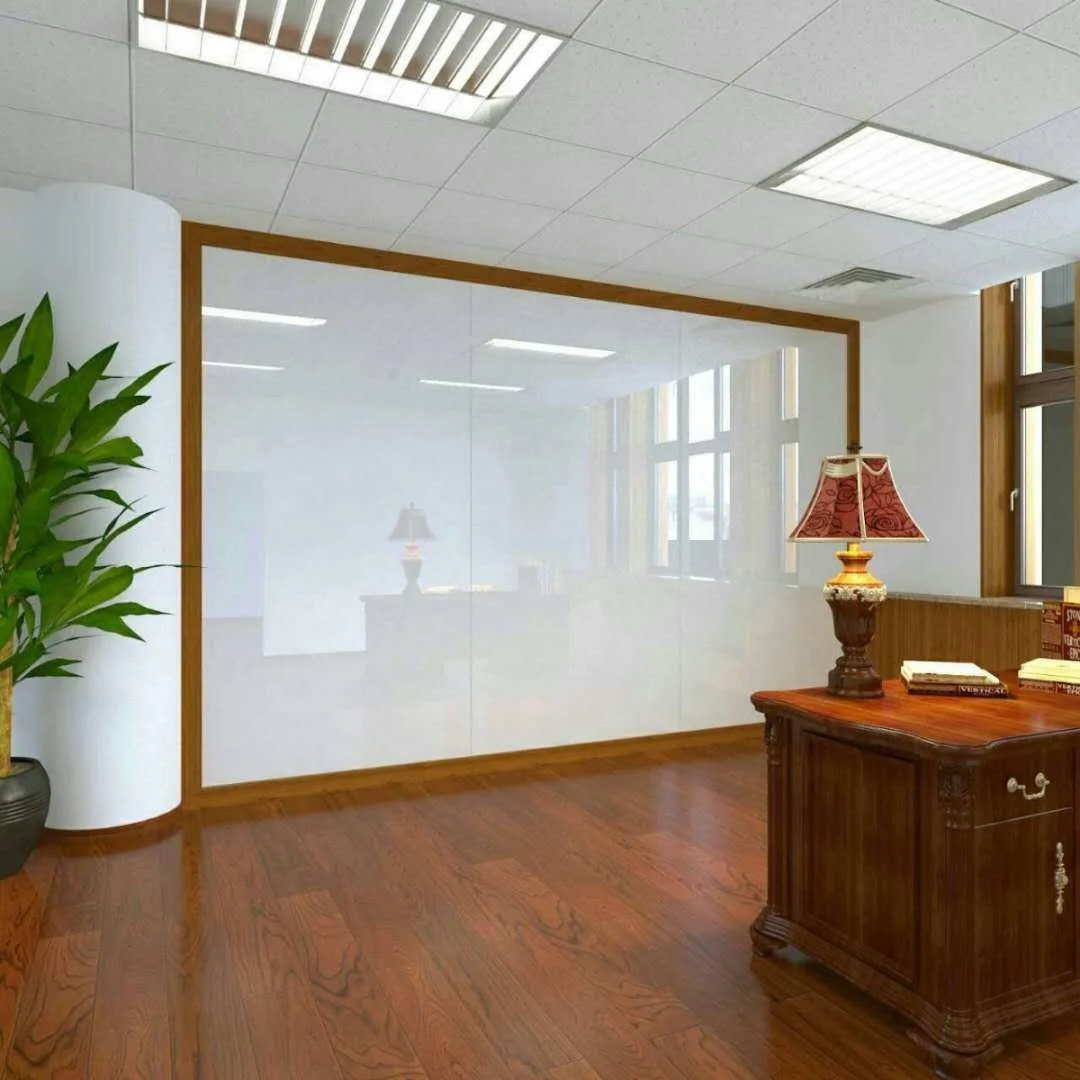

| Power Off | Opaque | |||||
| Optical Performance | Avaliable Colour | Milky White | Dark Grey | |||
| Haze(on) | 4-5% | 4-5% | ||||
| Haze(off) | >90% | >90% | ||||
| View Angle | About 145 Degree | |||||
| Light Transmittance( On) | 90% | 32% | ||||
| Light Transmittance( off) | 4% | 4% | ||||
| UV Block | >99% | |||||
| Infrared Block | On Model>17% Off Model >80% | |||||
| Size | Maxmium | Self-adhesive Film Roll Size:1*50M,1.2*50M,1.5*50M ,1.8*50M(standard type) Non-adhesive Film Roll Size:1*50M,1.2*50M,1.5*50M,1.8*50M,2.0*50M(standard type) | ||||
| Thickness | 0.4mm | |||||
| Electrical Performance | Operating Voltage | AC65±5V | ||||
| Power Consumption | About 3.7W/SQM | |||||
| Frenquency Rate | 50-60HZ | |||||
| Operating Temperature | - 20℃-- 70 ℃ | |||||
| Switch Time | Less than 1 second (Off→On :about 200 milliseconds On→Off :about 600 milliseconds) | |||||
| Life Time | More than 100000h(20years) | |||||
| Other Functions | Dimmer Function | YES | ||||
| Projection Screen | YES | |||||
| Warranty Time | Two years | |||||
Introduction
Product Show
Product Advantage
Company Information
FAQ
Q1. How does Smart Film work?
A: In the "off state", when no power is applied to the smart film, light is absorbed or scattered, and the film looks dark gray or white. In the "open state", light is transmitted and the film looks transparent.
Q2: Can we install this product ourselves?
A: Yes, we have English teaching videos and manual.
Q3: Does the PDLC film save energy?
A: Yes, it is considered a green product, consuming about 3.7 watts per square meter.
Q4: Can it block harmful ultraviolet rays?
A: Yes. It can block more than 99% of harmful ultraviolet rays in energized and non-energized states
Q5. How is the common size ?
A: By sheet, we can do any customized size. By roll, the adhesive film: 1*50M, 1.2*50M, 1.5*50M, 1.8*50M non-adhesive film: 1*50M, 1.2*50M, 1.5*50M, 1.8*50M, 1.9*50M, 2*50M
Q6. What is the life expectancy of your product?
A: Life expectancy is about 20 years or switching> 200000000 times.
Q7. How do I get samples?
A: We are honored to provide you samples, but you need to pay the freight.
Q8. Will you test all products before shipping? and warranty
A: Yes, we have passed 100% test before shipment. Warranty is 5 years.
Q9. How about the packaging? Are they safe?
A: Packaged in the tube carton or wooden case. smart film is usually packed in the tube carton and shipped by DHL. Smart glass is usually packed in the wooden case and shipped by sea.
