Заводская поставка Высококачественная зубчатая Машина Для конической
- Категория: Gear Cutting Machines >>>
- Поставщик: Shandong,Classic,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 8925.69 $* | 9371.88 $* |
| Aug-16-2025 | 8850.24 $* | 9293.8 $* |
| Jul-16-2025 | 7425.1 $* | 7796.71 $* |
| Jun-16-2025 | 8700.62 $* | 9135.33 $* |
| May-16-2025 | 7575.43 $* | 7954.78 $* |
| Apr-16-2025 | 8550.48 $* | 8978.42 $* |
| Mar-16-2025 | 8475.48 $* | 8899.81 $* |
| Feb-16-2025 | 8400.85 $* | 8820.37 $* |
| Jan-16-2025 | 8325.34 $* | 8741.97 $* |
Характеристики
Product Description
Product Application
The Y3150E universal gear hobbing machine could produce straight teeth and helical teeth,
cylindrical spur teeth,turbine ,chain wheel and short spline shaft, and this hobbing machine suitable for in bulk and single production
The Y3150E universal gear hobbing machine could produce straight teeth and helical teeth,
cylindrical spur teeth,turbine ,chain wheel and short spline shaft, and this hobbing machine suitable for in bulk and single production
Product main technical Specifications
Main technical parameters | Y3150E | ||
Max working module | steel (mm) | 6 | |
Cast iron(mm) | 8 | ||
Max diameter of workpieces | With rear column (mm) | 350 | |
Without rear column (mm) | 500 | ||
Machining width | 250 mm | ||
Max diameter and length of hob | 160/160mm | ||
The diameter of worktable | 510mm | ||
Speed of main spindle | Grade | 9 | |
Range (r/min) | 40-250RPM | ||
maximum axial movement of hob | 55mm | ||
Main motor power | 4kw/1500rpm | ||
Main spindle taper hole | Morse No.5 | ||
The distance from hob center to worktable | 200-535mm | ||
The distance from hob center to worktable center | 20-330mm | ||
The distance from out support end face to worktable surface | 380-700mm | ||
Worktable hole | 80mm | ||
Max.swing over cross slide | 60° | ||
Diameter of cutter arbor | 22 27 32 mm | ||
Workpiece mandrel diameter | 30mm | ||
Machine size | 2450*1272*1790mm | ||
Gross weight/net weight | 5300/4500 kg | ||

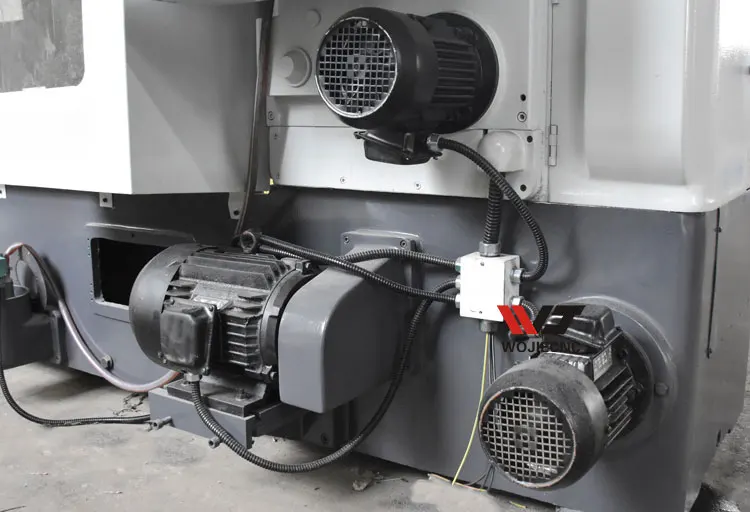

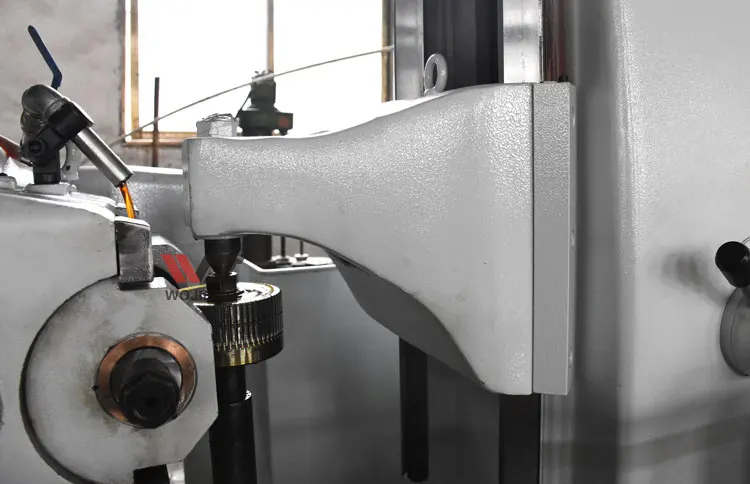

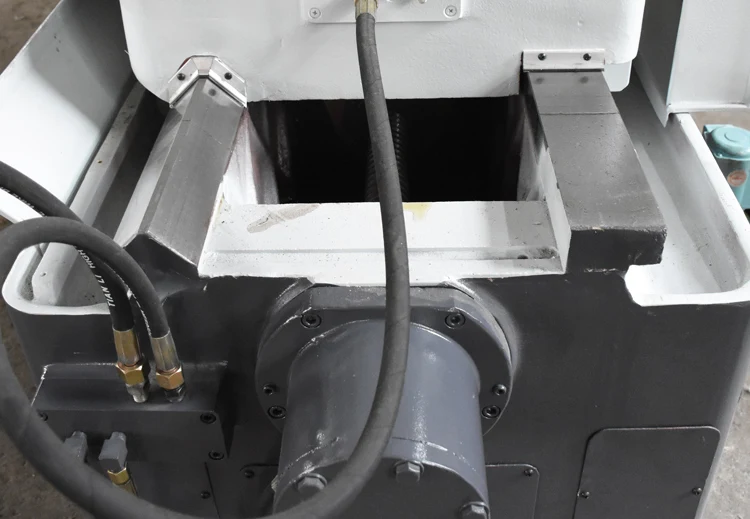

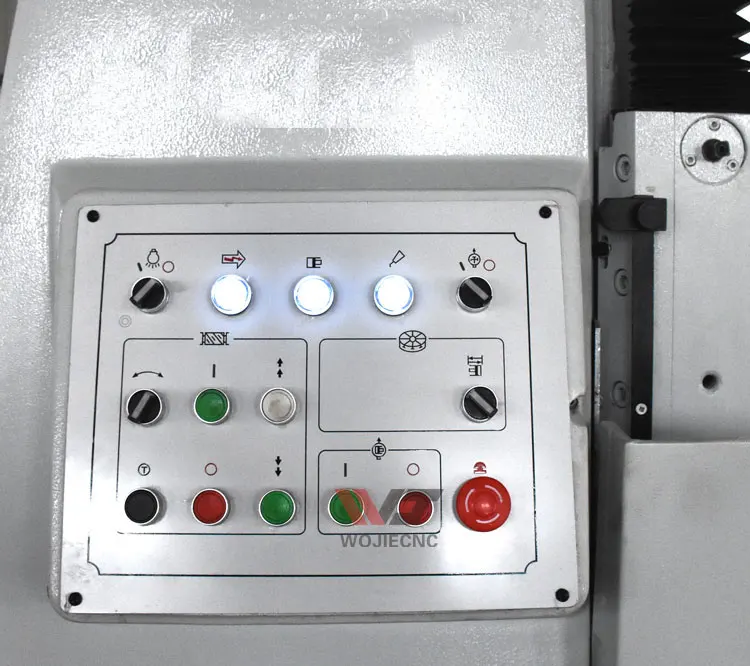

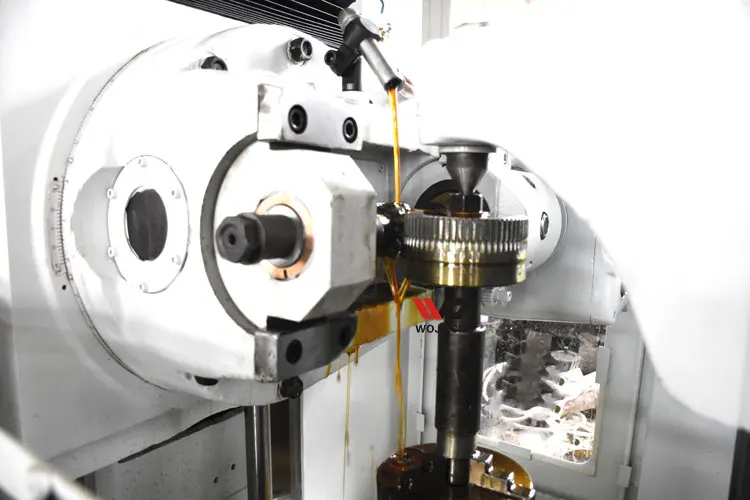

Detailed Images
Company Introduction
Packing&Shipping
Sales And Service Network
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures toyou.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures toyou.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
