BDS GPS GLONASS GALILEO система сопоставления антенна высокоточная съемка многочастотная полнодиапазонная измерительная RTK


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.91 $* 0.8 $*
Aug-18-2025 0.27 $* 0.90 $*
Jul-18-2025 0.81 $* 0.11 $*
Jun-18-2025 0.50 $* 0.41 $*
May-18-2025 0.46 $* 0.41 $*
Apr-18-2025 0.35 $* 0.67 $*
Mar-18-2025 0.0 $* 0.63 $*
Feb-18-2025 0.34 $* 0.4 $*
Jan-18-2025 0.97 $* 0.2 $*

Характеристики





Product Paramenters


ANTENNA SPECIFICATION
Frequency Range
GPS L1 L2
GLONASS G1 G2
GALILEO E1 E5b
BDS B1 B2 B3
Peak Gain
L1≥5.5dBi L2≥5.0dBi
G1≥5.0dBi G2≥5.0dBi
E1≥5.0dBi E5b≥4.5dBi
B1≥5.0dBi B2≥5.0dBi B3≥4.5dBi
Polarization
RHCP
Horizontal plane coverage Angle
360o
Nominal Impedance
50Ω
Output VSWR (Min. performance)
≤1.5
Vertex axis
≤3dB
Phase center error
<2mm
LNA SPECIFICATION
Gain
40±2dB
Noise Figure
≤1.8dB
Input VSWR
≤2.0
Output VSWR
≤2.0
Differential transmission delay
≤5ns
Supply Voltage
3.0V - 18.0V
Current Comsumption
≤ 45mA
MECHANICAL SPECIFICATION

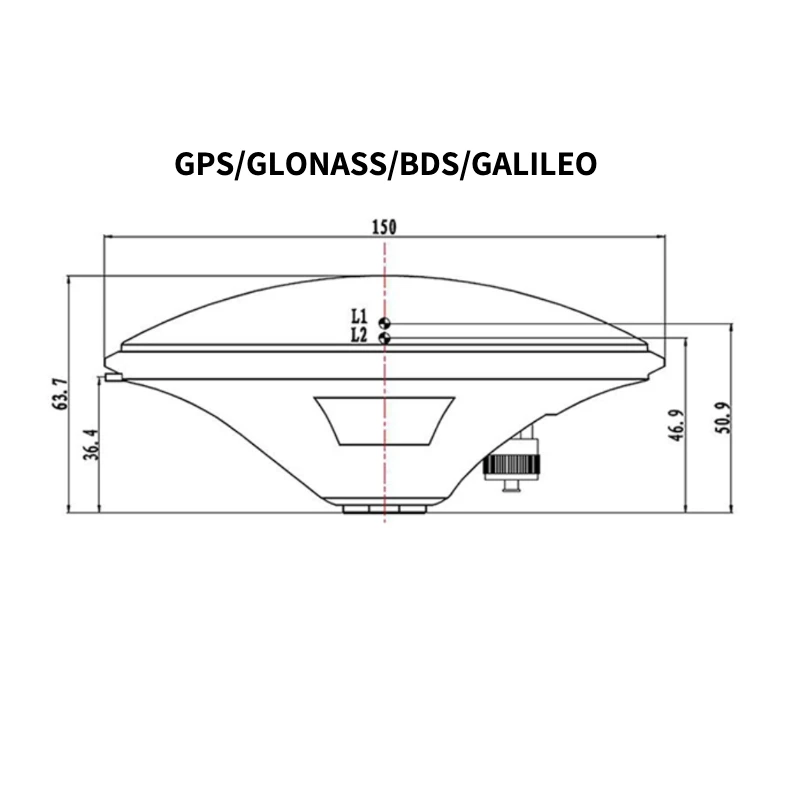

Planner Dimention
Φ150mm*63.7mm
Connector
TNC-K
Weight
400g
Ingress Protection
IP67
ENVIRONMENTAL SPECIFICATION
Working temperature
-45°C~+70°C
Storage temperature
-55°C~+85°C
Humidity
Operation 95% RH at 65oC




Our Advantages








Manufacturing Technique




Exhibition




Certifications




Company Profile






Auden Communications & Multimedia Techno (Kunshan) Co.,Ltd,is a wholly-owned subsidiary of the Auden Techno Corp, was founded in 2001,
The mainland headquarter is located in Kunshan,comes along with 20000 sqm factory and more than 200 staffs. Auden is a high-tech enterprise,
Over the years, focused on R&D and Manufacturing of antennas. We have a strong R&D team, it including more than 80 engineers, 3 R&D centers in Mainland China with 10 OTA chambers and SAR test equipment,They are distributed in Kunshan,Shenzhen, Xi'an. Our Company has passed ISO9001:2015,ISO14001:2015,OHSAS 18001:2007, IATF16949:2016,etc.The antennas designed by Auden are widely used in mobile phones, tablets, Notebook, automotive electronics, IOT,industrial products, gateway, smart homes, etc.
No Perfect status, always seek for better. We sincerely welcome all the clients come to visit our factory and work together with us for a better bright future.


FAQ


1. who are we?
We are based in Jiangsu, China, start from 2001,sell to North America(9.00%),South America(8.00%),Northern Europe(7.00%),Southeast Asia(6.00%),Western Europe(6.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Antenna,RF Cable,Plastic molding,Metal stamping

4. why should you buy from us not from other suppliers?
Auden is a high-tech enterprise,was founded in 2001,has more than 20 years of antenna production and R & D experience.We have a strong R&D team, it including more than 80 engineers, 3 R&D centers in Mainland China with 10 OTA chambers and SAR.

5. what services can we provide?
Accepted Delivery Terms: null;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: null;
Language Spoken:English,Chinese
