Industrial Cooling Water Plate Heat

Категория: Heat Exchanger >>>
Поставщик: Gansu,Nuochen,Petrochemical,Complete,Equipment,Co.,Ltd.

Цена:300,00 $ - 500,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	357.71 $*	375.85 $*
Aug-15-2025	354.24 $*	372.3 $*
Jul-15-2025	297.87 $*	312.69 $*
Jun-15-2025	348.99 $*	365.22 $*
May-15-2025	303.80 $*	318.5 $*
Apr-15-2025	342.41 $*	359.14 $*
Mar-15-2025	339.28 $*	356.6 $*
Feb-15-2025	336.54 $*	353.84 $*
Jan-15-2025	333.44 $*	350.91 $*

Характеристики

Products Description

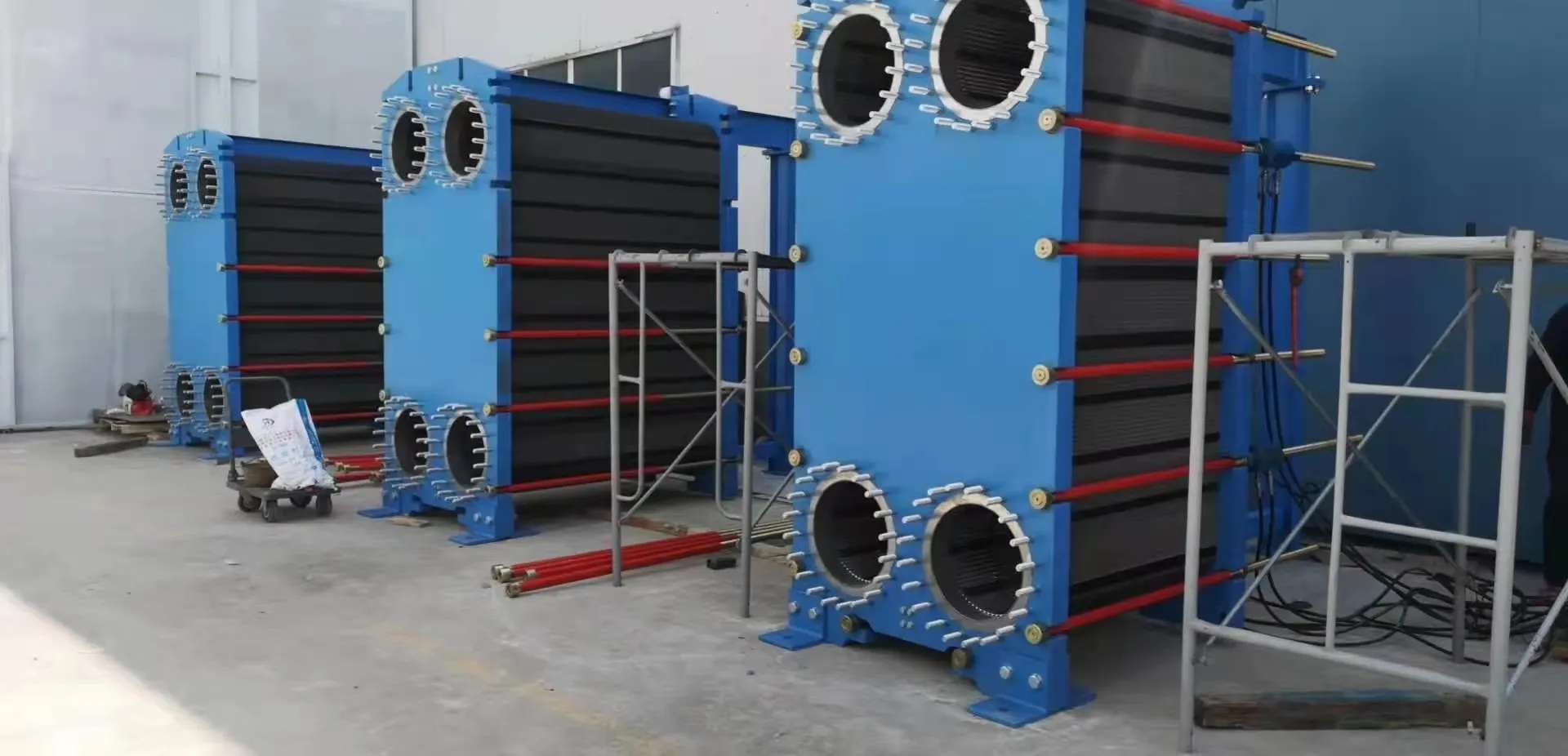

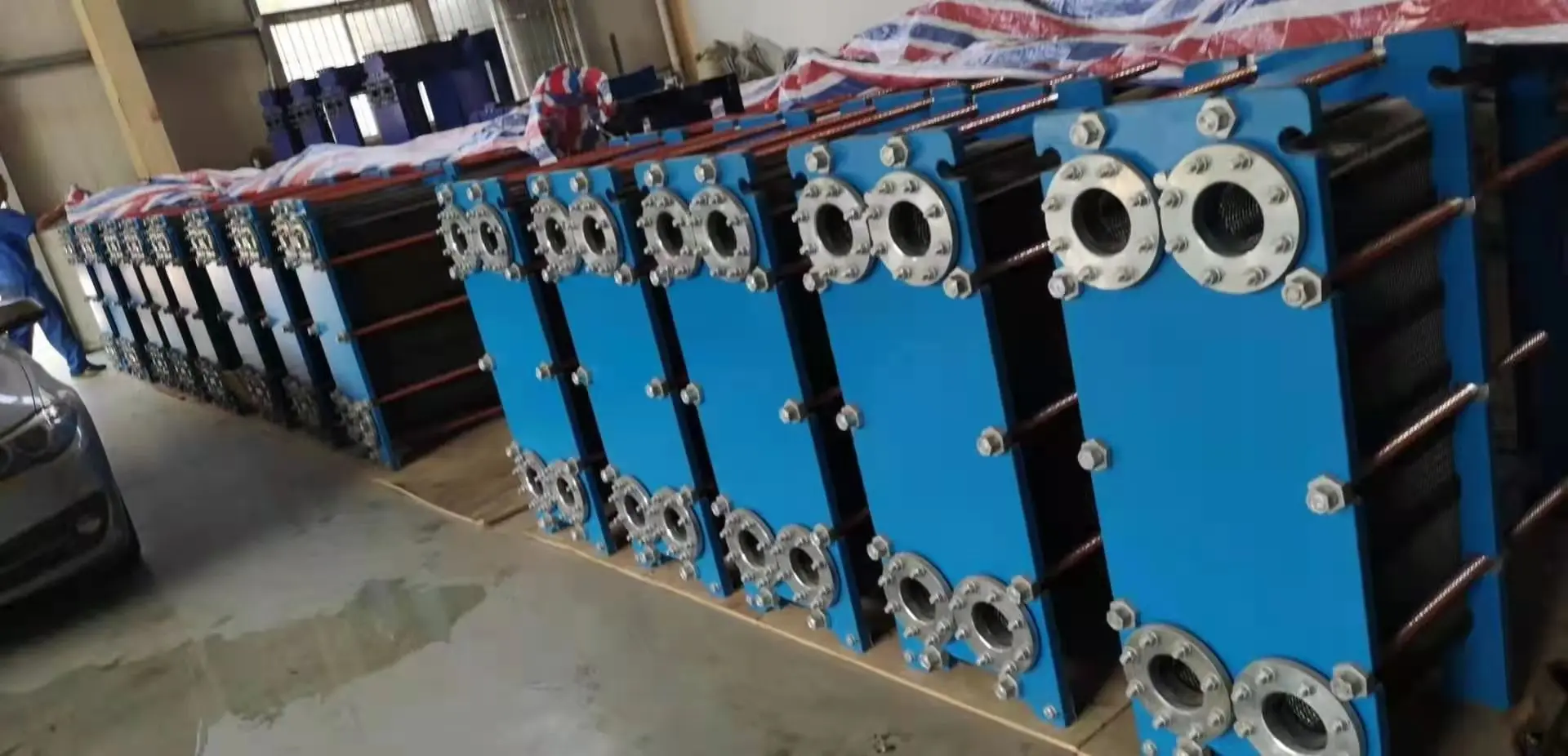

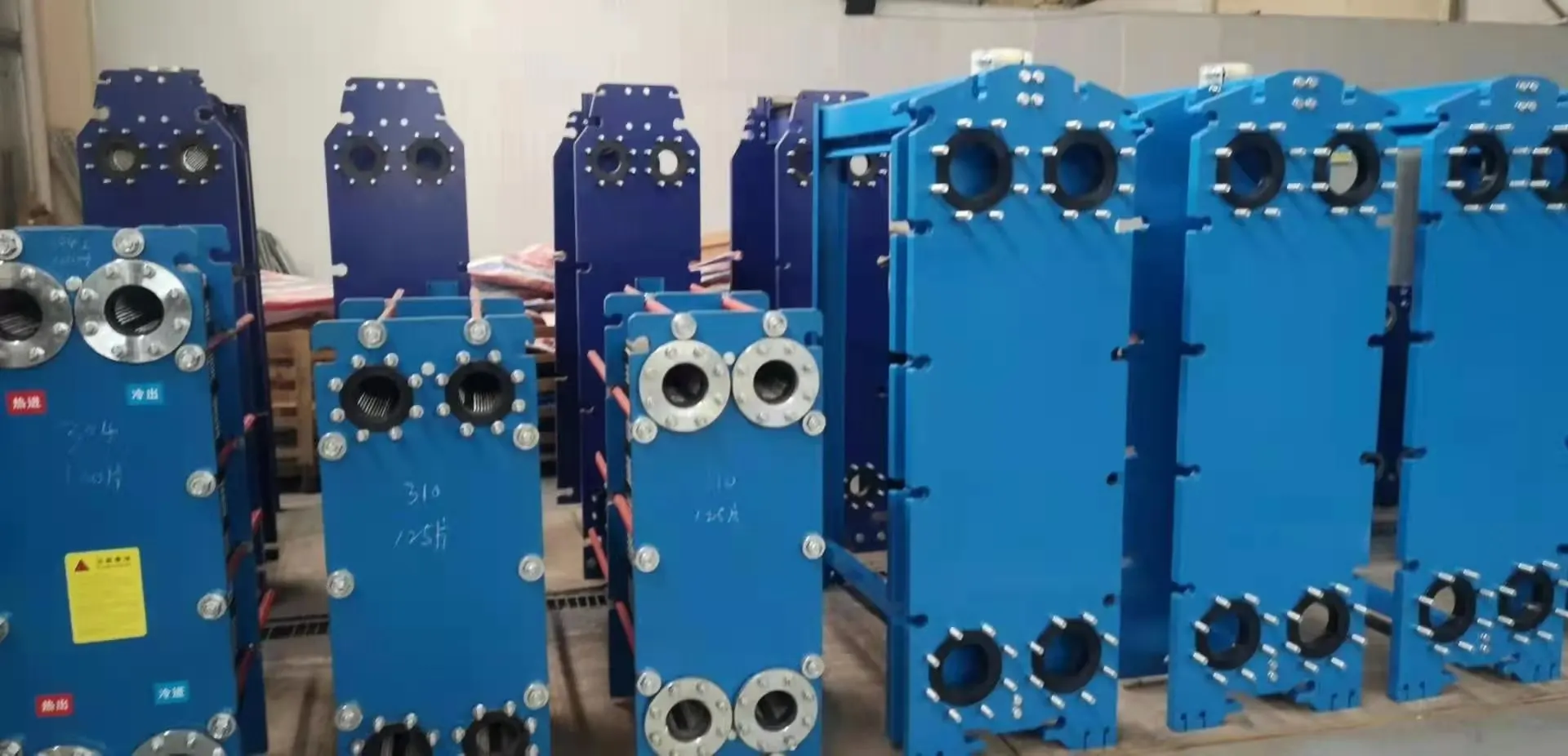

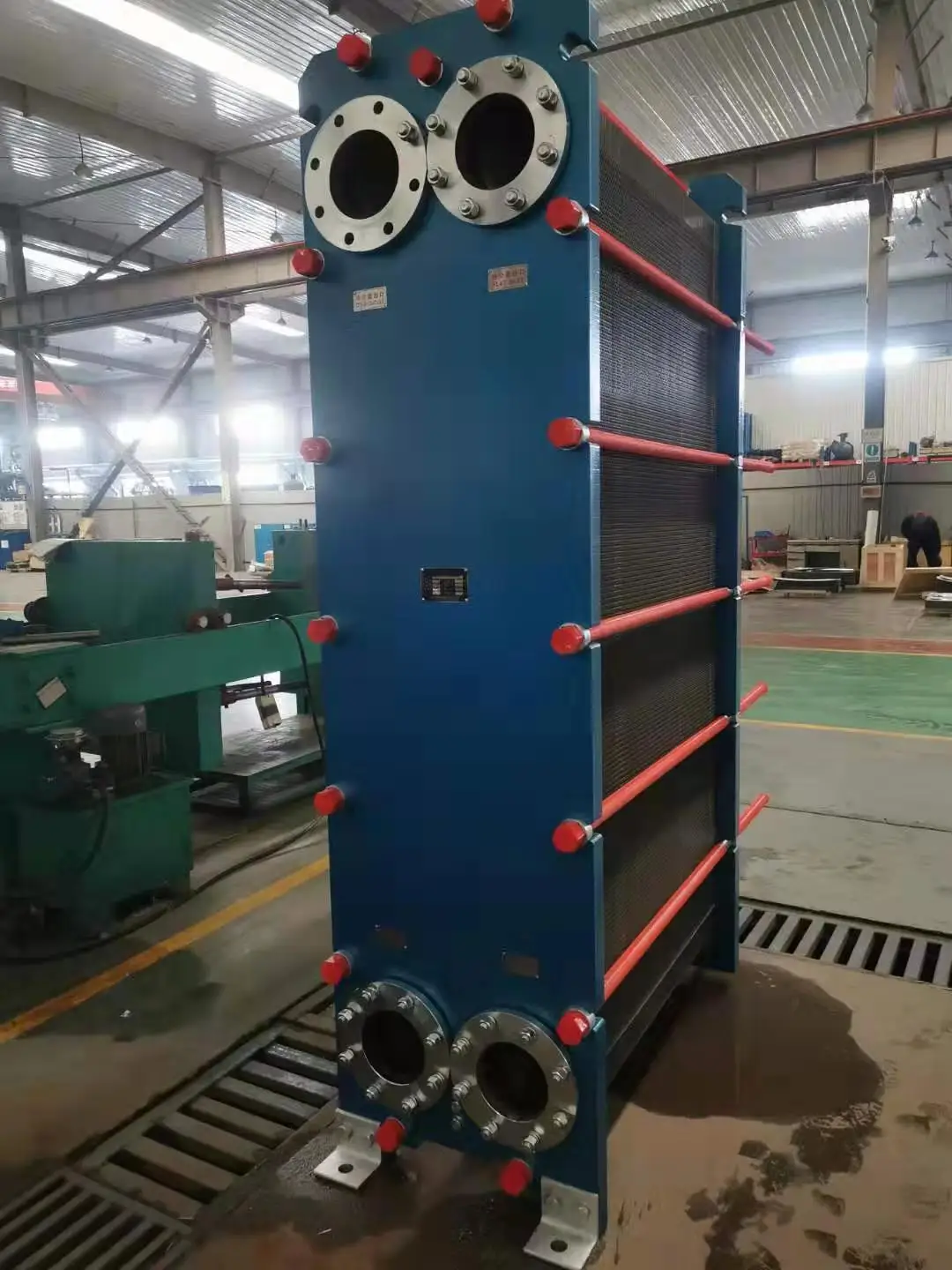

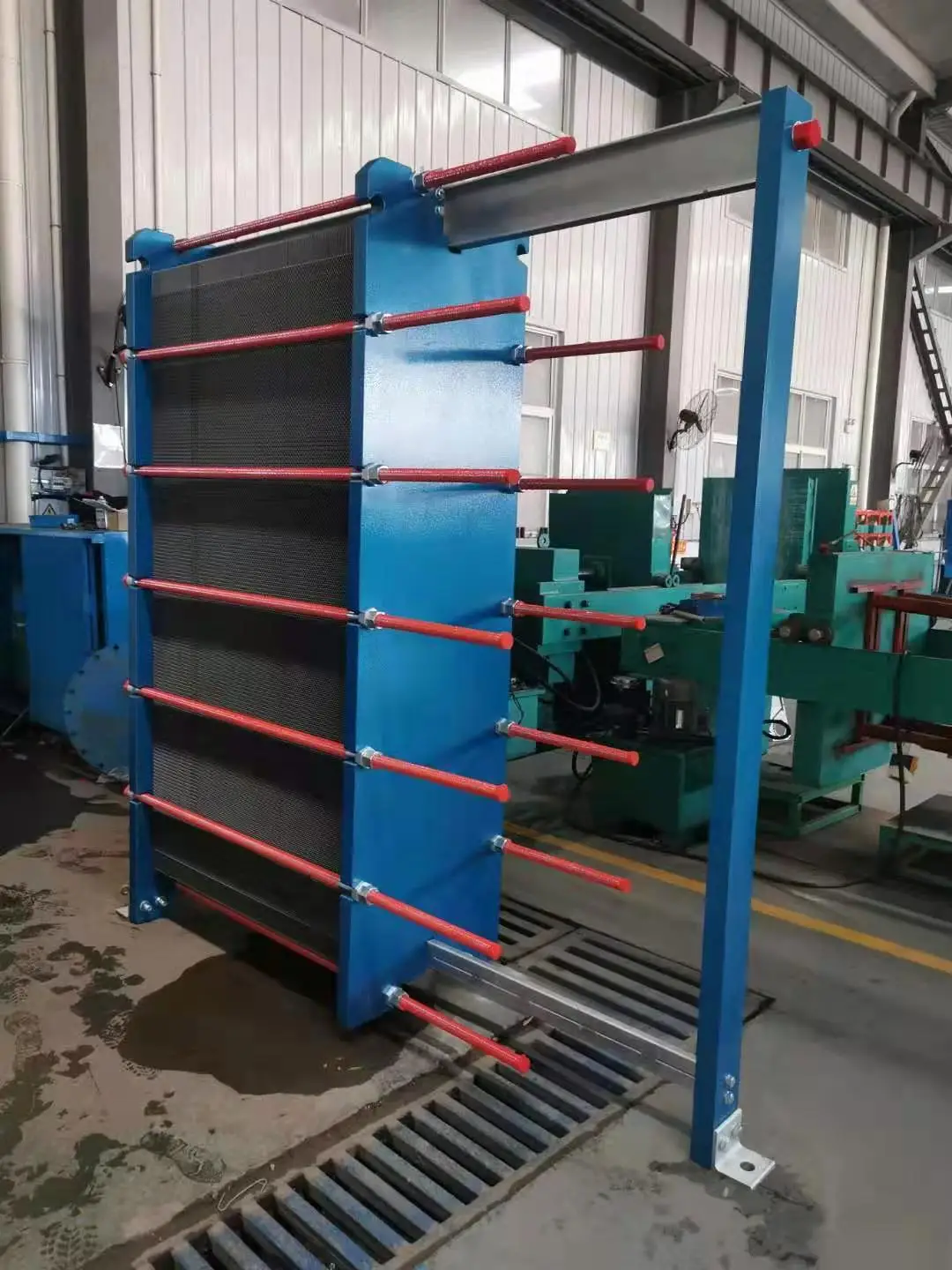

The detachable plate heat exchanger

Plate heat exchangers are ideal equipment for liquid-liquid and liquid-vapor heat exchange. It is made up of several heat exchange plates (corrugated grooved metal plates) separated by a certain distance and sealed with gaskets, heat exchange through the plates, and compacted by clamping studs. It has the characteristics of high heat transfer efficiency, compact structure, small footprint, flexible operation, small heat loss, convenient installation and disassembly, and long service life.

Design pressure	3.0MPa
Connection size	DN25-DN500
Working temperature	-40℃-180℃
Model	BR serise
Liquid Flow Rate	Liquid Flow Rate
Certification	CE/ISO9001:2015
Application range	metallurgy, mining, petroleum, chemical, electric power, medicine, food, chemical fiber, paper, textile, shipping, heating and other sectors, can be used for heating, cooling, evaporation, condensation, sterilization, waste heat recovery, etc

Material Parameters

Plate material	Suitable for fluid
stainless steel(SUS304.316)	stainless steel(SUS304.316)
TI，T-Pd	Sea water, salt water and salt chemicals
20Cr,18Ni6Mo(254SMO)	Dilute sulfuric acid, dilute salt aqueous solution, inorganic aqueous solution
Ni	High temperature, high concentration caustic soda
HASTELLOY（C276，D205，B2G）	Concentrated sulfuric acid, hydrochloric acid and carbonic acid

Gasket material	Temperature range （℃）	Corrosion resistance
NBR	-20~110	It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution.
HNBR	-20~165	It has good corrosion resistance to chain hydrocarbon (propane, butane, etc.), mineral oil, animal and vegetable oil, aliphatic hydrocarbon, ethylene glycol, acid and alkali dilute solution.
EPDM	-50~150	Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc.
H-EPDM	-20~165	Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc.
S-EPDM	-20~130	Resistant to dilute acid, alkali and salt corrosion. Suitable for hot water, saturated steam, glycol, organic acid, sodium hydroxide, ethanol, hexadecane, ester, etc.
Viton	-40~180	Excellent corrosion resistance. It is suitable for high concentration inorganic acid-base and polar chemical medium, mineral oil, silicone oil and silicone resin, animal and vegetable oil, chain hydrocarbon (propane, butane, mineral oil, etc.), hydrocarbon chloride, fuel, non gas resistant substance, etc.
Chloroprene rubber(CR)	-50~100	It is resistant to dilute non oxidizing acid and alkali.
Silicon	-65~230	Corrosion resistant to dilute acid, alkali and brine.
Compressed fiber（AFM34 SIL-4400）	260	Oil, water and vapor (up to 160 ℃), gas, salt solution, fuel, ethanol, organic / inorganic acids, refrigerants, hydrocarbons.
PTFE	-200~260	It has excellent corrosion resistance. Except molten metal lithium, sodium, potassium, chlorine trifluoride, oxygen trichloride at high temperature and liquid fluorine with high flow rate, it can resist all chemical media (including concentrated nitric acid and aqua regia).

Click for more products

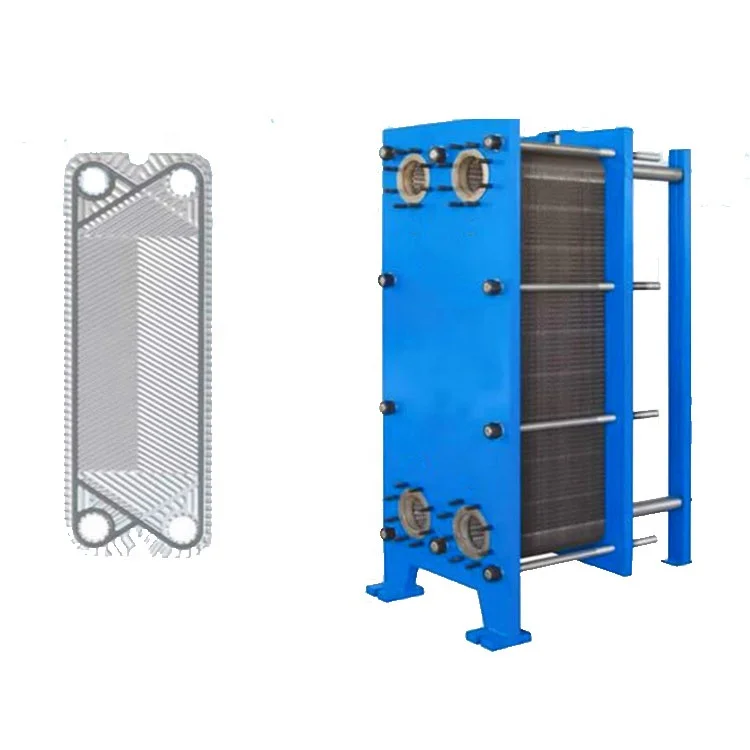

Heat exchanger construction

The two fluids in the plate heat exchanger enter their respective channels and are separated by plates. Generally, the two media flow countercurrently in the channels. The heat medium transfers heat energy to the plates, and the plates transfer heat energy to the plates. The cold medium on the other side, so as to achieve the purpose of cooling down the temperature of the heating medium and heating up the temperature of the cold medium.

Our Advantages

Certifications

Click for more details

Company Profile

Our company mainly deals in detachable plate heat exchangers, fully welded plate heat exchangers, wide channel welded plate heat exchangers, round shell heat exchangers, plate shell heat exchangers, two-stage coolers, plate condensers, and brazing Welded plate heat exchanger. Rich experience in material selection, thermal calculation, structural design and product manufacturing process.

Packaging

1.Usually use standard export wooden box.

2. Packing according to customer requirements, welcome to contact us.
