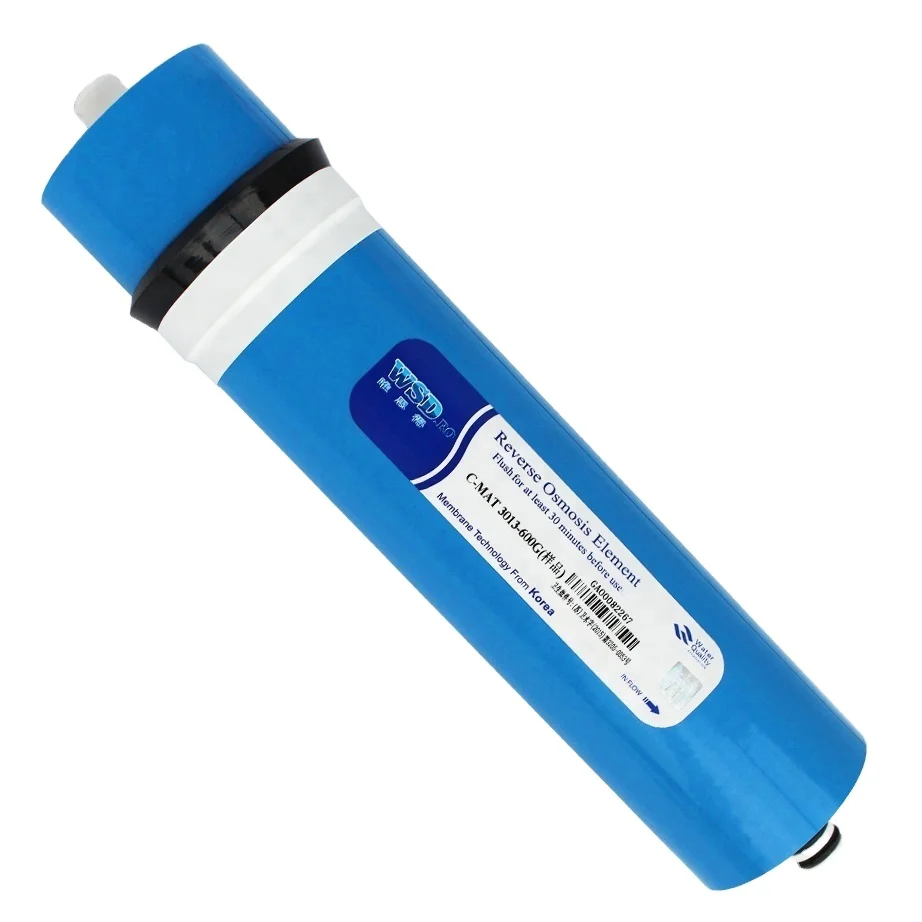

3013 600G ro membrane housing osmosis for water treatment
- Категория: Water Filter Parts >>>
- Поставщик: Suzhou,WSD,Purification,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 27.12 $* | 28.24 $* |
| Jul-18-2025 | 22.22 $* | 22.37 $* |
| Jun-18-2025 | 26.10 $* | 27.93 $* |
| May-18-2025 | 26.8 $* | 27.72 $* |
| Apr-18-2025 | 21.93 $* | 21.82 $* |
| Mar-18-2025 | 26.32 $* | 27.95 $* |
| Feb-18-2025 | 25.26 $* | 26.23 $* |
| Jan-18-2025 | 25.38 $* | 26.29 $* |
Характеристики
Product Description
Specification
| Commercial Reverse Osmosis Specification | |||
| Model | Stable Rejection Rate | Minimum Rejection Rate | Average Permeated Flow |
| C-MAT 2012-150G | 98% | 93% | 150 |
| C-MAT 2012-200G | 98% | 93% | 200 |
| C-MAT 2812-300G | 98% | 93% | 300 |
| C-MAT 3012-400G | 98% | 93% | 400 |
| C-MAT 3012-500G | 98% | 93% | 500 |
| C-MAT 3012-600G | 98% | 93% | 600 |
| C- MAT 3013-400G | 98% | 93% | 400 |
| C-MAT 3013-500G | 98% | 93% | 500 |
| C-MAT 3013-600G | 98% | 93% | 600 |
Testing Conditions Operation Limits and Conditions
Inlet Pressure ------------------------- 87Psi(0.6MPa) Max. Working Pressure --- 125Psi(0.86MPa)
Inlet Temperature ---------------------- 25℃ Max. Inflow Temperature ---------- 45℃
Concentration of Testing Solution ---- 250PPm SDI Max. Inflow SDI ----------------- 5
Inlet PH value ------------------------- -- 7.5-8 Residual Chlorine ----------------- < 0.1PPm
Recovery Rate -------------------------- 15% PH Range of Feedwater ----------- 3-10
PH Range of Cleaning ------------- 2-12
Max. Pressure Drop ---------10Psi(0.07MPa)
1.Permeate flow for each RO membrane element would be 15% floating up and down according to the feed water under the standard test condition.
2.Above data is subject to a continuous test running of 30 minutes.
3.Able to provide personalized, customized products by request.
| Model | Overall Dimension | ||||||
| A | B1 | B2 | C | D | E | F | |
| C-MAT 2012-150G | 11.73(298) | 0.59(15) | 0.83(21) | 0.67(17) | 1.89±0.02(48±0.5) | 10.3(262) | 1.57(40) |
| C-MAT 2012-200G | 11.73(298) | 0.59(15) | 0.83(21) | 0.67(17) | 1.89±0.02(48±0.5) | 10.3(262) | 1.57(40) |
| C-MAT 2512-200G | 11.73(298) | 0.59(15) | 0.83(21) | 0.67(17) | 2.48±0.02(63±0.5) | 10.3(262) | 1.57(40) |
| C-MAT 2812-300G | 11.73(298) | 0.59(15) | 0.83(21) | 0.67(17) | 2.76±0.02(70±0.5) | 10.3(262) | 1.57(40) |
| C-MAT 3012-400G | 11.73(298) | 0.59(15) | 0.83(21) | 0.67(17) | 2.95±0.02(75±0.5) | 10.3(262) | 1.57(40) |
| C-MAT 3012-500G | 11.73(298) | 0.59(15) | 0.83(21) | 0.67(17) | 2.95±0.02(75±0.5) | 10.3(262) | 1.57(40) |
| C-MAT 3012-600G | 11.73(298) | 0.59(15) | 0.83(21) | 0.67(17) | 2.95±0.02(75±0.5) | 10.3(262) | 1.57(40) |
| C-MAT 3013-400G | 13.11(333) | 0.59(15) | 0.71(18) | 0.67(17) | 2.72±0.02(69±0.5) | 11.81(300) | 1.57(40) |
| C-MAT3013-500G | 13.11(333) | 0.59(15) | 0.71(18) | 0.67(17) | 2.72±0.02(69±0.5) | 11.81(300) | 1.57(40) |
| C-MAT3013-600G | 13.11(333) | 0.59(15) | 0.71(18) | 0.67(17) | 2.72±0.02(69±0.5) | 11.81(300) | 1.57(40) |
Customization
Company Information
Packaging & Shipping
FAQ
FAQ
1.Q:Are you manufacturer ?
A:Yes, we are the manufacturer with continuous and improved R&D, Production, Quality Check and service supply.
2.Q:What’s your main products ?
A: Our products is RO membranes (50GPD-600GPD), quick-connect filters (Pre, Post, RO, UF, etc.), all types of membrane housings, 10” transparent filter housings, industrial ro membrane and so on.
3.Q:Can I get your price list ?
A: Yes, sure. In order to send you our available offered price, please choose the products and let us know the product model and requirement in detail.
4.Q: What’s your after-sales policy( The terms of guarantee) ?
A: Different products, different guarantee policy.The time of quality guarantee: 1-3 year.
5. Q: What’s your payment policy?
A: Samples(Less than 4000USD): 100% in advance via T/T or West UnionFormal order: 30% payment in advance via T/T as deposit payment and balance payment will be done against the Copy of B/L L/C payment is also available.
6.Q: Can I get your products with our logo and design ?
A: Most of products are OEM or ODM with your logo and design.
7. Q: What is the MOQ of this RO Membrane?
A: This RO Membrane MOQ is 1000pcs.
8. Q: What is the lead time?
A: Order delivering time has relations with the order quantity, order models and packagings. Generally, it takes about 10-20 days after receive your payment based on MOQ:1000PCS.
9. Q: Can you offer RO Membrane sample to check the quality?
A: We offer FREE SAMPLES based on freight collect.
10. Q: What is the delivery way? How many days will RO Membrane arrive us?
A: We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement: 1 CBM, around 30days to arrive.
11. Q: Whatfs the warranty you can offer? How about the after sales service?
A: 1 year warranty, lifetime technical support.
We have professional after-sales team, if any question, Online support are also provided in after-sale service.
