Трехфазное четырехлинейное реле напряжения 63 а с автоматическим восстановлением регулируемое защитой от перегрузки по

Описание и отзывы

Трекер стоимости

Характеристики

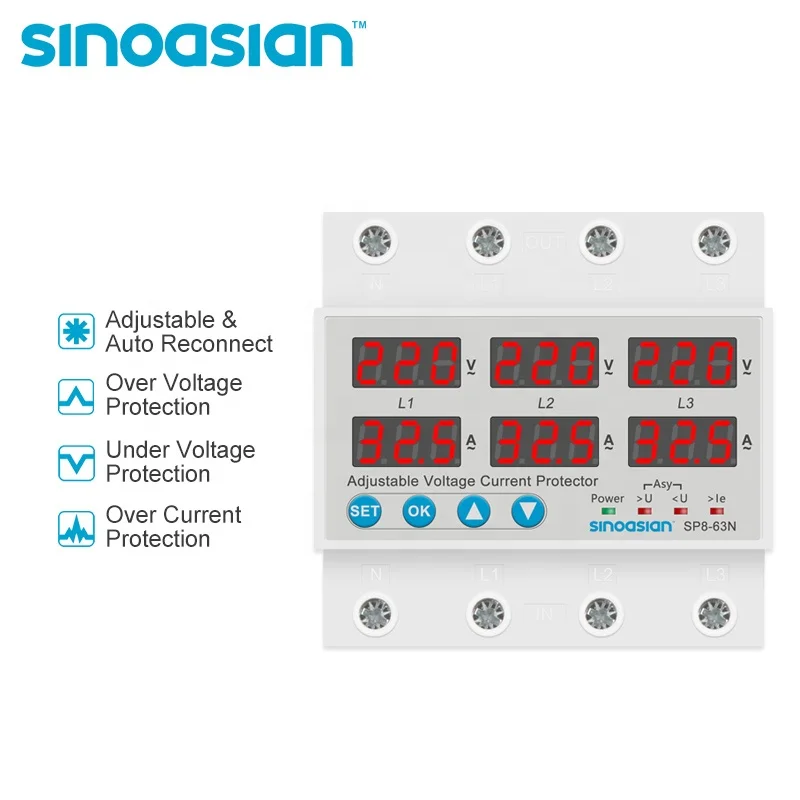

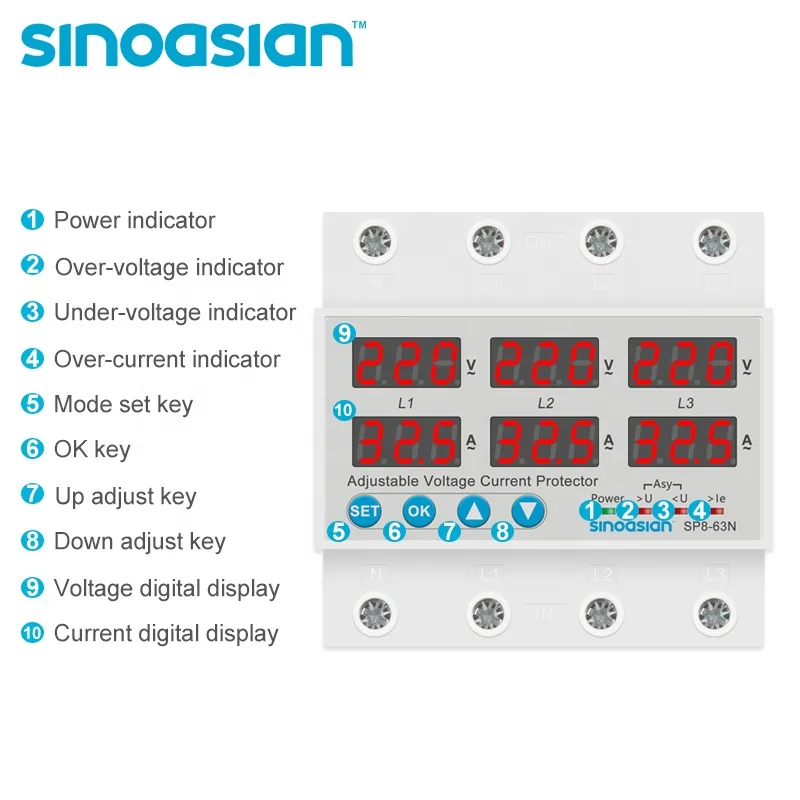

Functions 1. Over-voltage protection 2. Under-voltage protection 3. Over-current protection 4. Asymmetry protection

5. Phase protection 6. Working voltage/current display 7. Adjustable voltage/current/time/... 8. Automatic recovery

Technical Parameters 1. Pole No.: 3P+N 2. Model code: SP8-63N/B 3. Rated voltage: 380/415V AC 4. Frame current: 63A (100A) 5. Power consumption: <2W 6. Life: 100,000 times 7. Installation: 35mm DIN rail 8. Adjustable setting ranges:  a. Over-volt: 230~300V (Default 270V)  b. Under-volt: 110~210V (Default 170V)  c. Over-current: 1~63A/100A (Default 63A)

d. 3 phase voltage error value:      -9.5%~9.5% (Default 0)  e. 3 phase current error value:      -9.5%~9.5% (Default 0)   f. 3 phase voltage unbalance value:      20~99V (Default 20V).  g. 3 phase voltage unbalance protection switch:      ON/OFF (Default OFF)  h. Continuous over current faults time:      0~20S (Default: OFF)   i. Trip time: 1~30S (Default 0.5S)   j. Recovery time: 1~500S (Default 5S)





Q1: Are you manufacturer or trading company?

A1: Our factory was established in 2012 in Liushi Town, Wenzhou City, China.



Q2: What's your sample policy?

A2: The cost of samples and freight should be paid, but will be refunded in the first official order.



Q3: Can you make OEM/ODM?

A3: OEM/ODM will be available. We can put your logo on the products and packages and develop the design according to your requirements.



Q4: What's your period of warranty and certification?

A4: The products from Sinoasian which have CE, ISO9001, RoHs and related certifications aprroval will be given with the service of 2-year warranty except the factors of human or force majeure.



Q5: What's your MOQ and agent/sole-distributor policy?

A5: MOQ of Sinoasian products is 1 pc and the standard MOQ of the customzied products is 3000pcs. If you want to be our agent/sole-distributor, please contact our manager for details +8613736765717.



Q6: What's the payment terms?

A6: 30% T/T as deposit, and the balance against delivery.
