Slim Type Magnetic Scale KA800MC For Lathe X axis Small Table Lathe Machine



Sino KA800MC series SLIM TYPE MAGNETIC SCALE IS AN IDEAL CHOICE FOR LATHE X-AXIS

Slim Type Magnetic Scale KA800MC Description:

• Magnetic non-contact reading head;Travel range from 120mm – 470mm


• 5μm resolution as standard, other options on request.


• EIA-422-A / RS422 output signals as standard, other on request.


• LED light equipped for installation status feedback.


• Wipers equipped for a clean magnetic scale surface.


• IP67 high protection level.

 Slim Type Magnetic Scale KA800MC Featuers:

• Voltage:4.7V to 7V( The range of antipole and overvoltage protection:-20V-+20V)


• Supply current:<35mA


• Cable Voltage-drop:
  ~4.8mV/m-without load
  ~12.5mV/m-with 120Ω load


• Output signal:RS422/TTL


• Signal Level:
  UH≥2.5V at-IH=20mA
  UL≤0.5V at IL=20mA


• Temperature: working:-10℃-+80℃


• Storage -40℃-+85℃


• Resolution:0.01mm,0.005mm,0.001mm


• Accuracy:±0.025mm/M


• Repeat Accuracy:1 pulse


• Maximum cable length:200M

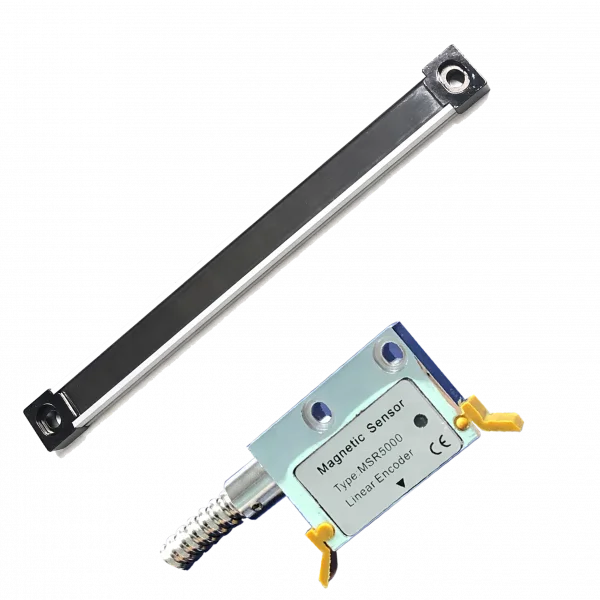

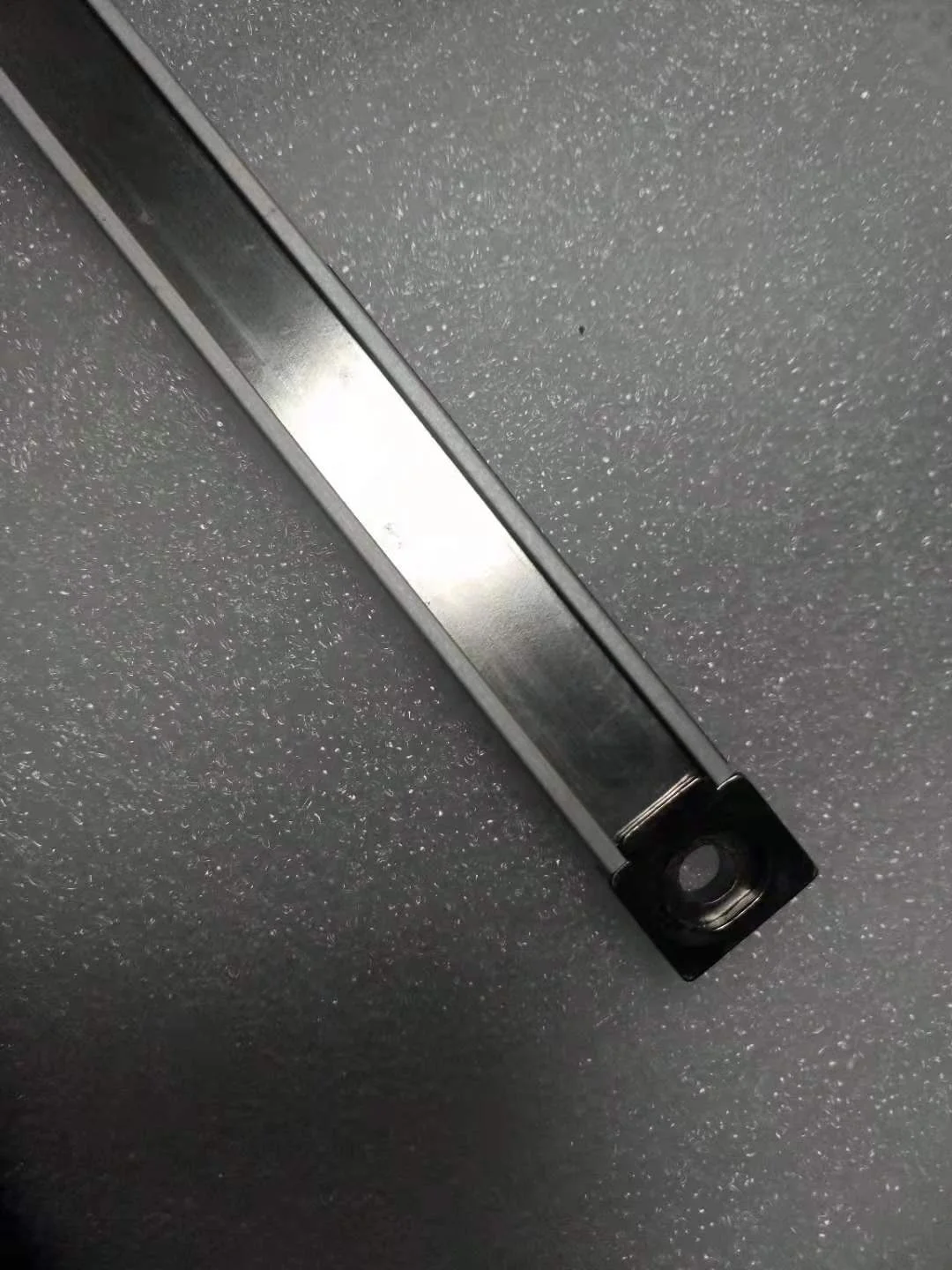

Slim Type Magnetic Scale KA800MC Pictures:

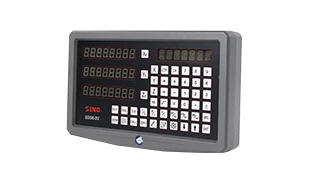

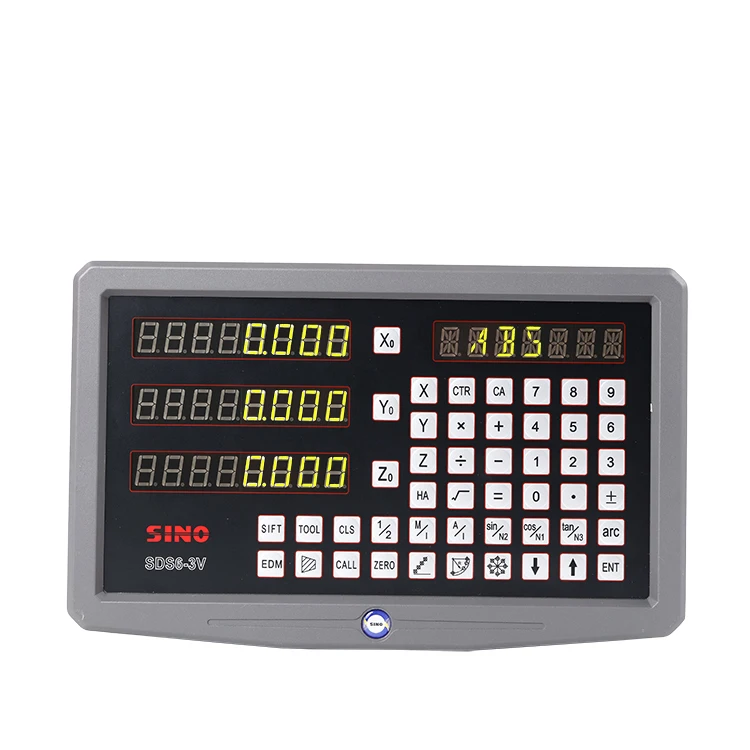

Packing & Shipping of Magnetic Scale and DRO:

Company Information:

Dongguan YiHao Precision Optoelectronics Co.Ltd is a professional company to develop and produce various kinds of Precision Digital Readouts, Linear Scale, Magnetic Scale in Dongguan China. From The beginning, Yihao ultimate objective was to provide the best Products and services to satisfy requirement of its customers. In order to provide its customers with products of the highest quality, Yihao Precision is committed to the continuous improvement of its products , manufacturing processes, working environment and the skills of its people . all its tests are based on internationally accepted quality standards .And the accuracy of Linear Scale is controlled by laser technology . You can trust that you will be satisfied when you use Yihao Digital Readout, Linear Scale, Magnetic scale, and industrial automation products for increasing the productivity and value of your products

FAQ:

1. What is the max travel length of linear scales?

The travel length of our linear scales are from 50mm to 3000mm,resolution is 0.5um,5um,1um and 10um 2. What is the delivery date after the payment?

 Normally the shipment is within two days after the payment for small orders

3. What is the warranty of the products?

 Two years

4. What is the MOQ?

1pcs or more

5. Do you provide samples? Is it free or extra?

The Sample is free, but the freight needs to be self-charged.

6. Can I have our logo on the products?

Yes, both OEM and ODM are accepted.
