Легкая установка, автоматические доводчики
US $2.90-$4.50
Напольная пружина китайские товары стеклянная раздвижная дверь гидравлическая Регулировка
- Категория: Door Closers >>>
- Поставщик: Foshan,Taolang,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 29.2 $* | 30.3 $* |
| Jul-17-2025 | 24.76 $* | 24.31 $* |
| Jun-17-2025 | 29.82 $* | 30.40 $* |
| May-17-2025 | 29.77 $* | 30.24 $* |
| Apr-17-2025 | 23.11 $* | 23.49 $* |
| Mar-17-2025 | 28.89 $* | 29.83 $* |
| Feb-17-2025 | 28.11 $* | 29.36 $* |
| Jan-17-2025 | 28.11 $* | 29.96 $* |
Характеристики
Floor Spring Chinese Products Glass Sliding Door Closer Hydraulic Adjustment Glass Door Floor Spring
Model | FAM-T68 | |
Material | Pressed Iron | |
Finish | Mirror,Satin | |
Size | 290*130mm | |
Max Door Weight | ≤110kg | |
Max Door Width | ≤1000mm | |
Feature | Switching for 500,000 times | |
Function | One way open at 116°,90° and 116° two-way positioning | |
Application | Steel and wooden doors, 8-12 toughened glass door | |
Service | OEM & ODM | |
*The price does not include the expenses of transportation and color boxes. | ||

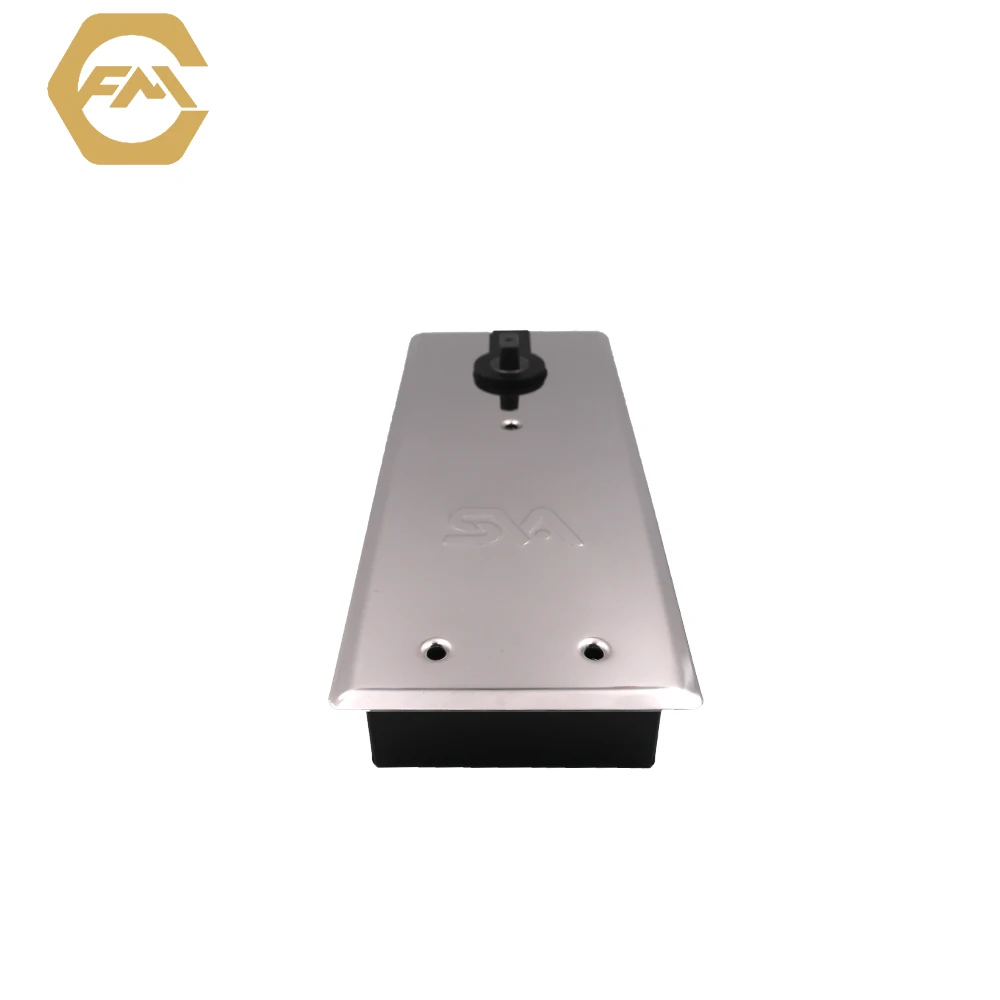

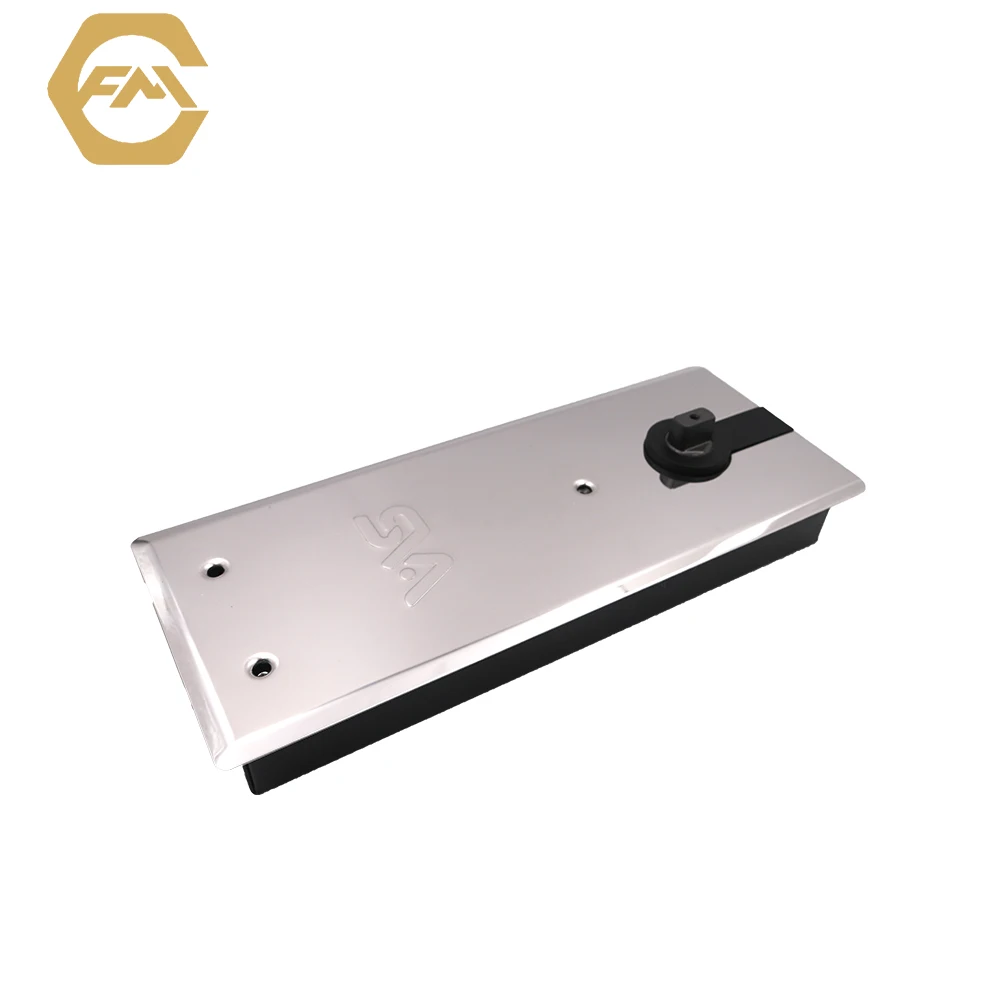

Floor Spring
FAM-T68

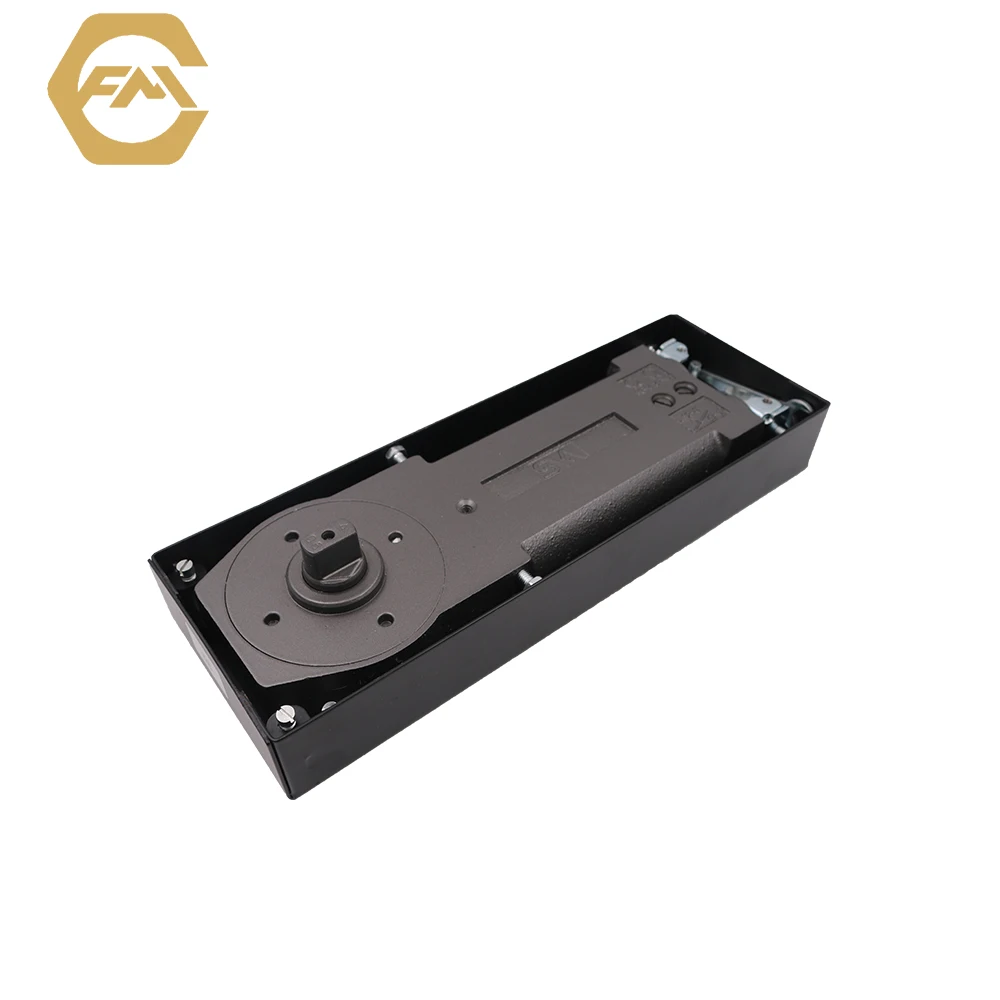

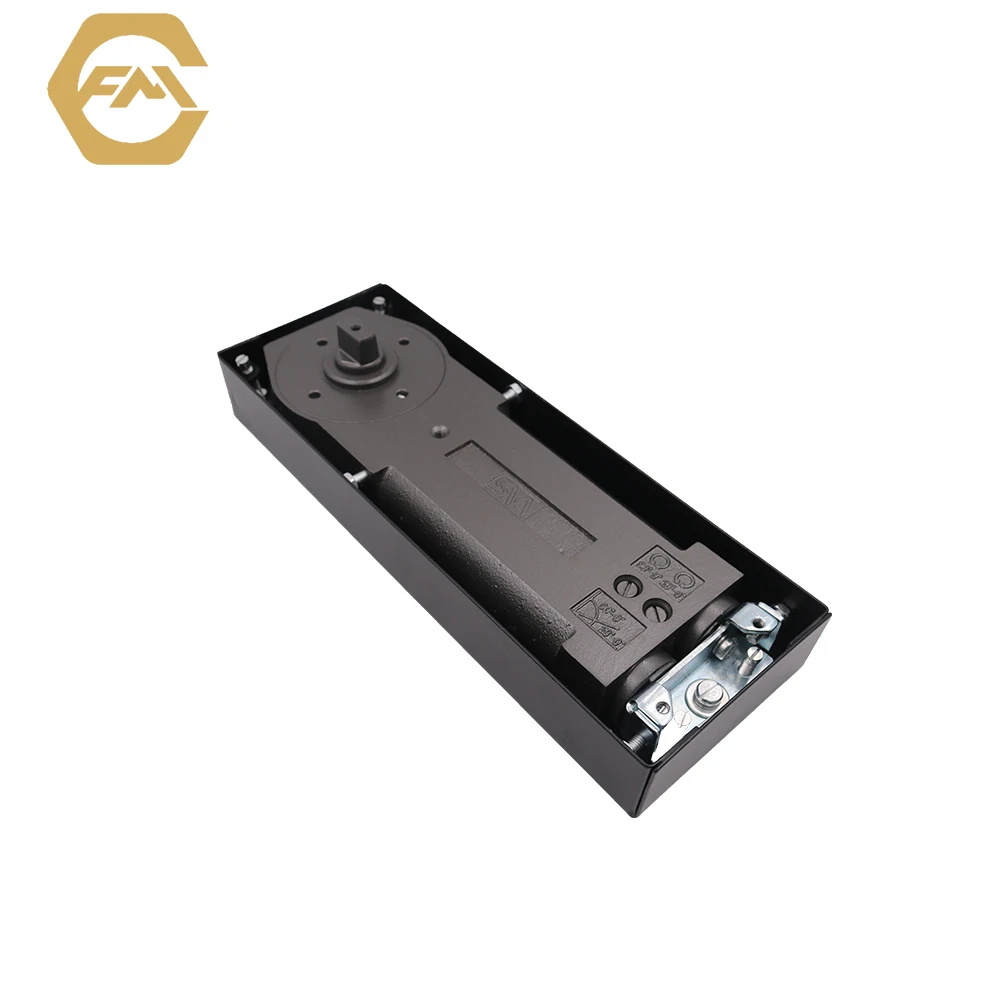

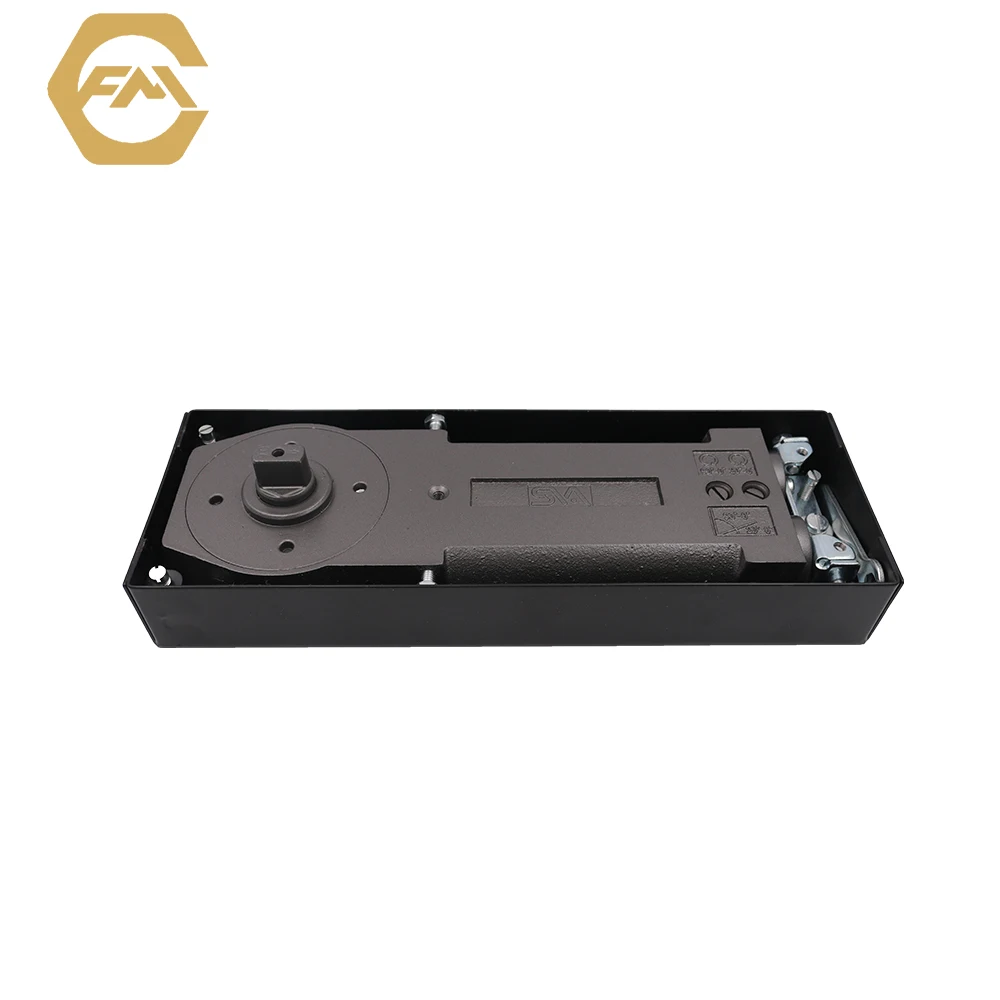

Product Details
Material
Floor sprig is equipped with double ball bearings, and the main components are forged with CP-M1 alloy steel.It can be used normally at -40℃ to 40℃ temperature environment.

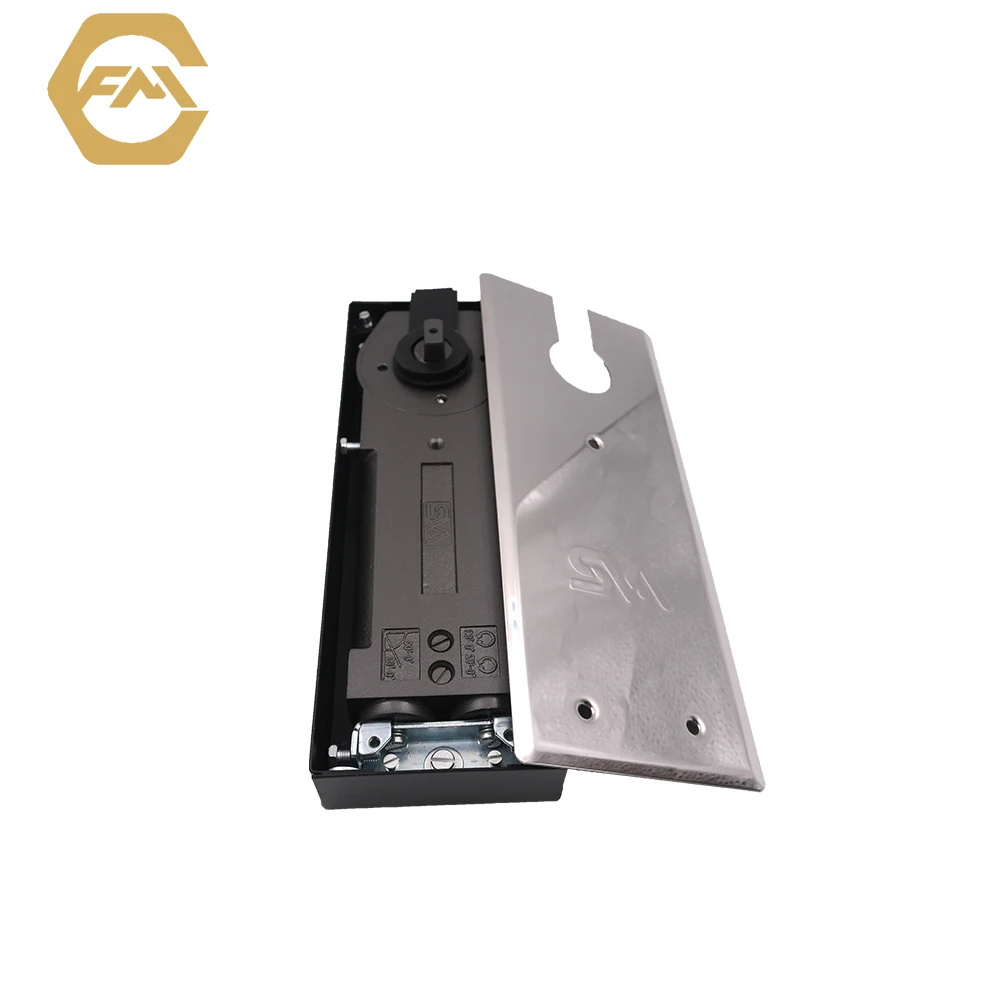

Cover Plate
The thickness of the thickened cover plate is 1.2mm, and the humanized chamfering design prevents scratching.
Anti-rust Paint
The machine core passes through the advanced automatic spray paint, the antirust paint evenly covers the entire machine core. Not easy to oxidize, increase the service life of the spring.
Installation
The length and width of the cement box can be adjusted by 5mm.When calibrating each one,the installation can be more convenient by adjusting ±2° longitudinally.
Fittings Selections
Spindle Head Selection
Doma Spindle Head
D-insert Spindle Head
Functional Details
Functional description:
1、0 degrees means the door is closed and 90 degrees means the door is positioned.
2、Second stage speed regulation: 90 degrees -15 degrees for the closing stage/15 ° -0 ° is the latching stage
2、Second stage speed regulation: 90 degrees -15 degrees for the closing stage/15 ° -0 ° is the latching stage
Installation Steps
Installation steps of ground spring:
A. Draw lines to coincide the center of the rotating shaft of the floor spring with the rotating shaft of the door.
B. According to the instructions and abjects, holes are made on the ground. The size of holes should be tightly matched with the floor spring shell, so that they can not be loosened.
C. Put the ground spring into the open and set it right.
D. Lift the door with the door clip and insert the rotary shaft of the ground spring into the rotary shaft hole of the door.
E. Adjust the screws of the ground spring in three directions to keep the door vertical and the axis of up and down rotation coincide.
F. Adjust the closing speed.
G. Cover the floor spring decorative cover.
B. According to the instructions and abjects, holes are made on the ground. The size of holes should be tightly matched with the floor spring shell, so that they can not be loosened.
C. Put the ground spring into the open and set it right.
D. Lift the door with the door clip and insert the rotary shaft of the ground spring into the rotary shaft hole of the door.
E. Adjust the screws of the ground spring in three directions to keep the door vertical and the axis of up and down rotation coincide.
F. Adjust the closing speed.
G. Cover the floor spring decorative cover.
Application
Product Packaging
1 piece /box
4 boxes/carton
