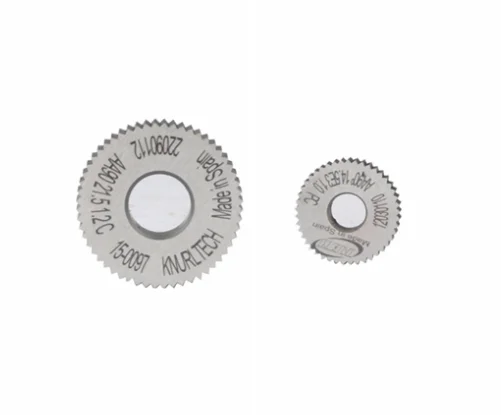

Standard knurling wheels of double wheel cutting

KC-CH Cut knurling tool

Knurling Features: Turning outside diameter knurling tool can adjust the cutting angle, can protect the accuracy of machine tools, low rigidity for small machine tools. Suitable machine type:CNC lathe, automatic lathe. Multi spindle lathe, Swiss type automatic lathe, turn milling machine tool.

Suitable machine type: CNC lathe, automatic lathe, multi spindle lathe, Swiss automatic lathe, turning milling machine

Double wheels cut knurling tool

You can adjust the cutting angle of the tool, protect the accuracy of the machine tool, and lower the rigidity of the small lathe.

Product data

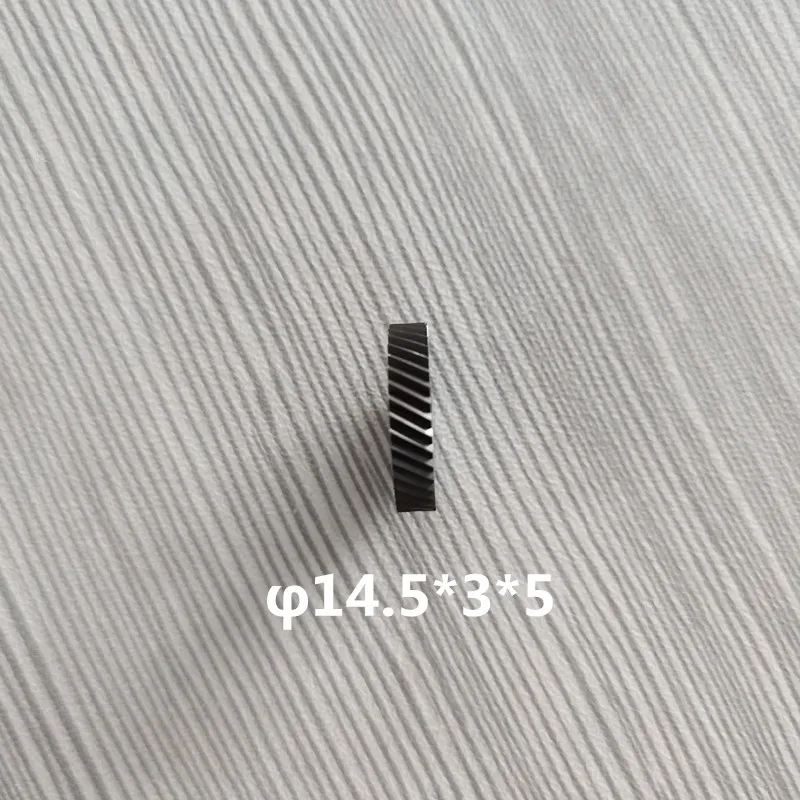

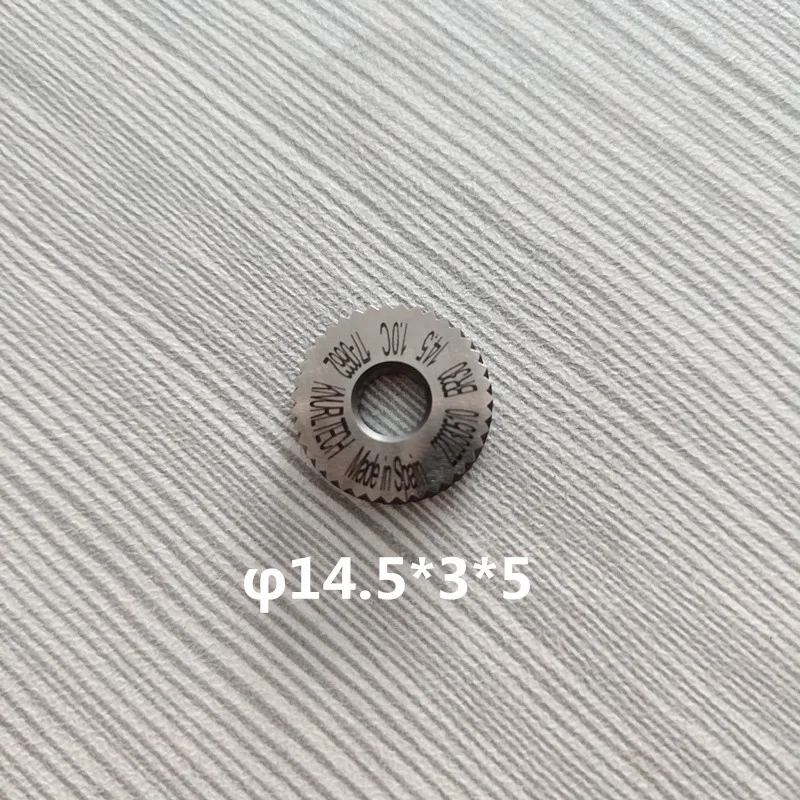

Knurling wheel

Product data

Cut knurling tools usage

1. Clamp the tool into the tool seat, adjust the center height of the tool to ensure the center position of the workpiece.

2.Press the Knurling wheel close to the outer diameter of the workpiece, adjust the two wheels, the whole width of the axis, fully attached to the workpiece.

3. When knurling starts, fast to the distance between the teeth of the 1/2 and the width of the wheel is about 1/3.

4. When the shape is finished, the Z axial feed is started.

5. If the tooth type is wrong, it can be adjusted by adjusting the tool seat axial direction

6. Use larger cutting fluid to remove the scrap iron.
