Электронная печатная плата на заказ дизайн печатной платы производство электронной
- Категория: >>>
- Поставщик: Sichuan,Festalight,Photoelectric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.90 $* | 0.13 $* |
| Aug-18-2025 | 0.62 $* | 0.33 $* |
| Jul-18-2025 | 0.29 $* | 0.16 $* |
| Jun-18-2025 | 0.58 $* | 0.77 $* |
| May-18-2025 | 0.98 $* | 0.12 $* |
| Apr-18-2025 | 0.91 $* | 0.39 $* |
| Mar-18-2025 | 0.63 $* | 0.91 $* |
| Feb-18-2025 | 0.60 $* | 0.84 $* |
| Jan-18-2025 | 0.91 $* | 0.17 $* |
Характеристики

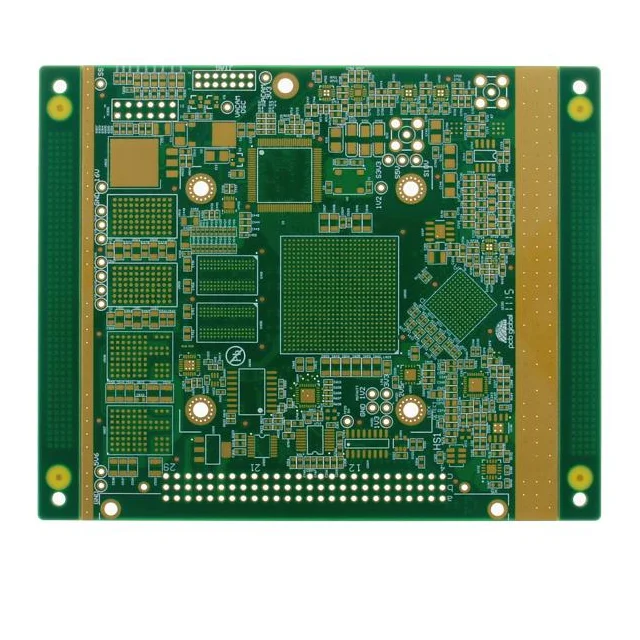

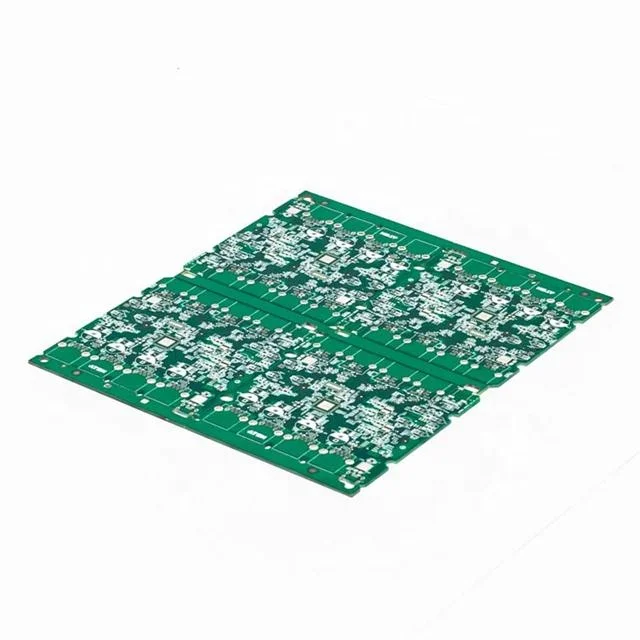

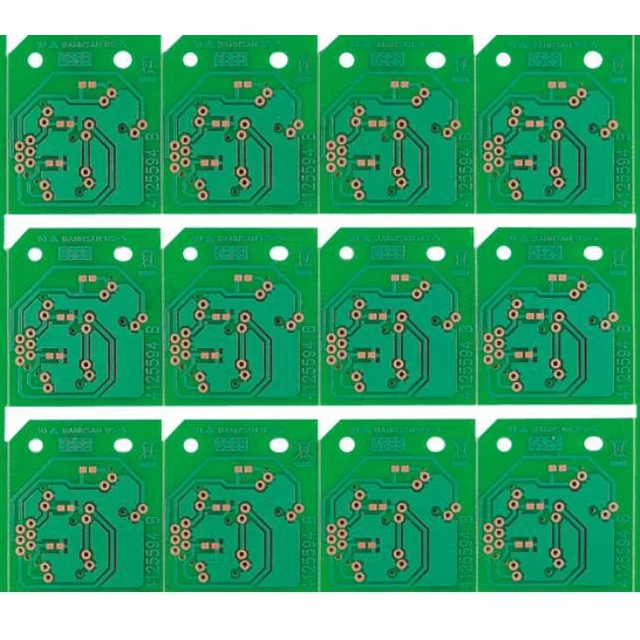

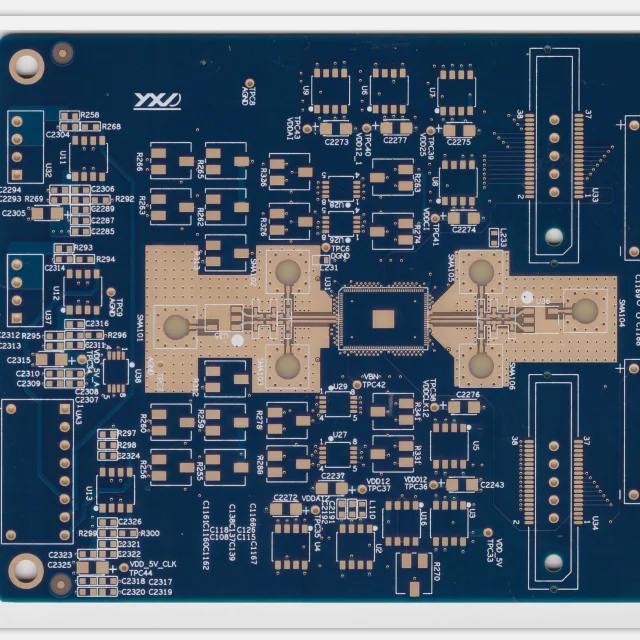

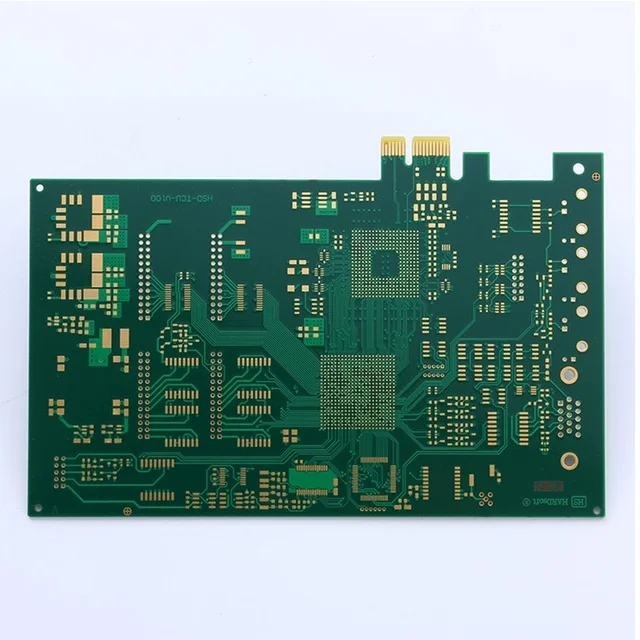

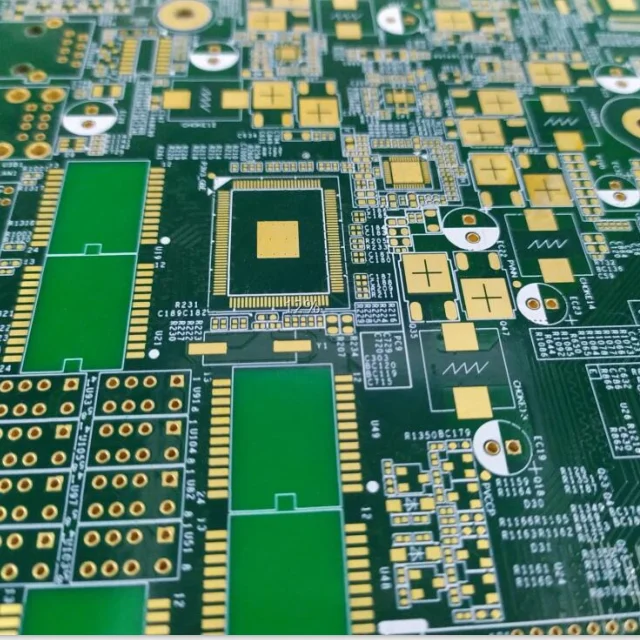

Product Description
Specification
Feature | Capability |
PCB Type | Rigid PCB(CEM, FR4), Flexible PCB, Rigid-Flex PCB, MCPCB(Aluminum PCB), Ceramic PCB, RF PCB, etc. |
Number of Layers | 1 – 32layers |
Order Quantity | 1pc – 10,000,000 pcs |
Build Time | 2days – 5weeks (Expedited Service) |
Material | FR-4 Standard Tg 150°C |
FR4-High Tg 170°C | |
FR4-High-Tg 180°C | |
FR4-Halogen-free | |
FR4-Halogen-free & High-Tg | |
Board Size | Min 6*6mm | Max 600*700mm |
Board size tolerance | ±0.1mm – ±0.3mm |
Board Thickness | 0.4mm – 3.2mm |
Board Thickness Tolerance | ±0.1mm – ±10% |
Copper Weight | 0.5oz – 6.0oz |
Inner Layer Copper Weight | 0.5oz – 2.0oz |
Copper Thickness Tolerance | +0μm +20μm |
Min Tracing/Spacing | 3mil/3mil |
Solder Mask Sides | As per the file |
Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
Silkscreen Sides | As per the file |
Silkscreen Color | White, Blue, Black, Red, Yellow |
HASL – Hot Air Solder Leveling | |
Lead Free HASL – RoHS | |
ENIG – Electroless Nickle/Immersion Gold – RoHS | |
ENEPIG – Electroless Nickel Electroless Palladium Immersion Gold – RoHS | |
Immersion Silver – RoHS | |
Immersion Tin – RoHS | |
OSP -Organic Solderability Preservatives – RoHS | |
Min Annular Ring | 3mil |
Min Drilling Hole Diameter | 6mil, 4mil-laser drill |
Min Width of Cutout (NPTH) | 0.8mm |
NPTH Hole Size Tolerance | ±.002″ (±0.05mm) |
Min Width of Slot Hole (PTH) | 0.6mm |
PTH Hole Size Tolerance | ±.003″ (±0.08mm) – ±.006″ (±0.15mm) |
Surface/Hole Plating Thickness | 20μm – 30μm |
Company Profile
Sichuan festaglight is an industry leading PCB multi-layer circuit board manufacturing enterprise, headquartered in Suining, Sichuan, which was put into operation in 2011. Now it has more than 1100 employees, specializing in the production of 2 ~ 40 layers of medium and small batch and large batch circuit boards.
With the unremitting efforts of all people, yingchuangli has gradually developed into a professional company covering sample to batch PCB R & D, production, sales, and printed circuit. It has a total of 60000 square meters of modern plant and full process production and testing equipment, with a monthly output of 120000 square meters, a monthly delivery of 5000 models, and a 24-hour delivery of double-sided boards, The fastest delivery time is 48 hours for floor 4-6 and 72 hours for floor 8 and above.
Sichuan Festalight has a full set of world advanced PCB production and testing equipment, and its products are widely used in communication network, consumer electronics, automotive electronics, industrial control, photoelectric lighting, power supply and energy and other fields.
With the unremitting efforts of all people, yingchuangli has gradually developed into a professional company covering sample to batch PCB R & D, production, sales, and printed circuit. It has a total of 60000 square meters of modern plant and full process production and testing equipment, with a monthly output of 120000 square meters, a monthly delivery of 5000 models, and a 24-hour delivery of double-sided boards, The fastest delivery time is 48 hours for floor 4-6 and 72 hours for floor 8 and above.
Sichuan Festalight has a full set of world advanced PCB production and testing equipment, and its products are widely used in communication network, consumer electronics, automotive electronics, industrial control, photoelectric lighting, power supply and energy and other fields.
FAQ
Q:What files do you use in bare pcb fabrication?
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG
Q:How can i know the processing about my PCB order?
A:Each Customer will have a sale to contact with you. Eastwin working hours:AM 9:00-PM 6:00(Beijing Time) from Monday to Friday.
we will reply your email in 2hours during our working time. And you also could contact with our sales by cellphone if urgent.
Q:How long will we get the quotation after providing pcb gerber file,completed bom list,part datasheet and PNP file?
A: The quotation will be sent in less than 2 work days, for some special components, you also could recommend supplier to us.
Q:If all PCBs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of PCB will be tested before shipment, we ensure the goods we sent with good quality.
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG
Q: What is the MOQ
A: No MOQ
Q:How can i know the processing about my PCB order?
A:Each Customer will have a sale to contact with you. Eastwin working hours:AM 9:00-PM 6:00(Beijing Time) from Monday to Friday.
we will reply your email in 2hours during our working time. And you also could contact with our sales by cellphone if urgent.
Q:How long will we get the quotation after providing pcb gerber file,completed bom list,part datasheet and PNP file?
A: The quotation will be sent in less than 2 work days, for some special components, you also could recommend supplier to us.
Q:If all PCBs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of PCB will be tested before shipment, we ensure the goods we sent with good quality.
Products Lead-Time
PCB Production Flow Chart
CERTIFICATE
Production Equipment
