2021 промышленный недорогой небольшой раствор воды 8-8-3/машина для розлива минеральной чистой воды/недорогая машина бутылок с
- Категория: Packaging Machines >>>
- Поставщик: Zhangjiagang,Hengyu,Beverage,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 11900.8 $* | 12495.41 $* |
| Aug-19-2025 | 11800.92 $* | 12390.2 $* |
| Jul-19-2025 | 9900.52 $* | 10395.6 $* |
| Jun-19-2025 | 11600.91 $* | 12180.82 $* |
| May-19-2025 | 10100.41 $* | 10605.81 $* |
| Apr-19-2025 | 11400.9 $* | 11970.91 $* |
| Mar-19-2025 | 11300.20 $* | 11865.48 $* |
| Feb-19-2025 | 11200.53 $* | 11760.3 $* |
| Jan-19-2025 | 11100.22 $* | 11655.52 $* |
Характеристики
Click Above Jump to GET SOLUTION!
If you are finding a Trustworthy Filling Machine Manufacturer & Long-Term Oversea Partner, Hengyu is your First Choice!
2,000+ Success Pros
2,000+ top filling production lines during past 18 years.
Original Manufacture
100% guaranteed satisfaction and No Overpay Again!
Money & Cost Saving
1- 1 Vip Custom Solution to support your business.
All-in-one Top Filling Solution
Product Description
CGF8-8-3
Product Capacity:2000BPH@500ml
- Product Features -
wine drinks.
2)Washing,filling and capping are available in one machine.
3)The contact time between raw materials and the outside world has been reduced to improve the health conditions, production
capacity and economic benefits.
4)The structure of conveying is hanging type and clamping the bottleneck to easily change bottle type.
5)Using the advanced PLC(Programmable Logic Controller) technology.
6)The major electrical apparatus are all products of well-known brands, such as SIEMENS, MITSUBISHI, Schneider and OMRON.
-Technical Parameters-
Model(CGF-R) | 8/8/3 |
Rinsing heads | 8 |
Filling heads | 8 |
Capping heads | 3 |
Capacity(BPH) | 2000BPH for 5000ml PET bottle |
Power(kw) | 1.5 |
2.Dimension(mm) | 2600*1920*2550 |
Weight(kg) | 2000 |
-Detailed Images-

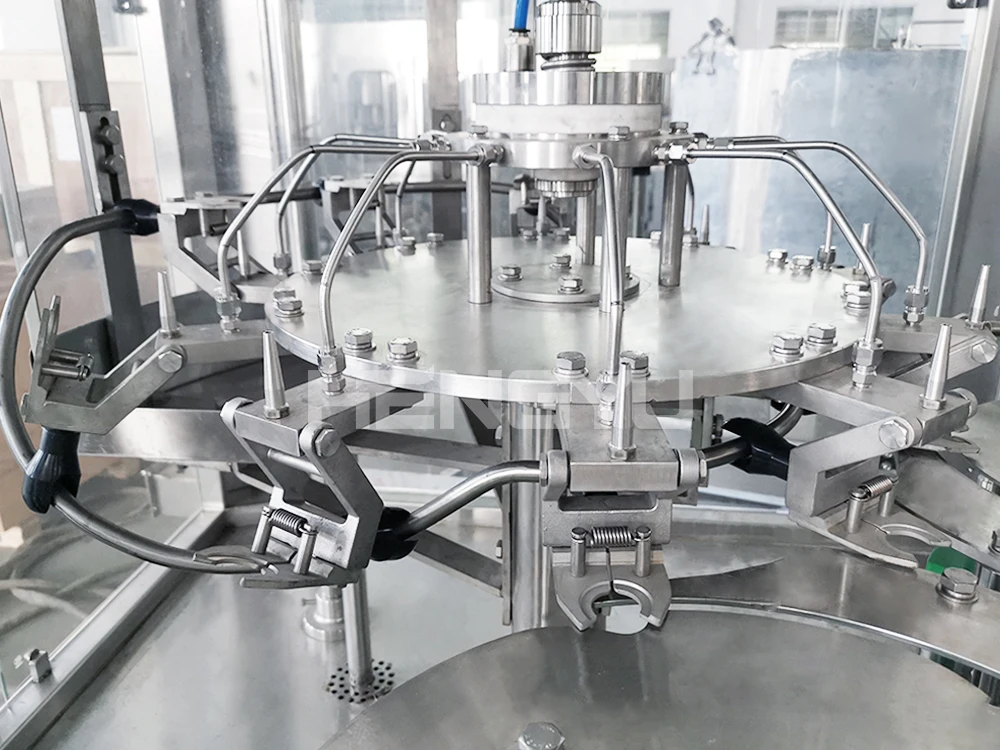

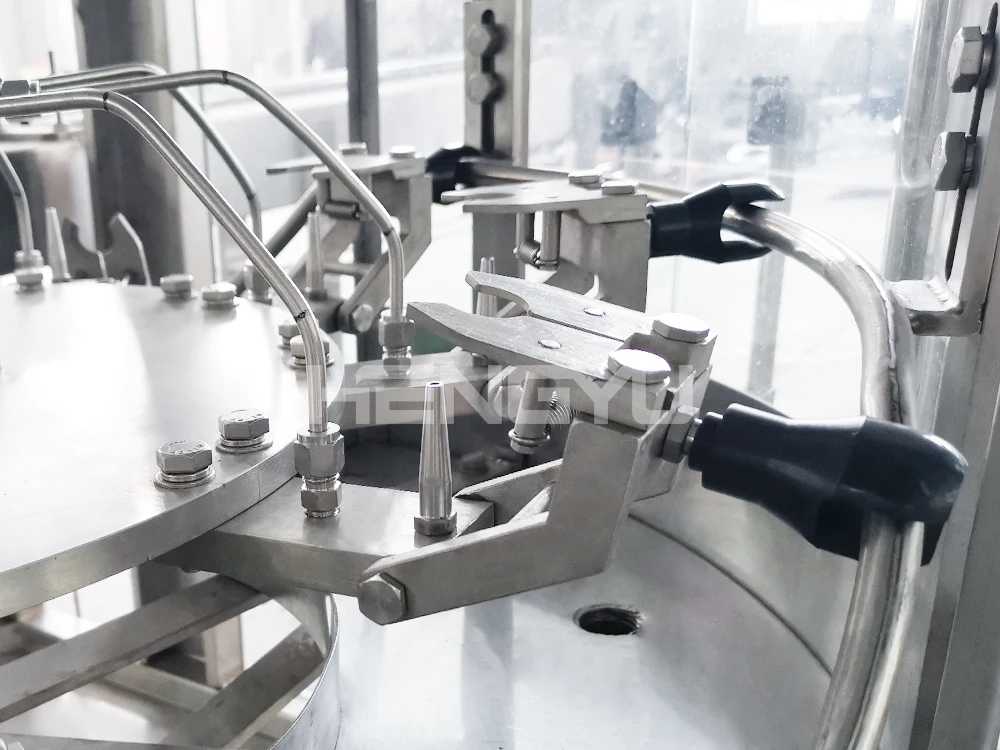

Washing Part
1)Into bottle way is flat conveyor cooperated with stopping cylinder.
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4)304/316 stainless steel washing pump make the machine more durable .
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4)304/316 stainless steel washing pump make the machine more durable .

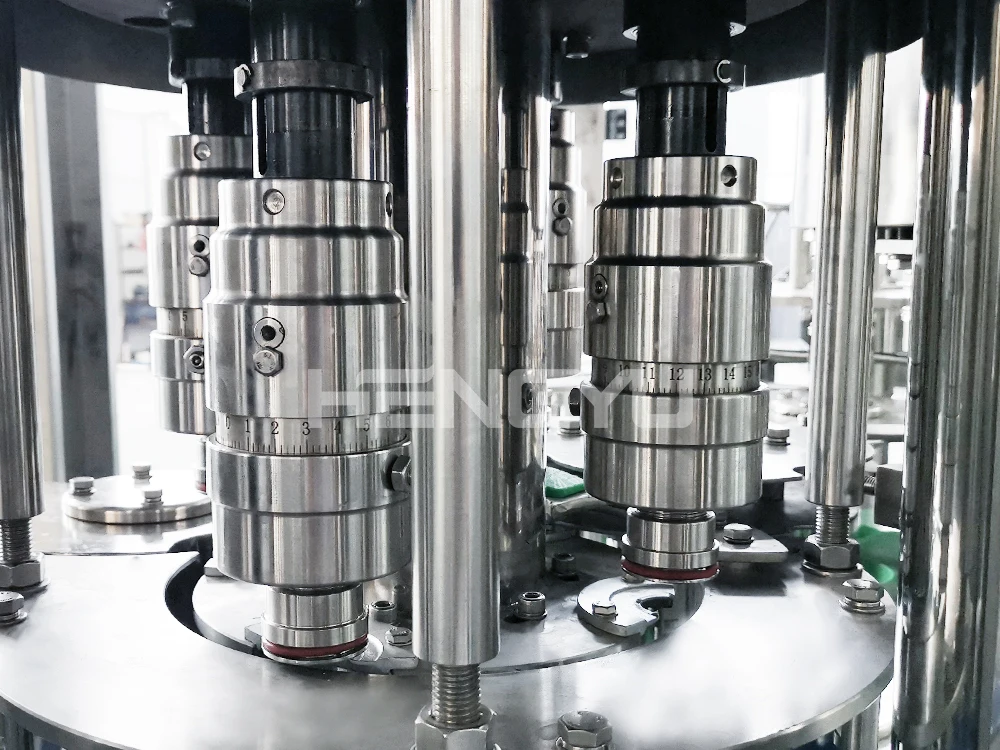

Filling Part
1)304/316 Stainless steel high precision filling nozzle
2) Filling volume adjustable in fine rank, same liquid level after filling
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing
2) Filling volume adjustable in fine rank, same liquid level after filling
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing

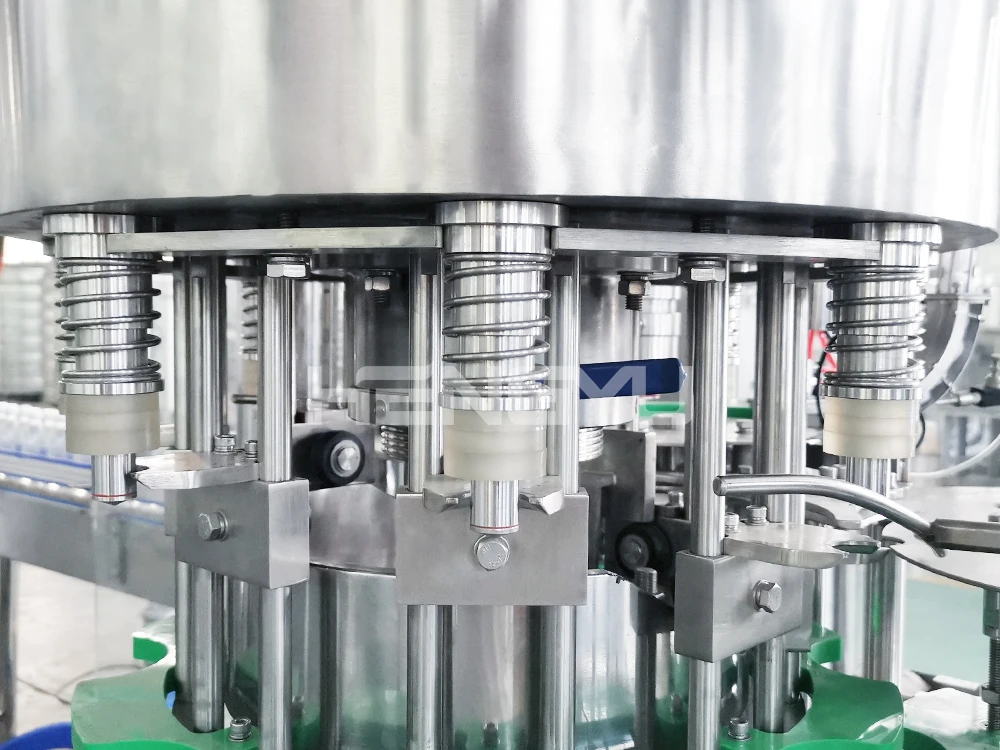

Capping Part
1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2% .
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2% .
Auxiliary
Water Treatment System
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump
Bottle Blowing Machine
The pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has various cavities and the maximum capacity of the products is 20L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics,wide-mouth, hot filling, and other packing containers etc. Which is made of plastic of crystalline type, such as PET and PP etc.
Bottle Dryer
Using high pressure air ventilation, so that high-speed air flow ejected from a slit, the remaining drops of water bottles as much as possible the body blow it away. Inclination of the slit so that the entire side of the bottle can be high-speed air-blown. The bottle dryer consists of the high pressure air fan, pressure tank, inflatable tube, rack, control devices, and other components.
Laser Printer
Laser marking machines handle nearly every industrial marking and DPM (Direct Part Marking) task. Metals, plastics, ceramics,glass etc. are processed efficiently and contact-free. All desired contents are applied repeatedly accurate and reliably: 2D, DMC and alphanumeric codes, simple serial numbers, complex logos, graphics, structures. Depending on the material and application task, the process is laser marking, engraving or deep engraving.
Sleeve Labeling Machine
This machine adopts international advanced technology; cover the circle label on the pet bottle. And then hot shrinking to fix on the position which bottle body designated. This machine's structure is compact, and suitable for the production line of different
direction and different height.
direction and different height.
Shrink Film Packing Machine
The machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.
About HENGYU
Our Service
FAQ
Q1: How to choose the most suitable machine and get the final suitable price?
A1: For beverage bottle Filling Machine, you need to reply us the following questions:
1. What kind of product (carbonated or no carbonated beverage, juice or water) for filling?
2. What's the volume of the bottle(Can)?
3. Could you show us picture of your Bottle/can?
4. Could you send some bottle samples to us?
5. What capacity do you need for production?
Q2: Do you have videos or manual for us to know the machine better?
A2: Yes, of course. Please email us and ask for it. We will send you soon.
Q3: How about your machine's quality?
A3: Every machine is applied with CE certificate, SGS certificate, highly meets requirement of TUV,
made of SUS 304 for food packaging; SUS316 for pharmaceutical products packaging. Inspect certificate is available.
Q4: What's the delivery time? A4: Depending on your order: for whole production line it is 40~60 workdays.
bottle or tube filling machine, labeling machine, capping machine, unscrambling machine, can sealing machine will be 30~40 days.
Other simple equipment will be around 20 days. The above delivery time is calculated after receiving the down payment as well as sample bottles / tubes and materials.
Q5: Is there MOQ for your machine?
A5: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q6: How to install the machine?
A6: Please do not worry. We will send you detailed video and instruction manual for your reference.
Customer also can appoint your engineers to our factory to learn. Our engineers also can go abroad to install the machine well,however, customer needs to pay round air tickets, hotel and service expenses
A1: For beverage bottle Filling Machine, you need to reply us the following questions:
1. What kind of product (carbonated or no carbonated beverage, juice or water) for filling?
2. What's the volume of the bottle(Can)?
3. Could you show us picture of your Bottle/can?
4. Could you send some bottle samples to us?
5. What capacity do you need for production?
Q2: Do you have videos or manual for us to know the machine better?
A2: Yes, of course. Please email us and ask for it. We will send you soon.
Q3: How about your machine's quality?
A3: Every machine is applied with CE certificate, SGS certificate, highly meets requirement of TUV,
made of SUS 304 for food packaging; SUS316 for pharmaceutical products packaging. Inspect certificate is available.
Q4: What's the delivery time? A4: Depending on your order: for whole production line it is 40~60 workdays.
bottle or tube filling machine, labeling machine, capping machine, unscrambling machine, can sealing machine will be 30~40 days.
Other simple equipment will be around 20 days. The above delivery time is calculated after receiving the down payment as well as sample bottles / tubes and materials.
Q5: Is there MOQ for your machine?
A5: 1 set is acceptable. Of course, if you order more, it will be fine and its price will be more competitive.
Q6: How to install the machine?
A6: Please do not worry. We will send you detailed video and instruction manual for your reference.
Customer also can appoint your engineers to our factory to learn. Our engineers also can go abroad to install the machine well,however, customer needs to pay round air tickets, hotel and service expenses
