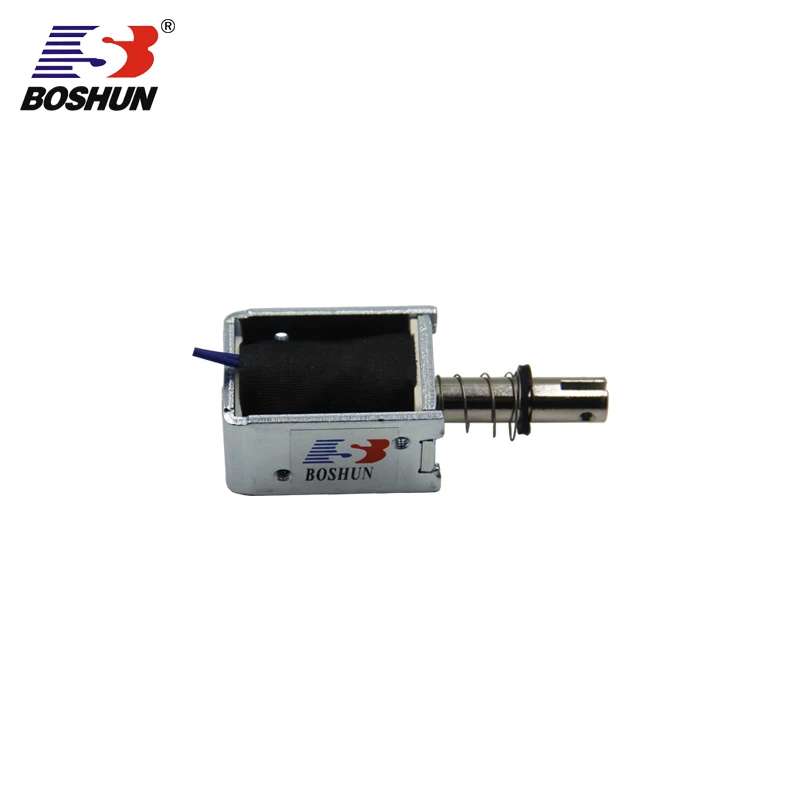

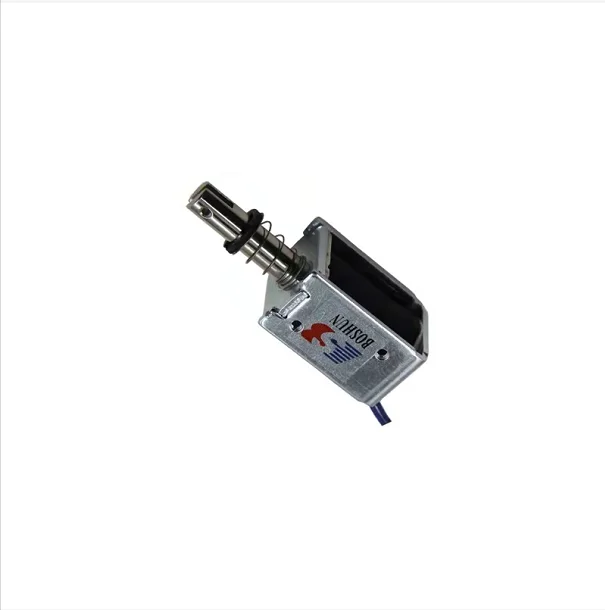

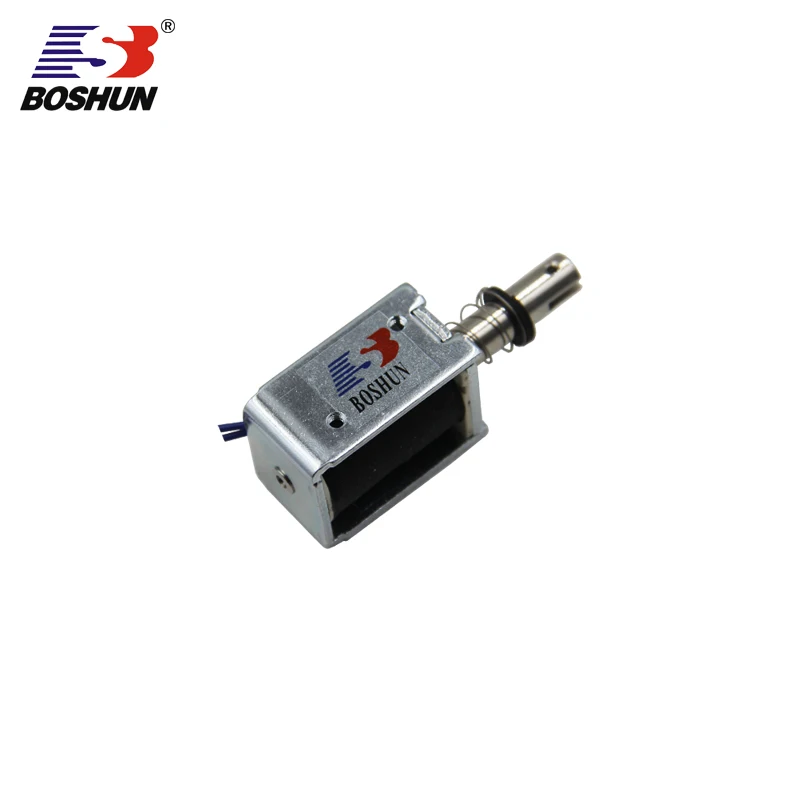

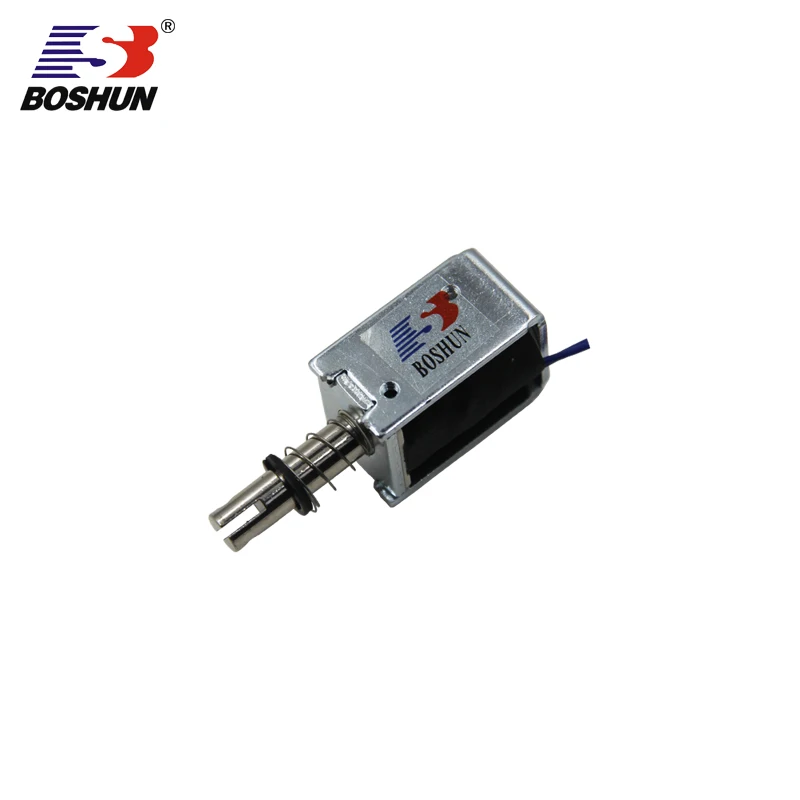

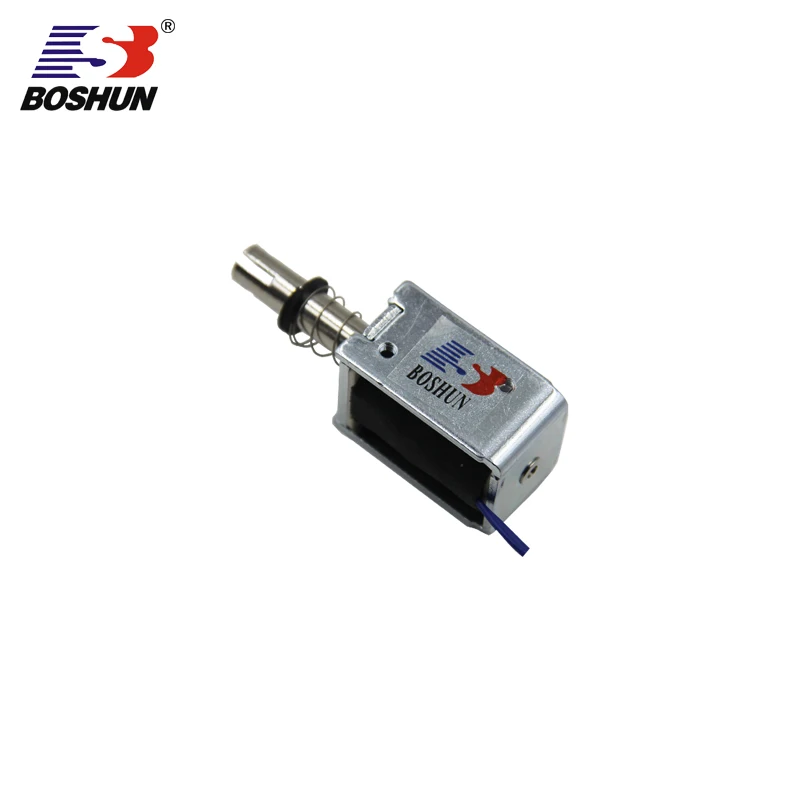

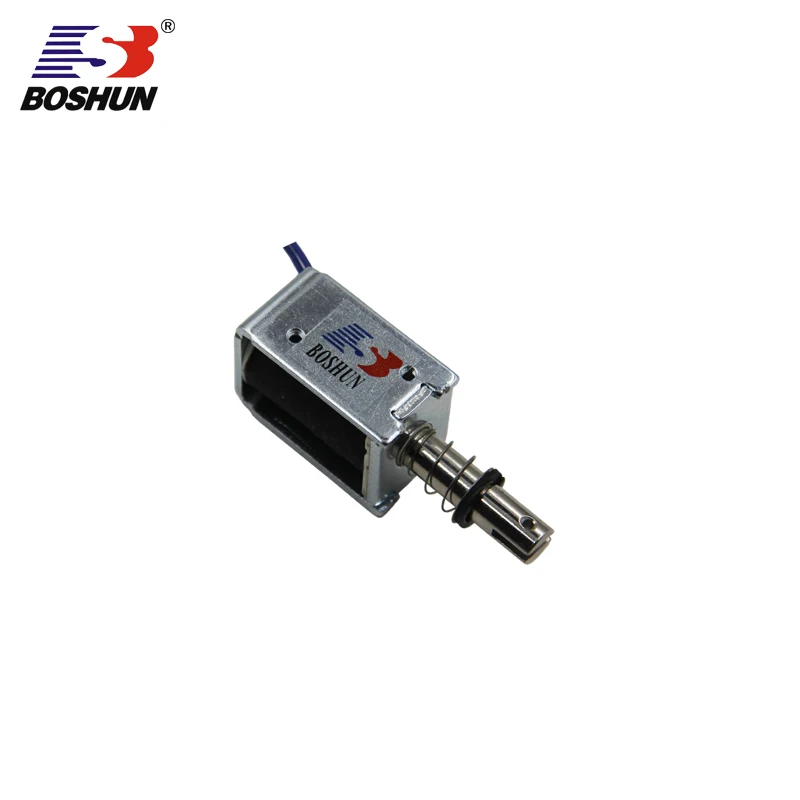

BS-0837-161 Лидер продаж высокое качество свитер Тип пуш-ап с открытой рамкой редукционный

BS-0837-161 Лидер продаж высокое качество свитер Тип пуш-ап с открытой рамкой редукционный

Категория: >>>
Поставщик: Dongguan,Boshun,Industry,Co.,Ltd.

Цена:2,20 $ - 2,40 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	2.57 $*	2.99 $*
Aug-16-2025	2.9 $*	2.94 $*
Jul-16-2025	2.90 $*	2.46 $*
Jun-16-2025	2.30 $*	2.31 $*
May-16-2025	2.43 $*	2.52 $*
Apr-16-2025	2.51 $*	2.6 $*
Mar-16-2025	2.31 $*	2.1 $*
Feb-16-2025	2.93 $*	2.61 $*
Jan-16-2025	2.15 $*	2.74 $*

Характеристики

Product Description

Product parameters
1.Name model	BS-0837-161
2. Standard test conditions
2.1 Ambient temperature	—20℃~+85℃,5%~95%RH
2.2 Relative humidity	—20℃~+45℃,5%~60%RH
2.3 Rated voltage	DC24V
2.4 Power consumption	4W(DC24V,R=144Ω±10%)
2.5 OPERATION CYCLE	pass: break = 0.05 seconds: 1 second (maximum power-on time 3 seconds power-on frequency ED 10%)
3. Appearance (facies)	no damage, crack, rust, surface stain
4. Electrical characteristics
4.1 Working voltage	DC24V±10%
4.2 Potence	Powered DC5V,iron core activity flexible.
4.3 Insulation resistancE	DC500V,≥50MΩ
4.4 High voltage	AC700V 50/60Hz-1sec, leakage current up to 1 mA (between coil and housing)
5.0 Life	200,000 times or more in normal use.


Product drawing:


Possible modifications include: modification of the force stroke characteristic, modifications of armature and plunger or custom-designed mounting-holes. Possible modifications also include individual solenoid designs for special operating voltages or specific duty cycles, as well as individual connection technologies, such as custom-made cable strands or terminals
