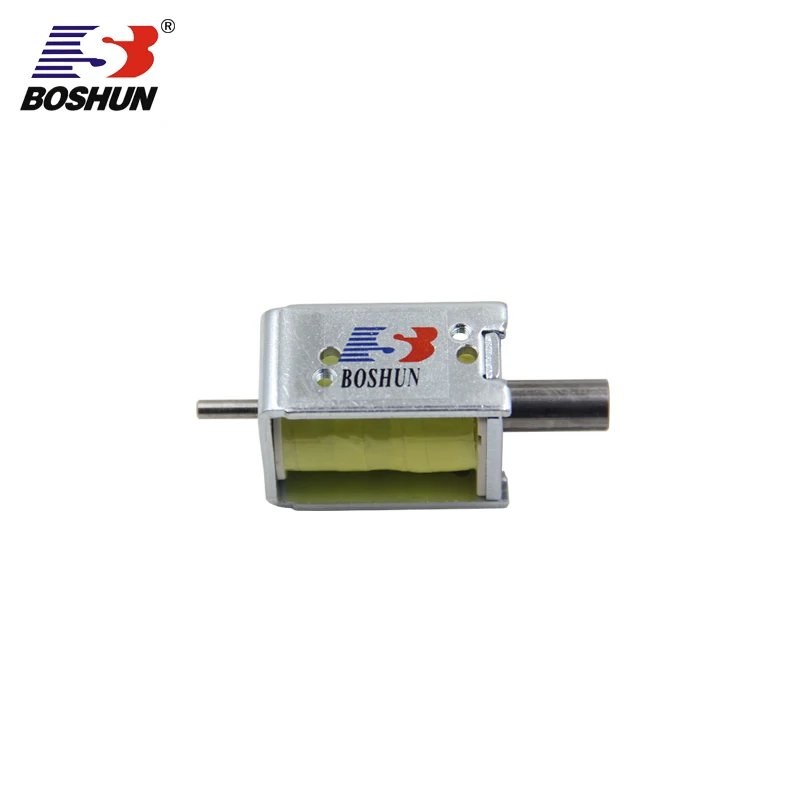

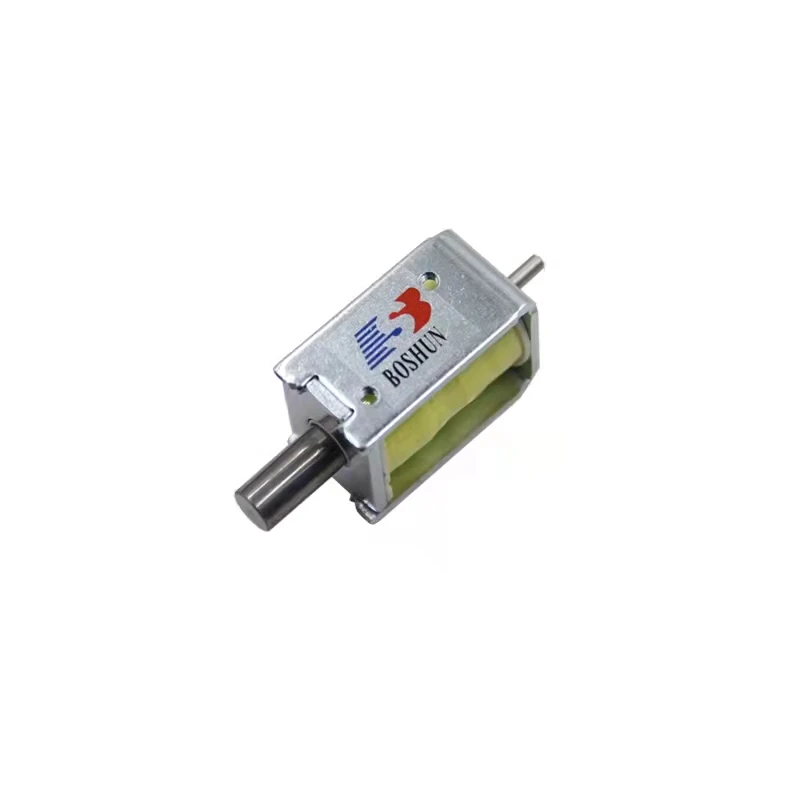

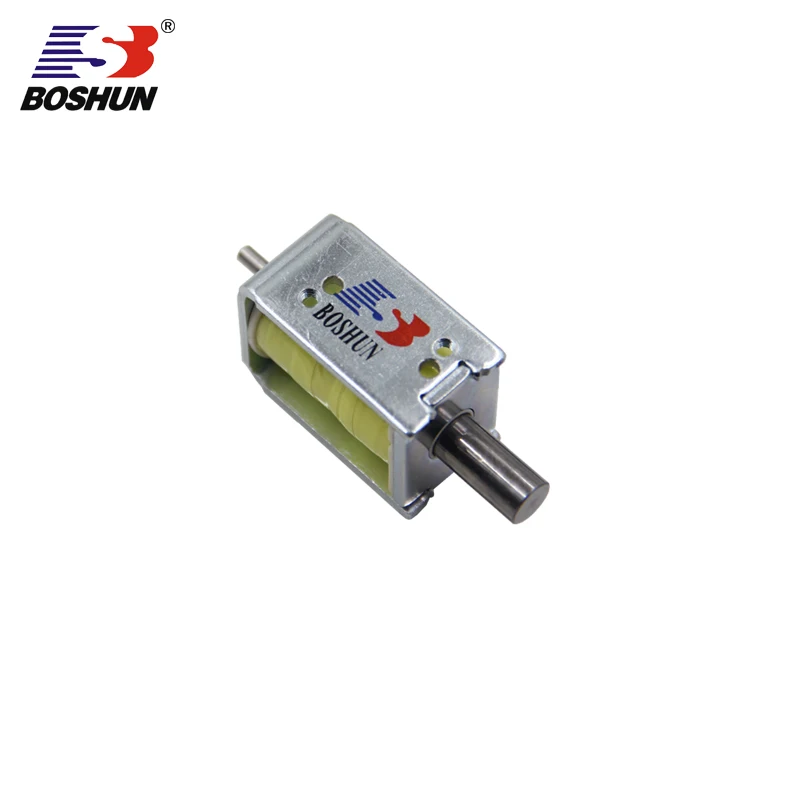

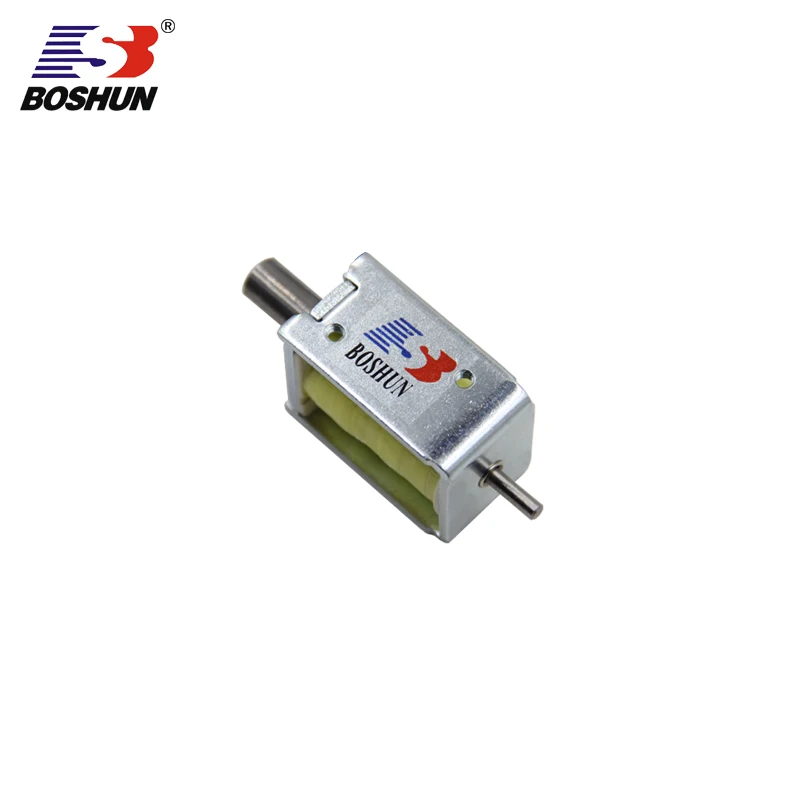

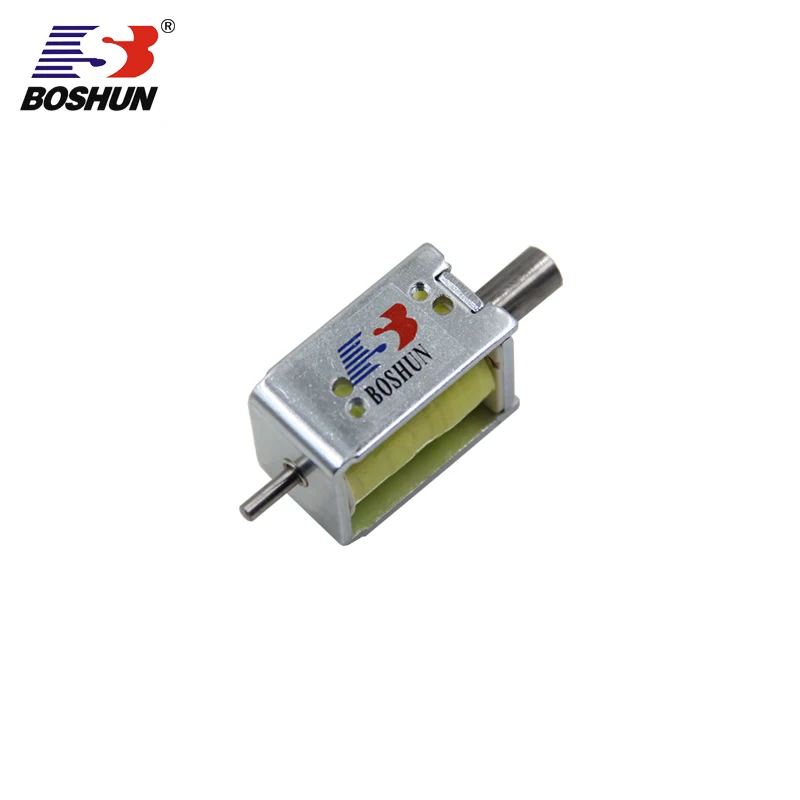

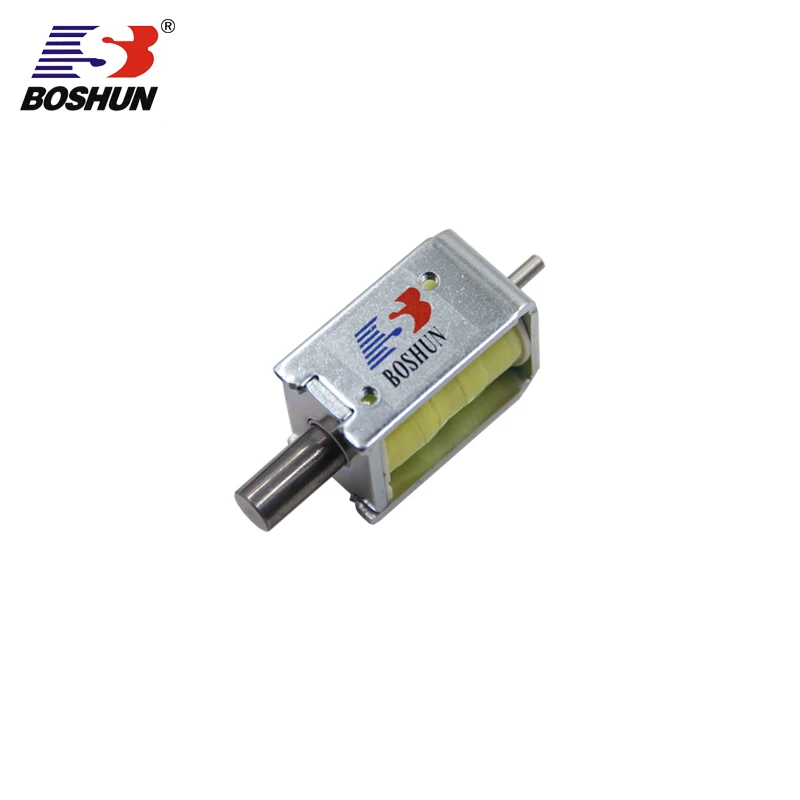

BS-0837-166 производительность Дизайн DC Линейный соленоид рамы

BS-0837-166 производительность Дизайн DC Линейный соленоид рамы

Категория: >>>
Поставщик: Dongguan,Boshun,Industry,Co.,Ltd.

Цена:2,20 $ - 2,40 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	2.81 $*	2.52 $*
Aug-16-2025	2.96 $*	2.65 $*
Jul-16-2025	2.37 $*	2.59 $*
Jun-16-2025	2.16 $*	2.69 $*
May-16-2025	2.91 $*	2.30 $*
Apr-16-2025	2.38 $*	2.7 $*
Mar-16-2025	2.23 $*	2.52 $*
Feb-16-2025	2.44 $*	2.63 $*
Jan-16-2025	2.80 $*	2.6 $*

Характеристики

Product Description

BS-0837-166 Performance design DC linear frame solenoid for cabinet BS-0837S-166(1).jpg BS-0837S-166(5).jpg

P/N	BS-0837-166
TEST	2.1 (temperature range):—20℃~+60℃,5%~95%RH 2.2 (relative humidity):—20℃~+65℃,5%~60%RH 2.3(PERATION CYCLE):on:off=0.5s:1.5s
facies	no damage, rupture, rust, or surface stain
ELECTRICAL	4.1 (working voltage):customized 4.2 (potence):5mm:≥600gf (DC12V) 4.3 (insulation resistance):DC500V,≥50MΩ 4.4 (high voltage ):AC700V 50/60Hz-1s
biometry	More than 500,000 times in the normal use state.

Product drawing:


Possible modifications include: modification of the force stroke characteristic, modifications of armature and plunger or custom-designed mounting-holes. Possible modifications also include individual solenoid designs for special operating voltages or specific duty cycles, as well as individual connection technologies, such as custom-made cable strands or terminals.
