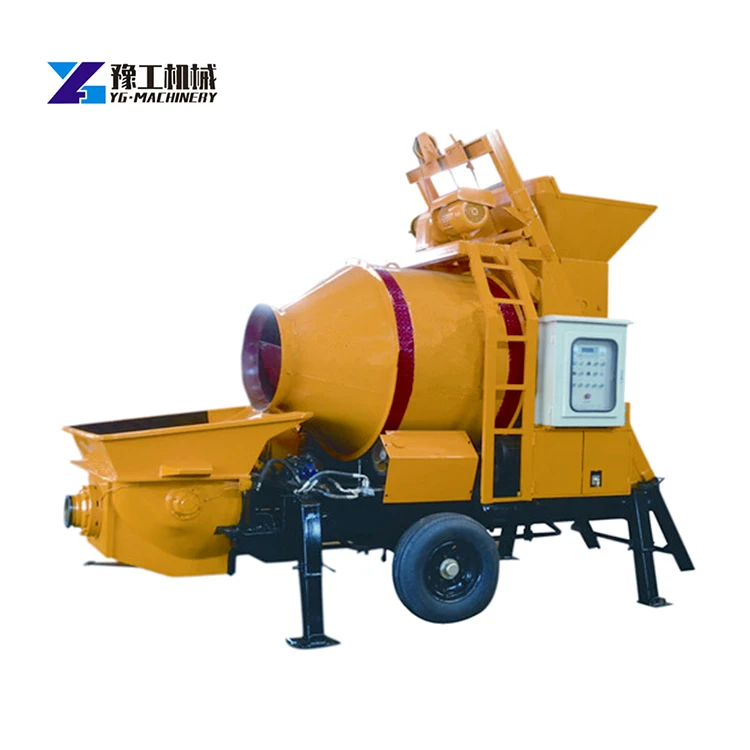

Мини-машина для бетононасоса портативный прицеп бетононасос с мешалкой

Описание и отзывы

Трекер стоимости

Характеристики

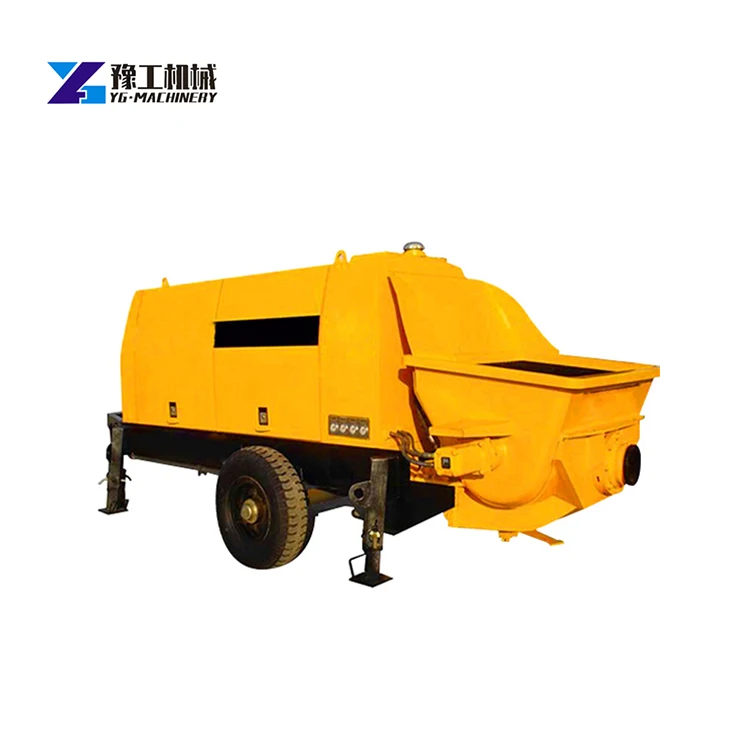

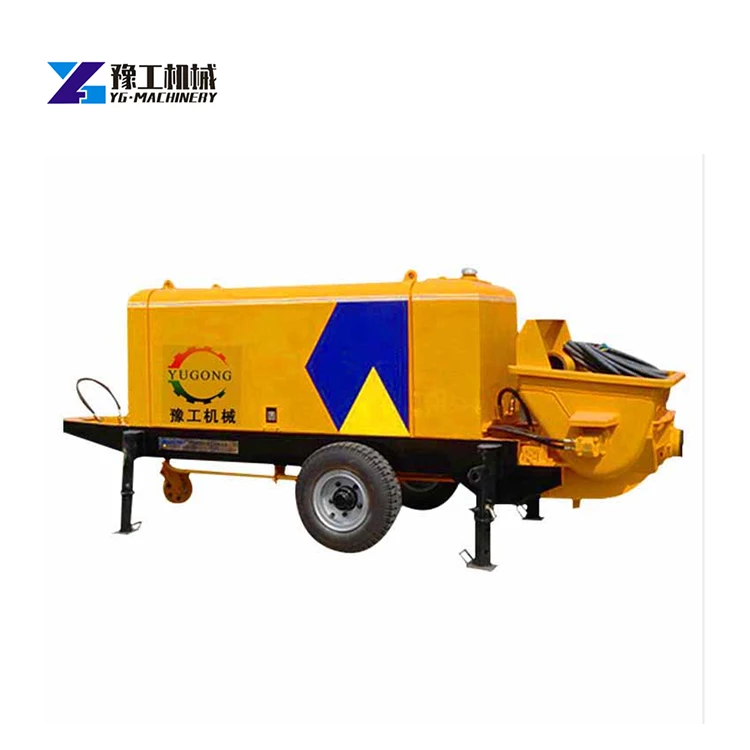

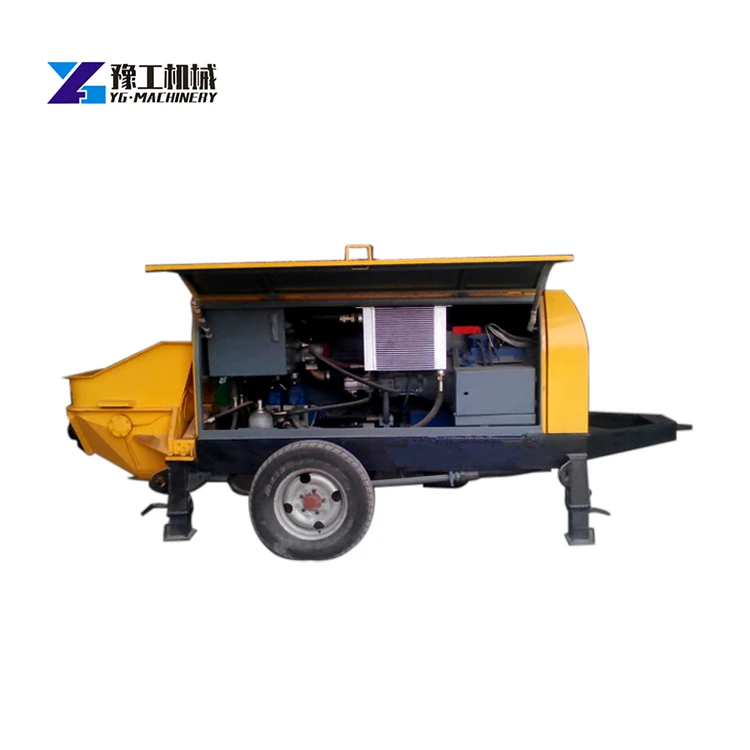

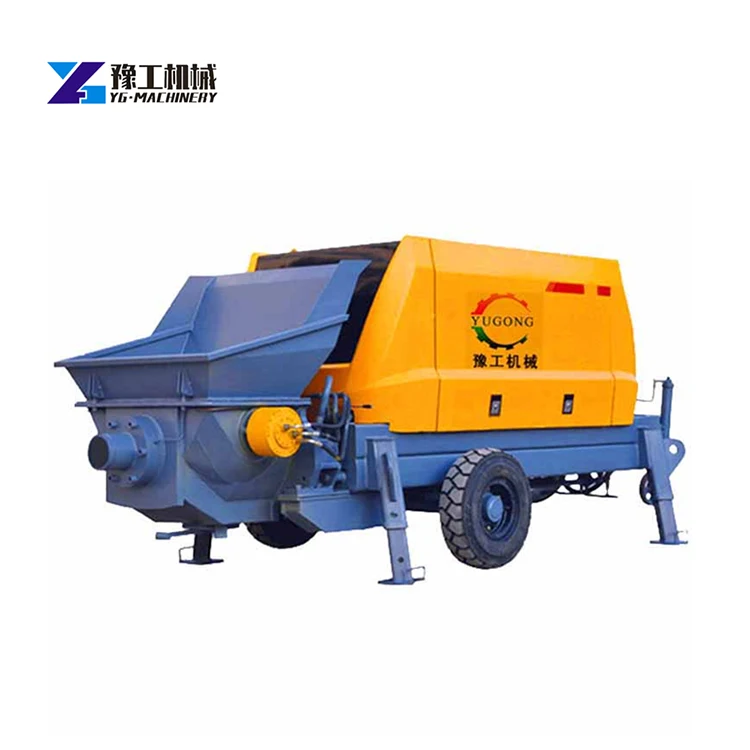

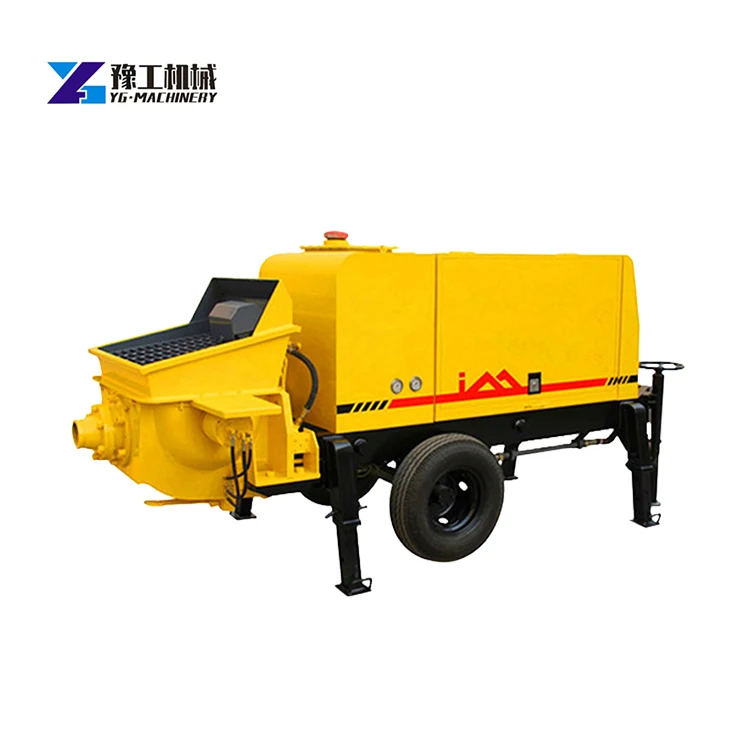

Concrete pump, consists of a pump body and a conveying pipe, is a kind of machinery that uses pressure to continuously transport concrete along pipes. It is mainly used in house construction, bridges and tunnel construction.

Feature:

1.Reliable performance, smooth operation.

2.High material suction capability, strong pumping capability.

3.Long life S pipe and wearing parts.

4.Advanced hydraulic and electrical systems, safety and reliability.

5.Intelligent control system, high efficiency.

6.Wireless remote control function, more convenient, simple operation.

Model No	HBT601390ES	HBT6016110ES	HBT801390ES	HBT8013110ES
Maximum through (m3/h)	67/43	65/41	80/53	86/60
Delivery Pressure (Mpa)	13/7	16/11	13/7	13/7
Delivery distance  V/H(m)	280/1200	350/1500	280/1200	310/1400
Distribution  valve	S-Tube valve
Conveyor cylinder  (mm)	Φ200*1600	Φ200*1600	Φ200*1800	Φ200*1800
Hopper volume  (m3)	0.8	0.8	0.8	0.8
Rated power(kw)	90	110	90	110
Rated engine  speed(r/min)	1480
Hydraulic tank  capacity(L)	500
