HC-CA004-10GM 0 4 MP

Категория: Other Optics Instruments >>>
Поставщик: Hangzhou,Huicui,Intelligent,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.61 $*	0.67 $*
Aug-16-2025	0.86 $*	0.86 $*
Jul-16-2025	0.83 $*	0.94 $*
Jun-16-2025	0.35 $*	0.75 $*
May-16-2025	0.46 $*	0.82 $*
Apr-16-2025	0.26 $*	0.47 $*
Mar-16-2025	0.82 $*	0.98 $*
Feb-16-2025	0.49 $*	0.51 $*
Jan-16-2025	0.90 $*	0.67 $*

Характеристики

Product Description

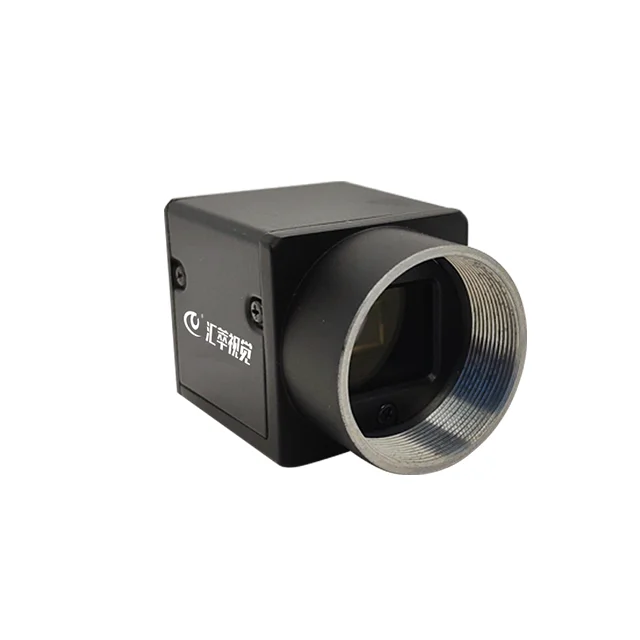

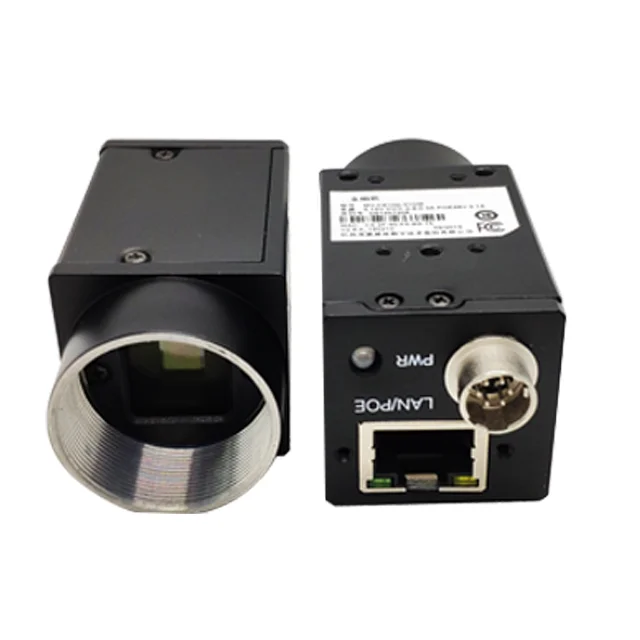

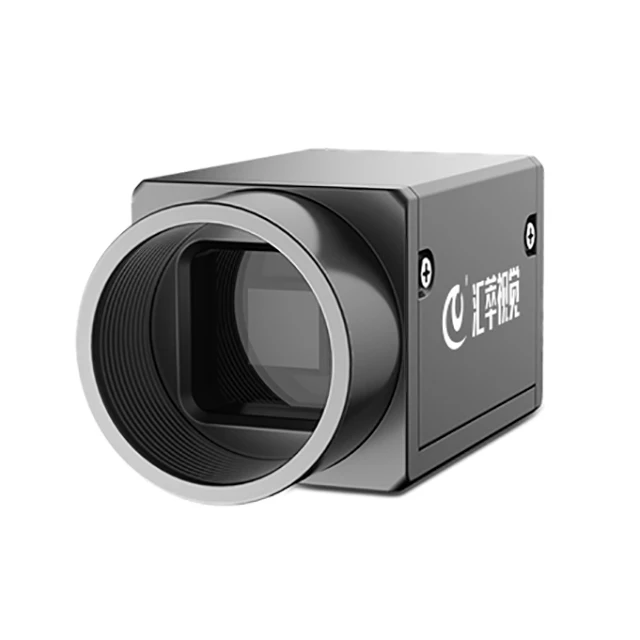

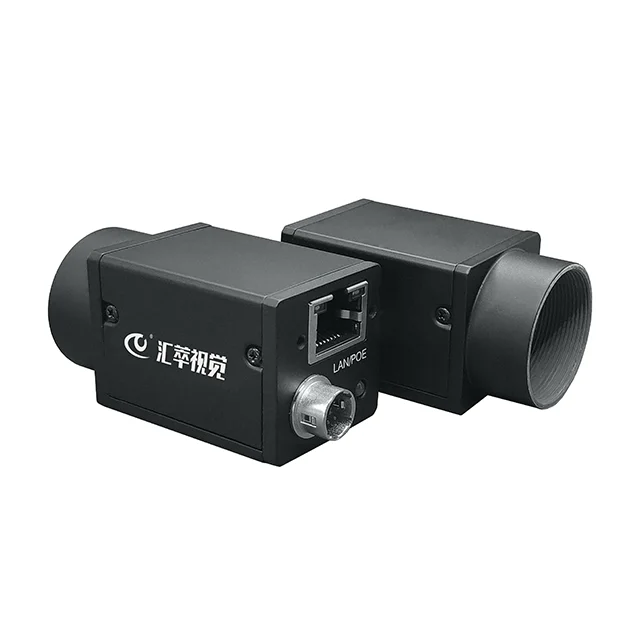

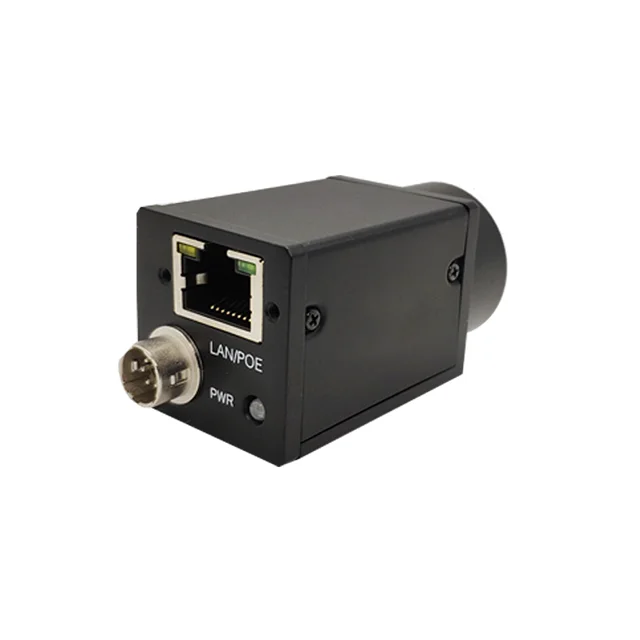

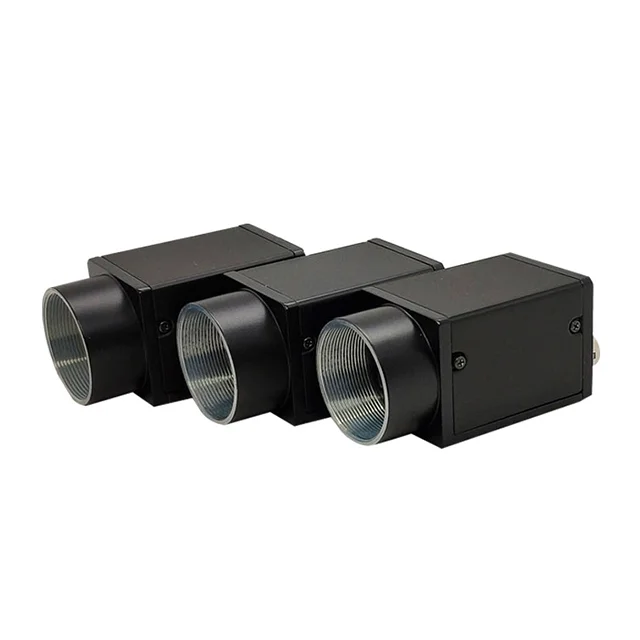

HC-040-10GM 0.4 MP 1/2.9" CMOS GigE Area Scan Camera

ASSEMBLY
Streamline Processes, Mitigate Rejections & Recalls, Advanced Throughput

PACKAGING
Package Faster, Function Efficiently, Optimize Quality, Monitor and Capture Every Line Segment

LOGISTICS
Drive Down Costs, Hold Suppliers Accountable, Enhance Automation, Increase Efficiencies

Specification

Model	HC-CA004-10GM
Type	0.4 MP 1/2.9" CMOS GigE Area Scan Camera
Sensor type	CMOS, global shutter
Sensor	IMX287
Pixel size	6.9 μm × 6.9 μm
Sensor size	1/2.9"
Resolution	720 × 540
Max. Frame Rate	312.9 fps
Dynamic range	74 dB
SNR	41 dB
Gain	0 dB to 20 dB
Exposure time	20 μs to 1 s
Shutter mode	Off/Once/Continuous exposure mode
Mono/Color	Mono
Pixel format	Mono 8/10/10p/12/12p
Binning	Not support
Decimation	Not support
Reverse image	Supports horizontal and vertical reverse image
Image buffer	128 MB
Data Interface	GigE
Digital I/O	6-pin Hirose connector provides power supply and I/O, including opto-isolated Input x1 (Line 0), opto-isolated Output x 1 (Line 1), bi-directional non-isolated I/O x 1 (Line 2)
Power supply	9 VDC to 24 VDC, supports PoE
Power consumption	Typ. 3.1 W@12 VDC
Lens mount	C-Mount
Dimension	29 mm × 29 mm × 42 mm (1.1" × 1.1" × 1.7")
Weight	Approx. 68 g (0.15 lb.)
Ingress protection	IP 30 ( only when lens is correctly mounted and cables are correctly connected)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity	20% to 80% without condensation
Client software	MVS or third-party software meeting with GigE Vision Protocol
Operating system	32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
Compatibility	GigE Vision V1.2, GenICam
Certification	CE, FCC, RoHS, KC

Application Industry

Common Processes that our Machine Vision Camera can look over.

* Filling
* Bottling
* labeling
* Sealing/Caping
* Mixing
* Palletizing/Depalletizing
* Packaging
* Case Packing
* Sorting * Molding

Packing & Delivery

Standard export packing.

Company Profile

Located in Hangzhou, Mstar Technologies, Inc is a professional manufacturer of machine vision products. We have over 6 years of experience in machine vision and have a good reputation in this field.

Quality and Safety: We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment.

Your Success, Our Glory: Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.

Certifications

Exhibition

FAQ

1. When will you ship my order?
Generally, once we get confirmation for payment, we will ship the order within 7-10 days. The specific delivery time depends on the items and the quantity of your order.
2. Does OEM/ODM available?
Yes, just let us know your details, then we can help you to design and put it into production.
3. The sample request is ok? if so, for free?
Re: MOQ is needed for a factory but one sample for testing is acceptable. We'd like to see our customer having a try on our
products. But sorry, it's not for free, you need to pay for it.
4. Driver and SDK problems?
Re: We will provide the SDK with the camera for free. And if you meet any problems when using it, just feel free to let us know.
5. How to pay?
RE: Payment Term Credit card, VISA card, e-checking, PayPal, Western Union, T/T.
6. Could I print our logo or company name on our products?
Re: Of course, we could print your logo or company name as your requirements, but you need to send us your logo certification and the certificate of authorization.
7. Shipping
We have strong cooperation with ARAMEX and UPS.
You also can choose your own shipping forwarder.
8. If you have any questions, please contact us at any time.
