Taidacent Ohm Meter Resistance Tester Ohmmeter Digital DC Resistance Measuring Instrument Fixture Resistance Measure Panel Meter
Product Description
Parameter
Power supply: DC5V/DC12V optional (current consumption is less than 50mA)
Display range: -1999 ~ 1999
Font size: 0.56 inches red L .ED
Measurement accuracy: 0.5 level ± 2 words
Temperature drift coefficient: less than 100PPM/C
Working environment: 0-50%℃; 80%RH
Dimensions: 79x43x28mm
Hole size: 76x39.5mm (±0.5~1mm)
Package type: flat right-angle frame, purple frosted window
Display range: -1999 ~ 1999
Font size: 0.56 inches red L .ED
Measurement accuracy: 0.5 level ± 2 words
Temperature drift coefficient: less than 100PPM/C
Working environment: 0-50%℃; 80%RH
Dimensions: 79x43x28mm
Hole size: 76x39.5mm (±0.5~1mm)
Package type: flat right-angle frame, purple frosted window
Specification
Range | Display range | Resolution | Input resistance |
200Ω | 0-199.9 | 100mΩ | 200Ω |
2KΩ | 0-1.999 | 1Ω | 2KΩ |
20KΩ | 0-19.99 | 10Ω | 20KΩ |
200KΩ | 0-199.9 | 100Ω | 200KΩ |

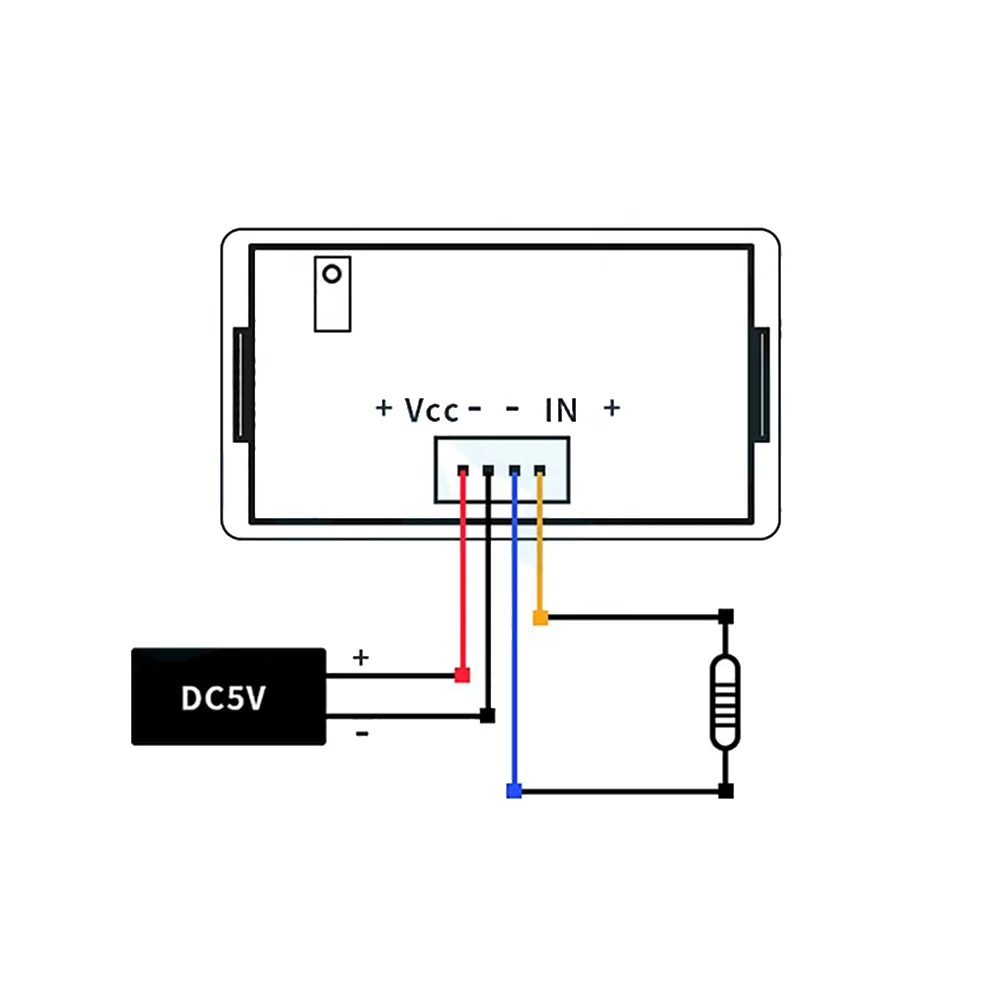

Installation Instructions
How to choose
Above 200Ω, within 2KΩ, please select 2KΩ range, resolution is 1Ω
Above 2KΩ, within 20KΩ, please select 20KΩ range, resolution is 10Ω
Above 20KΩ, within 200KΩ, please select 200KΩ range, resolution is 100Ω
Above 2KΩ, within 20KΩ, please select 20KΩ range, resolution is 10Ω
Above 20KΩ, within 200KΩ, please select 200KΩ range, resolution is 100Ω
Also we have following style, pls leave us a note which one do you want:
DC5V power supply 0-2KΩ (without back cover)
DC5V power supply 0-20KΩ (without back cover)
DC5V power supply 0-200KΩ (without back cover)
DC5V power supply 0-200Ω (without back cover)
DC5V power supply 0-2KΩ (with back cover)
DC5V power supply 0-20KΩ (with back cover)
DC5V power supply 0-200KΩ (with back cover)
DC5V power supply 0-200Ω (with back cover)
DC12V power supply 0-2KΩ (without back cover)
DC12V power supply 0-20KΩ (without back cover)
DC12V power supply 0-200KΩ (without back cover)
DC12V power supply 0-200Ω (without back cover)
DC12V power supply 0-2KΩ (with back cover)
DC12V power supply 0-20KΩ (with back cover)
DC12V power supply 0-200KΩ (with back cover)
DC12V power supply 0-200Ω (with back cover)
DC5V power supply 0-20KΩ (without back cover)
DC5V power supply 0-200KΩ (without back cover)
DC5V power supply 0-200Ω (without back cover)
DC5V power supply 0-2KΩ (with back cover)
DC5V power supply 0-20KΩ (with back cover)
DC5V power supply 0-200KΩ (with back cover)
DC5V power supply 0-200Ω (with back cover)
DC12V power supply 0-2KΩ (without back cover)
DC12V power supply 0-20KΩ (without back cover)
DC12V power supply 0-200KΩ (without back cover)
DC12V power supply 0-200Ω (without back cover)
DC12V power supply 0-2KΩ (with back cover)
DC12V power supply 0-20KΩ (with back cover)
DC12V power supply 0-200KΩ (with back cover)
DC12V power supply 0-200Ω (with back cover)
Precautions
1: This meter is a common ground instrument, non-isolated, it is recommended to use a separate power supply, that is, the power supply is not related to the signal
2: The resistance meter cannot be measured with electricity, otherwise the meter will be burnt out
3: Select a suitable range, if the range is selected too much, the small resistance cannot be recognized or the measurement is inaccurate
2: The resistance meter cannot be measured with electricity, otherwise the meter will be burnt out
3: Select a suitable range, if the range is selected too much, the small resistance cannot be recognized or the measurement is inaccurate
The meter head is a common ground instrument (that is, the negative pole of the power supply and the negative pole of the signal are connected), it is recommended to use a separate, independent, and isolated power supply (that is, the power supply and the measurement terminal are not related)
Details Images
