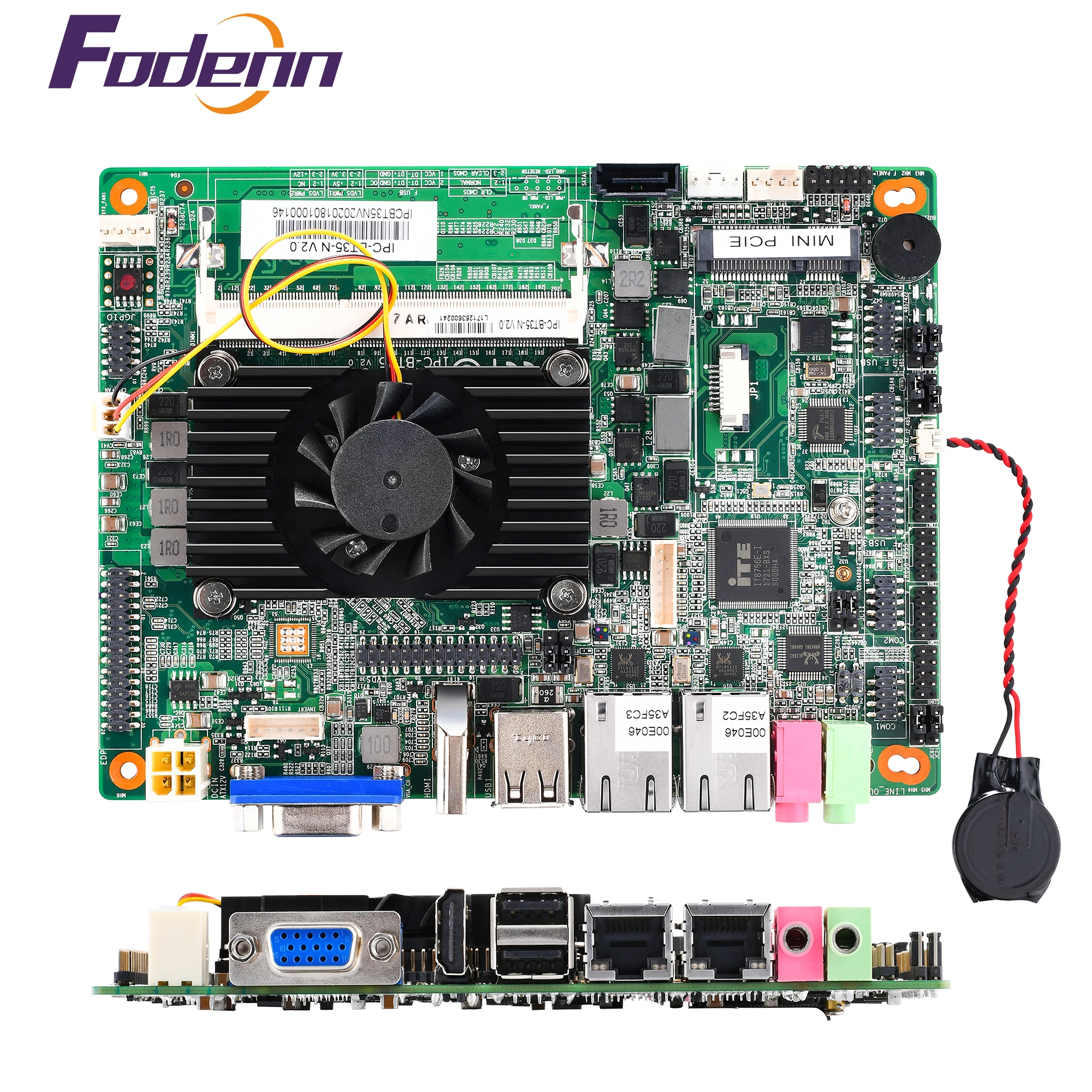

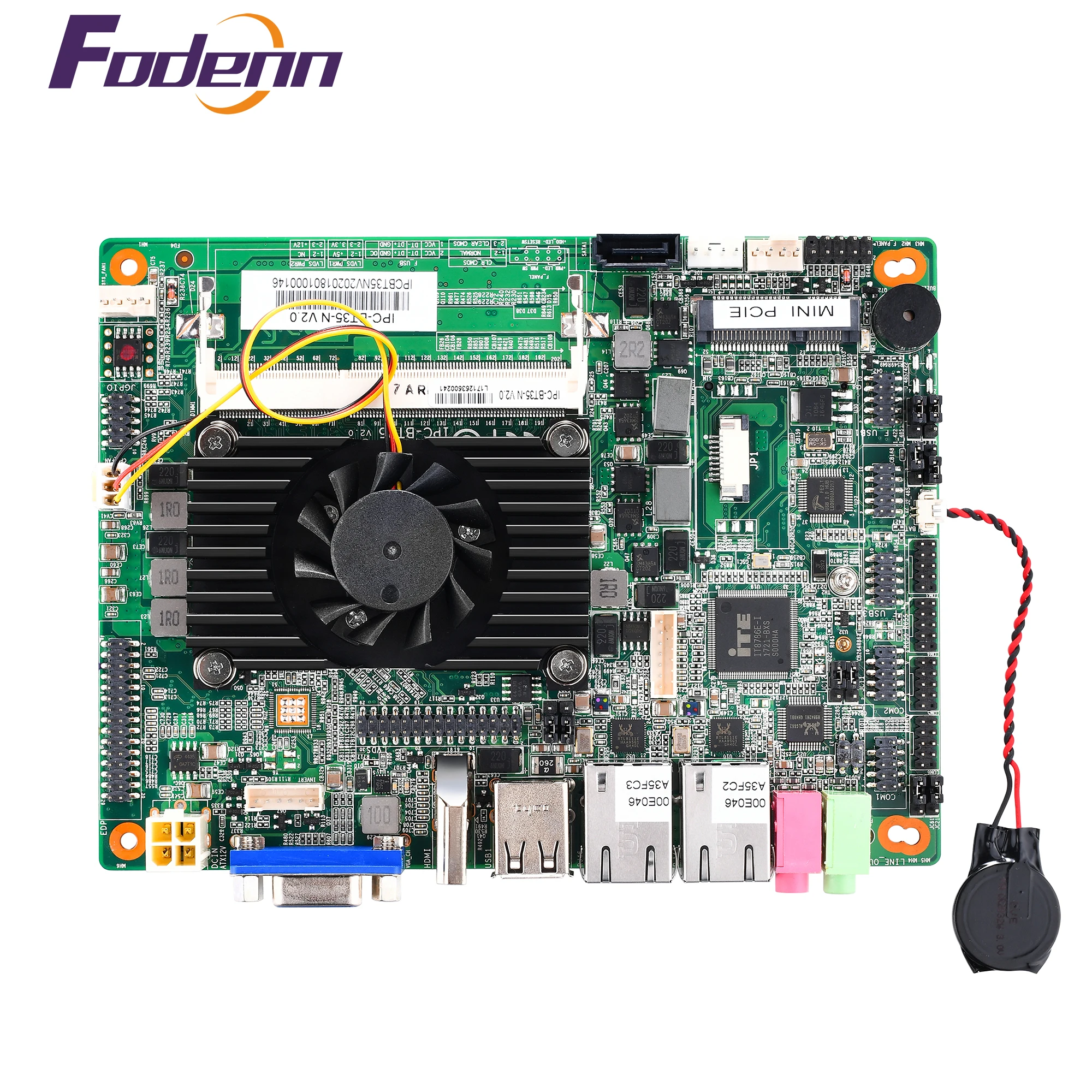

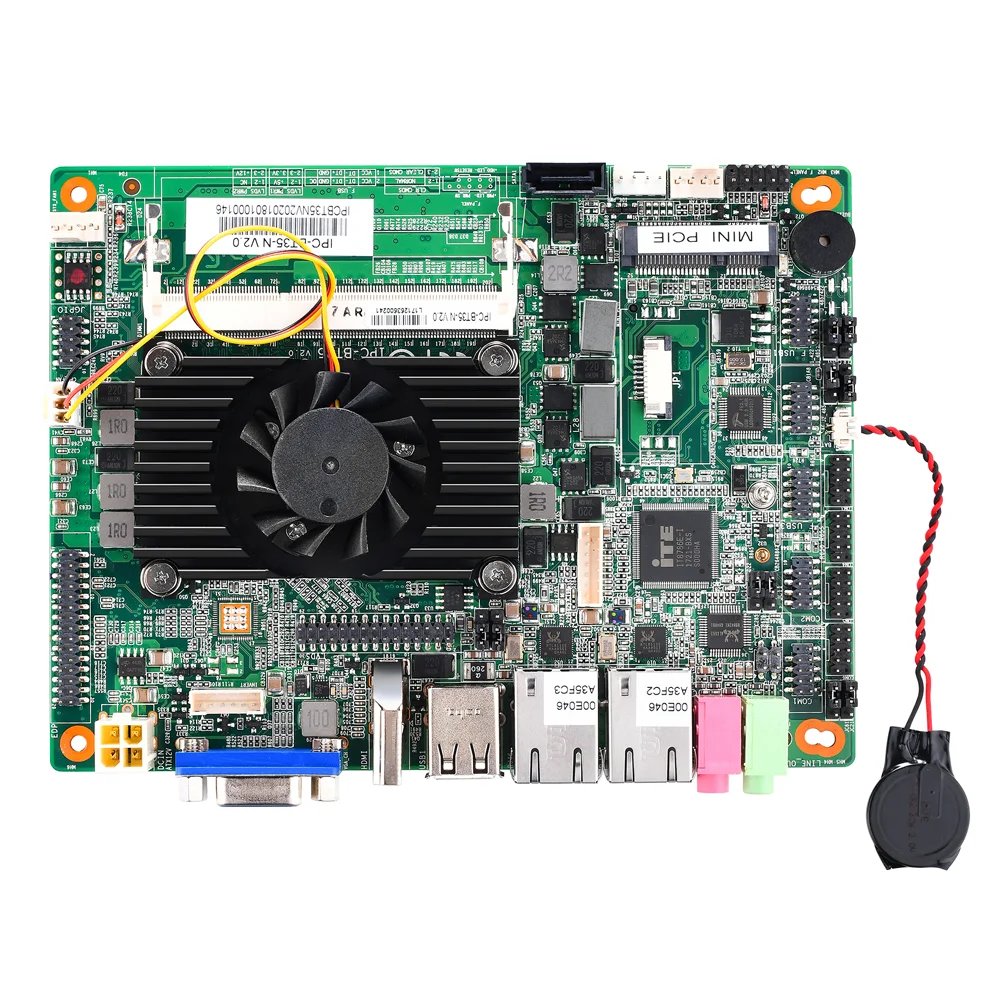

Fodenn Intel Bay Trail 3G/4G/WIFI Supported 8GB DDR3L LGA1170 LVDs X86 Low Power MINI-ITX Industrial Control
- Категория: Motherboards >>>
- Поставщик: Fodenn,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 167.6 $* | 175.92 $* |
| Aug-17-2025 | 165.72 $* | 173.29 $* |
| Jul-17-2025 | 139.73 $* | 146.62 $* |
| Jun-17-2025 | 162.96 $* | 170.80 $* |
| May-17-2025 | 141.75 $* | 148.68 $* |
| Apr-17-2025 | 160.24 $* | 168.4 $* |
| Mar-17-2025 | 158.99 $* | 166.26 $* |
| Feb-17-2025 | 157.89 $* | 165.40 $* |
| Jan-17-2025 | 155.64 $* | 163.15 $* |
Характеристики
Features
1.Intel Low-power embedded motherboard
2.SIM card expanable
3.Support DDR3L notebook memory
4.VGA, HDMI,LVDS synchronous/asynchronous
5.Support 6 COM port(COM2 Support RS422/RS485) Support 8 USB port
6.Onboard 1 MSATA port Onboard 1 MINIPCIE
2.SIM card expanable
3.Support DDR3L notebook memory
4.VGA, HDMI,LVDS synchronous/asynchronous
5.Support 6 COM port(COM2 Support RS422/RS485) Support 8 USB port
6.Onboard 1 MSATA port Onboard 1 MINIPCIE
Specification
Specifications | ||||
Processor | CPU | Intel Bay Trail J1900 2.0GHz | ||
Processor | TDP | 10W | ||
BIOS | AMI EFI 64MBIT | |||
Chipset | Bay Trail J1900 | |||
Memory | Slot/Type | 1*SO-DIMM DDR3L 1333/1600 1.35V | ||
Maximum Memory | 8GB | |||
Display | GPU | Intel HD Graphics | ||
Output Port | 1*VGA+1*HDMI +1*EDP | |||
Audio | ALC 662 | 1*LINE-OUT，1*MIC IN | ||
Network Card | RTL 8111EGigabit LAN | 2*RJ45 POE | ||
Other Functions | Watchdog | 256 levels, programmable 0-255 seconds / min | ||

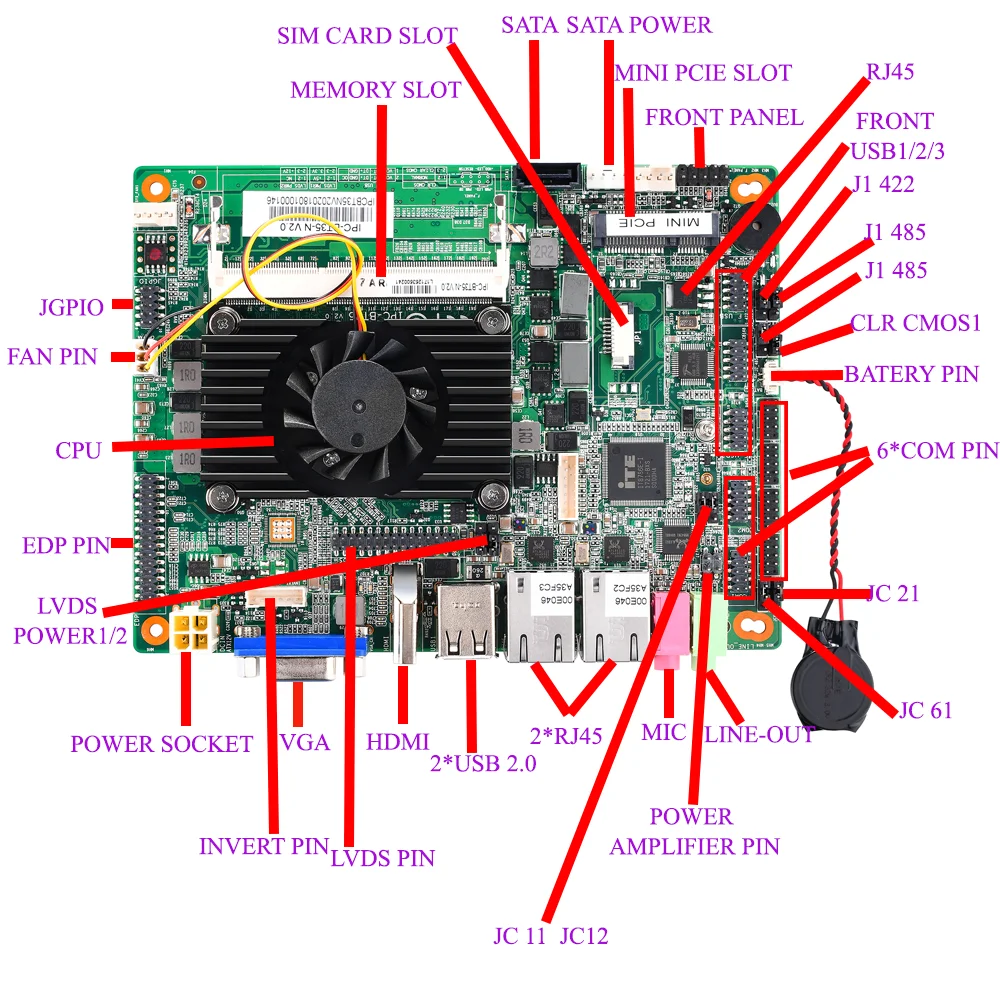

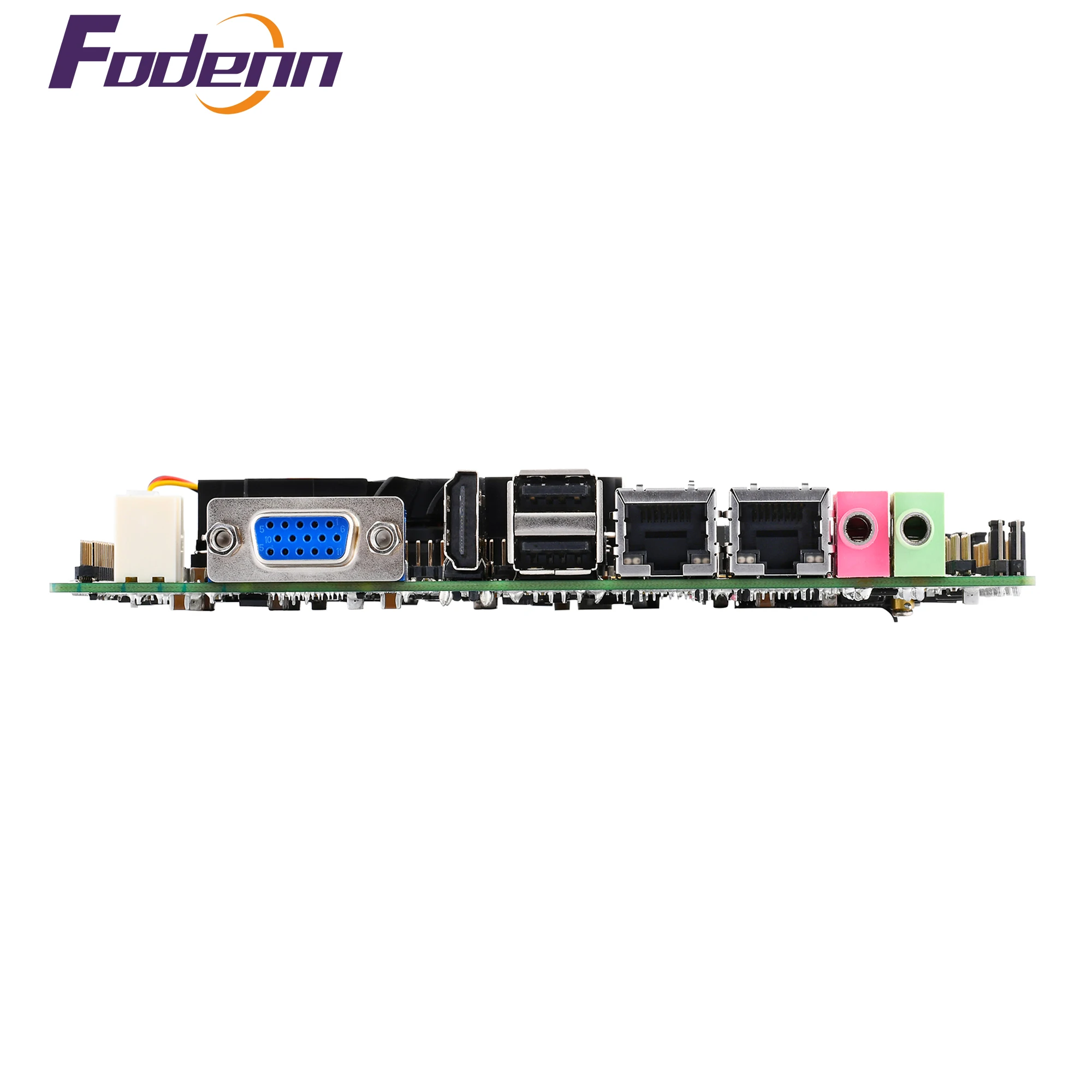

Rear I/O Port | Display Port | 1*VGA+1*HDMI | ||
LAN Port | 2*RJ45 Gigabit | |||
Rear I/O Port | USB Port | 2*USB2.0 Port | ||
Audio Port | 1*LINE-OUT,1*MIC IN,Support Amplifier | |||
Power Port | 1*DC 8-36V Wide voltage | |||
USB Pin | 3*USB 9PIN | |||
1*EDP Pin | NONE | |||
LVDS Pin | 1*24 bit double channel LVDS pin | |||
Expandable Port | MINI-PCIE | 1*full length MINI-PCIE expandable MSATA | ||
1*full length MINI-PCIE expandable 3G/4G/WIFI | ||||
COM Pin | 1-2*COM 2X5KEY10 2.0 pin, COM3-6 is a combination pin, COM2 supports RS422/RS485 | |||
Storage | SATA Port | 1*SATA2.0，1*MSATA | ||
Physical parameters | ||||
Operating System | WIN7,WIN8，WIN8.1，LINUX，UNIX | |||
Dimensions | 154.8MM*117.4MM | |||
Environment | Operating Temperature: 0-60℃ | |||
Relative Temperature:0-95%RH | ||||
Product Description
Company Profile
Fodenn Electronics Technology Co.,Ltd.
Fodenn electronic technology Co., Ltd is a high-tech enterprise integrating R&D, design, production, sales and after-sales service
, and a global leading provider of high-performance computing technology across multiple embedded industries
Fodenn manufacturing R&D center covers an area of 20000 square meters, other than a complete set of automatic assembly line, there
are 8 automatic DIP lines, 12 automatic SMT lines, 6 automatic packaging lines, 6 test lines and 2 automatic aging lines.
Fodenn provides customers with various types of industrial motherboard, industrial computer, industrial panel PC, multi-function
all-in-one kiosk, etc.
Fodenn’s products are widely used in intelligent manufacturing, financial terminals, medical information, digital signage,
government information, cloud storage and other scenarios.
As a member of Intel IoT Solutions Alliance, Fodenn has provided customers with more than 1000 kinds of solutions, completed the
product customization as fast as 35 days, to meet various needs of customers. Fodenn will keep focusing on Intel product solutions
and provide more innovative application scenarios..
, and a global leading provider of high-performance computing technology across multiple embedded industries
Fodenn manufacturing R&D center covers an area of 20000 square meters, other than a complete set of automatic assembly line, there
are 8 automatic DIP lines, 12 automatic SMT lines, 6 automatic packaging lines, 6 test lines and 2 automatic aging lines.
Fodenn provides customers with various types of industrial motherboard, industrial computer, industrial panel PC, multi-function
all-in-one kiosk, etc.
Fodenn’s products are widely used in intelligent manufacturing, financial terminals, medical information, digital signage,
government information, cloud storage and other scenarios.
As a member of Intel IoT Solutions Alliance, Fodenn has provided customers with more than 1000 kinds of solutions, completed the
product customization as fast as 35 days, to meet various needs of customers. Fodenn will keep focusing on Intel product solutions
and provide more innovative application scenarios..
